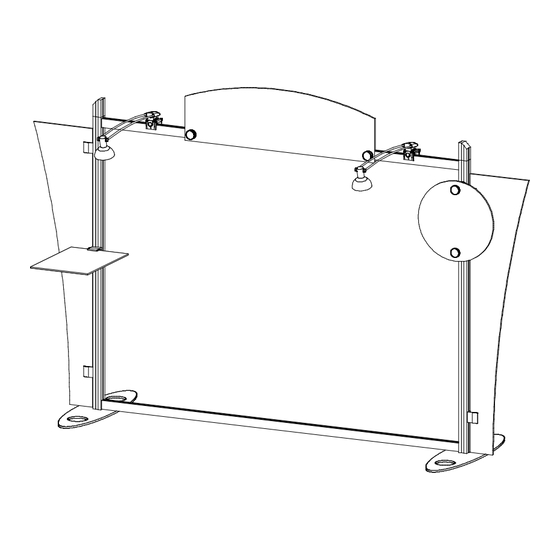

- Page 1 © 2024 Order #XXXXX VK-1291 - Table Top Display Top View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2024 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 3 © 2024 Order #XXXXX Case Packing Top View of Each Level Base Plates Graphics Header, wing panels & round sign Lights Connection Bars Setup Hardware Plex Shelf Level 1 (Bottom) Level 2 Level 3 Case 1 of 1...
- Page 4 © 2024 Order #XXXXX Backwall Assembly Steps: Item Description 1. Attach vertical extrusions [2 and 3] to base plates [1]. Base Plate 2. Connect horizontal extrusions [4a to 4b and 5a to 5b] together using connection bars. 42” Square Vertical Extrusion 3.
- Page 5 © 2024 Order #XXXXX Attachments Steps: 1) Attach Header to upper Horizontals, using Screw Caps. 2) Attach Wing Panels and Shelf to A10 clamps. 3) Attach Sign to Vertical Extrusion [3]. See Sign Attachment detail. 4) Connect Lights to top Horizontals, where desired. See Light Connection detail.
