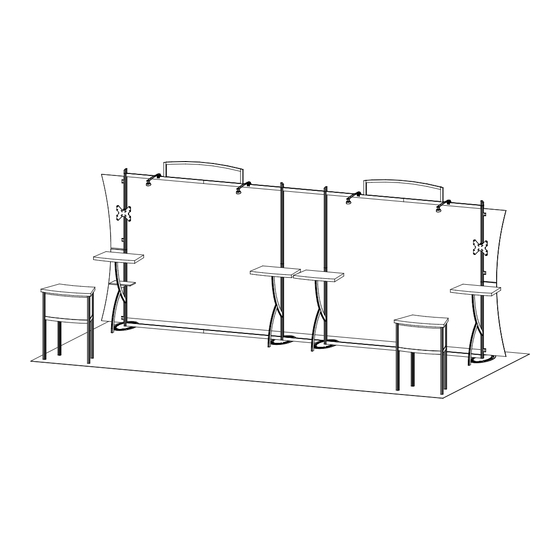

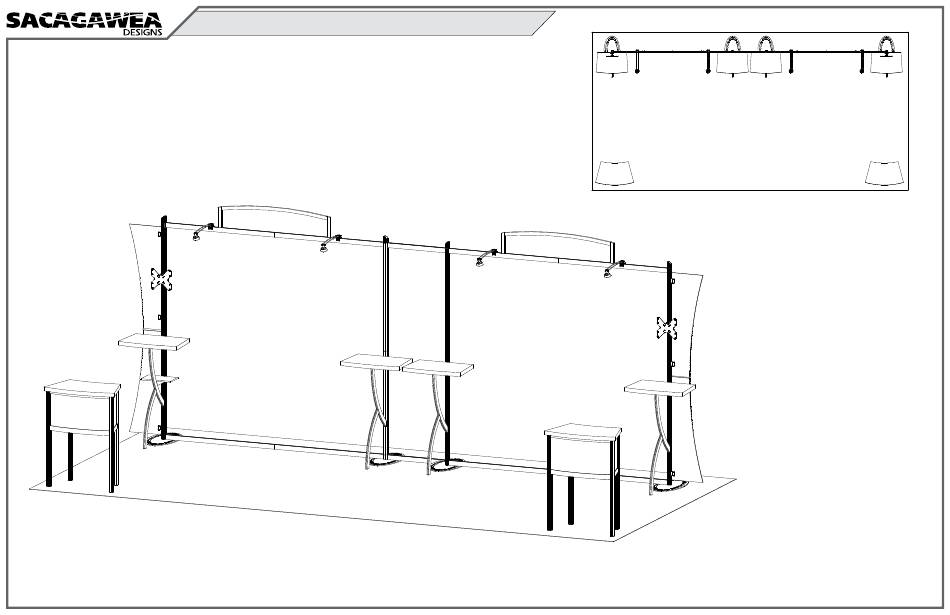

- Page 1 © 2024 Order #XXXXX VK-2111 - 10’ x 20’ Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2024 Order #XXXXX Plan View = 1 sq foot...
- Page 3 © 2024 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
- Page 4 © 2024 Order #XXXXX Counter Assembly Completed Assembly Bottom view of counter Counter Bolt Bolt Mounting Plate Mounting w/ Wing Nuts Plate 2) Mounting plate bolt in, 3) Place mounting plate onto 1) Mounting plate & wing nuts, packed position. [10] then tighten bolt, part in packed position.
- Page 5 © 2024 Order #XXXXX Case Packing Top View of Each Level Wing Panels Lights Assembled Header Base Base Plates Plates Graphics Setup Hardware Counter Counter Shelf Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 1 of 4...
- Page 6 © 2024 Order #XXXXX Case Packing Top View of Each Level Wing Panels Assembled Header Monitor Mount Base Base Plates Plates Monitor Mount Counter Counter Level 2 Level 1 (Bottom Level) Level 3 Level 4 Case 2 of 4...
- Page 7 © 2024 Order #XXXXX Case Packing Top View of Each Level Front Infill Assembled Assembled Pedestal Pedestal Side Side Shelf Counter Top Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 3 of 4...
- Page 8 © 2024 Order #XXXXX Case Packing Top View of Each Level Front Infill Assembled Assembled Pedestal Pedestal Side Side Shelf Counter Top Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 4 of 4...
- Page 9 © 2024 Order #XXXXX Backwall Assembly Item Qty. Description Steps: Base Plate 1) Attach base plates [1] lower verticals [2A] [3A] [2C] and [3C], using bolts. 2A,2B 42” S40 Vertical Extrusion w/ A10 Clamps 2) Connect verticals [2A to 2B] [2C to 2D], [3A to 3B] and [3C to 3D], using 3A,3B 42”...
- Page 10 © 2024 Order #XXXXX Backwall Attachments Item Qty. Description Steps: 7/8/9 2/2/2 Header Frame 1) Connect lights to top horizontal extrusions. See Light Connection detail. 30.2” Curved Extrusion 2) Attach assembled Header Frames and affix graphics using Velcro. Support Leg 3) Attach extrusions [10/11] to verticals [2A], [2C], [3C] &...
- Page 11 © 2024 Order #XXXXX MOD-1243 Pedestal Assembly Item Description 38” S40 Vertical Extrusion 2,2A 12” Z45 Horizontal Extrusion 25” Z45 Horizontal Extrusion Steps 1) Attach horizontals [2] and [2A] between verticals [1], with infills between. 2) Attach curved horizontals [3] between front verticals [1], with infill between. 3) Place shelf on lip of extrusions [2].
