MOOKA M05 Manual

PRODUCT TECHNICAL FEATURES

Purification technologies
The multi-functional filter is composed of pre-filter, HEPA layer and activated carbon layer

Air purification process

PARTS TO INTRODUCE

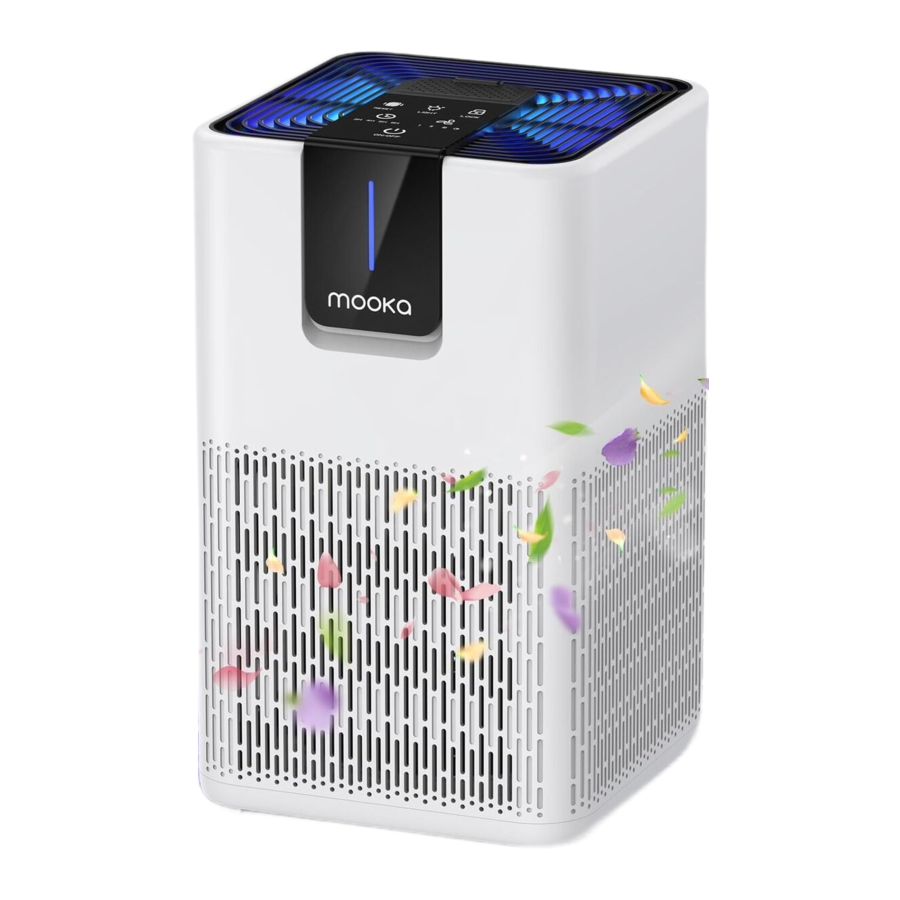

Appearance diagram

Diagram of Control Panel

OPERATION INSTRUCTIONS BEFORE USE

PLACEMENT

• Make sure the appliance is placed a east 30cm away from any wall or piece of furniture. Do not position the appliance direct y under furniture or objects that may obstruct the exhaust air flow
• Do not use the appliance near any source of heat

REPLACE THE FILTER

• Replace the filter and reset
  The filter replacement indicator will light up when cumulative running time reaches 1440hrs
  Please replace the filter with a new one Then, press and hold the reset button for approximately 3 seconds to reset the filter's lifetime counter, and the filter replacement indicator will turn off

REMOVE THE FILTER

1. Switch off and unplug the appliance, then invert the equipment

2. Rotate the base cover counter-clockwise to take out the filter

3. Remove the filter as soon as the base cover will be opened


INSTALL THE FILTER

1. Please remove the new filter protective film before installation

2. Rotate the base cover clockwise properly until the filter is installed securely


External power supply

• DC Adapter


• Please do not mistakenly connect the external power source different from the power adapter specification of this machine, and firm y insert the plug into the power socket
• Connect the power, the power adapter's DC plug into the machine's DC socket, and then plug the power adapter into the AC socket
• When power is cut off, first unplug the AC plug of the power adapter, and then unplug the DC plug from the unit

Aroma

• A replaceable aroma pad is included in the aroma tray on the top dir outlet, where you can put a few drops of essential oil (not included) This allows you to breathe in fresh air and relax yourself!

INSTRUCTIONS FOR USE

The power setting

• After power-on, the machine emits a beep sound for about 1 second, all lights on the display screen are on for self-check After the self-inspection is completed, all the displays are off and enter the standby mode
• In standby mode, touch the top power switch to turn on, the wind speed key is on by default after power on, and the ow speed indicator is on The fan runs at ow speed and the atmosphere light is on Touch the top power switch again to turn off and the machine enters the standby mode.


Child Lock setting

• Press and hold the LOCK Button for 3 seconds to enter the child lock state The child lock light is on, and all buttons are Invalid Press and hold the LOCK button again for 3 seconds to exit the child lock state, and all buttons will resume normal functions


Fan Speed Setting

• When entering sleep mode, al lights will be automatically switched off, except for the sleep mode indicator light, if there is no operation within 10 seconds. Deactivate sleep mode by pressing any button

Time setting

• Touch Time Setting Panel to Setting Time

Filter Replacement Indicator

• The filter reminder lights up indicates it is time to replace the filter, Remove the plastic bag of the new filter and install the filter correctly Press the filter reminder button for 3 seconds to reset the machine

Night light button

• Press this button to switch on/off the ambient light mode Air purifiers with light have a multi-sensory effect to soothe your mind and body

CLEANING

CLEANING AND CARE
Please remove plug from the socket before cleaning and maintenance

• Cleaning the body for this device by damp cloth, then wipe it dry
• If the machine is too dirty, neutral detergent can be used for cleaning, but please dilute the detergent before use,
• Do not clean the unit with the solvent listed on the right which may cause distortion or discolour.

TROUBLE SHOOTING

If the problem is still exsted after above inspections, please disconnect the power and contact our customer for repair.

TECHNICAL PARAMETERS

PARAMETERS OF THE UNIT

Model No.:	M05
Power supply:	12V DC
Net Weight:	1.5KGS
Noise level dB(A):	13-50dB
The length of power cable:	1.2m
Power consumption (W):	10W
Dimensions (wxdxh):	170x170x285 (mm)

FILTER PARAMETERS

Size	135x81x148h (mm)
Life time	1440H

IMPORTANT SAFEGUARDS

	Please supervise your children and avoid them from touching or using machine.
	Do not connect or disconnect the power with wet hand. It may cause electrical shocking
	Do not disassemble, repair or reconstruct. It may cause fire or damage. Please contact the seller for replacement.
	Do not use over-limit sockets or wiring connectors. Please use the rated voltage. It may cause a fire,
	Do plug the power into the socket completely. It may cause fire because of heating or electrical shocking. Do not use the damaged plug or loose socket.
	Avoid any water on the surface of the unit. It may cause short circuit or electrical shocking.
	The appliance must be disconnected from the supply mains before cleaning or other maintenance. Otherwise, the unit may start working in a sudden, which may cause electrical shocking or hurt.
	Do not insert any metal objects into the unit, it may cause hurt or electric shocking.
	Do not repair it when the cord or plug is damaged. It may cause short circuit, electric shocking or fire. Please contact the retailer for replacement.
	If there is dust on the plug, it may weaken the insulation and even cause a fire. Take out the plug and clean it with dry cloth. Please remove the plug from the socket if not using for a long period.

ATTENTION

	Do not use in the room with a gas stove. It may cause hurt because the machine is not a ventilator
	Do not place the unit near fires. It may cause fire.
	Do not use in the watery or high temperature room such as the bathroom etc Otherwise it may cause creepage, electric shocking or fire.
	Please hold the plug instead of the cord when unplug the power. Otherwise, it may cause short circuit, breaking of the cord, electric shocking or fire
	Keep away from alcohol, organic impregnant. It may cause cracking, short circuit, electric shock, injury or fire
	Please ventilate timely when used with fire in the room
	Please remove the plug from the socket if any conditions as below: If all switches do not work If the power cord or plug hot singularly If any peculiar smell, exceptional noise or vibration Any other abnormality or failure If the power cord is damaged, please send it to the retailer or service center or technician for repairing. Do not change or repair it by yourself.
