MOOKA M03 Manual

PRODUCT TECHNICAL FEATURES

The multi-functional filter is composed of pre-filter, HEPA layer and activated carbon layer.

DIAGRAM OF PURIFICATION

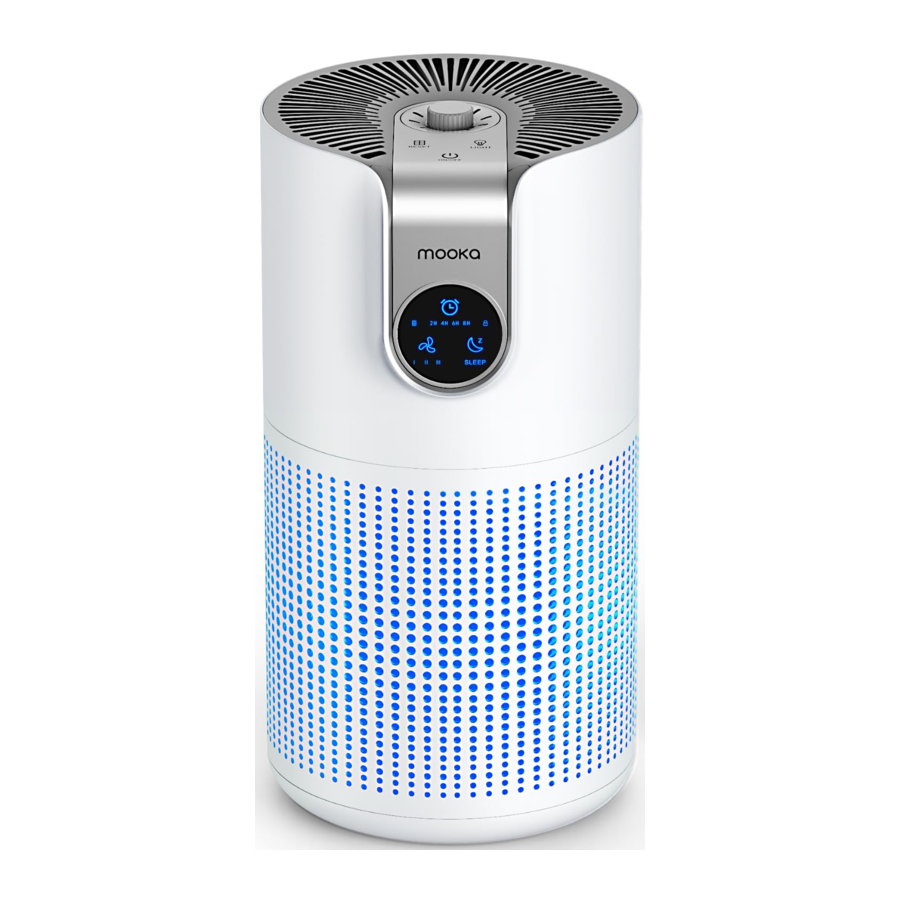

PRODUCT APPEARANCE DIAGRAM

PART INTRODUCTION

USE AND OPERATION

PLACEMENT

Make sure the appliance is placed at least 30cm away from any wall or piece of furniture. Do not position the appliance directly under furniture or objects that may obstruct the exhaust air flow.
Do not use the appliance near any source of heat.

REPLACE THE FILTER

Replace the filter and reset.
The filter replacement indicator will light up when cumulative running time reaches 1440hrs. Please replace the filter with a new one. Then, press and hold the reset button for approximately 3 seconds to reset the filter's lifetime counter, and the filter replacement indicator will turn off.

REMOVE THE FILTER

Switch the appliance off and unplug it.
Invert the equipment.
Rotate the base cover counter-clockwise to take out the filter.
Remove the filter as soon as the base cover will be opened.

INSTALL THE FILTER

Please remove the new filter protective film before installation.
Rotate the base cover clockwise properly until the filter is installed

EXTERNAL POWER SOURCE
Suitable Voltage: 24V

INSTRUCTIONS FOR USE

POWER SETTING

All the indicator lights will be on for 1 second for self-checking after connecting power, then enter standby mode. The pictures below are for reference.
To turn on or switch off the appliance, press the power button while in standby mode.

FAN SPEED SETTING
Press the fan speed button to select the fan speed: low, medium, high.

TIMER SETTING

Press the timer button to set the working time.

Use the control lock to temporarily lock the control panel and deactivate the function buttons. To turn on or deactivate the child lock, press and hold the child button on the top control panel for approx. 3 seconds. Child lock indicator light on the display will eight light up or be switched off accordingly

The filter replacement indicator will light up when the cumulative running time reaches 1440 hours. Please replace the filter with a new one. Then, press and hold the reset button for approximately 3 seconds to reset the filter's lifetime counter, and the filter replacement indicator will turn off.

SLEEPING MODE

To turn on or deactivate sleep mode by pressing sleep button. Sleep mode sets the appliance to the lowest speed setting with fan speed indicator light switched off and sleep mode indicator light turned on.

USE AMBIENT LIGHT FUNCTION

Press ambient light button to turn on or switch off the ambient light

CLEANING AND CARE

MAINTENANCE AND CLEANING METHODS
Please remove plug from the socket before cleaning and maintenance.

Cleaning the body for this device by damp cloth, then wipe it dry.
If the machine is too dirty, neutral detergent can be used for cleaning, but please dilute the detergent before use.
Do not clean the unit with the solvent listed on the right which may cause distortion or discolour.

FAQ

If the machine can't work properly, please kindly check as below before you send it out for repair

Problem	Checking methods	Possible solution
Do not work	Please check if the plug is disconnected from the socket,	Power plug should be plugged properly
Odor can not be re moved	Is there a very strong odor in the using environment? (Notes air should be purified continuously)	It is recommended to ventilate first and then turn on the machine
Odor can not be re moved	Does the using life time for filters Come to the end?	Please replace the used filter With a new one.
High noise	Is the PE bag for filter removed?	Please take out filter and tear Off PE bag.
High noise	Does the using life time filter. Come to the end?	Please replace the used filter with a new one.

If the problem is still exsted after above inspections, please disconnect the power and it for repair

PARAMETERS OF THE UNIT

PARAMETERS OF THE UNIT

Model No.:	M03
Voltage Supply:	24V
Power consumption(w):	22W
Net Weight:	1.75kg
Dimensions(wxdxh):	191x191x363 mm

FILTER PARAMETERS

Item name	Dimensions(wxdxh)	Life time
High efficiency composite filter	158158186 (mm)	1440H

IMPORTANT SAFEGUARDS

In order to prevent harm or damage happened to users or others, be sure to comply with the requirement as below:
WARNING/ATTENTION

It reminds that misusing or mishandling may cause death.
ATTENTION
It reminds that misusing or mishandling may cause hurt.

FORBID
warning FORCE
Unplug or disconnect the appliance from the power supply before servicing.

To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons, Do Not Use Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts Made At Horne Using A 3D Printer)

	Please supervise your children and avoid them from touching or using machine.
	Do not connect or disconnect the power with wet hand. It may cause electrical shocking.
	Do not disassemble, repair or reconstruct. It may cause fire or damage. Please contact the seller for replacement.
	Do not use over-limit sockets or wiring connectors. Please use the rated voltage. It may cause a fire.
	Do plug the power into the socket completely. It may cause fire because of heating or electrical shocking. Do not use the damaged plug or loose socket.
	Avoid any water on the surface of the unit. It may cause short circuit or electrical shocking.
	The appliance must be disconnected from the supply mains before cleaning or other maintenance. Otherwise, the unit may start working in a sudden which may cause electrical shocking or hurt.
	Do not insert any metal objects into the unit. t may cause hurt or electric shocking.
	Do not repair it when the cord or plug is damaged. It may cause short circuit, electric shocking or fire. P ease contact the retailer for replacement.
	If there is dust on the plug, it may weaken the insulation and even cause a fire. Take out the plug and clean it with dry cloth. P ease remove the plug from the socket if not using for a long period.

warning ATTENTION

	Do not use in the room with a gas stove. It may cause hurt because the machine is not a ventilator.
	Do not place the unit near fires. It may cause fire.
	Do not use in the watery or high temperature room such as the bathroom etc. Otherwise it may cause creepage, electric shocking or fire.
	Please hold the plug instead of the cord when unplug the power. Otherwise it may cause short circuit, breaking of the cord, electric shocking or fire.
	Keep away from alcohol, organic impregnant. It may cause cracking, short circuit, electric shock, injury or fire.
	Please ventilate timely when used with fire in the room.
	Please remove the plug from the socket if any conditions as below: If all switches do not work If the power cord or plug hot singular If any peculiar smell, exceptional noise or vibration. Any other abnormality or failure If the power cord is damaged. Please send it to the retailer or service center or technician for repairing. Do not change or repair it by yourself.
