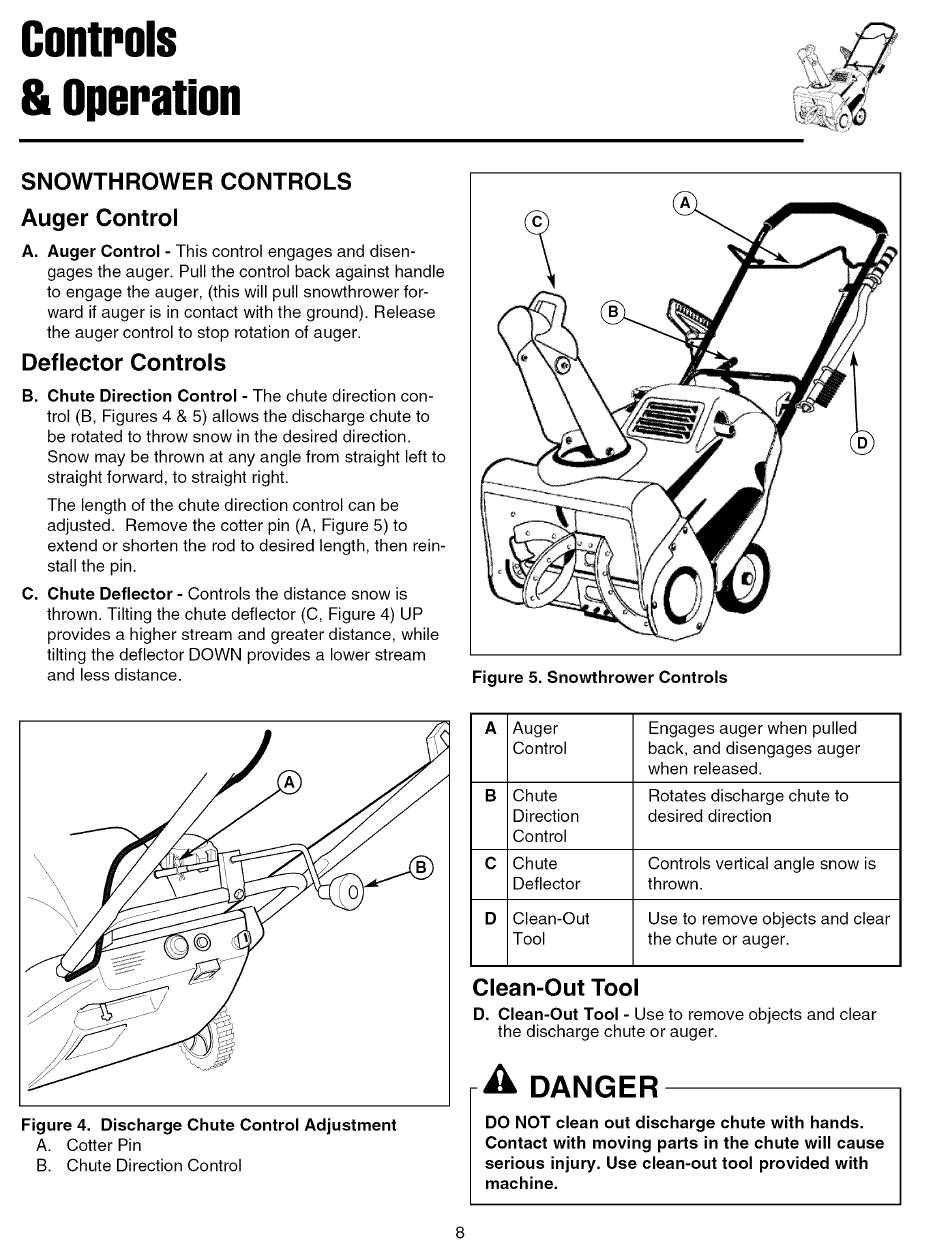

Controls And Operation; Snowthrower Controls - Snapper Simplicity 520M Operator's Manual

Controls
& Operation
SNOWTH ROWER CONTROLS
Auger Control
A. Auger Control - This control engages and disen-
gages the auger. Pull the control back against handle
to engage the auger, (this will pull snowthrower for-
ward if auger is in contact with the ground). Release
the auger control to stop rotation of auger.
Deflector Controls
B. Chute Direction Control - The chute direction con-
trol (B, Figures 4 & 5) allows the discharge chute to
be rotated to throw snow in the desired direction.
Snow may be thrown at any angle from straight left to
straight forward, to straight right.
The length of the chute direction control can be
adjusted. Remove the cotter pin (A, Figure 5) to
extend or shorten the rod to desired length, then rein-
stall the pin.
C. Chute Deflector - Controls the distance snow is
thrown. Tilting the chute deflector (C, Figure 4) UP
provides a higher stream and greater distance, while
tilting the deflector DOWN provides a lower stream
and less distance.
Figure 5. Snowthrower Controls
1
Figure 4. Discharge Chute Control Adjustment
A. Cotter Pin
B. Chute Direction Control
A Auger
Control
B Chute
Direction
Control
Chute
Deflector
Engages auger when pulled
back, and disengages auger
when released.
Rotates discharge chute to
desired direction
C Controls vertical angle snow is
thrown.
D Clean-Out Use to remove objects and clear
Tool the chute or auger.
Clean-Out Tool
D. Clean-Out Tool - Use to remove objects and clear
the discharge chute or auger.
DANGER
DO NOT clean out discharge chute with hands.
Contact with moving parts in the chute will cause
serious injury. Use clean-out tool provided with
machine.
