Snapper ESS5220E Parts Manual

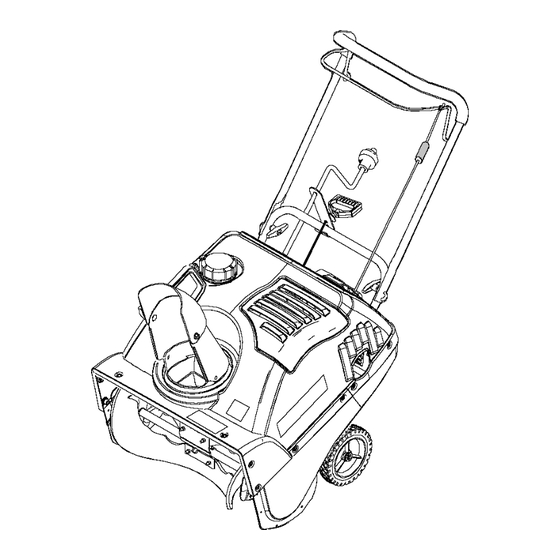

5hp 22" single stage snow thrower
Hide thumbs Also See for ESS5220E:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Parts Manual for
5HP 22" SINGLE STAGE SNOW THROWER
(2009)
MODEL
ESS5220E (1695511)
SS5220E (1695470)
Briggs & Stratton Yard Power Products Group
535 Macon Road
Manual No.
7006480
McDonough, GA, 30253 U.S.A.
800-935-2967
Revision IR,
11/25/2008
TP 400-5420-IR-SX-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESS5220E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snapper ESS5220E

Summary of Contents for Snapper ESS5220E

  • Page 1 Parts Manual for 5HP 22" SINGLE STAGE SNOW THROWER (2009) MODEL ESS5220E (1695511) SS5220E (1695470) Briggs & Stratton Yard Power Products Group 535 Macon Road Manual No. 7006480 McDonough, GA, 30253 U.S.A. 800-935-2967 Revision IR, 11/25/2008 TP 400-5420-IR-SX-N...

  • Page 3: Table Of Contents

    PAGE GROUP Handle Assembly Group Body Covering Group Auger and Housing Group Chute System Group Frame and Fuel Tank Group Engine Drive System Group Electric Starter Group Wheel Assembly Group Decals Group 5HP 22" SINGLE STAGE SNOW THROWER (2009) Table Of Contents Manual No.

  • Page 4: Handle Assembly Group

    Handle Assembly Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 5 Handle Assembly Group Item Part No Description 722348 HANDLE & GRIP ASSEMBLY 1742021H CONTROL, Bail 723154 BOOT, Clutch Spring 722366 CABLE, Upper Control 723259 BRACKET, Control Adjust 723261 CABLE, Lower Control 723263 SPRING 722326 Bolt, "U" 723239 WASHER 1740436 KNOB, "T" 1741982H HANDLE, Lower 725429...

  • Page 6: Body Covering Group

    Body Covering Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 7 Body Covering Group Item Part No Description 1740006 PANEL, Control 723280 SCREW, 1/4 - 20 x 1-1/4 725330 WASHER 722398 NUT, 1/4 - 20 722906 NUT, 5/8 - 32 691959 KEYS & RING, Starter 394281S BULB, Fuel Primer 722327 COVER, Access 727479 NUT, Keps 1/4 - 20 723672...

  • Page 8: Auger And Housing Group

    Auger and Housing Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 9 Auger and Housing Group Item Part No Description 725304 SCREW, 1/4 - 20 x 1 725429 NUT, Hex, 1/4 - 20 723010 SCREW, 1/4 - 20 x 3/4 725330 WASHER, Flat 1736375 HOUSING ASSEMBLY, Auger 728095 SCREW, 1/4 - 20 x 5/8 724638 BEARING, Retainer 727286...

  • Page 10: Chute System Group

    Chute System Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 11 Chute System Group Item Part No Description 723283 SCREW, 1/4 - 14 727525 RETAINER, Chute Ring 727528 RING, Chute 1740430 BOLT, Carriage, 5/16 - 18 x 3/4 1736069 NECK, Chute 722334 CHUTE, 22" Upper 722136 KNOB, Wing 725331 WASHER 1742155 LOCKWASHER, Shakeproof 725408 LOCKNUT, Hex, 5/16 - 18...
  • Page 12 Chute System Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 13 Chute System Group Item Part No Description 1740382 NUT, Nylock, 10-32 1740347 PIN, Spring, 5/32 x 1" 1720577 SPLICE, Chute Handle Footnotes: 5HP 22" SINGLE STAGE SNOW THROWER (2009) Note Manual No. 7006480 TP 400-5420-IR-SX-N...

  • Page 14: Frame And Fuel Tank Group

    Frame and Fuel Tank Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 15 Frame and Fuel Tank Group Item Part No Description 723010 SCREW, 1/4 - 20 x 3/4 725330 WASHER 1741771H BRACKET, Fuel Tank 1715917 CAP, Fuel Tank 1716634 TANK, Fuel 725429 NUT, Hex 1/4 - 20 725408 NUT, Hex 5/16 - 18 7200111 HOSE, Fuel Line, Low Perm, 9"...

  • Page 16: Engine Drive System Group

    Engine Drive System Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 17 Engine Drive System Group Item Part No Description ----- * ENGINE, 5.25GT 4CY B&S Electric Start Mod. 09A413-0202- ----- * ENGINE, 5.25GT 4CY B&S Electric Start Mod. 09A413-0203- 1741989H CRADLE ASSEMBLY, Engine 722321 FRAME, L.H. 722360 ANTI-VIBRATION MOUNT, Engine 727947 BOLT, Hex, 5/16 - 18 725244 BOLT, Hex, 5/16 - 24...

  • Page 18: Electric Starter Group

    Electric Starter Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 19 Electric Starter Group Item Part No Description 723237 SCREW, # 8 - 32 x 3 723979 WASHER 722892 NUT, Keps 791534 * LEVER, Choke 699565 * Muffler 691880 * GASKET, Muffler 699554 * SCREW, Torx, Socket-Head, Muffler 725326 WASHER, Split Lock 725320 NUT, Hex, 5/16 - 18 720025...

  • Page 20: Wheel Assembly Group

    Wheel Assembly Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 21 Wheel Assembly Group Item Part No Description 724559 RETAINER, E-Ring 725603 WHEEL & TIRE, 7" x 1-1/2" 722328 ROD, Axle 724750 WASHER Footnotes: 5HP 22" SINGLE STAGE SNOW THROWER (2009) Note Manual No. 7006480 TP 400-5420-IR-SX-N...

  • Page 22: Decals Group

    Decals Group Manual No. 7006480 5HP 22" SINGLE STAGE SNOW THROWER TP 400-5420-IR-SX-N (2009)
  • Page 23 1740400 DECAL, Control Panel Electric Start 729693 DECAL, Electric Start 725257 DECAL, Danger Auger 724267 DECAL, Danger Chute 1740367 DECAL, 522 Snapper R.H. 1740368 DECAL, 522 Snapper L.H. 725241 DECAL, Hot Muffler 727378 DECAL, Auger Control 1740422 DECAL, Choke 1740365...
  • Page 26 IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 www.snapper.com Copyright © 2008 Briggs & Stratton Corporation Milwaukee, WI USA. All Rights Reserved Manual No. 7006480...
