Snapper 5201m, 5201e Operator's Manual

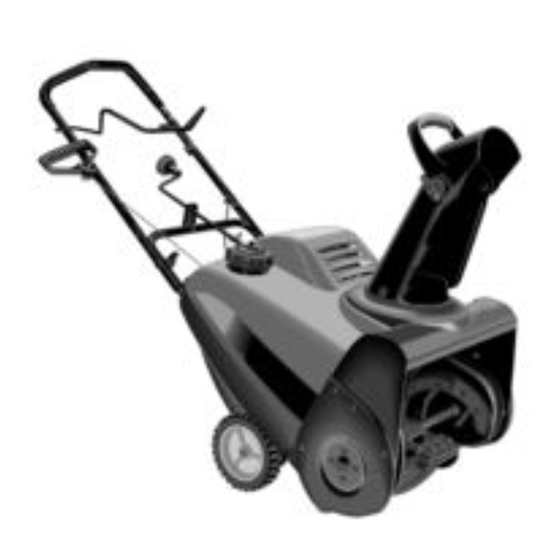

Single stage snowthrower 520m series 520e series 5hp snowthrower, manual/electric start
Hide thumbs Also See for 5201m, 5201e:
Table of Contents

Advertisement

Quick Links

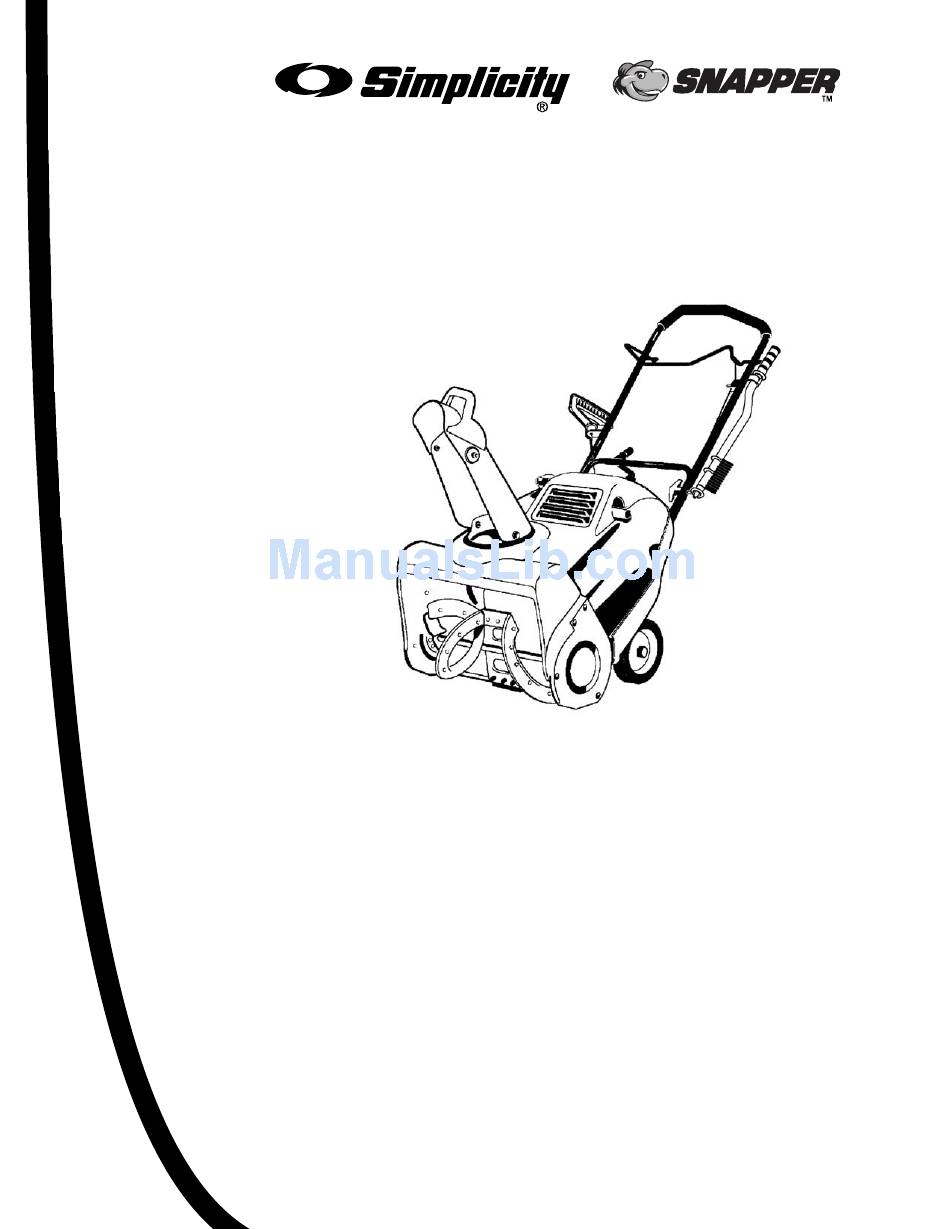

OPERATOR'S
MANUAL
Single Stage
Snowthrower
520M Models
Mfg. No.
Description
1694585
5201M, 5HP Snowthrower, Manual Start
7085663
SS5201R, 5HP Snowthrower, Manual Start
520E Models
Mfg. No.
Description
1694586
5201E, 5HP Snowthrower, Electric Start
7085664
SS5201E, 5HP Snowthrower, Electric Start
Manual No 7100951
I.R. 6/21/2006
TP 100-5201-00-SX-SN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5201m, 5201e and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper 5201m, 5201e

Summary of Contents for Snapper 5201m, 5201e

  • Page 1 OPERATOR’S MANUAL Single Stage Snowthrower 520M Models Mfg. No. Description 1694585 5201M, 5HP Snowthrower, Manual Start 7085663 SS5201R, 5HP Snowthrower, Manual Start 520E Models Mfg. No. Description 1694586 5201E, 5HP Snowthrower, Electric Start 7085664 SS5201E, 5HP Snowthrower, Electric Start Manual No 7100951 I.R.

  • Page 2: Table Of Contents

    Safety Rules & Information Training ...2 Preparation ...2 Operation ...2 Children...3 Clearing a Clogged Discharge Chute ...3 Service, Maintenance, and Storage ...3 Emissions...3 Identification Numbers ...4 Safety Decals ...5 International Symbols ...6 Assembling the Snowthrower ...7 Controls & Operation Snowthrower Controls...8 Engine &...

  • Page 3: Safety Rules & Information

    Safety Rules & Information This machine is capable to amputating hands and feet and throwing objects. Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.

  • Page 4: Children

    21. Keep in mind the operator is responsible for acci- dents occurring to other people or property. 22. Data indicates that operators, age 60 years and above, are involved in a large percentage of power equipment-related injuries. These operators should evaluate their ability to operate the unit safely enough to protect themselves and others from injury.

  • Page 5: Identification Numbers

    Product Identification Identification Numbers When contacting your authorized dealer for replace- ment parts, service, or information you MUST have these numbers. Record your model name/number, manufacturer’s identi- fication numbers, and engine serial numbers in the space provided for easy access. These numbers can be found in the locations shown.

  • Page 6: Safety Decals

    SAFETY DECALS Safety warning decals are placed at strategic locations on the snowthrower as a constant reminder to the opera- tor of the most important safety precautions. All warning, caution and instructional messages on your snowthrow- er should be carefully read and obeyed. If any of these decals are lost or damaged, replace them at once. They can be purchased from your local dealer.

  • Page 7: International Symbols

    Safety Rules & Information International Symbols FAST SLOW STOP CHOKE PRIMER ELECTRIC START IGNITION KEY...

  • Page 8: Assembling The Snowthrower

    Figure 1. Assembly of Discharge Chute A. Discharge Chute D. Nuts B. Carriage Bolts E. Rotating Ring C. Washers Figure 2. Handles A. Handle B. Wing Knobs C. Clean-out Tool TOOLS REQUIRED • Socket or Wrench Set • Pair of Pliers ASSEMBLY PROCEDURE If your unit was not previously assembled, see Figures 1 and 2, and follow the steps below to assemble the unit:...

  • Page 9: Controls And Operation

    Controls & Operation SNOWTHROWER CONTROLS Auger Control A. Auger Control - This control engages and disen- gages the auger. Pull the control back against handle to engage the auger, (this will pull snowthrower for- ward if auger is in contact with the ground). Release the auger control to stop rotation of auger.

  • Page 10: Engine & Starting Controls

    ENGINE & STARTING CONTROLS NOTE: Engine Speed Control - This snow thrower does NOT have an engine speed control. Engine speed is set at the factory. The engine governor maintains operat- ing speed for varying snow removal conditions. Electric Start Units Only A.

  • Page 11: General Operation

    Controls & Operation GENERAL OPERATION CHECKS BEFORE EACH START-UP 1. Make sure all safety guards are in place and all nuts, bolts and clips are secure. 2. Check the fuel supply. Fill the tank no closer than 1/4 to 1/2 inch of top of tank to provide space for expan- sion.

  • Page 12: Proper Fuel Mixing Procedure

    FUEL AND OIL MIXTURE The snowthrower uses a two cycle engine that requires a mixture of fuel (gasoline) and oil for lubrication of engine bearings and other moving parts. The correct fuel/oil mixture ratio is 50 to 1. Use fuel/oil mixture chart shown.

  • Page 13: Starting The Engine

    Controls & Operation STARTING THE ENGINE NOTE: The snowthrower engine is designed to operate at cold temperatures. Avoid operating the snowthrower if air temperature is 40° F or warmer since engine may vapor lock and stop running after a short time. Engine will be difficult to start in warm weather.

  • Page 14: Operating The Snowthrower

    OPERATING THE SNOWTHROWER Before operating snowthrower, review the Checks Before Each Use under General Operation on page 8 of this manual. 1. Rotate the discharge chute to the desired direction. 2. Pull the Auger Control back against the handle to engage the auger.

  • Page 15: Regular Maintenance

    Regular Maintenance Removing Belt Cover In order to perform proper lubrication, it is necessary to remove the Belt cover from the lower left of the snowthrower. 1. Remove the Engine Key from the switch. 2. Remove the fours screws securing the belt cover (see Figure 8).

  • Page 16: Troubleshooting And Service

    Problem Engine fails to start Engine starts hard or runs poorly Unit does not throw snow Auger does not stop turning when control is released Excessive vibration Note: For repairs beyond the minor adjustments listed above, please contact your local authorized dealer. REMOVING ENGINE COVER Note: In many of the following adjustment and service tasks, it will be necessary to remove and reinstall the...

  • Page 17: Auger Control Cable Adjustment

    Troubleshooting & Service Lift Cover from Rear of unit Align rear tabs & side of cover when reinstalling. Figure 13. Cover Removal & Installation AUGER CONTROL CABLE ADJUSTMENT The length of the auger control cable is adjustable. However, it will seldom be necessary to change the cable length since the operating tension on the drive belt is maintained by the spring on the end of the cable.

  • Page 18: Replacing The Drive Belt

    REPLACING THE DRIVE BELT 1. Remove engine key from switch. 2. Remove belt and engine covers. 3. Move the auger control on the handle and slip the belt out from between the brake lever and roller and away from the idler pulley. 4.

  • Page 19: Specifications

    For applicable manuals currently available for your Simplicity model, contact Customer Publications Department at 262-284-8519 and for your Snapper model contact 866-313-6682. Have the information list- ed in the box below available when phoning in your request. Technical manuals can be downloaded from www.simplicitymfg.com or www.snapper.com.
  • Page 20 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.simplicitymfg.com © Copyright 2006, Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA. P R O D U C T S , I N C . McDonough, GA., 30253 www.snapper.com...
