Summary of Contents for Magus METAL VD700

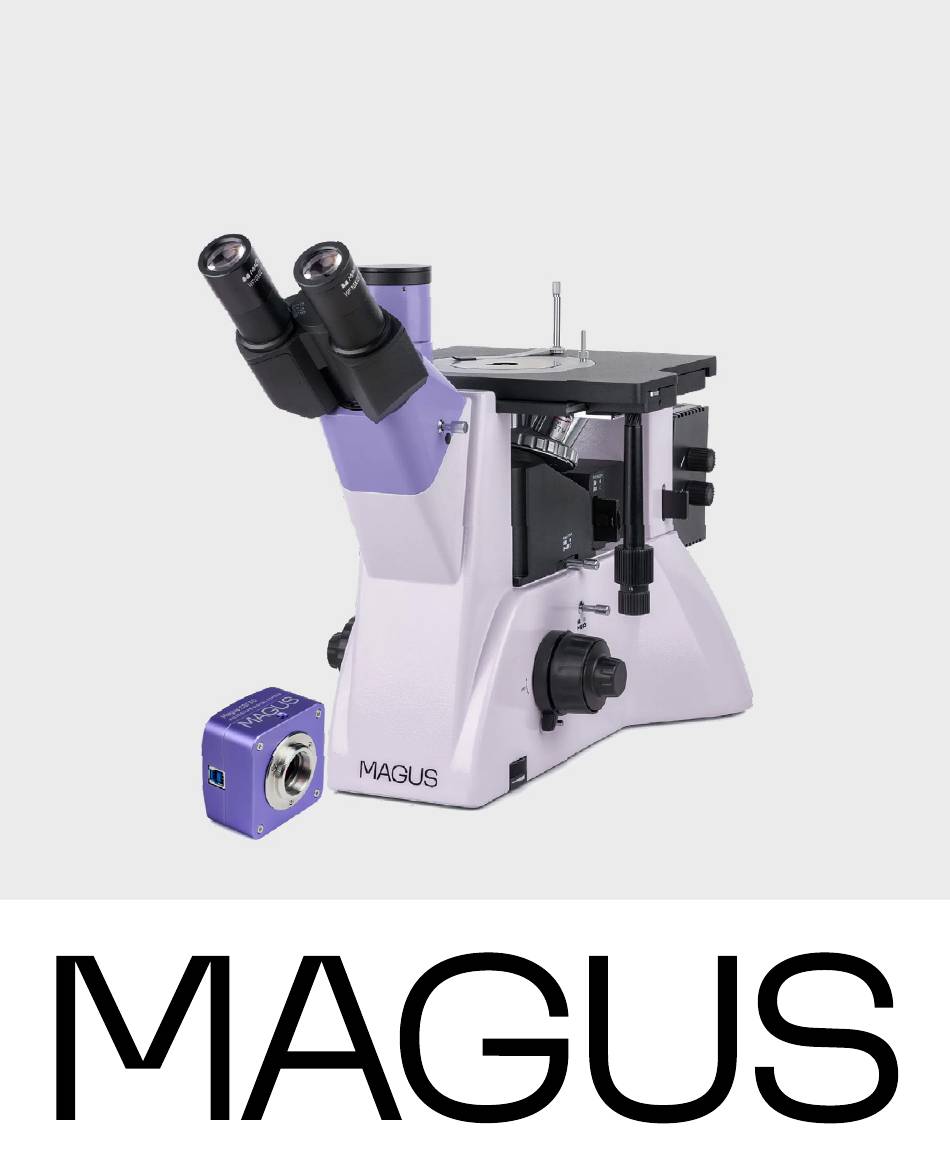

- Page 1 M AG U S META L V D700 ME TAL LU RG I CA L I N VERT ED D I G I TA L MI CRO S C O P E U S E R M A N U A L...
- Page 2 928 E 124th Ave. Ste D, Tampa, FL 33612, USA +1 813 468-3001 contact_us@levenhuk.com Levenhuk Optics s.r.o. (Europe) V Chotejně 700/7, 102 00 Prague 102, Czech Republic +420 737 004-919 sales-info@levenhuk.cz Magus® is a registered trademark of Levenhuk, Inc. © 2006–2024 Levenhuk, Inc. All rights reserved. www.levenhuk.com 20241218...
-
Page 3: Safety Precautions
Before using the microscope, please read this user manual carefully to study the instrument design, operation modes and procedures, operational limitations, and safety precautions. Due to the continuous improvements in the microscope design, this manual may not reflect minor design changes that do not affect the microscope performance and operation procedures. - Page 4 11. Bulb installation: – Do not touch the glass surface of the bulb with your bare hands. When installing the bulb, wear gloves or wrap the bulb with a cotton cloth. – Use a clean cotton cloth moistened with alcohol-based disinfectant to wipe dirt off the surface of the bulb.
-
Page 5: Table Of Contents
Using the camera 5 USING OPTIONAL EQUIPMENT Using the eyepiece with a scale Using the calibration slide with a camera 6 TROUBLESHOOTING 7 SCOPE OF DELIVERY 8 CARE AND MAINTENANCE Replacing the bulb and the fuse Maintenance 9 MAGUS WARRANTY... -
Page 6: Description Of The Microscope
MAGUS Metal VD700 Metallurgical Inverted Digital Microscope has been designed and tested in accordance with the international safety standards. If properly used, the microscope is safe for the customer’s health, life, property, and the environment. Proper maintenance of the microscope is a prerequisite for its reliable and safe operation. -
Page 7: Microscope Kit
Windows 8/10/11 (32bit and 64 bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or System requirements higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17” or larger display Software MAGUS View Mount type C-mount Illuminator body Metal... - Page 8 Fig. 1. MAGUS Metal VD700 Microscope. View from the left 1. Eyepieces 9. Field diaphragm 2. Eyepiece tubes 10. Aperture diaphragm 3. Stand 11. Slot for color filter slider 4. ON/OFF switch 12. Lamp focusing knob 5. Coarse focusing tension adjusting knob 13.
- Page 9 Fig. 2. MAGUS Metal VD700 Microscope. View from the right 1. Head locking screw 11. Illuminator power cord 2. Interpupillary distance adjustment ring 12. Color filter slider 3. Stage movement knob 13. Up/down lamp adjustment knob 14. Left/right lamp adjustment knob 4.
-
Page 10: Components
COMPONENTS STAND The stand has stable ergonomic design. Parts attached to the stand 3 (Fig. 1): – revolving nosepiece 13 (рис.1) with objectives – stage 14 (Fig. 1) – eyepiece tubes 2 (Fig. 1) – lamphouse 15 (Fig. 2). Inside the stand is the focusing mechanism and the power supply for the illuminator. The power supply converts AC voltage to the required voltage to power the halogen bulb. -
Page 11: Eyepieces
An imaging system with a monitor is installed in the trinocular tube 15 (Fig. 1) using a C-mount adapter. You can switch the light path to the trinocular tube using the levers 8 (Fig. 2) and 18 (Fig. 2). The lever has two positions: 100/0 and 50/50. EY EPI EC ES The microscope kit includes eyepieces 1 (Fig. -
Page 12: Lamphouse
LA M PHO USE There is a connection adapter on the back panel of the stand. It is intended for mounting the halogen lamphouse 15 (Fig. 2). The lamp is adjusted in the optical path by the knobs 13 and 14 (Fig. 2). The lamp is adjusted to the collector by the knob 12 (Fig. -
Page 13: Brightfield Observation Procedure
1. Unpack the microscope and check the scope of delivery using Section 8 of the User Manual. 2. Take out the stand 1 and place it on a stable work table, remove packaging and dust cover. 3. Take out the eyepiece tube assembly 2, remove the dust cover. Insert the eyepiece tube assembly into the holder 3 and secure it using an Allen wrench from the microscope kit. -
Page 14: Adjusting The Eyepiece Tubes
ADJ U STI N G THE E YE P I ECE T UB ES Rotate the diopter adjustment ring 1 to find the position, at which the height of both eyepieces will be the same. Adjust the interpupillary distance. Adjust the distance between the eyepieces to your interpupillary distance by rotating the eyepiece tubes 2 around the central axis until you see a single circular image when looking through the eyepieces with both eyes... -
Page 15: Placing The Specimen
PL AC IN G THE SP EC IM E N Place the metal sample or specimen on the round plate 1 in the center of the stage, having previously chosen the desired hole diameter based on the size of the sample. Fix the specimen with a spring clip. Do not clamp the specimen too tightly, as this may deform the plate or stage. -
Page 16: Setting Up Köhler Illumination
SE TTI N G U P KÖ H L ER IL LU MI NAT IO N In the light optical microscope, the image quality depends equally on the optics and on the illumination system, so adjusting the illumination is an important preparatory step. The illumination system affects the image resolution, comfort during long observation, and photo quality when using digital cameras. -
Page 17: Polarized Light Observations
PO L ARI ZE D L IGH T O BS E RVAT IO N S Polarized light observations are made to study the double refraction properties of anisotropic materials. For example, crystals, biomedical polymers, and liquid crystals. The microscope kit includes a polarizer/analyzer set, which consists of a polarizer and an analyzer. To enable polarization microscopy, install the polarizer 2 and analyzer 1 on the right side under the revolving nosepiece. - Page 18 To enable the camera: – Loosen the attachment screw 1 of the side camera port. Remove the dust cap 2. – The microscope kit includes a C-mount adapter. Connect the camera to the adapter. – Fit the camera into the trinocular tube and secure it with the screw 1. –...
-
Page 19: Using Optional Equipment
– Look at the specimen on a monitor or display screen and make sure that the image of the point is in the center of the field of view. If the image deviates from the center of the field of view, adjust three centering screws on the trinocular tube to move the point towards the center. -
Page 20: Using The Calibration Slide With A Camera
U SING THE CAL I B R ATI O N SLI D E WI T H A CA M ER A The calibration slide (stage micrometer) is used to calibrate the image analysis software for measurements in actual units. In the calibration mode, you should capture an image of the micrometer scale with every objective magnification and indicate the known distance. -
Page 21: Scope Of Delivery
MECHANI CAL C OMPONENTS The image does not remain The coarse focusing tension adjusting Adjust the coarse focusing tension adjusting sharp during observation knob is loosened, causing the stage knob to lower spontaneously The coarse focusing knob is too The coarse tension adjusting knob is Loosen the tension of the coarse focusing tight to rotate overtightened... -
Page 22: Care And Maintenance
Dust cover User manual D IG ITA L CA ME R A Digital camera USB cable Flash drive with drivers and software User manual 8 CARE AND MAINTENANCE REPL ACING T HE B U LB AN D T H E FU SE Before replacing the bulb or fuse, turn the ON/OFF switch 1 to "0"... -
Page 23: Maintenance
7. Periodic inspection: the microscope should be regularly inspected and serviced to maintain its performance. 9 MAGUS WARRANTY MAGUS provides a 5-year international warranty from date of purchase (valid for the entire life of the instrument). The Levenhuk company warrants the product to be free from defects in materials and workmanship. The Seller warrants that the MAGUS product you have purchased meets specification requirements, provided that the Buyer complies with terms and conditions of transport, storage, and operation of the product. - Page 24 www.magusmicro.com...
