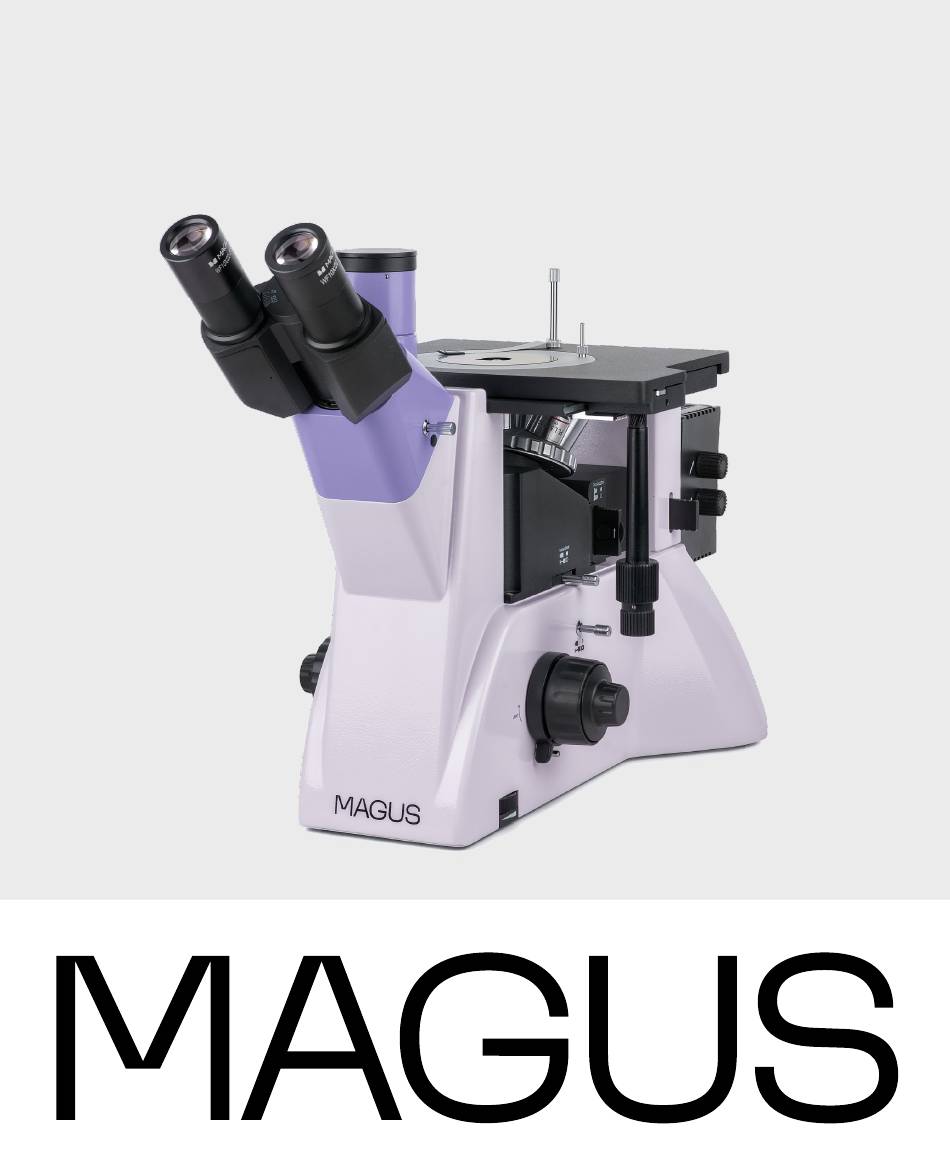

M AG U S M E TA L V 70 0 | V 70 0 BD M E TALLU RG I CA L IN V ERT E D M I C ROS C O P E U S E R M A N U A L...
Page 2
Before using the microscope, please read this user manual carefully to study the instrument design, operation modes and procedures, operational limitations, and safety precautions. Due to the continuous improvements in the microscope design, this manual may not reflect minor design changes that do not affect the microscope performance and operation procedures.
Page 3
– Use a clean cotton cloth moistened with alcohol-based disinfectant to wipe dirt off the surface of the bulb. Dirt may etch the surface of a bulb, thereby reducing its brightness and shortening its life. – Check the bulb contact condition. If contact damage occurs, the bulb may stop working or cause a short circuit.
Using the color filters Polarized light observations Calculating the total magnification Calculating the field of view 5 DARKFIELD TECHNIQUE (MAGUS Metal V700 BD) 6 USING OPTIONAL EQUIPMENT Using the eyepiece with a scale Using the camera Using the calibration slide with a camera...
MAGUS Metal V700 metallurgical inverted microscope has been designed and tested in accordance with the international safety standards. If properly used, the microscope is safe for the customer’s health, life, property, and the environment. Proper maintenance of the microscope is a prerequisite for its reliable and safe operation.
2 MI C RO S C OP E PA RTS STAND The stand has stable ergonomic design. Parts attached to the stand 3 (Fig. 1): – evolving nosepiece 14 (Fig. 1) with objectives – stage 15 (Fig. 1) – eyepiece tubes 2 (Fig. 1) –...
The interpupillary distance is adjusted by rotating the eyepiece tubes in the range of 48–75mm. The distance between the eyepieces matching the observer's interpupillary distance is marked on the adjustment scale 2 (Fig. 2). For convenience, the microscope head is inclined at 45 Eyepiece diameter: 30mm.
REF LECTE D LIGH T IL LU MI NAT IO N The microscope illumination system allows for setting up Köhler illumination. The light source – 30W halogen bulb (MAGUS Metal V700) or 50W halogen bulb (MAGUS Metal V700 BD) – is centered on three axes.
UN PACK I NG A ND AS S EM BL IN G T HE M IC ROS CO P E The assembly procedure is given in Fig. 3. Fig. 3. Assembling the microscope 1. Unpack the microscope and check the scope of delivery using Section 8 of the User Manual. 2.
B R I G H TFI EL D O B S ERVAT IO N PRO C EDURE SWITCHING O N TH E I LLUM I NATI O N Before switching on the ON/OFF switch, make sure that the input voltage of the microscope power supply matches the local mains voltage.
A DJU ST IN G T HE D I OPT ER One of the eyepieces has a diopter adjustment 1 to compensate for the difference in vision between the user’s eyes. Place the 50х objective into the optical path. While looking through the eyepiece without diopter adjustment (with the other eye closed), bring the specimen into focus.
PL AC IN G THE SP EC IM E N Place the metal sample on the round plate 1 in the center of the stage, having previously chosen the required hole diameter based on the size of the sample. Fix the specimen with a spring clip. Do not clamp the specimen too tightly, as this may deform the plate or stage.
Fig. 12. Choose the required filter color to match the specimen and microscopy technique: brightfield, darkfield (MAGUS Metal V700 BD) or polarization microscopy In order to switch to an appropriate color filter or free slot, pull the slider until it clicks on the right or left side, depending on the desired position.
PO L ARI ZE D L IGH T O BS E RVAT IO N S Polarized light observations are made to study the double refraction properties of anisotropic materials. For example, crystals, biomedical polymers, and liquid crystals. The microscope kit includes a polarizer/analyzer set, which consists of a polarizer and analyzer. To enable polarization microscopy, install the polarizer 2 and analyzer 1 on the right side under the revolving nosepiece.
5 DA R K F I E LD T ECH NIQ U E ( M AGUS M ETA L V 7 00 BD) MAGUS Metal V700 BD metallurgical inverted microscope is equipped with darkfield/brightfield illumination switch. Brightfield observations are performed as described above in the user manual. The following instructions apply only to the darkfield observations.
The calibration slide is a transparent glass (of the same size as the specimen slide) that has a micrometer scale with a scale division of 0.01mm etched on the surface. Place the calibration slide on the stage instead of the specimen. Using the scale of the calibration slide, calibrate the eyepiece scale for each objective that will be used for measurements.
Page 20
– Fit the camera into the trinocular tube and secure it with the screw 1. – Place the 10х objective into the optical path. Set the beam splitter lever 3 to position . Looking through the eyepieces, bring the specimen into sharp focus. –...
U SING THE CAL I B R ATI O N SLI D E WI T H A CA M ER A The calibration slide (stage micrometer) is used to calibrate the image analysis software for measurements in actual units. In the calibration mode, you should capture an image of the micrometer scale with every objective magnification and indicate the known distance.
SCOPE O F DEL IVE RY The scope of delivery is listed in Table 5. Table 5 Note Component MAGUS Metal MAGUS Metal V700 V700 BD MAIN COMPONENTS Stand with the built-in power source, focusing mechanism, stage, and...
Infinity plan achromatic objective: PL L 20х/0.40/7.2 BD Infinity plan achromatic objective: PL L 50x/0.70/3.7 Infinity plan achromatic objective: PL L 50х/0.70/2.5 BD Infinity plan achromatic objective: PL L 100x/0.85/0.4 (dry) Infinity plan achromatic objective: PL L 40x/0.60/3.9 Optional Infinity plan achromatic objective: PL L 40х/0.60/3.0 BD Optional Infinity plan achromatic objective: PL L60x/0.70/2.1 Optional...
9 CA R E A N D M AIN T EN AN C E REPL ACING T HE B U LB AN D T H E FU SE Before replacing the bulb or fuse, turn the ON/OFF switch 1 to "0" position (off). Unplug the power cord from the power outlet.
MAG US WA RR A NTY MAGUS provides a 5-year international warranty from date of purchase (valid for the entire life of the instrument). The Levenhuk company warrants the product to be free from defects in materials and workmanship. The Seller warrants that the MAGUS product you have purchased meets specification requirements, provided that the Buyer complies with terms and conditions of transport, storage, and operation of the product.
