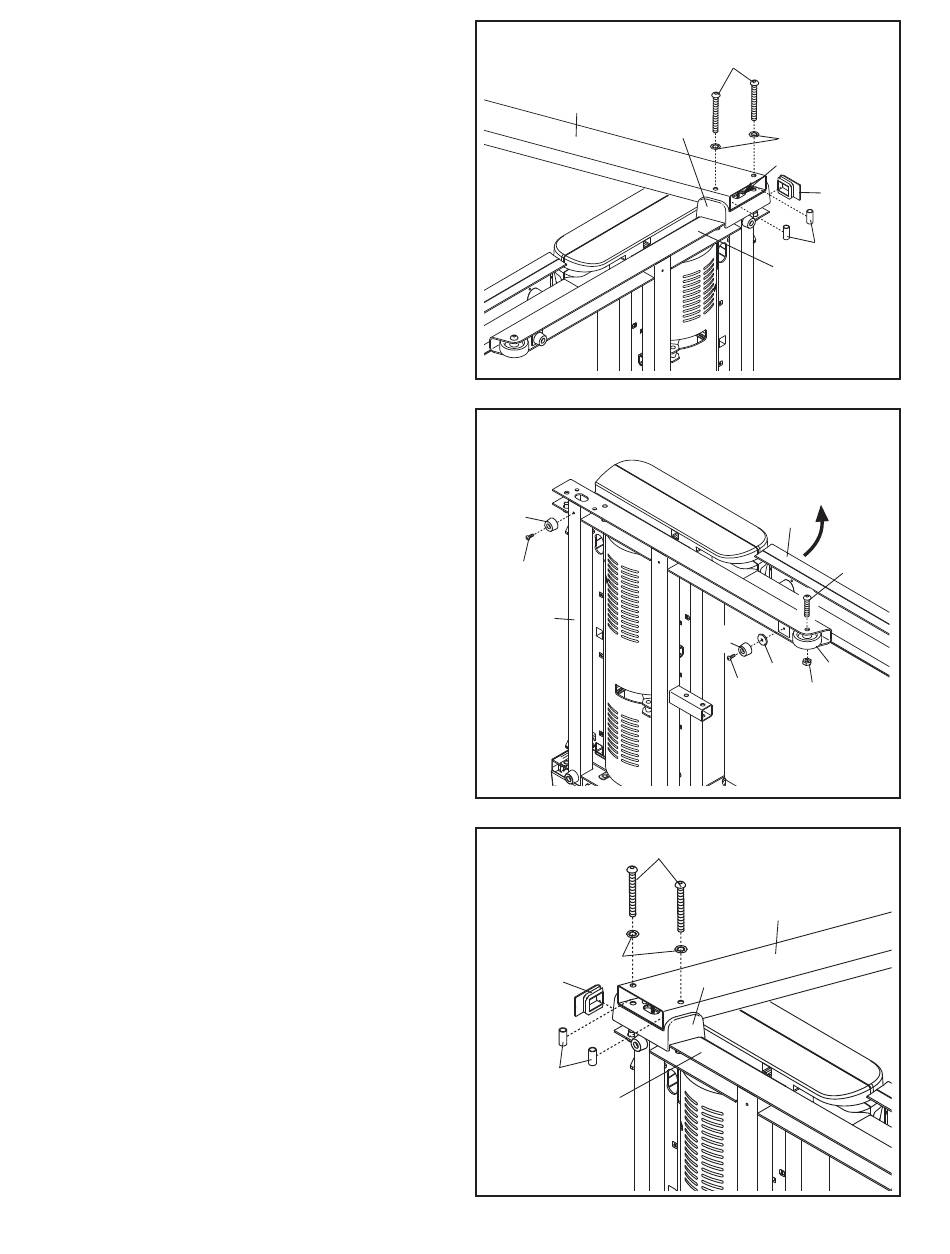

5. Set the Right Upright Spacer (79) on the Base
(83). Be careful not to pinch the Upright Wire
(38). With the help of a second person, hold a
Bolt Spacer (80) inside the lower end of the
Right Upright (78). Insert a 3/8" x 4" Bolt (6) with
a 3/8" Star Washer (9) into the Right Upright
and the Bolt Spacer. Repeat this step with a
second Bolt Spacer (80), 3/8" x 4" Bolt (6),
and 3/8" Star Washer (9). Set the Right Upright
in the Right Upright Spacer.
Finger tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
6. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Attach a Base Pad (81) to the Base (83) in the
location shown with a #8 x 1" Tek Screw (2) and
a Base Pad Spacer (13). Then, attach another
Base Pad (81) with only a #8 x 1" Tek Screw (2).
Attach a Wheel (84) with a 3/8" x 2" Bolt (4) and
a 3/8" Nut (8) that you removed in step 1. Do
not overtighten the Nut; the Wheel must turn
freely.
7. Set the Left Upright Spacer (76) on the Base
(83). With the help of a second person, hold a
Bolt Spacer (80) inside the lower end of the Left
Upright (74). Insert a 3/8" x 4" Bolt (6) with a
3/8" Star Washer (9) into the Left Upright and
the Bolt Spacer. Repeat this step with a sec-
ond Bolt Spacer (80), 3/8" x 4" Bolt (6), and
3/8" Star Washer (9). Set the Left Upright in the
Left Upright Spacer.
Finger tighten the 3/8" x 4" Bolts (6); do not
fully tighten the Bolts yet.
Press a Base Endcap (77) into the Base (83).
With the help of a second person, tip the tread-
mill so that the Base (83) is flat on the floor.
5
78
6
81
2
83
7
9
77
80
83
8
6
79
9
38
77
80
83
56
81
13 84
2
8
6
74
76
4
