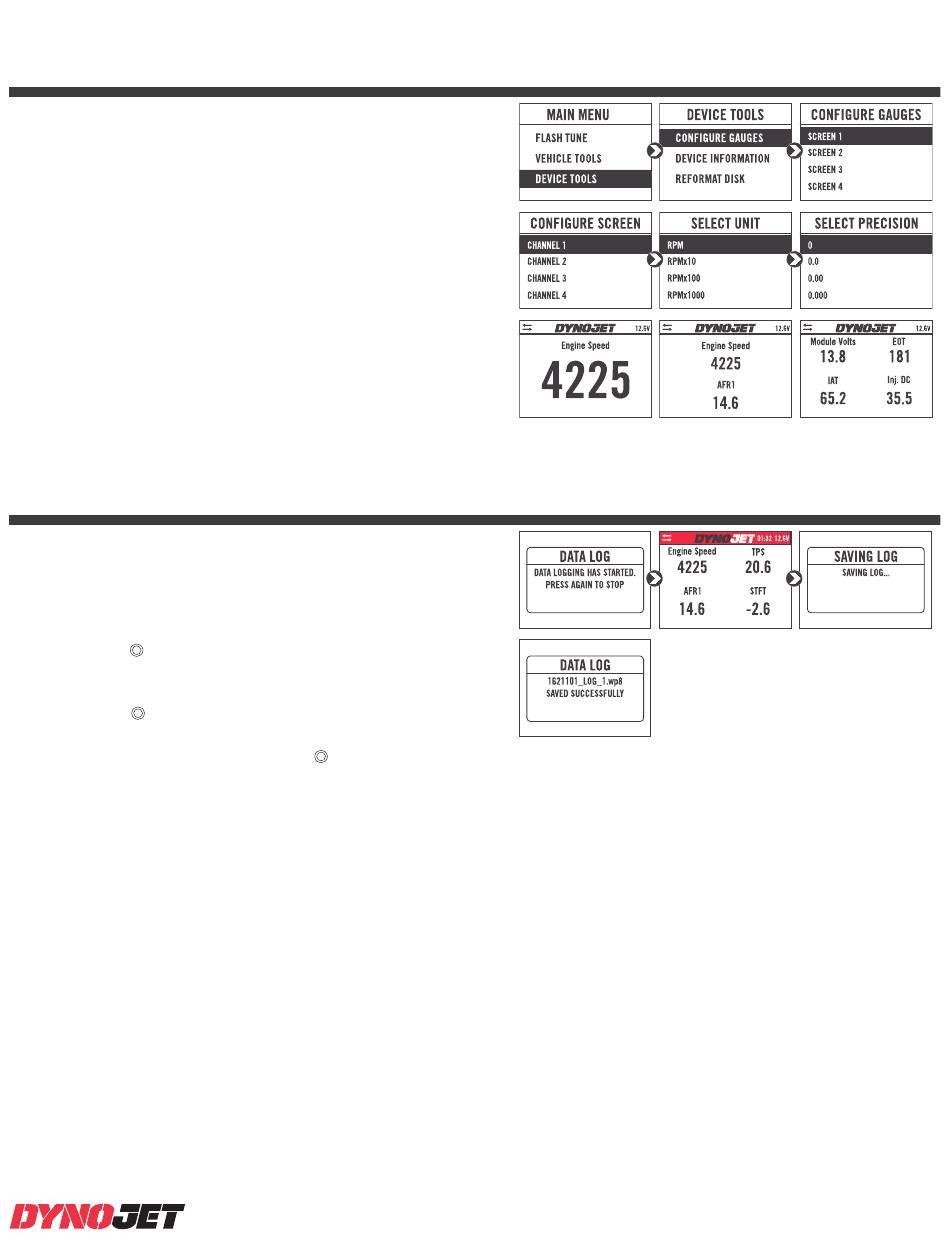

CONFIGURING GAUGES
Make your Power Vision device yours; display the channels
you want to see with four user-customizable full-color gauge
screens. Each gauge screen has one, two, or four confi gurable
channels. Monitor channels such as Wideband, AFR, and Boost.
Sample gauges shown here; for a complete list of monitors
available, open the tune fi le in Power Core or scroll through the
gauges on the device when confi guring or selecting channels for
the list of options.
1
From the Main Menu, select Device Tools > Confi gure Gauges.
2
Select a gauge screen and press Enter.
3
Select a channel and press Enter.
4
Select a channel from the list and press Enter.
5
Select the precision or units for that channel and press Enter.
6
Continue setting up the remaining channels as desired.
7
Continue confi guring the remaining gauge screens as desired.
LOGGING DATA
The Power Vision is a powerful logging tool to diagnose running
issues. Use the Power Vision to log all vehicle operating data
and review the data in the Power Core software. Troubleshoot an
issue with excessive knock or a throttle blade closure by keeping
the Power Vision mounted to view and record channels.
1
Press the Log button to begin logging. The Power Vision
screen will illuminate a bright red banner across the top when
logging.
2
Press the Log button again to stop logging.
3
Use the Power Core software to view log fi les.
Snapshot Log: Press and hold the Log button for two
seconds to record the previous two minutes of operating time.
