POWER VISION
Installation Guide for:
PV3-16-07 / PV3-16-08 / PV3-16-10 / PV3-16-19
Model Coverage:
2019-2023 Honda CRF110F
2019-2023 Honda CRF125F
2018-2021 Honda CRF250L
2019-2021 Honda CRF250L Rally
2021 Honda CRF300L
2021 Honda CRF300L Rally

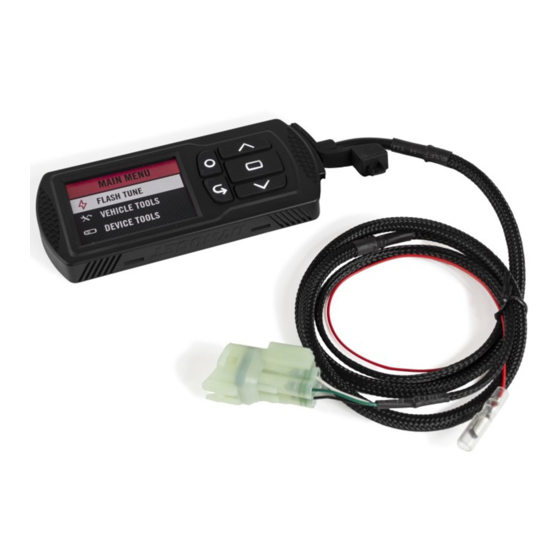

PARTS LIST
1
POWER VISION
1
REFLASH HARNESS
1
USB CABLE
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
2
VELCRO
2
DYNOJET DECAL
98200130.08
Advertisement
Table of Contents
Related Manuals for Dynojet POWER VISION PV3-16-07
Summary of Contents for Dynojet POWER VISION PV3-16-07
- Page 1 Model Coverage: 2019-2023 Honda CRF110F 2019-2023 Honda CRF125F 2018-2021 Honda CRF250L 2019-2021 Honda CRF250L Rally 2021 Honda CRF300L 2021 Honda CRF300L Rally PARTS LIST POWER VISION VELCRO REFLASH HARNESS DYNOJET DECAL USB CABLE PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION 98200130.08...
- Page 2 INTRODUCTION Thank you for purchasing the Power Vision from Dynojet RETURN Research. At Dynojet, our mission is to make every ride the ultimate ride. The Power Vision allows you to tune SCROLL your stock ECU to achieve optimal performance from ENTER your vehicle.
-
Page 3: Getting Started
PV3 will only display fi les which directly fi t your vehicle. Note: The Dynojet tune fi le (.djt) is a tune fi le which is different (better than stock performance or the necessary fi le when bolting on an exhaust, for example); the stock fi le (.stk) is the direct duplicate of what the OEM shipped. - Page 4 VIEWING THE VEHICLE INFORMATION This menu allows you to view the device status (paired/not VEHICLE TOOLS paired), VIN #, Model ID, ECU serial number, tune compat, and VEHICLE INFORMATION checksum compat. DIAGNOSTICS Select Vehicle Tools>Vehicle Information. DELETE DATA LOGS VIEWING THE DIAGNOSTIC CODES This menu allows you to read and clear diagnostic trouble VEHICLE TOOLS codes.
-
Page 5: Logging Data
RESTORE ECU VIEWING THE DEVICE INFORMATION This menu allows you to view the device fi rmware version, DEVICE INFORMATION serial number, and stock code. DYNOJET POWER VISION FW VERSION: 5.16.8297.41698 Select Device Tools>Device Information. SERIAL NUMBER: PV00029757 STOCK CODE: 76125082 REFORMATTING THE DISK This menu allows you to reformat the disk and erase all data. -
Page 6: Changing The Settings
This will turn on diagnostic logging. Logging will continue until DIAGNOSTIC ENABLE the device is restarted. If requested by Dynojet Tech Support, connect your Power Vision to a computer and email the diagnostic fi le to PV3tech@dynojet.com. Diagnostic log fi les are placed in the log fi... - Page 7 Click Update to load the current fi rmware. If the Update button is grayed out, your Power Vision already has the latest fi rmware. Click Restore to reload all original Dynojet tune and stock fi les. Click Get Tunes to open the Dynojet Tune Finder. Follow the instructions to Upload your PV_Info.txt fi...
