Summary of Contents for AlpicAir AWI/O25HPR1

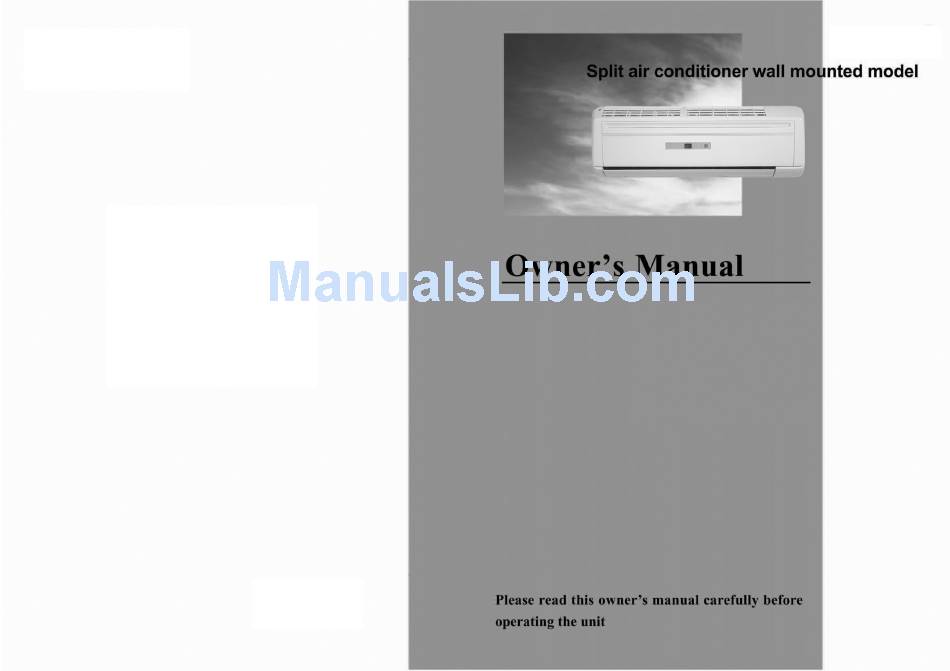

- Page 1 AWI/O25HPR1 AWI/O32HPR1...
-
Page 2: The Instructions Before Use
The instructions before use WARNING The power plug must be in- Don’t pull out the power plug Never splice the power cord or serted tightly. during operating. use an extended cord. Otherwise, it can cause an electric shock overheating or fire. It can cause an electric shock It can cause overheating or fire. - Page 3 There must be electricity Be sure to pull out the power When cleaning, it is neces- leakage protection switch of plug when not using the Air sary to stop driving and turn Conditioner for a longtime. off the power supply. enough power capacity and air It occasionally cause the elec- switch in the circuit.
-
Page 4: Names And Functions Of Each Part
Names and functions of each part Indoor unit Outdoor unit... - Page 5 R emote contr ol oper ation pr ocedur e Name and F unction-R emote contr oller Note: Be sure that there are no obstructions between receiver and remote controller. The remote control signal can be received at the distance of up to about 10m. Don’t drop or throw the remote controller.
- Page 6 Name and F unction-R emote controller . Note: This type of remote controller is a kind of new current controller. some buttons of the controller which are not available to this Air conditioner will not be described below. Operate on unmentioned buttons would not impact on the normal use. L iquid crystal displayer.
-
Page 7: Cool Mode Operation Procedure
COOL mode operation procedure According to difference between room temp. and set temp., microcomputer can control cool- ing on or not. If room temp. is higher than set temp., compressor runs at COOL mode. If room temp. is Iower than set temp., compressor stops and only indoor fan motor runs. SET TEMP. -
Page 8: Remote Control Operation Procedure
Remote control operation procedure HEAT mode operation procedure If room temp. is lower than set temp., compressor runs at HEAT mode; If room temp. is higher than set temp., compressor and outdoor fan motor stop, only indoor fan motor runs 60 seconds and then stop. SET TEMP. -
Page 9: Dry Mode Operation Procedure
DRY mode operation procedure If room temp. is lower 2 than set temp., compressor, outdoor and indoor fan motor stop. If room temp. is between of set temp, air conditioner is drying, If room temp. is higher 2 than set temp., it's at COOL mode. SET TEMP . -
Page 10: Auto Mode Operation Procedure
AUTO mode operation procedure Under Auto mode operation, standard SET TEMP. is 25 for COOL mode and 20 for HEAT mode . If room temp . is in range of 22 to 26 ,air conditioner wait. If room temp.is higher than 26 , it’s at COOL mode. If room temp.is lower t han 22 , it’... -
Page 11: Timer Mode Operation Procedure
TIMER mode operation procedure T-ON button At stopping, press T- ON button, set ON TIME in range of 0 to 24 hour to start the unit automati- cally. Timer cancellation T-OFF button At operating, press T- OFF button, set OFF TIME in range of 0 to 24 hour to stop the unit automatically. - Page 12 SLEEP mode operation procedure As the unit is cooling or drying, if SLEEP operation is set, SET TEMP. would increase 1 in 1 hour and 2 in 2 hours. As the unit is heating, if SLEEP operation is set, SET TEMP. would decrease in 1 hour and 2 in 2 hour s.
- Page 13 How to insert batteries 1. Remove the cover from the back of the remote controller. 2. Insert the two batteries (Two AAA dry - cell batteries) . 3. Re - attach the cover. NOTE: Remove the Don’t confuse the new and cover.
-
Page 14: The Best Operating Methods
The best operating methods adjust to the suit- able temp. too cool will do harm to the health. pull off the plug if the unit will be free in a long time. cleaning the air filter s e r i o u s l y a n d maintaining cleaner carefully. -
Page 15: User Notices
USER NOTICES Select the most appropriate temperature. It can The air flow direction can be adjusted appropriately. preclude the electricity wasted. The louvers can be adjusted downward at heating operation, and upward at cooling operation. Don’t leave windows and doors open while oper- Don’t blow the wind to animals and plants directly. -
Page 16: Care And Maintenance
Care and Maintenance CAUTION Turn power off and pull out the power plug before cleaning air conditioner. Don’t sprinkle water on the indoor unit and the outdoor unit for cleaning. Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleanser. - Page 17 Reinsert the filters Reinsert the filters with side marked “FRONT” facing forward. Recommended once every Six months, and the alternate filters can be found in the service center. (Refer to the first step of “cleaning the air filters”) Remove the air filters Replace the air cleaner Air cleaner Take off the packed bag of air purifying filters,...
-
Page 18: Troubleshooting
Troubleshooting Check the following before requesting on service center if the malfunction occurs. Phenomenon Trouble Shooting Indoor unit does not Waiting Once the air conditioner is stopped, it will not oper- operate immediately ate in approximately 3 minutes to protect itself. when the air condi- tioner is restarted. - Page 19 Immediately stop all operations and plug out, contact with service center in following situations. Unusual noise can be heard during operation. Power fuse or switch often breaks. Carelessly splash water or something into air conditioner. Electrical lines and power plug are very hot. Wind blowing from the outlet smells terrible during operation.
-
Page 20: Accessories And Installation Diagram
Accessories and installation diagram Accessories (check that all accessory parts are present before installation) Diagram Specification Part name Memo Rear panel Wireless remote controller Battery AAA 1.5V Tapping screw ST4.2 25 Fix the rear panel Packaged with Plastics drain hose L=2m connection piping 120 65 25... -
Page 21: Installation Dimension Diagram
Installation dimension diagram 15cm or more 15cm or more Space to the ceiling Space to the wall 15cm or more Space to the wall 230cm or more Space to floor IMPORTANT NOTES The installation must be done by trained and qualified service personnel with reliability according to this manual. -
Page 22: Installation Location
Installation location Indoor unit 1. The inlet and outlet should not be covered so that the outflow air can reach all parts of the room. 2. Install in a location where is permitting easy connection with the outdoor unit. 3. A location from which the condensation water can be drained out conveniently. 4. -
Page 23: Install The Indoor Unit
Install the indoor unit Install the rear panel 1. Always mount the rear panel horizontally. As the water drainage pipe at the left this side should not be too hight when adjust- ing the rear panel. It is even better adjust this side a little lower. -
Page 24: Electrical Wiring
Electrical wiring 1.Open the surface panel. 2.Remove the wiring cover(Fig.3). 3.Route the power connection cord from the back of the indoor unit and pull it toward the front through the wiring hole for connection. 4.Reassemble the clampand wiring cover. 5.Recover the surface panel. Cool only type Heat pump type Fig.3... - Page 25 Cut off tailings 1 and 2 and 3 when routing both the wiring and piping. (1),(2)and (3) are the recommended routing arrangements. 2.Wrap the piping and wiring and pull them through the cut-off-tailings hole (shown in Fig.5). 3. Hang the 2 mounting slots of the indoor unit on the upper tabs of the rear panel and check if it is firm enough.(Fig.6) 4.The height of the installed location should be 2.3m or more from the floor.
-
Page 26: Install The Outdoor Unit
Install the outdoor unit Install the connection pipe Torque wrench 1.Align the center of the piping flare with the relevant valve. 2.Screw in the flare nut by hand and then tighten the nut with spanner and torque wrench refer to the diagram at right. Note: Exceeding tightening torque will damage the flare surface. -
Page 27: Outdoor Condensation Drainage
Air purging and leakage test 1.Remove the flare nuts from the cut-off valves of the outdoor unit. 2.Align the center of the piping flare with the relevant valve, and screw in the flare nut about 3~4 turns by hand. 3.Tighten the flare nut with spanner and torque wrench. 4.Remove the valve caps of the gas valve and liquid valve and the service port nut. -
Page 28: Test Operation And Check After Installation
Test operation and check after installation Test operation 1.Before test operation (1) Do not switch on power before installation is finished completely. (2) Electric wiring must be connected correctly and securely. (3) Cut-off valves of the connection pipes should be opened. (4) All the impurities such as scraps and thrums must be clear from the unit. - Page 29 C ONT E NT S １ The instructions before use ３ Names and functions of each part ４ Name and Function - R emote controller ６ COOL mode operation procedure ７ HEAT mode operation procedure ８ DRY mode operation procedure ９...
