Summary of Contents for Franklin Water Treatment FSCF1

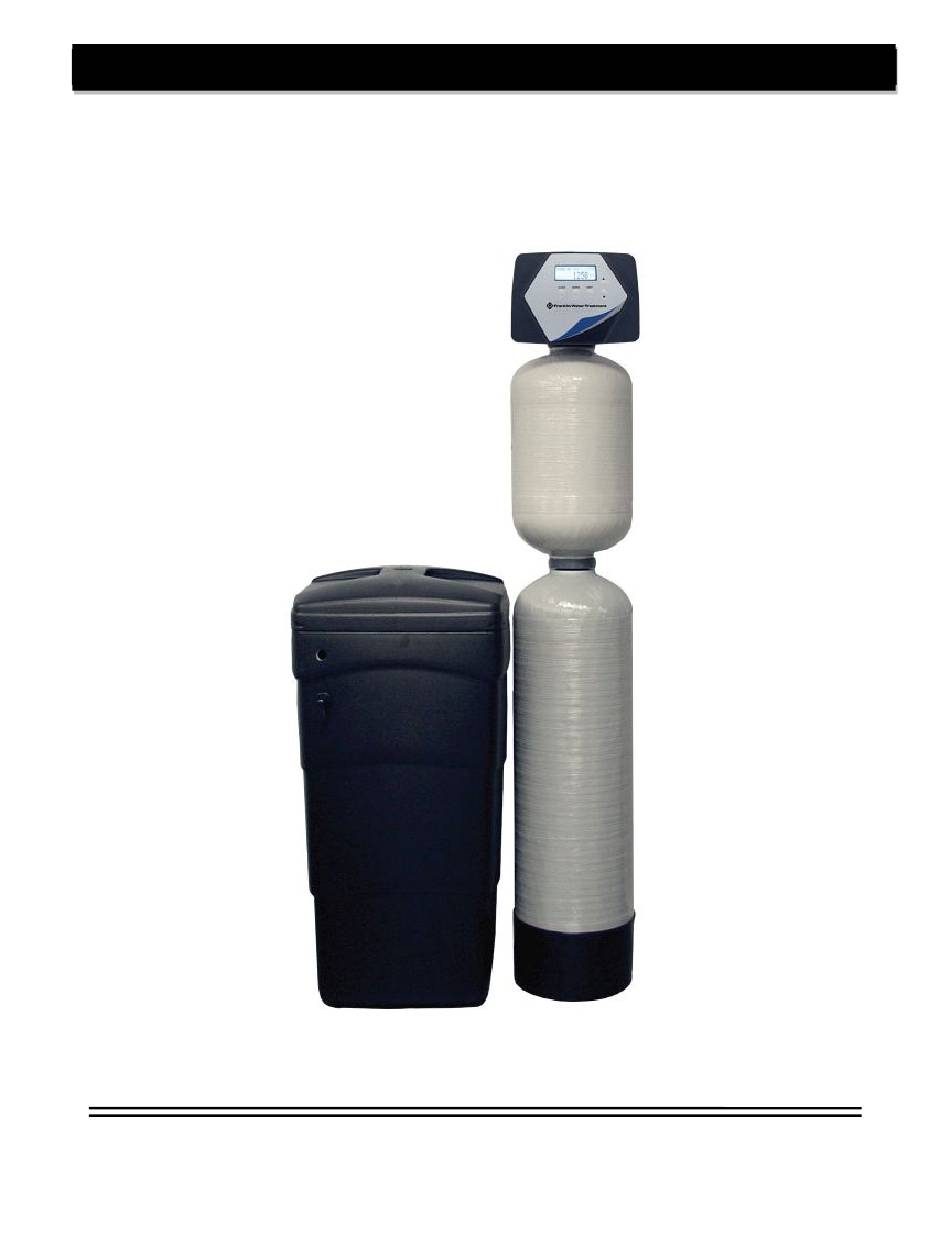

- Page 1 Installation Instructions and Owner’s Manual FSCF1 Stacked Softener and Carbon Filter Franklin Water Treatment, LLC. 12630 US Highway 33 N Churubusco, IN 46723 Phone (260) 693-1972 Fax (260) 693-0602 FSCF1 Instruction Manual 070124...
-
Page 2: Table Of Contents
Page 14 Control Valve Breakdown Page 15 Control Valve Parts List Page 16 Installation Fitting Assemblies Page 17 - 19 Troubleshooting Guide Page 20 - 22 Ten Year Limited Warranty Page 23 Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. - Page 3 This page intentionally left blank Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved.
-
Page 4: Pre-Installation Instructions
The softener resin exchanges the hardness ions for softer ions. The softened water then returns to the control valve where it is directed into the service lines. The FSCF1 Series carbon filter / water softener is designed to be installed on chlorinated water supplies. -
Page 5: General Installation Instructions
General Installation Instructions GENERAL INSTALLATION & SERVICE WARNINGS The FSCF1 is not designed to support the weight of plumbing. Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may be used on black "O" Rings, but is not necessary. Avoid any type of lubricants, including silicone, on red or clear lip seals. -
Page 6: Detailed Installation Instructions
Brine Refill Elbow with Compression Nut Retainer Clip 3/4” FNPT & Tube Insert for 5/8” OD Drain Tube (Retainer Clip not shown) Control Valve Cover FIGURE 2: Top View of Control Valve Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. - Page 7 Add water in the brine tank to slightly above the top level of the salt grid (approx. 5 - 6 gallons). DO NOT ADD SALT TO THE BRINE TANK AT THIS TIME. Detailed Installation Instructions (continued) Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved.
-
Page 8: Bypass Valve
(refer to Installer Settings, Page 10, for details), then press NEXT repeatedly until the time of day is displayed. STEP 19: Press the CLOCK button to set the current time of day. (Page 10, note AM and PM). Bypass Valve Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. - Page 9 If water is available on the outlet side of the softener it is an indication of water bypassing the system (Fig. 4d) Figure 4b - Bypass Figure 4a - Service Figure 4c - Diagnostic Figure 4d – Shut Off FIGURE 4: Bypass Valve Operation Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved.
-
Page 10: User Displays
If two regenerations are desired within 24 hour period, press /release REGEN button. REGEN TODAY will flash on screen. Press and hold REGEN button until valve initiates an immediate regeneration. Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. -
Page 11: Installer Settings
3. Regeneration Days Override: Press the “NEXT” button a. The upper left of the display will show “DAYS BETWEEN REGEN” b. The lower left of the display will show “SET” c. A number will flash (default 14) Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. - Page 12 The upper left of the display will show “TIME” b. The current time of day will be shown on the right side of the display c. Only the colon between the hour and minutes will be flashing Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved.
-
Page 13: Specifications
Resin Mineral Tank, dia. x height 10 x 35 Brine Tank, diameter x height 18 x 33 Overall, depth x width x height 18 x 28 x 63 Approximate Ship Wt., lbs. Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. -
Page 14: Component Parts Breakdown
Component Parts Breakdown Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. -
Page 15: Component Parts List
SBV14ASSY Valve Assembly Salt Platform BTSG18SQ **Refer to “Installation Fitting Assemblies” pages 18-19 for available I/O fittings. ALL MODELS INCLUDE ¾ QUICK CONNECT FITTINGS AS WELL AS 1” MALE NPT ELBOWS Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. -
Page 16: Control Valve Breakdown
Control Valve Breakdown Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. -
Page 17: Control Valve Parts List
Compression nut, ¾” FNPT, for drain elbow PKP10TS8BULK Insert, for 5/8” OD poly tube CV3158-02 Elbow, Drain, ¾” Male CV3159-01 Retainer, Drain Line Flow Control Drain Line Flow Control Button: CV3162-027 Flow Control Washer, 2.7 GPM Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. -
Page 18: Installation Fitting Assemblies
1" brass sweat assembly CV3007-03 assembly CV3151 Nut, 1" quick connect CV3151 Nut, 1" quick connect CV3150 Split ring CV3150 Split ring CV3105 O-ring 215 CV3105 O-ring 215 CV3188 Fitting CV3188-01 Fitting Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. - Page 19 O-ring 215 CV3629 Fitting CV3628 Fitting 1-1/4" PLASTIC MALE NPT Description Part # 1-1/4" plastic male NPT CV3007-05 assembly CV3151 Nut, 1" quick connect CV3150 Split ring CV3105 O-ring 215 CV3317 Fitting Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved.
- Page 20 Although no tools are necessary to assemble or disassemble the valve, the Service Wrench, (shown in various positions on the valve) is Loosens Quick available to aid in assembly or disassembly. Loosens Drive Cap Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved.
-
Page 21: Troubleshooting
11) Verify meter cable (grey cable, 3 pins) is H) Faulty or unplugged connected to control valve circuit board drive motor connector J2 (labeled “METER”) Meter cable disconnected Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. - Page 22 C) Restricted/stalled connector J2 (labeled “METER”) meter turbine 3) Remove meter and check for restriction D) Defective meter 4) Replace meter if needed Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved.
-
Page 23: Error Code
ALT OFF inspection and repair or replacement and looking for park B) Obstruction in reset control valve (hold “NEXT” and position control valve “REGEN” buttons for 3 seconds) Copyright ©2023, Franklin Water Treatment, LLC. All Rights Reserved. -
Page 24: Ten Year Limited Warranty
TEN YEAR LIMITED WARRANTY WARRANTY – Franklin Water Treatment, LLC, warrants this water conditioner against any defects that are due to faulty material or workmanship during the warranty period. This warranty does not include damage to the product resulting from accident, neglect, misuse, misapplication, alteration, installation, or operation contrary to printed instructions, or damage caused by freezing, fire, flood, or Acts of God.
