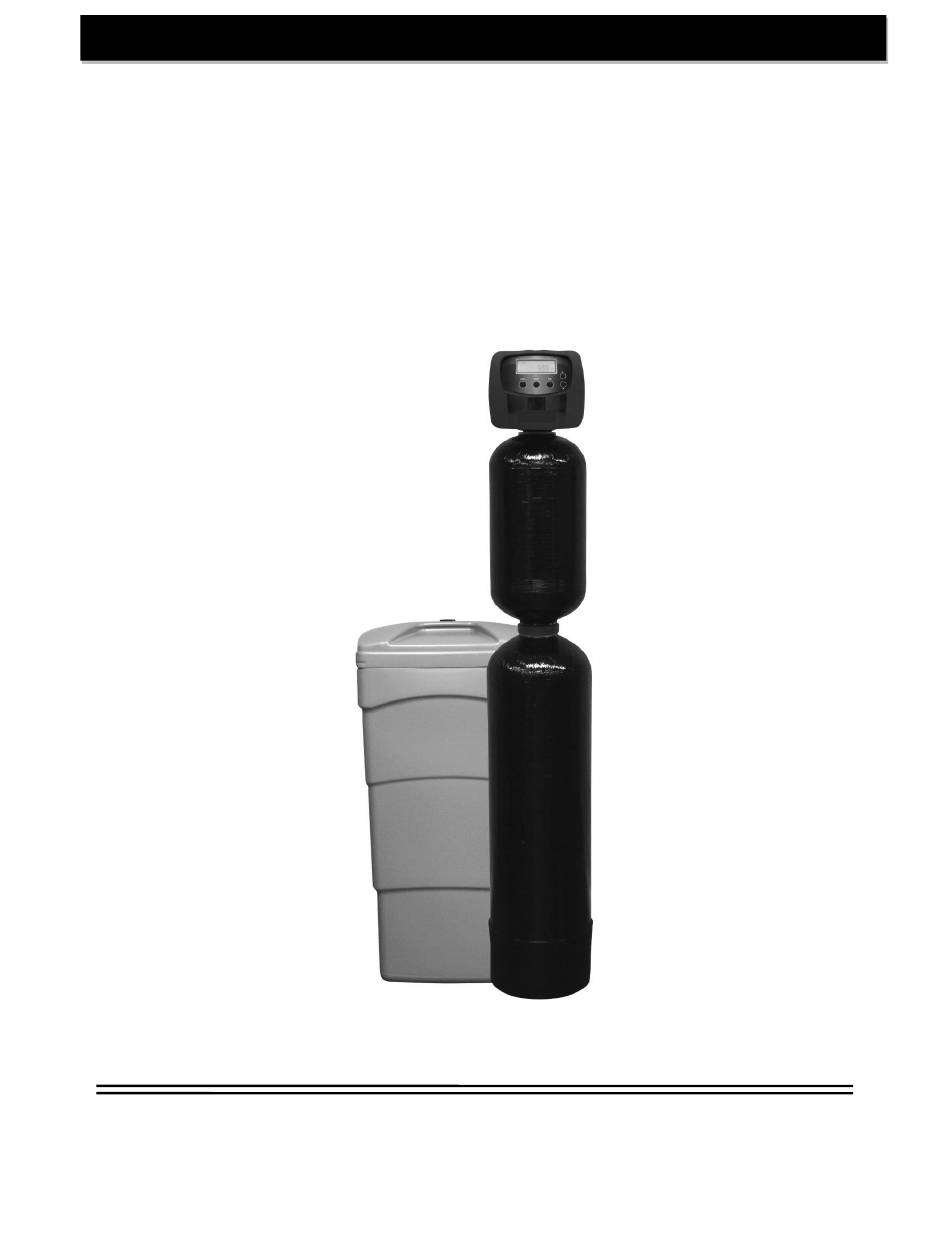

- Page 1 Installation Instructions and Owner’s Manual PSCF1 Stacked Softener and Carbon Filter Franklin Water Treatment, LLC. 12630 US Highway 33 N Churubusco, IN 46723 Phone (260) 693-1972 Fax (260) 693-0602 PSCF1 Instruction Manual 230407.docx...
-
Page 2: Table Of Contents
Table of Contents Pre-installation Instructions Page 3 General Installation Instructions Page 4 Bypass Valve Page 5 & 8 Installation Instructions Page 5 Control Valve Programming – Set Time-of-Day Page 10 Control Valve Programming – Initial Settings Page 10 - 11 Control Valve Operating Displays Page 9 Specifications... - Page 3 This page intentionally left blank...
-
Page 4: Pre-Installation Instructions
The softener resin exchanges the hardness ions for softer ions. The softened water then returns to the control valve where it is directed into the service lines. The PSCF1 Series carbon filter / water softener is designed to be installed on chlorinated water supplies. -
Page 5: General Installation Instructions
General Installation Instructions GENERAL INSTALLATION & SERVICE WARNINGS The PSCF1 is not designed to support the weight of plumbing. Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may be used on black "O" Rings, but is not necessary. Avoid any type of lubricants, including silicone, on red or clear lip seals. - Page 6 Detailed Installation Instructions STEP 1: Carefully remove all components from packaging. DO NOT DISCARD PACKAGING until all water softener components and fittings have been located. STEP 2: Using the integrated coupling nuts, attach the bypass valve to the inlet/outlet of the control valve and put handles in the bypass position (Figure 2) STEP 3: Place unit at desired installation position.
- Page 7 Detailed Installation Instructions (continued) Connect one end of the 3/8” brine line to the control valve quick connect brine refill elbow STEP 7: (Figure 2, Page 5). Insert the other end of the brine line through the hole in the brine tank and into the quick connect fitting on the top of the safety brine valve (Figure 3).
- Page 8 Detailed Installation Instructions (continued) With the bypass valve in the “Bypass” position (refer to Figure 4a, Page 8), press and hold the STEP 12: REGEN button until the motor starts. Then use the REGEN button to advance the control valve to the BACKWASH cycle to release pressure and purge air from the mineral tank. Then unplug the transformer from the electrical outlet.
-
Page 9: Bypass Valve
Bypass Valve The bypass valve is used to isolate the control valve from the plumbing system's water pressure in order to perform control valve repairs or maintenance. The 1" full flow bypass valve incorporates four positions including a diagnostic position that allows a service technician to have pressure to test a system while providing untreated bypass water to the building. - Page 10 General Operation USER DISPLAYS When the system is operating, one of several displays may be shown. Pressing NEXT will alternate between the displays. One of the displays is the current time of day. The second display shows days to a regen/gallons remaining.
- Page 11 Installer Settings A) SET THE TIME OF DAY 1. Press the “CLOCK” button a. The upper left of the display will show “TIME HOUR” b. The lower left of the display will show “SET” c. The hour and AM or PM will flash 2.
- Page 12 4. Using the UP or DOWN (triangle pointing up or down) buttons, set the maximum number of days (default 14, recommended) the softener will go without initiating regeneration even if the unit still has capacity remaining based on water usage, hardness setting and capacity setting.
-
Page 13: Specifications
Specifications Description PSCF1-30 MEDIA VOLUME ft 1.0 HCR, 0.3 GAC CAPACITY, grains @Factory Salt @ 9lb/ft 24,000 @Max. Salt @ 15lb/ft 30,000 Operating Flow Rate, gpm Continuous (3 gpm/ft Service (8 gpm/ft , <= 15 psi drop) Peak (Max. 20 psi drop) -
Page 14: Component Parts Breakdown
Component Parts Breakdown... -
Page 15: Component Parts List
Component Parts List DESCRIPTION PWS1-30 Control Valve PSCF1-30-VLV-L-BP- Less Bypass Media Screen 18280-02 Carbon Tank MTP1018GR-TBO 3/5 – A05P Granular Carbon 1/4/ x 1/8 gravel QC20 Split Tank Connector Resin Tank MTP1035GR Distributor Tube D100S-54 Qty 2 – H05P Hi Cap Resin... -
Page 16: Control Valve Breakdown
Control Valve Breakdown... -
Page 17: Control Valve Parts List
Control Valve Parts List REF # Part Number Description CV3002-A Drive Assembly (does not include circuit board or motor) CV3186-06 Power Cord with Transformer, 15VDC CV3003 Meter and Cable Assembly CV3006 Bypass Valve, Less Fittings CV3998-01FA Front Cover CV3107-01 Drive Motor CV3578HP- Circuit Board 02BOARD... -
Page 18: Installation Fitting Assemblies
Installation Fitting Assemblies 3/4" & 1" PVC SOLVENT ELBOW 1" PVC MALE NPT ELBOW Part # Description Part # Description 3/4" & 1" PVC solvent CV3007-01 1" PVC male NPT CV3007 elbow assy elbow assy CV3151 Nut, 1" quick connect CV3151 Nut, 1"... - Page 19 Installation Fitting Assemblies (cont.) 1" BRASS SHARK BITE 3/4" BRASS SHARK BITE Part # Description Part # Description 1" brass shark bite CV3007-13 3/4" brass shark bite CV3007-12 assembly assembly CV3151 Nut, 1" quick connect CV3151 Nut, 1" quick connect CV3150 Split ring CV3150...
- Page 20 Installation Fitting Assemblies (cont.) 3/4" QUICK CONNECT Description Part # 3/4" QUICK CONNECT QFNCR4 (*2 required) SERVICE WRENCH - CV3193 Although no tools are necessary to assemble or disassemble the valve, the Service Wrench, (shown in various positions on the valve) is available to aid in assembly or disassembly.
- Page 21 Troubleshooting PROBLEM CAUSES SOLUTIONS A) Brine line not fully inserted into fittings B) Brine line inserted into the brine tank overflow fitting 1) Tighten nuts at either end of brine line rather than 2) Verify brine line is installed correctly connected to the 3) Verify softener drain line is not connected safety brine valve...
- Page 22 Troubleshooting (cont.) PROBLEM CAUSES SOLUTIONS A) Clock is not set 1) Reset softener clock (pages 9 & 10) Softener regenerates B) Power outage 2) Verify control valve programming (pages at wrong time of day C) Incorrect control 10 - 11) valve programming A) Unit is installed 1) Re-plumb unit with water supply entering...
- Page 23 E) Defective PC board 5) Replace PC board if needed Troubleshooting (cont.) PROBLEM CAUSES SOLUTIONS A) Outlet is on a switch Display shows B) Power outage 1) Use an un-switched outlet incorrect time-of-day C) Control valve was 2) Reset time-of-day or time-of-day flashes reset 3) Replace circuit board if needed...
-
Page 24: Ten Year Limited Warranty
TEN YEAR LIMITED WARRANTY WARRANTY – Franklin Water Treatment, LLC, warrants this water conditioner against any defects that are due to faulty material or workmanship during the warranty period. This warranty does not include damage to the product resulting from accident, neglect, misuse, misapplication, alteration, installation, or operation contrary to printed instructions, or damage caused by freezing, fire, flood, or Acts of God.
