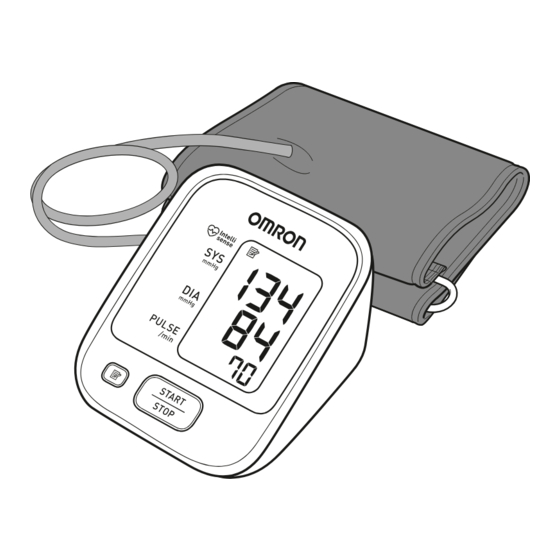

INSTRUCTION MANUAL
Blood Pressure Monitor
Model BP710NVA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP710NVA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron BP710NVA

Summary of Contents for Omron BP710NVA

  • Page 1 ® INSTRUCTION MANUAL Blood Pressure Monitor Model BP710NVA...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Before using the monitor INTRODUCTION..................3 IMPORTANT SAFETY INFORMATION............4 Operating Instructions 1. KNOW YOUR DEVICE ................7 1.1 Display symbols.................9 1.2 Before Taking a Measurement..........10 2. PREPARATION ..................11 2.1 Battery Installation ..............11 3. USING THE DEVICE ................12 3.1 Applying the Arm Cuff..............12 3.2 How to Sit Correctly..............14 3.3 Taking a Measurement ............15 3.4 Using the Memory Function.............18...

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the OMRON BP710NVA Blood Pressure Monitor. Your new blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood movement through your brachial artery and converts the movements into a digital reading. An oscillometric monitor does not need a stethoscope so the monitor is simple to use.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. (General Usage) DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as prescribed by your physician. Only a physician is qualified to diagnose and treat High Blood Pressure.
  • Page 5 IMPORTANT SAFETY INFORMATION Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the equipment or other property. (General Usage) Always consult your physician. Self-diagnosis of measurement results and self-treatment are dangerous.
  • Page 6 IMPORTANT SAFETY INFORMATION (Battery Usage) Do not insert the batteries with their polarities incorrectly aligned. Use only 4 “AA” alkaline or manganese batteries with this device. Do not use other types of batteries. Do not use new and used batteries together. Remove the batteries if the device will not be used for three months or more.

  • Page 7: Know Your Device

    1. KNOW YOUR DEVICE Contents: Monitor, arm cuff, battery set, instruction manual, quick start guide Monitor: A. Display D. Battery compartment B. START/STOP button E. Air jack C. Memory button Arm cuff: F. Arm cuff (Arm circumference 9" - 17" (22 - 42 cm)) G.
  • Page 8 1. KNOW YOUR DEVICE Display: Memory symbol N. Irregular heartbeat symbol J. Systolic blood pressure O. Movement error symbol K. Diastolic blood pressure P. Pulse display / Memory number L. Low battery symbol Q. Deflation symbol M. Heartbeat symbol (Flashes during measurement.)

  • Page 9: Display Symbols

    1. KNOW YOUR DEVICE 1.1 Display symbols Irregular Heartbeat Symbol ( Normal Heartbeat When the monitor detects an irregular rhythm Pulse two or more times during the measurement, the irregular heartbeat symbol will appear on Blood pressure the display with the measurement values. Irregular Heartbeat An irregular heartbeat rhythm is defined as a Short Long...

  • Page 10: Before Taking A Measurement

    1. KNOW YOUR DEVICE 1.2 Before Taking a Measurement To help ensure an accurate reading, follow these directions: 1. Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for 30 minutes before taking a measurement. Rest for at least 15 minutes before taking the measurement.

  • Page 11: Preparation

    2. PREPARATION 2.1 Battery Installation Remove the battery cover. Insert 4 “AA” batteries as indicated in the battery compartment. Replace the battery cover. Notes: • When the low battery symbol ( ) appears on the display, turn the monitor off, then replace all batteries at the same time. Long life alkaline batteries are recommended.

  • Page 12: Using The Device

    3. USING THE DEVICE 3.1 Applying the Arm Cuff Remove tight-fitting clothing or tight rolled up sleeve from your left upper arm. Do not place the arm cuff over thick clothes. Insert the air plug into the air jack securely. Wrap the arm cuff firmly in place around your left upper arm.
  • Page 13 • The blood pressure can differ between the right arm and the left arm, and the measured blood pressure values can be different. OMRON recommends to always use the same arm for measurement. If the values between both arms differ substantially, please check with your physician which arm to use for your measurements.

  • Page 14: How To Sit Correctly

    3. USING THE DEVICE 3.2 How to Sit Correctly To take a measurement, you need to be relaxed and comfortably seated, under comfortable room temperature. Avoid bathing, drinking alcohol or caffeine, smoking, exercising or eating 30 minutes before taking a measurement. •...

  • Page 15: Taking A Measurement

    3. USING THE DEVICE 3.3 Taking a Measurement Notes: • To stop the measurement, press the START/STOP button once to deflate the arm cuff. • Remain still and quiet while taking a measurement.
  • Page 16 3. USING THE DEVICE Press the START/STOP button. The arm cuff will start to inflate automatically. START INFLATE DEFLATE COMPLETE If your systolic pressure is more than 210 mmHg After the arm cuff starts to inflate, press and hold the START/STOP button until the monitor inflates 30 to 40 mmHg higher than your expected systolic pressure.
  • Page 17 3. USING THE DEVICE Remove the arm cuff. Press the START/STOP button to turn the monitor off. The monitor automatically stores the measurement result in its memory. It will automatically turn off after 2 minutes. Note: Wait 2-3 minutes before taking another measurement. Waiting between measurements allows the arteries to return to the condition prior to taking a measurement.

  • Page 18: Using The Memory Function

    3. USING THE DEVICE 3.4 Using the Memory Function The monitor automatically stores the results up to 14 sets. Note: If the memory is full, the monitor will delete the oldest value. To View the Measurement Values Stored in Memory Press the button.
  • Page 19 3. USING THE DEVICE To Delete All the Values Stored in Memory Press the button, while the memory symbol appears. While holding the button down, press the START/STOP button for more than 3 seconds. Note: You cannot partially delete the values stored in the memory.

  • Page 20: Error Messages And Troubleshooting

    4. ERROR MESSAGES AND TROUBLESHOOTING 4.1 Error Messages Error Display Cause Solution Remove the arm cuff. Wait 2 - 3 minutes and then take another Irregular heartbeats are measurement. Repeat the steps detected. in section 3.3. If this error continues to appear, contact your physician.
  • Page 21 4. ERROR MESSAGES AND TROUBLESHOOTING Error Display Cause Solution Repeat measurement. Remain still and do not talk during measurement. Refer to section 3.3. Movement during measurement If “E2” appears repeatedly, and the arm cuff has not been inflate the arm cuff manually inflated sufficiently.

  • Page 22: Troubleshooting

    4. ERROR MESSAGES AND TROUBLESHOOTING 4.2 Troubleshooting Problem Cause and Solution Replace all batteries with new ones. No power. Check the battery installation for proper placement of the battery polarities. No display appears on the monitor. Refer to section 2.1. Blood pressure varies constantly.

  • Page 23: Maintenance And Storage

    5. MAINTENANCE AND STORAGE 5.1 Maintenance To protect your device from damage, please observe the following: • Store the device and the components in a clean, safe location. • Do not use any abrasive or volatile cleaners. • Do not wash the device and any components or immerse them in water.

  • Page 24: Storage

    5. MAINTENANCE AND STORAGE 5.2 Storage Unplug the air plug from the air jack. Gently fold the air tube into the arm cuff. Note: Do not bend or crease the air tube excessively. Do not store the device in the following situations: •...

  • Page 25: Optional Medical Accessories

    5. MAINTENANCE AND STORAGE 5.3 Optional Medical Accessories Arm cuff Arm circumference Arm circumference 7" - 9" (17 - 22 cm) 9" - 17" (22 - 42 cm) CD-CS9 CD-WR17 (Model: HEM-CS24) (Model: HEM-RML31)

  • Page 26: Specifications

    6. SPECIFICATIONS Model BP710NVA HEM-7121-ZVA Display LCD digital display Measurement range Pressure: 0 to 299 mmHg Pulse: 40 to 180 beats / min. Accuracy Pressure: 3 mmHg or 2% of reading Pulse: 5% of display reading Inflation Fuzzy-logic controlled by electric pump...

  • Page 27: Fcc Statement

    7. FCC STATEMENT FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 28: Limited Warranty

    8. LIMITED WARRANTY Your BP710NVA Blood Pressure Monitor, excluding the arm cuff and batteries, is warranted to be free from defects in materials and workmanship appearing within 2 years from the date of purchase, when used in accordance with the instructions provided with the monitor.
  • Page 29 8. LIMITED WARRANTY This warranty provides you with specific legal rights, and you may have other rights that vary by jurisdiction. Because of special local requirements, some of the above limitations and exclusions may not apply to you. FOR CUSTOMER SERVICE Visit our web site at: www.OmronHealthcare.com Call toll free:...

  • Page 30: Guidance And Manufacturer's Declaration

    Nevertheless, special precautions need to be observed: • The use of accessories and cables other than those specified by OMRON, with the exception of cables sold by OMRON as replacement parts for internal components, may result in increased emission or decreased immunity of the device.
  • Page 31 Guidance and manufacturer’s declaration - electromagnetic emissions OMRON BPM is intended for use in the electromagnetic environment specified below. The customer or the user of this OMRON BPM should assure that it is used in such environment. Emissions test Compliance...
  • Page 32 Guidance and manufacturer’s declaration - electromagnetic immunity OMRON BPM is intended for use in the electromagnetic environment specified below. The customer or the user of this OMRON BPM should assure that it is used in such environment. IEC 60601 test...
  • Page 33 Guidance and manufacturer’s declaration - electromagnetic immunity OMRON BPM is intended for use in the electromagnetic environment specified below. The customer or the user of this OMRON BPM should assure that it is used in such environment. IEC 60601 Compliance...
  • Page 34 If the measured field strength in the location in which the OMRON BPM is used exceeds the applicable RF compliance level above, the OMRON BPM should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the OMRON BPM.
  • Page 35 OMRON BPM is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of this OMRON BPM can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the OMRON BPM as recommended below, according to the maximum output power of the communications equipment.
  • Page 36 Manufactured by: OMRON HEALTHCARE Co., Ltd. 53, Kunotsubo, Terado-cho, Muko, Kyoto, 617-0002 JAPAN Distributed by: OMRON HEALTHCARE, INC. 1925 West Field Court, Lake Forest, IL 60045 U.S.A. www.OmronHealthcare.com © 2016 OMRON HEALTHCARE, INC. Made in Japan 9545432-6A...
