Summary of Contents for Forno FFSGS6156-36BLK

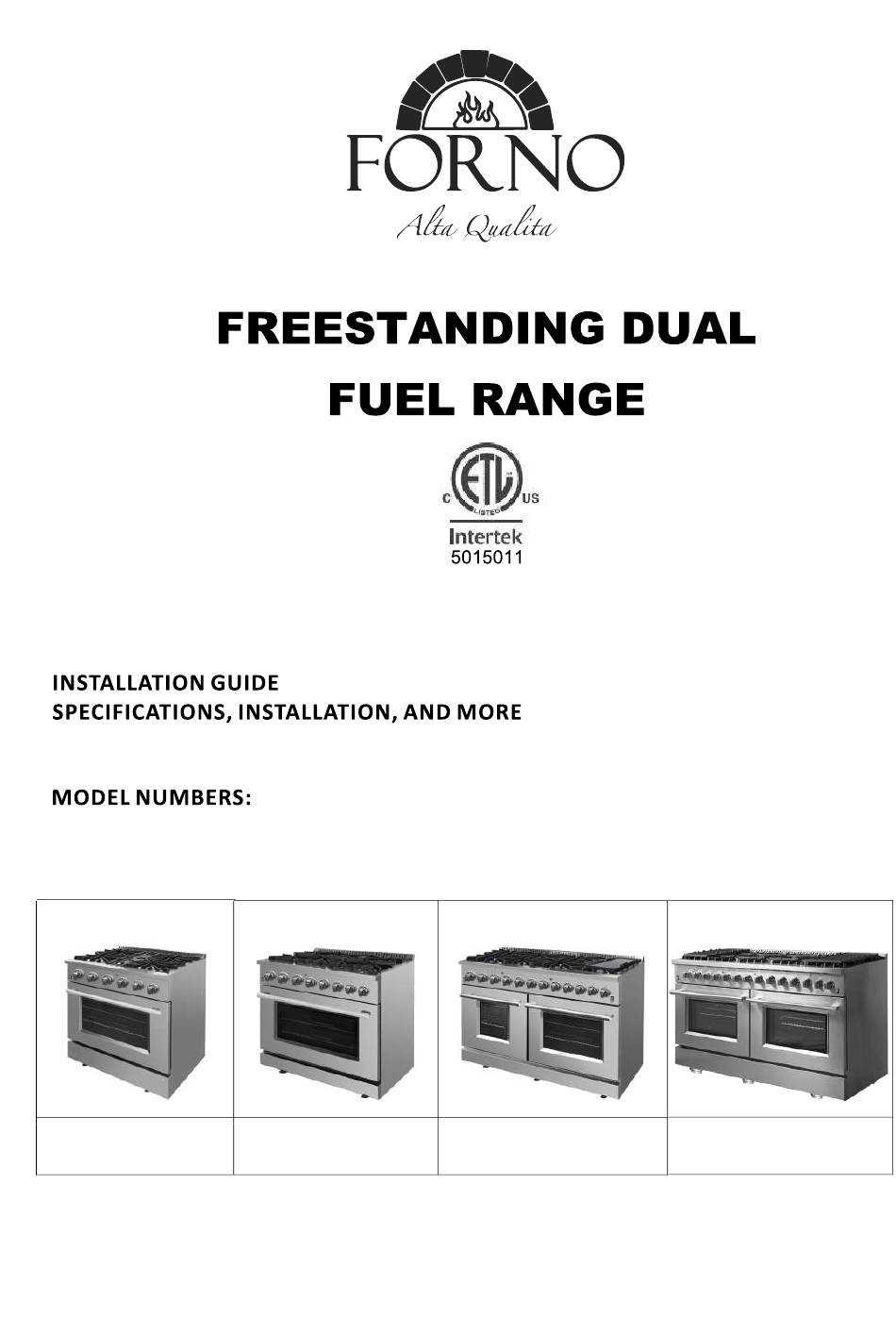

- Page 1 Conforms to UL STD 858 & CSA / ANSI STD Z21.1 Certified to CSA STDs C22.2#61 & CSA STD 1.1 FFSGS6156-48 FFSGS6156-36 FFSGS6156-48BLK FFSGS6156-30 FFSGS6156-36BLK FFSGS6156-60 FFSGS6156-48WHT FFSGS6156-36WHT 10/2024 C...
-
Page 2: Table Of Contents
Index Customer Care Warranty Consumer Information Anti-tip Device Important Safety Information Features of Your Range Installation Instructions Door Handle Installation Cooktop Burner Grills Installation Oven Rack Rail Installation Electrical Gas Supply Electric Power Supply Requirements Pressure Regulator Gas Shut-off Valve (not included) Product Dimensions and Cabinets Exhaust Hood Installation Gas Conversion Operation... -
Page 3: Customer Care
A customer service representative will contact you as soon as possible. All warranty work needs to be authorized by FORNO customer service. All our authorized service providers are carefully selected and rigorously trained by us. -
Page 4: Warranty
30-Day Cosmetic Warranty The Purchaser must inspect the product at the time of delivery. Forno warrants that the Product is free from manufacturing defects in materials and workmanship for a period of thirty (30) days from date of the original retail purchase of the Product. - Page 5 DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF FORNO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST FORNO BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY FORNO AND CAUSING THE ALLEGED DAMAGE.WITHOUT PREJUDICE TO THE FOREGOING, PURCHASER ASSUMES ALL RISK AND...
-
Page 6: Consumer Information
Consumer information Range Safety Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is a safety alert symbol. It will alert you to potential personal or property safety hazards. Obey all safety messages to avoid any property damage, personal injury or death. -
Page 7: Important Safety Information
Make sure the anti-tip bracket is installed. Slide range forward. Make sure the anti-tip bracket is securely attached to the wall behind the range. Anti-tip bracket WARNING This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause developmental harm. - Page 8 3. Any adjustment and service should be performed only by a qualified gas range installer or service technician. Do not attempt to repair or replace any part of your range unless it is specifically recommended in this manual. 4. Your range is shipped from the factory set for use with natural gas or propane (LP) gas. It can be converted for use with either.
- Page 9 WARNING DO NOT carry or lift the cooking range by the oven door handle or the control panel! CORRECT INCORRECT INCORRET WARNING Never pour cold water to hot surfaces in a hot oven. The steam created could cause serious burns or scalding and the sudden change in temperature can damage the enamel in the oven. WARNING Cook food thoroughly to help protect against foodborne illness.
- Page 10 WARNING COOKTOP SAFETY INSTRUCTIONS Never leave the surface burners unattended at medium or high heat settings. Foods, especially oily foods, may ignite resulting in fire that could spread to surrounding cabinets. Never leave oil unattended while frying. If allowed to heat beyond its smoking point, oil may ignite resulting in fire that may spread to surrounding cabinets.
-
Page 11: Features Of Your Range
Features of Your Range 10 burners 8 burners 6 burners 4 burners Oven Vents Cooktop Burner Grills Griddle (on some models) Control Panel Oven Lights Switch Temperature Control Knob Broil/Oven Control Knob Kick Panel Leveling System(Oven legs) Not all features are on all models. Appearance may vary. -
Page 12: Installation Instructions
Installation Instructions Before using your range 1. Remove all packaging material. 2. Check to make sure you have all of the accessories listed below FFSGS6156-30 4 sets FFSGS6156-36 FFSGS6156-36BLK 8 sets FFSGS6156-36WHT 1.18, 0.9, 0.46 LPG injector FFSGS6156-48 FFSGS6156-48BLK 10 sets... -
Page 13: Door Handle Installation
Regulator (pre-installed) 1 piece Serial Number Sticker & Instruction Manual 1 set Cord plug (pre-installed) 1 piece YOU NEED TOOLS FOR INSTALLATION. (not supplied with the range) Tape measure Screwdriver Wrench Socket wrench Allen key &Pencil Protective Adjustable Hammer Adjustable Drill gloves wrench... -
Page 14: Oven Rack Rail Installation
Electrical Supply Service 2/C 8AWG+2/C 10AWG Receptacle 4-prong grounding-type PowerCord 3.9' (1.2m) Max Connected Load FFSGS6156-30 3.6kW FFSGS6156-36 FFSGS6156-36BLK FFSGS6156-36WHT 3.6kW FFSGS6156-48 FFSGS6156-48BLK FFSGS6156-48WHT 7.025kW FFSGS6156-60 7.2kW Socket WARNING Electrical grounding Instructions: This range is equipped with a four-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded four-prong receptacle. -
Page 15: Gas Supply
CAUTION Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing. Grounding The power cord is equipped with a four-prong (grounding) plug which mates with a standard four-prong grounding wall receptacle to minimize the possibility of electrical shock hazard from the range. -
Page 16: Electric Power Supply Requirements
Electric Power Supply Requirements Your unit is equipped with a small cavity located at the lower back, which is specifically designed to accommodate all your electric and gas requirements for a seamless flush-to-wall installation. It is important to ensure that all components are positioned below the measurements provided below. -
Page 17: Pressure Regulator
Pressure Regulator Since service pressure may fluctuate with local demand, every gas cooking range must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. The pressure regulator preinstalled on the range has a gas inlet of 1/2" NPT for the 30", 36",48" & of 3/4"... -
Page 18: Product Dimensions And Cabinets Exhaust
Product Dimensions and Cabinets Model#: FFSGS6156-30 Model#: FFSGS6156-36 FFSGS6156-36BLK FFSGS6156-36WHT Model#: FFSGS6156-48 FFSGS6156-48BLK FFSGS6156-48WHT Model#: FFSGS6156-60 This range may be installed directly adjacent to existing countertop-height cabinets (36" or 91.5 cm from the floor). To achieve the best look, the cooktop should be level with the cabinet countertop. This can be... - Page 19 29" (735) 27" 3 / 8 (695) 1" 25 / 32 (46) 2" 5 / 16 (59) 7" 9 / 16 (192) 34" 27 / 32 (885) 36" (916) 1" 11 / 16 (43) 24" 11 / 32 (618) 29" 1 / 32 (756) 1/ Remove the two screws in the back of the range.
- Page 20 5’’ 4/5 15’’ 1/5 3’’ (77mm) 28’’ (715mm) (149mm) (387mm) Max. 9’’ ½ (242mm) Max. 7’’ 3/10 (185mm) Model#: FFSGS6156-36 FFSGS6156-36BLK FFSGS6156-36WHT Min. 7’’ 4/5 (199mm) Min. 5’’ 3/5 (142mm) 5’’ 4/5 9’’ 4/5 3’’ (77mm) 34’’ (866mm) (149mm) (248mm) Max.
- Page 21 Model#: FFSGS6156-48 FFSGS6156-48BLK FFSGS6156-48WHT Min. 7’’ 4/5 (199mm) Min. 5’’ 3/5 (142mm) 5’’ 4/5 41’’ 9/10 3’’ (77mm) 46’’ (1169mm) (149mm) (1064mm) Max. 9’’ ½ (242mm) Max. 7’’ 3/10 (185mm) Model#: FFSGS6156-60 Min. 7’’ 4/5 (199mm) Min. 5’’ 3/5 (142mm) 52’’...
-
Page 22: Exhaust Hood Installation
If this procedure isn't completed by a professional, the warranty can be voided. Forno has the right to ask for a proof (invoice from the professional) when there is signs of an improper conversion. - Page 23 WARNING Before carrying out this operation, disconnect the range from gas and electricity. Fail to do so, may result in fire, or electrical shock hazard can occur and result in injury or death. Do not remove regulator or allow it to turn during servicing. The gas conversion procedure for this range includes 5 steps: 1.
- Page 24 NATURAL GAS (NG) A. 9,000BTU B.15,000BTU C.20,000BTU & LIQUID PROPANE (LP) 1.38 x 2 (OUTER) 1.33 1.75 0.75 x 1 (CENTER) 0.9 x 2 (OUTER) 1.18 0.46 x 1 (CENTER) Model: FFSGS6156-30 9000BTU 9000BTU 15000BTU 20000BTU 15000BTU 15000BTU Model:FFSGS6156-36 FFSGS6156-36BLK FFSGS6156-36WHT...
- Page 25 Model: FFSGS6156-48 FFSGS6156-48BLK FFSGS6156-48WHT Model: FFSGS6156-60 IMPORTANT: Keep the injectors removed from the range for future use.
- Page 26 STEP 3: Gas Valve a. Remove control knobs. b. Using a flat screwdriver, adjust main burner bypass jets toward to 1/4 circle for LP until the flame is normal. For 9,000btu and 15,000btu burners, please refer to fig.1, which is in the center of valve axis.
-
Page 27: Cooktop Operation
Anti-Tip Bracket To prevent the range from tipping forward, the anti-tip bracket must be installed. Refer to the section of ANTI-TIP DEVICE. Gas Supply Connection All connections to the gas piping must be wrench-tightened. Do not overtighten or allow pipes to turn when tightening. -
Page 28: Simmer And Boil
Heat Settings: Ignites the burners. Simmer Melting small quantities, steaming rice, warming food, melting chocolate or butter. Melting large quantities. Low-Medium Low-temperature frying, simmering large quantities, heating milk, cream sauces, gravies. Medium Sauting and browning, braising, pan-frying, maintaining slow boil on large quantities. Medium-Hi High-temperature frying, pan boiling, maintaining slow boil on large quantities. -
Page 29: Cooktop Cleaning Tips
Start low and don't overheat! - You might get the urge to turn your burners up to full blast the first time you use the FORNO grill/griddle, but don't! Burners only need to be set to 1/3 to 1/2 power to heat the grill/griddle to over 500 degrees. -
Page 30: Electric Oven Functions
ELECTRIC OVEN FUNCTIONS Various oven functions allow the user to operate flexibly to achieve different cooking result. (Temperature control knob) (Oven function knob) (for 18” oven only) CONV. HIGH BAKE he t e e e t ethe e th , for faster heat-up and shorter cooking times at lower temperatures. Better cooking results can be achieved with hot air circulating around the oven cavity evenly. -
Page 31: Oven Temperature Control & Cooking
If it's the case, remove them from, clean them thouroughly and remove any excess of water. Forno is not responsible for any maintenance related issues. Control knobs Using a damp cloth, wipe with a mild detergent or spray degreaser; rinse and dry. Do not put in dishwasher for cleaning. -
Page 32: Troubleshooting Tips
Troubleshooting Tips Before you call for service Range does not operate Check that power is on. Check that electrical power to range and home circuit breaker is on. Burners Do Not Light Or Spark Electrical plug is not plugged into a live power outlet. Randomly Gas supply not turned on. - Page 33 Burning Or Oily Odor Emitting This is normal in a new oven and will disappear in some time. From The Vent Strong Odor This is temporary. An odour caused by the insulation around the inside of the oven is normal for the first few times of use. Convection Fan Not On All The This is normal.
-
Page 34: Please Read Before Using Your Oven
PLEASE READ BEFORE USING YOUR OVEN For Forno Commercial Style Ranges Models: FFSGS6244, FFSGS6156, FFSGS6260, FFSGS6187, FFSGS6239, FFSGS6125, FFSGS6291 Useful information for your oven: This oven is very powerful. Toavoid burns, please use oven mitts when manipulation oven racks and be careful not to touch the oven door when in use. -
Page 35: Wire Diagram
Wire Diagram... - Page 39 ® Customer Support: Call 1-866-231-8893 or email: info@forno.ca...
