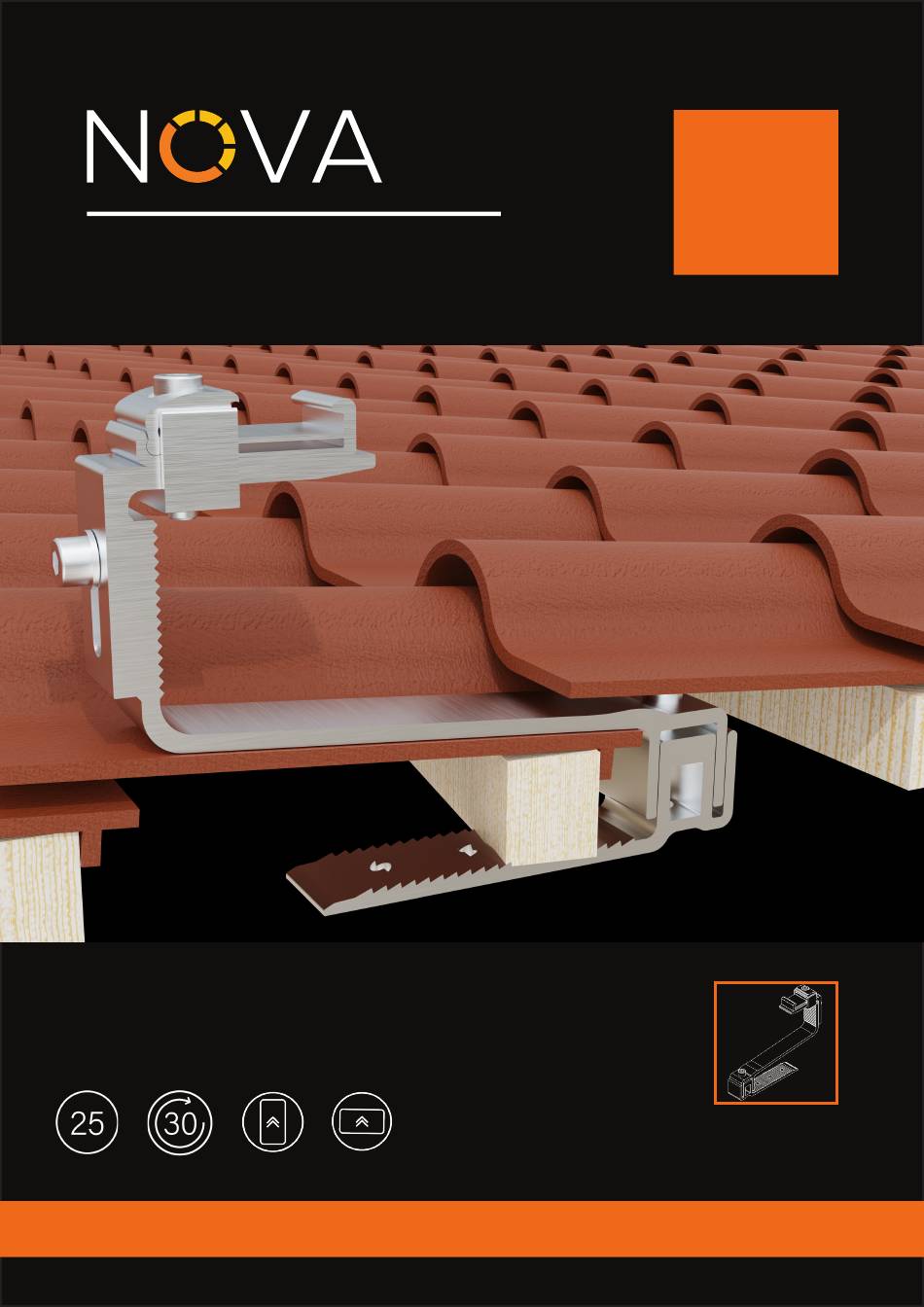

- Page 1 INSTALLATION MANUAL Roof Mounting System NOVA QUICKFIT TILE HOOK ARTICLE #920-122130 / 920-122130-B REGINA WAUTERSWEG 13, 8800 ROESELARE BELGIUM +32 (0)51 14 05 94 UP-TO 30% FASTER PORTRAIT LANDSCAPE 25 YEAR INSTALLATION WARRANTY WWW.NOVAMOUNTING.COM...
-
Page 2: Testing & Certification
NOVA Mounting. WARRANTY Warranty according to the terms and conditions found on the website www.novamounting.com NOVA is not accountable for the roof’s capability to maintain the introduced forces. Please check the roof’s compatibility with a static engineer. - Page 3 Tile roof mounting system 13mm...
- Page 4 Solar panels layout...
- Page 5 Installation Procedure STEP.1 Remove or slide the tile from the roof girder slightly and tuck the roof hooks into the joint of the wooden beam (see picture below). The barbs on the hook will play a fixed role, and then put the removed tiles back on.
- Page 6 STEP.2 Loosen the bolt of NOVA rail fixture, then place the rail into the rail fixture. 1.Loosen the bolt of the rail fixture. loosen 2.Tighten the bolt. Recommended Torque 12-14N.M...
- Page 7 STEP. 3 Insert the NOVA inner rail connector into one end of the rail, then insert the other rail into it. STEP.4 Array layout STEP.5 Installing NOVA panel clamps; When installing the first panel, adjust the position of the solar panel according to the technical...
- Page 8 Attention：1.Ensure the panel clamps are pushed up against the solar panel. 2.Tighten the bolt slowly, until the panel clamp is in a holding position. 3.Using 12-14N.M torque to tighten the bolt. Recommended Torque 12-14N.M...
- Page 9 Attention: Please install the solar panels vertically. Attention: Double check all bolts are tightened when solar panel installation completed.
- Page 10 Figure Part Name NOVA HD Rail Joiner NOVA QUICKFIT Tile Hook Article # 920-122820 920-122130 Figure Part Name NOVA Click End Clamp 30- NOVA Click Mid Clamp 30- 40mm 35mm Article # 930-991420 930-991410 Figure Regina Wautersweg 13, 8800 Roeselare...
