The Trolley
E-Class
™
Personal Monitor Arm System

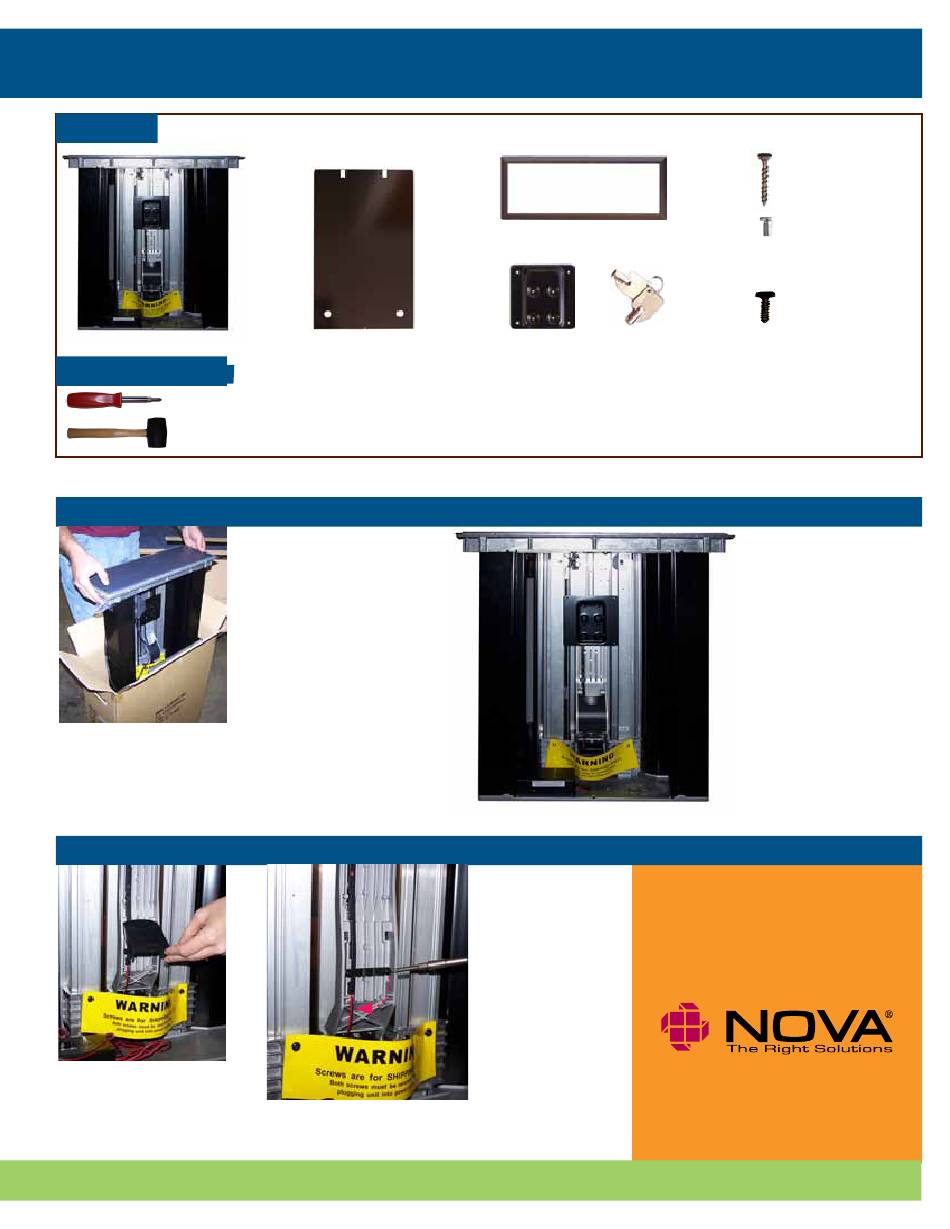

Parts List
The Trolley™ E-Class
Tools (not included)
Phillips Screwdriver
Power screwdriver may also be used,
if desired.
Rubber Mallet
Note: Do NOT connect the Trolley E-Class to power source until Step 4.
Step 1:
a.
1a. Remove Trolley E-Class
and parts from shipping
box.
Step 2:
a.
2a. With arm in down
position, remove black
cable management
cover.
Need assistance? Call 1-800-730-6682 for NOVA Solutions Customer Support
Installation & Operating Instructions
Removable Metal
Front Cover
b.
2b. Remove right
screw from cable
retention
clip on cable manage-
ment channel. Then
loosen left screw
and rotate clip
downward.
b.
Trim Ring
(Ships with Flush Mount or Surface Mount)
75mm VESA
Keys
Plate
(100mm
VESA Plate
Installed)
Qty. 9
#6 x 3/4" screws
Qty. 4
Monitor screws
Phillips pan head
M4, length: 6mm
Qty. 2
Wire management
grommet screws
Phillips pan head
3mm, self-threading
screw, length: 10mm
1b. Place Trolley E-Class
in its upright, vertical
position with the open
interior side facing
you.
Page 1 of 4
