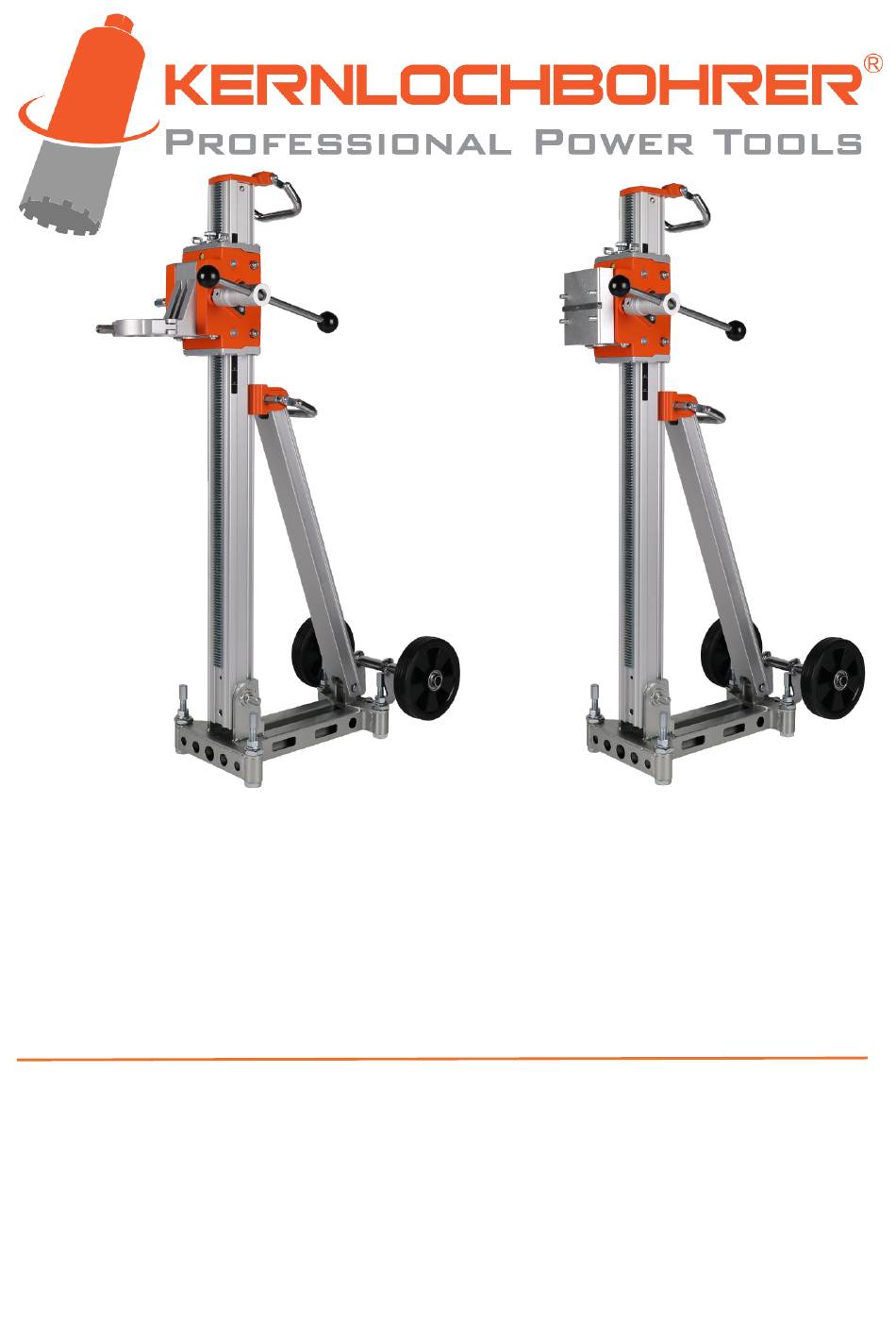

- Page 1 Operating instructions Core drill rig KBS-252/M-PRO Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Phone: 07022-5034900 E-Mail: info@kernlochbohrer.com Version 0 2. Output 05/2023...
-
Page 2: Table Of Contents
Content Introduction and description Thanks to the buyer Explanation of symbols Safety regulations Product description Technical data Mounting the drill stand Care and maintenance Maintenance and inspection plan Troubleshooting Exploded view Environmental protection Warranty EC Declaration of Conformity Attachment... -
Page 3: Introduction And Description
Employer's Liability Insurance Association (BG) must be observed. Thanks to the buyer Thank you for purchasing a core drill rig from Kernlochbohrer GmbH. Please read the operating instructions carefully and observe the safety instructions. Through proper operation, you will fully appreciate the outstanding performance of our products. -
Page 4: Safety Regulations
Safety regulations Read all precautions before start-up and keep the operating instructions. ❖ Please follow the operating instructions carefully, as failure to follow these ❖ safety precautions and instructions may cause electric shock, fire and/or serious injury. 1. Keep your work area clean and well lit. Disorder or unlit work areas can lead to accidents. - Page 5 6. Avoid unusual postures. Ensure a secure footing and maintain your balance at all times. Do not work on a ladder. This will give you better control of the power tool in unexpected situations. 7. Wear appropriate clothing. Do not wear loose clothing or jewelry. Keep hair, clothing and gloves away from moving parts.
-
Page 6: Product Description
15. When used for overhead drilling, a functional water collection ring must be used. Make sure that no water can get into the motor. 16. Check all moving and clamped parts before use. 17. Only use original spare parts from Kernlochbohrer GmbH. Product description Drill column... -
Page 7: Technical Data
Technical data Model : KBS-252/M-PRO Item number: 6217 Max. Drill size: 252mm Drill column: 60x62x900mm Drilling stroke: 580mm Motor mount: Ø 60mm Bracket N.W. 11,5kg Packing size: 1045x290x455mm Mounting the drill stand Determine the desired position of the stand. Then fasten the stand with a concrete anchor. - Page 8 To bring the drill stand into the correct position, use the four leveling screws and the level indicator attached to the drill carriage for this purpose. Then tighten the lock nuts on the leveling screws. The entire stand must be firmly mounted. Adjust the angle of the drill stand to the position using the drill center of the desired drill hole.
- Page 9 The KBS-252/M-PRO has both a clamp bracket and a mounting adapter. Both mounting methods depend on the type of drill motor. e.g. the DKB-202/H-PRO is a handheld drill motor, this must be used with the clamp bracket when mounted on the stand. Before mounting the drill motor on the stand, first set the drill slide to a higher position to make...
- Page 10 The locking device of the drill carriage is located on the top side of the drill carriage. It is intended to prevent the drill sled from falling down and causing possible injury or damage to the drill or the machine. Slide the carriage lock to the left to unlock the carriage, then crank the drill carriage up or down to the desired position and slide the lever lock to the right to lock the drill carriage.
-
Page 11: Care And Maintenance
The cup wing nut of the cord threaded rod (in the optional fastening set) is a large wing-shaped nut with washer. It can be used together with an impact anchor to fasten the drill stand to the substrate. If you are drilling a wall hole with a stand, first securely fasten the stand to the wall, and only then mount the drill motor on the stand. - Page 12 • Always pay attention to the wear listed above. Replace the rollers and/or the eccentric clamps if necessary. If the problem persists, replace the drill column. • Check the stability of the drill stand before each use. If the base plate of the drill stand is damaged, replace it before using the drill stand.
-
Page 13: Maintenance And Inspection Plan
Maintenance and inspection plan Regular inspection according to the maintenance and inspection schedule is urgently required. Shorten the intervals between maintenance if you use the product very frequently. every 3rd monthly or annually or Maintenance each time month or after after 25 hours after 200 parts... -
Page 14: Troubleshooting
Troubleshooting Error Cause Troubleshooting Retighten the 4 the sled wobbles Tensioner worn eccentric clamps. the gear shaft is jammed all 4 rollers worn out Replace all 4 casters. Concentricity of the drive Wear on the gear shaft Replace the worn shaft on the rack or the gear rack part. -
Page 15: Exploded View
Exploded view... - Page 16 Designation Q u a Q u a Designation ntity ntity Hexagon socket mushroom head screw Column protection top M5x15 Hexagon socket screw M6x17 Φ8x6 Sledge Connector of the rear handle Bottom sled guard Hexagon socket mushroom head screw Hexagon socket mushroom head screw M6x12 M5x20 Rear handle Weighing plate...
- Page 17 Hexagon socket mushroom head screw M8x16 Constant part ring Φ6 (optional) Washer Φ8 (optional) Φ60mm clamp mount Base plate Knurled cylindrical pin Φ6 Column mounting Hexagon nut M8x30 S=13 Column block Clamping plate Hexagonal lock nut M10 Clamping bracket screw M8x60 Socket insert Key 10x8x100 Hexagon nut M20xP1.5 T=9 S=30...
-
Page 18: Environmental Protection
Environmental protection Raw material recovery instead of waste disposal! To avoid transport damage, the device must be delivered in sturdy packaging. Packaging as well as device and accessories are made of recyclable materials. The plastic parts of the device are marked according to the material. This enables environmentally compatible, sorted disposal via the collection facilities offered. -
Page 19: Ec Declaration Of Conformity
Directive 2006/42/EC (recognizable by the CE marking on the power tool) Name and address of the person authorized to compile the technical documentation: Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Location: Großbettlingen Date: 17.05.2023...
