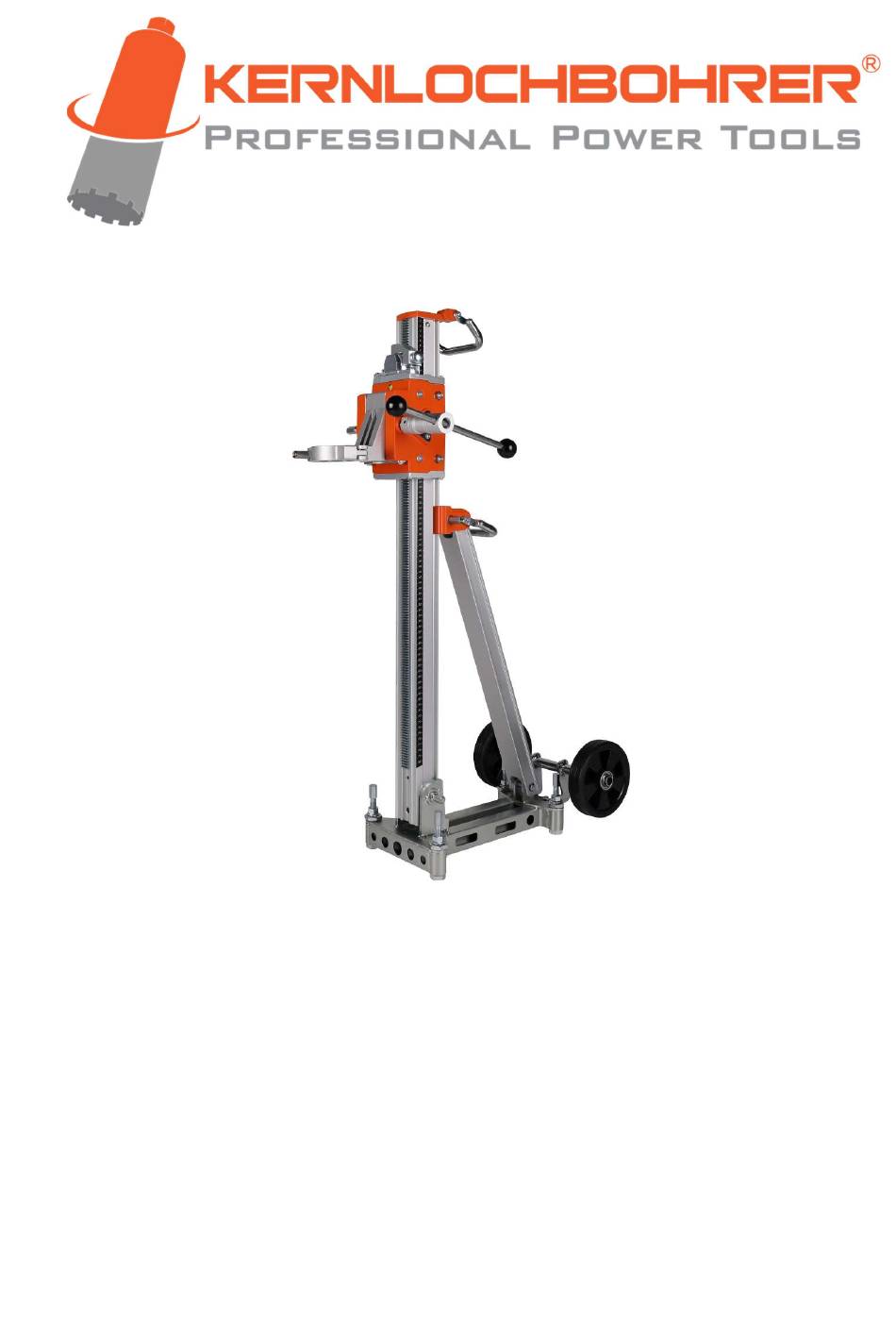

- Page 1 Operating instructions Core drill rig KBS-252/M-PRO BA-01-000004-01-EN...
- Page 3 Kernlochbohrer GmbH. Errors and technical changes excepted. Kernlochbohrer GmbH is not liable for any errors in this documentation. Liability for direct or indirect damages arising in connection with the delivery or use of this documentation is excluded to the extent permitted by law.
-
Page 4: Table Of Contents
Operating instructions Core drill rig KBS-252/M-PRO Table of contents Information and support ................6 Thanks to the buyer ................6 Using the Operating instructions ............6 Changes ....................6 Explanation of symbols ................ 7 Guarantee .................... 7 Environmental protection..............8 1.6.1... - Page 5 Operating instructions Core drill rig KBS-252/M-PRO Specific precautions ................21 Commissioning ................... 21 Optical inspection ................22 Secure the feed carriage on the guide stand ........22 Attach the clamp holder to the feed carriage ........24 Fastening the core drill rig ..............25 Attaching the core drilling machine to the core drill rig .......
-
Page 6: Information And Support
By following the Operating instructions, you will be able to fully uti- lise the outstanding performance of our product. If you have any questions regarding the operation of the device, please con- tact Kernlochbohrer GmbH directly. We are available to answer your questions at any time. Using the Operating instructions The appliance is intended for professional use and may only be operated by trained personnel. -
Page 7: Explanation Of Symbols
Background information or reference to special features. Guarantee In accordance with Kernlochbohrer GmbH's general terms of delivery, a war- ranty period of 12 months applies to material defects in business transactions with companies (proof by invoice or delivery note). -
Page 8: Environmental Protection
Operating instructions Core drill rig KBS-252/M-PRO Environmental protection 1.6.1 Disposal of the product Follow national regulations on environmentally friendly disposal and recycling of used appliances and accessories. 1.6.2 Disposal of the packaging The packaging is made from recyclable materials. They must be disposed of in accordance with their labelling and municipal guidelines. -
Page 9: Service
Operating instructions Core drill rig KBS-252/M-PRO Service Precise information and specific questions allow faults to be rectified quickly, make it easier to order spare parts and prevent incorrect deliveries. Before contacting the service, please collect the following data first. The model designation must be stated for all questions and orders. This infor- mation can be found on the rating plate of the appliance. -
Page 10: Security
"Technical data" chapter. Any other use or use beyond this is considered improper use - risk of accident! Kernlochbohrer GmbH is not liable for any resulting damage. The risk is borne solely by the operator. Intended use also includes observing the operating instructions and complying with the prescribed maintenance intervals. -
Page 11: Safety Regulations For The Operator
Changes to the device The operator may not make any modifications to the device without written au- thorisation from Kernlochbohrer GmbH. If the operator carries out modifica- tions without authorisation, the warranty becomes void. Kernlochbohrer GmbH is not liable for damage caused by unauthorised modifications. -
Page 12: Spare Parts
Spare parts Spare parts must comply with the properties defined by Kernlochbohrer GmbH. This is always guaranteed for spare parts supplied by Kernlochbohrer GmbH. Kernlochbohrer GmbH is not liable for damage caused by the use of unsuitable spare parts. 2.3.4... -
Page 13: Safety Regulations For Staff
Operating instructions Core drill rig KBS-252/M-PRO Safety regulations for staff 2.4.1 Safe behaviour All persons responsible for commissioning, operating and maintaining the ap- pliance must have read and understood the Operating instructions beforehand. The appliance may only be operated by persons who have been adequately instructed beforehand. -
Page 14: Safe Operation
Operating instructions Core drill rig KBS-252/M-PRO 2.4.2 Safe operation Operating the appliance requires the full concentration and ability of the per- sonnel. Persons who are overtired, unable to concentrate or under the influ- ence of alcohol, drugs or medication must not work on or with the appliance. -
Page 15: Protective Equipment
Operating instructions Core drill rig KBS-252/M-PRO 2.4.3 Protective equipment Wearing protective equipment reduces the risk of injury: - Safety shoes with non-slip sole and protective toe cap - Cut-resistant and non-slip gloves - Safety goggles according to standard EN 166 or face protection... -
Page 16: Safety During Maintenance
Operating instructions Core drill rig KBS-252/M-PRO Safety during maintenance 2.5.1 General information Maintenance of the appliance may only be carried out by persons who have completed the appropriate specialised training for this activity. The maintenance activities and intervals specified in the Operating instructions must be observed. -
Page 17: Technical Data
Operating instructions Core drill rig KBS-252/M-PRO Technical data Article number 6217 Motor mounting Clamp holder Ø 60 mm Maximum drilling diameter 252 mm Maximum feed length 580 mm Adjustable drilling angle 0 to 45 degrees Length 1020 mm Width 300 mm... -
Page 18: Device Description
Operating instructions Core drill rig KBS-252/M-PRO Device description Device components BA-01-000004-01-EN 2024-05-21... - Page 19 Operating instructions Core drill rig KBS-252/M-PRO Safety device of the feed carriage Upper handle Locking screw (2 pieces) of the clamp holder Clamp holder Feed slide Guide stand with toothed rack Levelling screws with lock nuts (4 pieces) Feed lever (can be attached to splined shaft on both sides)
-
Page 20: Scope Of Delivery
- Operating instructions The accessories required to use the device, such as mounting kits etc., must be purchased separately. Kernlochbohrer GmbH offers an extensive range of tools and ac- cessories for the device. The webshop http://www.kernlochboh- rer.com is available for information and ordering. -
Page 21: Use Of The Device
Operating instructions Core drill rig KBS-252/M-PRO Use of the device Specific precautions In these Operating instructions, the term drilling system is used for a core drill rig on which a core drilling machine is mounted. Before mounting the core drill on the core drill rig, make sure that the core drill rig is properly secured. -
Page 22: Optical Inspection
Operating instructions Core drill rig KBS-252/M-PRO Optical inspection Before working with the core drill rig, it must be visually inspected: - Check general condition and cleanliness. - Check that all covers and components are present. - Check that all screws are tight. - Page 23 Operating instructions Core drill rig KBS-252/M-PRO Feed carriage secured Feed slide unlocked Twist lock Spring bolt Mounting hole of the spring bolt If the feed carriage is unlocked, the feed carriage can be moved using the feed lever attached to the toothed shaft.
-
Page 24: Attach The Clamp Holder To The Feed Carriage
Operating instructions Core drill rig KBS-252/M-PRO Attach the clamp holder to the feed carriage Risk of unintentional movement of the feed carriage due to gravity! The feed carriage must always be secured against unintentional movement. See chapter 5.4 "Secure the feed carriage on the guide ... -
Page 25: Fastening The Core Drill Rig
Fastening the core drill rig to the ceiling harbours particular risks due to gravity! Kernlochbohrer GmbH recommends the use of the TBS-3000PRO telescopic drill rig for ceiling drilling. 2024-05-21 BA-01-000004-01-EN... -
Page 26: Attaching The Core Drilling Machine To The Core Drill Rig
Operating instructions Core drill rig KBS-252/M-PRO Attaching the core drilling machine to the core drill rig Prerequisites: Visual inspection of the core drill rig carried out. Clamp holder attached to the core drill rig. Core drill rig securely fastened. -
Page 27: Align Drilling System
Operating instructions Core drill rig KBS-252/M-PRO Align drilling system Set the drilling position: It may be necessary to loosen the fastening of the core drill rig slightly to adjust the drilling position. Do not loosen the fastening of the core drill rig too much, other-... -
Page 28: Use Drilling System
Operating instructions Core drill rig KBS-252/M-PRO Use drilling system Prerequisites: Visual inspection of the drilling system carried out. Core drill rig securely fastened. Core drilling machine attached to the core drill rig. Drilling system aligned. ... -
Page 29: Storing The Core Drill Rig
Operating instructions Core drill rig KBS-252/M-PRO 5.10 Storing the core drill rig Procedure: Core drilling machine separated from the core drill rig. Core drill rig dismantled. Clean the core drill rig and allow to dry completely. See chapter 6.3.1 "Clean core drill rig and check". -
Page 30: Maintenance
The contractually agreed warranty does not release the operator of the device from the obligation to maintain the device in accordance with the manufactur- er's instructions from the time of commissioning. Kernlochbohrer GmbH is not liable for damage caused by a lack of maintenance. -
Page 31: Inspection And Maintenance
Operating instructions Core drill rig KBS-252/M-PRO Inspection and maintenance 6.3.1 Clean core drill rig and check Do not use sharp sponges or metal objects to clean the appliance. These could damage the surface of the appliance. Do not use high-pressure cleaners, water jets or compressed air to clean the appliance. - Page 32 Operating instructions Core drill rig KBS-252/M-PRO Procedure: Clean the core drill rig to remove dust and dirt. Use a damp cloth dipped in water mixed with a mild detergent. Dry the core drill rig completely or allow it to dry.
-
Page 33: Troubleshooting
Core drill rig KBS-252/M-PRO Troubleshooting If a fault occurs during operation of the appliance, please first try to rectify the fault yourself using the following information. If you are unable to rectify the fault yourself, please contact Kernlochbohrer GmbH. Malfunction Possible cause... -
Page 34: Spare Parts
Operating instructions Core drill rig KBS-252/M-PRO Spare parts BA-01-000004-01-EN 2024-05-21... - Page 35 Operating instructions Core drill rig KBS-252/M-PRO Article name Pos. Article name Pos. Top column guard Hexagon socket screw M5x20 Hexagon socket screw M6x17 Flange head screw M5x25 Handle connector Flange head screw M5x16 M6x10 Weighing plate Flange head screw Handle Locking screw Rack M1.5x800=L...
-
Page 36: Eu Declaration Of Conformity
Operating instructions Core drill rig KBS-252/M-PRO EU Declaration of Conformity The manufacturer/distributor Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Germany hereby declares that the following product Product description: Core drill rig Type: KBS-252/M-PRO was designed in accordance with Directive 2006/42/EU. It is necessary that the core drilling machine to be operated with this core drill rig meets the requirements described in the Operating instructions of the core drill rig (e.g.
