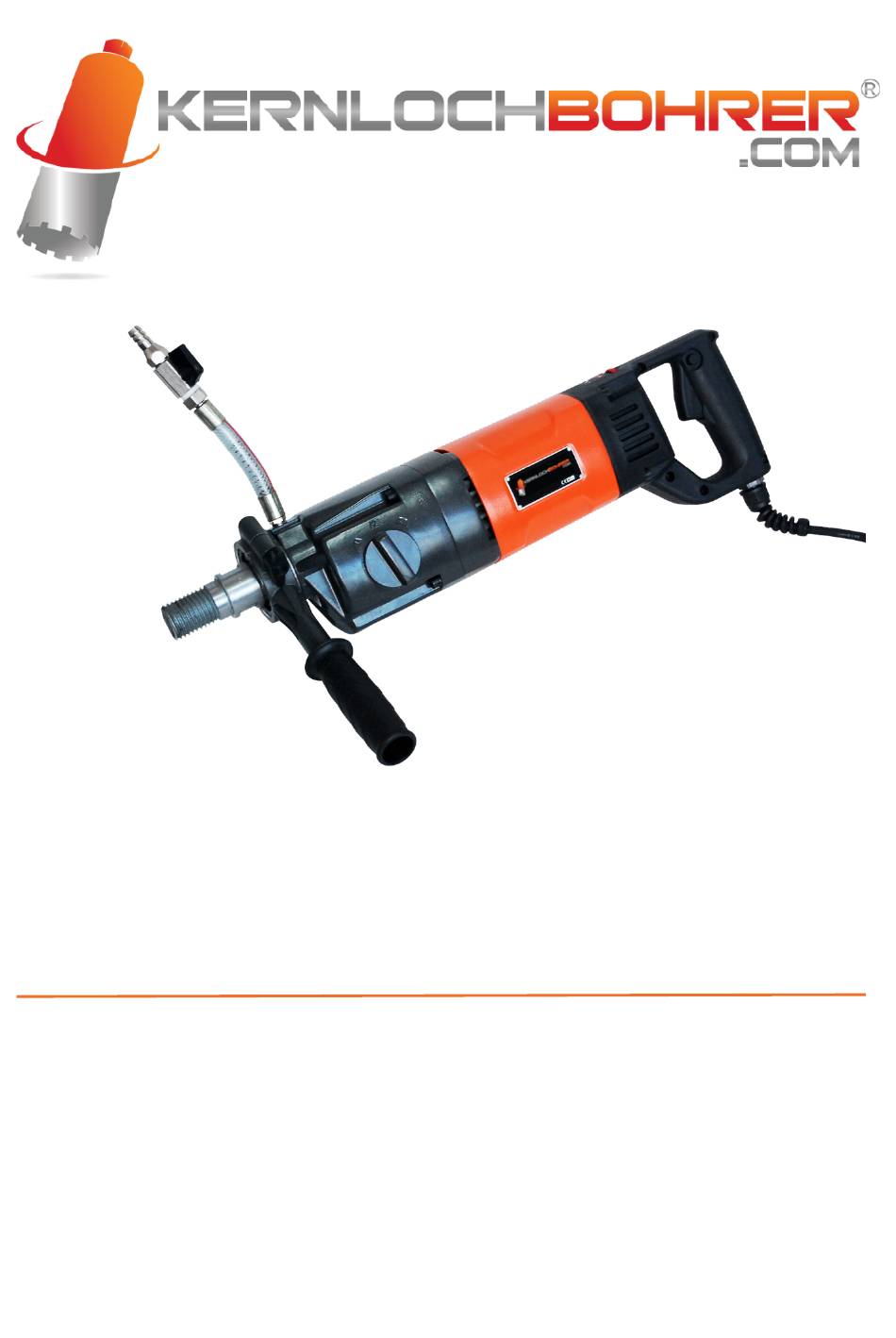

- Page 1 Operating instructions DKB-132/2H DKB-165/3SH DKB-200/3SH Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Tel. 07022-5034900 Email: info@kernlochbohrer.com Version 0 5. Output 01/2022...
-
Page 2: Table Of Contents
Content Introduction and description About this guide Thanks to the buyer Explanation of symbols Safety regulations Product structure Technical data Operation on drill rig Electrical connection Water connection Gearbox shift Drill bits Drill bit change Operating the drilling unit Preparation Mounting the drill stand Drilling with core drill rig Overload protection... -
Page 3: Introduction And Description
The machine may only be serviced by persons who have the appropriate qualification and certification. About this guide These operating instructions are for the models DKB-132/2H DKB-165/3SH DKB-200/3SH Check the machine model against the type plate. -
Page 4: Thanks To The Buyer
Thanks to the buyer Thank you for purchasing a core drill of the DKB series from Kernlochbohrer GmbH. Please read the operating instructions carefully and observe the safety instructions. By operating it correctly, you will fully appreciate the outstanding performance of our products. - Page 5 2. Do not work with the power tool near flammable liquids, gases or dust. Power tools produce sparks that can ignite dust or vapours, causing explosions. 3. Keep children and other people away while using the power tool. If you are distracted, you may lose control of the tool.
- Page 6 10. Do not overload the appliance. Use the appropriate power tool for your work. With the appropriate power tool, you will work better and more gently in the specified power range. 11. Do not use a power tool whose switch is damaged. A power tool that cannot be switched on and off is dangerous and must be repaired.
-
Page 7: Product Structure
If a hoover and extractor are required, ensure that they are connected and used correctly. The use of a hoover can reduce dust-related hazards. Product structure DKB-132/2H 1. Tool holder 2. Oil seal 3. Water connection 4. Motor housing 5. - Page 8 DKB-165/3SH 1. Tool holder 2. Water connection 3. Motor housing 4. Cruise control 5. Mains switch 6. Main handle 7. Guide handle 8. 3-speed gearbox DKB-200/3SH 1.Guide handle 2.Water connection 3.Tool holder 4.Oil seal 5.Mains switch 6.Main handle 7.Soft start/overload protection 8.Motor housing 9.Shoulder support 10.3-speed oil bath gearbox...
- Page 9 Note: The model DKB-200/3SH has an oil bath gearbox. Please observe the change intervals for this model according to the operating instructions. Diamond drilling machines with an oil gear have a very long service life. The friction of the gear wheels is significantly reduced in an oil gear, which reduces the wear of the gear wheels and at the same time increases the service life of the machine.
-
Page 10: Technical Data
Concrete drilling Concrete consumptio ency speed (rpm) range (mm) range without drilling range n (W) (Hz) upright (mm) with upright (mm) ～132 ～80 ～100 DKB-132/2H 110/230～ 1900 50-60 720-1230/1780 ～165 ～100 ～130 DKB-165/3S 110/230～ 2300 50-60 530-720/1220/1300 ～200 ～150 ～180 DKB-200/3S 110/230～... -
Page 11: Water Connection
Before commissioning, check that the mains voltage and frequency correspond to the data on the type plate. Use only 3-core extension cable with protective earth and sufficient cross-section (min. 2.5mm²). A cross-section that is too weak can lead to excessive power loss and overheating of the machine and cable. -
Page 12: Gearbox Shift
DKB-165/3SH and DKB-200/3SH. Adapters are available as accessories for core bits with M16. The core drill rig DKB-132/2H has an M16 external thread and an adapter for core bits with a 1¼ " UNC internal thread included in the scope of delivery. -
Page 13: Drill Bit Change
Always use an open-end spanner SW 32 as a counterholder, which is attached to the drill spindle. For the core drill DKB-132/2H, use an open-end spanner with SW24 for loosening. Never loosen the core bit with (hammer) blows, as this will damage the core drill. -
Page 14: Preparation
• Make sure that you have sufficient visibility of the work area at all times and that you can reach all necessary controls and safety equipment at all times. • Keep other people away from your work area to avoid accidents. Space requirements for operation and maintenance If possible, keep approx. -
Page 15: Mounting The Drill Stand
Mounting the drill stand The diamond core drilling rigs of the DKB/H series can be operated mounted on a drill stand. Since the drill stand is not part of the scope of delivery for all models, we would like to point out some important mounting variants. Please refer to the operating instructions for the drill stand. - Page 16 3. Now attach the drill bit to the core drill and fix it with the tool provided. 4. Now connect the power and water supply and open the water inlet. 5. Switch on the motor without the core bit touching the surface. 6.
-
Page 17: Overload Protection
Overload protection The core drilling rigs of the DKB/H series are equipped with overload protection to protect the operator, motor and core bit. Safety coupling The safety coupling is designed to absorb shocks and excessive loads. However, it is not an absolute protection, so you should always drill carefully and with the help of a core drill rig. -
Page 18: Care And Maintenance
Remove the drill core if it remains in the drill bit: 1.Disconnect the core bit from the core drill (if possible). 2.Set the drill bit vertically. 3.Tap lightly against the core drill cylinder with a wooden hammer handle or a rubber mallet until the drill core slips out. - Page 19 2. Loosen the gearbox housing cover. 3. Remove the generator and the intermediate cover. 4. Change the gear oil. The filling quantity is approx. 230ml. The DKB-132/2H and the DKB-165/3SH have a grease gear. These are filled with • high-performance grease MoS2 and are maintenance-free.
-
Page 20: Environmental Protection
Environmental protection Raw material recovery instead of waste disposal! To avoid transport damage, the unit must be delivered in sturdy packaging. Packaging as well as the unit and accessories are made of recyclable materials. The plastic parts of the unit are labelled according to the material. This enables environmentally friendly, sorted disposal via the collection facilities offered. -
Page 21: Shutdown Carbons
For an accurate estimation of vibration exposure, the times when the unit is switched off or running but not actually in use should also be taken into account. This can significantly reduce the vibration exposure over the entire working period. Establish additional safety measures to protect the operator from the effects of vibration, such as: Maintenance of power tool and insert tools, keeping hands warm, organisation of work procedures. -
Page 22: Troubleshooting
Troubleshooting Error Possible cause Remedy Unit does not run Mains power supply interrupted Plug in the other electrical appliance and check its function. Mains cable or plug defective Have it checked by a trained electrician in accordance with VDE and replaced if necessary. Switch defective Check by a trained electrician according to VDE and have replaced if necessary. - Page 23 Product designation: Core drill Type: DKB-132/2H; DKB-165/3SH; DKB-200/3SH complies with all relevant provisions of the applied legal regulations (hereinafter) - including their amendments in force at the time of the declaration. The sole responsibility for issuing this declaration of conformity lies with the manufacturer. This declaration relates only to the machine in the condition in which it was placed on the market;...
