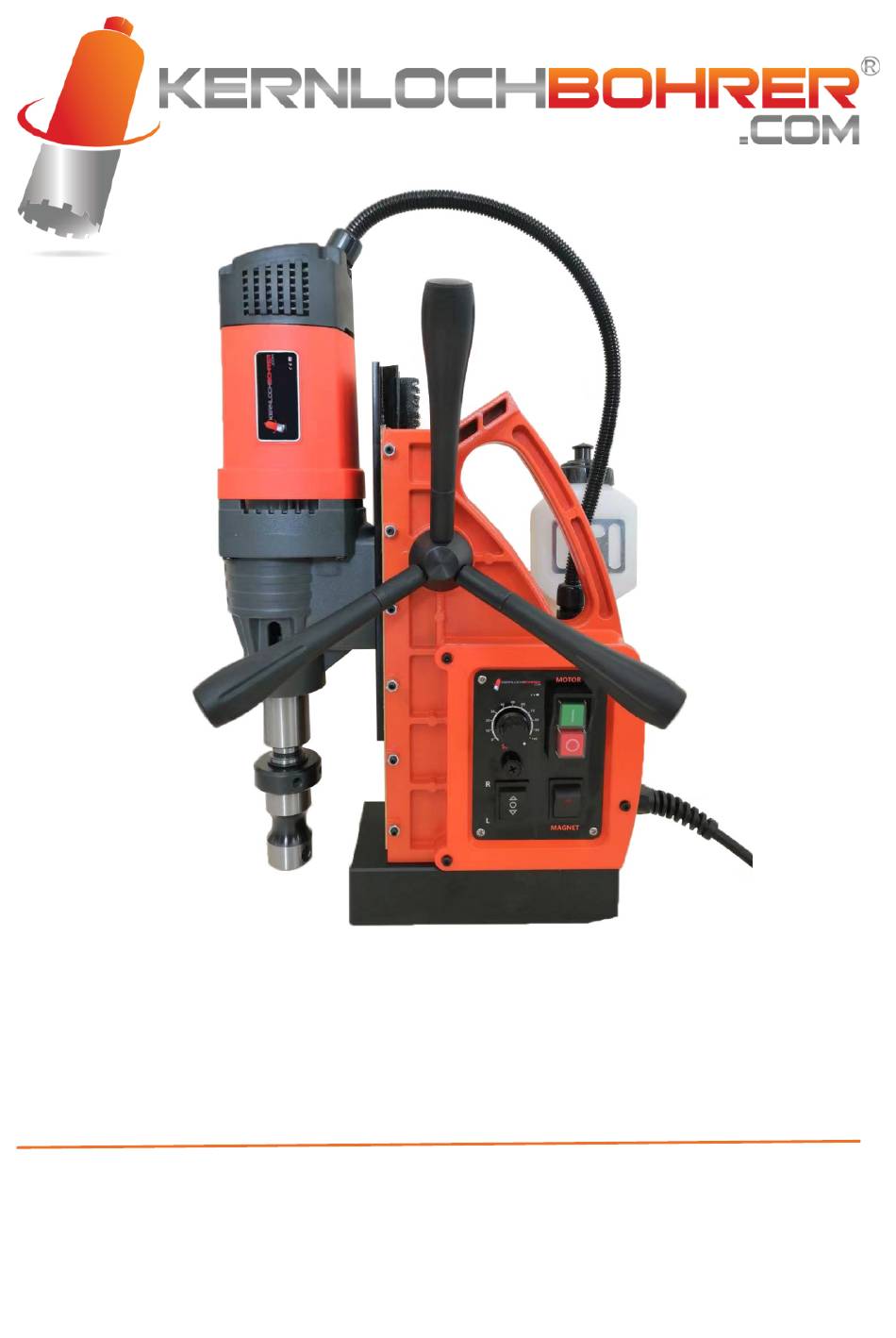

- Page 1 Operating instructions MKB-60RL Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Tel. 07022-5034900 Email: info@kernlochbohrer.com Version 0 1. Output 07/2022...
-
Page 2: Table Of Contents
CONTENTS Warning Thanks to the buyer About this guide Safety regulations Product description Technical data Product structure Precautions Security check Safety during operation Electrical safety Commissioning Operation Overload protection Fasten the tool in the holder Steel with low thickness Non-ferrous metals Machining of round or strongly curved material Care and maintenance Environmental protection... -
Page 3: Warning
Operating instructions WARNING The magnetic drilling machine MKB-60RL is intended for professional use and may only be operated by instructed persons. Strictly adhere to the instructions in the operating manual to avoid electric shock or fire. In the event of violations of the operating instructions which may result in injury or machine damage, our company declines all responsibility. -
Page 4: Safety Regulations
SAFETY REGULATIONS Read all precautions before commissioning and keep the operating instructions. ❖ Please follow the operating instructions carefully, as failure to observe these safety ❖ precautions and instructions may cause electric shock, fire and/or serious injury. 1. Keep your work area clean and well lit. Disorder or unlit work areas can lead to accidents. - Page 5 7. Remove adjusting tools or Allen keys before switching on the power tool. A tool or Allen key that is on the drill spindle can cause injury. 8. Avoid unusual postures. Make sure you stand securely and keep your balance at all times.
-
Page 6: Product Description
With our magnetic drill you can drill large steel workpieces and all magnetic metals. The handling is very comfortable and the machine can be used flexibly. By using the MKB-60RL, the amount of work can be reduced, machining precision and work efficiency can be improved. -
Page 7: Product Structure
PRODUCT STRUCTURE - MKB-60RL 1. Air inlet cover 8. Carrying handle 2. Motor housing 9. Speed controller 3. Drilling lever 10. On/Off switch machine 4. Gearbox 11. On/off switch Magnet 5. Drilling spindle 12. Switch right/left rotation 6. Cable routing 13. -
Page 8: Precautions
PRECAUTIONS 1. Read the manual carefully before use to understand the structure and handling of the magnetic drilling machine (electromagnetic attitude, drilling machine itself and the gear function). 2. Before installing or removing a magnetic drill, ensure that the motor switch is turned off and the mains plug is disconnected. - Page 9 11. You cannot use an electric welder and a magnetic drill at the same time on the same piece of sheet steel, otherwise there is a risk of electric shock. 12. Continuous operation of the magnetic drilling machine for more than 2 to 3 hours is not permitted.
-
Page 10: Security Check
SAFETY CHECK Check the magnetic drilling machine before each switch-on or at least once per shift. Report any damage or defects and changes in operating behaviour immediately to the responsible manager. Check all safety devices • at the beginning of each shift (in case of interrupted operation), •... -
Page 11: Electrical Safety
ELECTRICAL SAFETY Have the electrical machine/equipment checked regularly. Have any defects such as loose connections, damaged cables, etc. repaired immediately. A second person must be present when working on live parts and switch off the voltage in an emergency. Switch off the magnetic drilling machine immediately in the event of faults in the electrical supply! Observe the required inspection intervals according to the Ordinance on Industrial Safety and Health and the inspection of operating equipment. -
Page 12: Operation
BEDIENUNG • Continuous operation of the magnetic drilling machine for more than 2 to 3 hours is not permitted. There is a risk of fire if the load is too high! The magnetic drilling machine must first cool down before continuous operation can be resumed. •... -
Page 13: Overload Protection
Afterwards, the stopcock must be closed again. OVERLOAD PROTECTION The magnetic drilling machine MKB-60RL is equipped with an overload protection. If the machine suddenly stops working during use because it has been overloaded, disconnect the machine from the power supply and wait a few minutes. -
Page 14: Steel With Low Thickness
Note: A sensor controls the possible magnetic holding force. If the magnetic holding force on the component is not sufficient, the magnetic drilling machine cannot be switched on. The magnetic drilling machine will only adhere properly to the material to be drilled into if the surface of the material is clean and smooth. -
Page 15: Machining Of Round Or Strongly Curved Material
MACHINING OF ROUND OR STRONGLY CURVED MATERIAL When working on round or strongly curved material, the magnetic foot is placed on the material so that its longitudinal axis is parallel to the longitudinal axis of the round material. Fill the free space between the magnet foot and the material on both sides over the entire length of the magnet foot with wedges made of steel. -
Page 16: Environmental Protection
ENVIRONMENTAL PROTECTION Raw material recovery instead of waste disposal! To avoid transport damage, the unit must be delivered in sturdy packaging. Packaging as well as the unit and accessories are made of recyclable materials. The plastic parts of the unit are labelled according to the material. This enables environmentally friendly, sorted disposal via the collection facilities offered. -
Page 17: Shutdown Carbons
For an accurate estimation of vibration exposure, the times when the unit is switched off or running but not actually in use should also be taken into account. This can significantly reduce the vibration load over the entire working period. Establish additional safety measures to protect the operator from the effects of vibration such as: Maintenance of power tool and insert tools, keeping hands warm, organisation of work procedures. -
Page 18: Troubleshooting
MISSING SEARCH Error Cause Remedy Switching contact faulty Replace switch Power supply is defective, plug loose Replace cable and plug Overload, the fuse has blown Replace fuse Short circuit in the electromagnet or Magnetic base Replace or repair electromagnet defective electromagnet without function Check the thickness of the substrate, Magnetisability of the substrate too low... -
Page 19: Behaviour In The Event Of Disruptions
BEHAVIOUR IN THE EVENT OF DISRUPTIONS Switch off the machine in case of malfunctions, disconnect it from the mains. Work on the machine's electrics may only be carried out by a trained electrician in accordance with VDE. WARRANTY In accordance with our general terms and conditions of delivery, a warranty period of 12 months applies for material defects in business transactions with companies (proof by invoice or delivery note). -
Page 20: Exploded View
Exploded view... -
Page 21: Parts List
Parts list Article description Specification Number Article description Specification Number Spindle Magnet base Circlip, inside Ø52 Hose connector M16*1.5 Camp 60/28 Stand Locking screw with Phillips screw with round M5*55 hexagon socket and flat M5*25 head Gearbox Mother Round pen 4*12 Panel frame Camp... - Page 22 Phillips screw with round M4*55 Camp 6903 head Phillips screw with round M4*50 Circlip, outside Ø18 head Dragonfly Square spanner 5*14 Hose connection M16*1.5 Gearbox PE pipe 550mm Composite bearing Pin for guide rail Lifting shaft Guide rail Handle connection M12-10 Guided tours Extension sleeve...
- Page 23 EC Declaration of Conformity The manufacturer/marketer Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen hereby declares that the following product Product designation: Magnetic drilling machine Type: MKB-60RL complies with all relevant provisions of the applied legal regulations (hereinafter) - including their amendments in force at the time of the declaration. The sole responsibility for issuing this declaration of conformity lies with the manufacturer.
