Kernlochbohrer IDS352/V-PRO Operating Instructions Manual

Core drilling rig
Hide thumbs

Advertisement

Quick Links

Download this manual
Operating instructions
Core drilling rig
IDS352/V-PRO
BA-01-000012-01-EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the IDS352/V-PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Kernlochbohrer IDS352/V-PRO

Summary of Contents for Kernlochbohrer IDS352/V-PRO

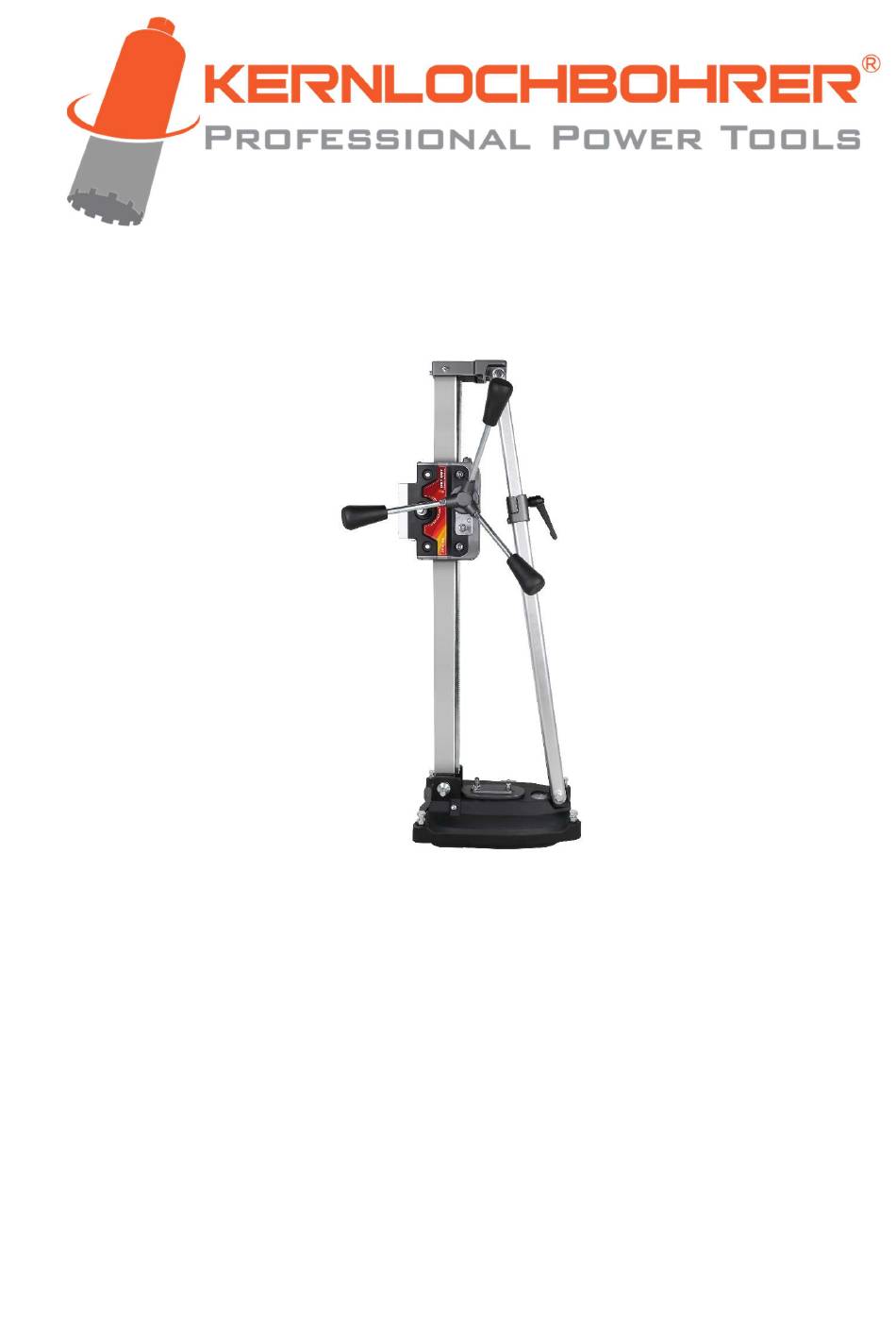

  • Page 1 Operating instructions Core drilling rig IDS352/V-PRO BA-01-000012-01-EN...
  • Page 3 Kernlochbohrer GmbH. Subject to errors and technical changes. Kernlochbohrer GmbH is not liable for any errors in this documentation. Liability for direct or indirect damages arising in connection with the delivery or use of this documentation is excluded to the extent permitted by law.
  • Page 4 Operating instructions Core drilling rig IDS352/V-PRO Table of contents Information and support ................6 Thanks to the buyer ................6 Using the Operating instructions ............6 Changes ....................6 Explanation of symbols ................ 7 Guarantee .................... 7 Environmental protection..............8 1.6.1...
  • Page 5 Operating instructions Core drilling rig IDS352/V-PRO Use of the device ..................21 Specific precautions ................21 Commissioning ................... 22 Optical inspection ................22 Secure the feed carriage on the guide stand ........23 Attaching the Core drilling rig ............. 24 5.5.1...
  • Page 6 By following the Operating instructions, you will be able to fully uti- lise the outstanding performance of our product. If you have any questions regarding the operation of the device, please con- tact Kernlochbohrer GmbH directly. We are available to answer your questions at any time. Using the Operating instructions The appliance is intended for professional use and may only be operated by trained personnel.
  • Page 7  Background information or reference to special features. Guarantee In accordance with Kernlochbohrer GmbH's general terms of delivery, a war- ranty period of 12 months applies for material defects in business transactions with companies (proof by invoice or delivery note).
  • Page 8 Operating instructions Core drilling rig IDS352/V-PRO Environmental protection 1.6.1 Disposal of the product Follow national regulations on environmentally friendly disposal and recycling of used appliances and accessories. 1.6.2 Disposal of the packaging The packaging is made from recyclable materials. They must be disposed of in accordance with their labelling and municipal guidelines.
  • Page 9 Operating instructions Core drilling rig IDS352/V-PRO Service Precise information and specific questions allow faults to be rectified quickly, make it easier to order spare parts and prevent incorrect deliveries. Before contacting the service, please collect the following data first. The model designation must be stated for all questions and orders. This infor- mation can be found on the rating plate of the appliance.
  • Page 10 "Technical data" chapter. Any other or additional use is considered improper use - risk of accident! Kernlochbohrer GmbH is not liable for any resulting damage. The risk is borne solely by the operator. Intended use also includes observing the operating instructions and complying with the prescribed maintenance intervals.
  • Page 11 Changes to the device The operator may not make any modifications to the device without written au- thorisation from Kernlochbohrer GmbH. If the operator carries out modifica- tions without authorisation, the warranty becomes void. Kernlochbohrer GmbH is not liable for damage caused by unauthorised modifications.
  • Page 12 Spare parts Spare parts must comply with the properties defined by Kernlochbohrer GmbH. This is always guaranteed for spare parts supplied by Kernlochbohrer GmbH. Kernlochbohrer GmbH is not liable for damage caused by the use of unsuitable spare parts. 2.3.4...
  • Page 13 Operating instructions Core drilling rig IDS352/V-PRO Safety regulations for staff 2.4.1 Safe behaviour All persons responsible for commissioning, operating and maintaining the ap- pliance must have read and understood the Operating instructions beforehand. The appliance may only be operated by persons who have been adequately instructed beforehand.
  • Page 14 Operating instructions Core drilling rig IDS352/V-PRO 2.4.2 Safe operation Operating the appliance requires the full concentration and ability of the per- sonnel. Persons who are overtired, unable to concentrate or under the influ- ence of alcohol, drugs or medication must not work on or with the appliance.
  • Page 15 Operating instructions Core drilling rig IDS352/V-PRO 2.4.3 Protective equipment Wearing protective equipment reduces the risk of injury: - Safety shoes with non-slip sole and protective toe cap - Cut-resistant and non-slip gloves - Safety goggles according to standard EN 166 or face protection...
  • Page 16 Operating instructions Core drilling rig IDS352/V-PRO Safety during maintenance 2.5.1 General information Maintenance of the appliance may only be carried out by persons who have completed the appropriate specialised training for this activity. The maintenance activities and intervals specified in the Operating instructions must be observed.
  • Page 17 SID352/PRO  (item no. 6213)   Alternatively, other Core drilling machine with 4x M8 thread with hole spacing 79 x 41 mm and keyway width 10 mm.  The webshop http://www.kernlochbohrer.com is available for infor- mation and ordering. 2025-03-28 BA-01-000012-01-EN...
  • Page 18 Operating instructions Core drilling rig IDS352/V-PRO Device description Device components Core drilling rig with vacuum adapter in base plate BA-01-000012-01-EN 2025-03-28...
  • Page 19 Operating instructions Core drilling rig IDS352/V-PRO Locking lever of the feed carriage Fixed rollers of the feed carriage (4 pieces) Feed slide Locking screw of the mounting adapter Mounting adapter for Core drilling machine Guide stand with toothed rack Hose connection...
  • Page 20 - Operating instructions  The accessories required to use the device, such as mounting kits etc., must be purchased separately. Kernlochbohrer GmbH offers an extensive range of tools and ac- cessories for the device. The webshop http://www.kernlochboh- rer.com is available for information and ordering.
  • Page 21 Operating instructions Core drilling rig IDS352/V-PRO Use of the device Specific precautions  In these Operating instructions, the term drilling system is used for a Core drilling rig on which a Core drilling machine is mounted. Before mounting the Core drilling machine on the Core drilling rig, make sure that the Core drilling rig is properly secured.
  • Page 22 Operating instructions Core drilling rig IDS352/V-PRO Commissioning Before working with the Core drilling rig, the trolley supplied can be attached to - Remove both cylinder screws with spring washers and washers from the back of the base plate. - Attach the running gear (two wheels with axle and retaining bracket) to the base plate using the cylinder screws, spring washers and washers.
  • Page 23 Operating instructions Core drilling rig IDS352/V-PRO Secure the feed carriage on the guide stand Danger due to unintentional movement of the feed carriage! The feed carriage must always be secured against unintentional movement (locking lever in "Tight" position). If the feed carriage lock is cancelled (locking lever in the "Loose"...
  • Page 24 See chapter 5.4 "Secure the feed carriage on the guide stand ". Fastening the Core drilling rig to the ceiling harbours particular risks due to gravity!  Kernlochbohrer GmbH recommends the use of the TBS3000PRO telescopic drill rig for ceiling drilling. 5.5.1 Fastening with screws Auxiliary means:...
  • Page 25 Operating instructions Core drilling rig IDS352/V-PRO Procedure: Preparing the Core drilling rig for fastening with screws Hose connection Ventilation valve Vacuum adapter plate Vacuum adapter seal Base plate Vacuum seal  Remove the vacuum seal [6] on the underside of the base plate [5].
  • Page 26 Operating instructions Core drilling rig IDS352/V-PRO 5.5.2 Fastening by vacuum The maximum drilling diameter for vacuum fastening is: 200 mm for floor mounting 150 mm for wall mounting The Core drilling rig may only be used for wall or floor drilling by means of vacuum fastening.
  • Page 27 Operating instructions Core drilling rig IDS352/V-PRO Procedure: Prepare Core drilling rig for vacuum fastening Hose connection Ventilation valve Vacuum adapter plate Vacuum adapter seal Base plate Vacuum seal  Check the vacuum seal [6] for wear and damage. The Core drilling rig must not be used if the vacuum seal is damaged! If necessary, replace the vacuum seal or have it replaced.
  • Page 28 Operating instructions Core drilling rig IDS352/V-PRO  Position the base plate at the drilling point. For wall mounting: Hold the vacuum base plate in place continuously. Ensure full-surface contact of the vacuum seal.  Switch on the vacuum pump. ...
  • Page 29 Operating instructions Core drilling rig IDS352/V-PRO Attaching the Core drilling machine to the Core drilling rig Prerequisites:  Visual inspection of the Core drilling rig carried out.  Core drilling rig securely fastened.  Fastening adapter attached to the Core drilling machine.
  • Page 30 Operating instructions Core drilling rig IDS352/V-PRO Align drilling system Set the drilling position:  It may be necessary to loosen the fastening of the Core drilling rig slightly to adjust the drilling position (only if the Core drilling rig is fastened with screws).
  • Page 31 Operating instructions Core drilling rig IDS352/V-PRO Use drilling system Prerequisites:  Visual inspection of the drilling system carried out.  Core drilling rig securely fastened.  Core drilling machine attached to the Core drilling rig.  Drilling system aligned. ...
  • Page 32 Operating instructions Core drilling rig IDS352/V-PRO Procedure: Danger from unintentional movement of the feed carriage due to gravity! The feed carriage must always be secured against unintentional movement.  See chapter 5.4 "Secure the feed carriage on the guide stand ".
  • Page 33 Operating instructions Core drilling rig IDS352/V-PRO 5.10 Dismantling and storing the Core drilling rig Procedure:  Drilling process completed.  Core drilling machine separated from the Core drilling rig.  Fastening adapter disconnected from the Core drilling machine.  Dismantle the Core drilling rig: - Hold the Core drilling rig firmly and secure it against falling.
  • Page 34 The contractually agreed warranty does not release the operator of the device from the obligation to maintain the device in accordance with the manufactur- er's instructions from the time of commissioning. Kernlochbohrer GmbH is not liable for damage caused by a lack of maintenance.
  • Page 35 Operating instructions Core drilling rig IDS352/V-PRO Inspection and maintenance 6.3.1 Clean Core drilling rigs and check Do not use sharp sponges or metal objects to clean the appliance. These could damage the surface of the appliance. Do not use high-pressure cleaners, water jets or compressed air to clean the appliance.
  • Page 36 Operating instructions Core drilling rig IDS352/V-PRO Procedure:  Clean the Core drilling rig of dust and dirt. Use a damp cloth dipped in water mixed with a mild detergent.  Dry the Core drilling rig completely or allow it to dry.
  • Page 37 Core drilling rig IDS352/V-PRO Troubleshooting If a fault occurs during operation of the appliance, please first try to rectify the fault yourself using the following information. If you are unable to rectify the fault yourself, please contact Kernlochbohrer GmbH. Malfunction Possible cause...
  • Page 38 Operating instructions Core drilling rig IDS352/V-PRO Spare parts BA-01-000012-01-EN 2025-03-28...
  • Page 39 Operating instructions Core drilling rig IDS352/V-PRO Pos. Article name Pos. Article name Hexagon socket screw M6x12 Main splined shaft m=1.5 / z=11 Spring washer Ø6 M4x5 stop screw Flat disc Ø6xØ10x1 Gear m=1.5 / z=23 Top cover Socket Round-head screw M6x8 Output shaft Guide stand 49.5x49.5x1000...
  • Page 40 Operating instructions Core drilling rig IDS352/V-PRO EU Declaration of Conformity The manufacturer/distributor Kernlochbohrer GmbH Geigersbühlweg 52 72663 Großbettlingen Germany hereby declares that the following product Product description: Core drilling rig Type: IDS352/V-PRO was designed in accordance with Directive 2006/42/EU. It is necessary that the Core drilling machine to be operated with this Core drilling rig fulfils the requirements described in the Operating instructions of the Core drilling rig (e.g.
