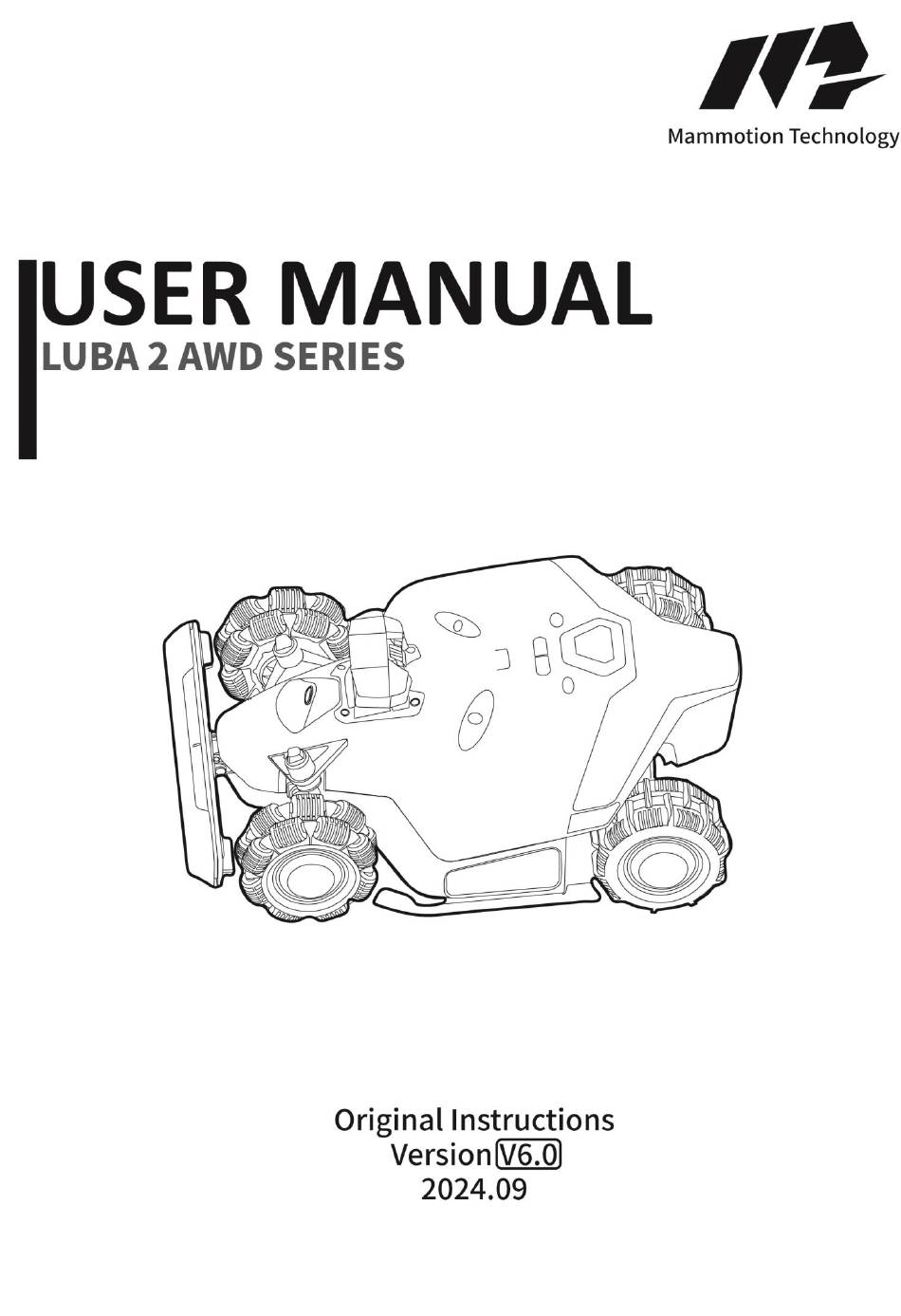

MAMMOTION LUBA 2 AWD Series User Manual

Hide thumbs Also See for LUBA 2 AWD Series:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUBA 2 AWD Series and is the answer not in the manual?

Questions and answers

Perry Dean Holcombe
April 25, 2025

how do you delete a channel path on the map?

1 comments:
Mr. Anderson
May 12, 2025

To delete a channel path on the map for MAMMOTION LUBA 2 AWD Series, tap Edit, then tap Delete.

This answer is automatically generated

RichardFord
April 2, 2025

in my luba 2 5000 box I seem to have two mains power supplies with square 3 pin plugs attached

1 comments:
Mr. Anderson
April 2, 2025

The MAMMOTION LUBA 2 AWD Series has two mains power supplies with square 3-pin plugs because one is used for the charging station and the other is for the RTK reference station.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for MAMMOTION LUBA 2 AWD Series

  • Page 2 Thank you for choosing Mammotion as your garden care lawn mower. This user manual will help you learn and operate Mammotion Luba, a 4-wheel-drive and perimeter-free lawn mower, to cut grass and maintain your lawn. This manual is copyrighted by Mammotion Tech company. Without the written permission of the company, any unit or individual shall not copy, modify, reproduce, transcribe or transmit in any way or for any reason.
  • Page 3 Section 1.4 added 2. Section 2.1.7 updated 3. Chapter 2.3 updated 4. Section 4.6.2 updated 2024.09 V6.0 5. Section 4.7.1 updated 6. Section 4.8.4 added 7. Section 5.1/5.3/5.4 added 8. Section 5.2 updated 9. Section 6.2 updated...
  • Page 4: Table Of Contents

    4.1 Preparation ........................- 33 - 4.2 Download Mammotion App ....................- 33 - 4.3 Mammotion Account Sign-up and Login ................- 34 - 4.4 Add Your Robot ........................ - 37 - 4.5 Main Page Introduction ..................... - 39 - 4.6 Map Page Introduction.......................- 41 -...
  • Page 5 5.2 Maintenance for Cutting Blades ..................- 82 - 5.3 Battery Maintenance ......................- 83 - 5.4 Winter Storage ......................... - 83 - Product Specifications ........................ - 86 - 6.1 Technical Specifications ....................- 86 - 6.2 LED Indicator Codes ......................- 89 - 6.3 Fault Codes ........................
  • Page 6: Safety Instructions

    Do not use the robot in areas where people are unaware of its presence. ⚫ When manually operating the robot with the Mammotion app, do not run. Always walk, watch your ⚫ steps on slopes, and maintain balance at all times.
  • Page 7: Safety Instructions For Installation

    Only use original batteries recommended by Mammotion. The safety of the robot cannot be ⚫ guaranteed with non-original batteries. Do not use non-rechargeable batteries.
  • Page 8: Safety Instructions For Maintenance

    Stop the robot when there are people, especially children or animals, in the work area. ⚫ Ensure that there are no objects such as stones, branches, tools, or toys on the lawn. Otherwise, the ⚫ blades may be damaged when they come into contact with an object. Do not put objects on top of the robot, charging station or RTK reference station.
  • Page 9: Battery Safety

    Battery Safety Lithium-ion batteries can explode or cause a fire if disassembled, short-circuited, exposed to water, fire, or high temperatures. Handle them with care, do not dismantle or open the battery, and avoid any form of electrical/mechanical abuse. Store them away from direct sunlight. Only use the battery charger and power supply provided by the Manufacturer.
  • Page 10: Introduction

    Introduction About Mammotion Luba The Luba 2 AWD series, herein referred as Luba or robot, is a 4-wheel-drive robotic lawnmower with a suspension system that provides better grip through its spring. Luba is equipped with RTK GNSS navigation and virtual-mapping systems, which allow users to customize their mowing tasks by defining different mowing areas and schedules in the Mammotion app.
  • Page 11 2.1.2 About positioning Luba is equipped with a RTK (real-time kinematic) navigation system, a multi-sensor integrated navigation system, and a 3D vision positioning system, which provide more accurate positioning data. RTK positioning RTK is a differential GNSS positioning technology that greatly enhances positioning accuracy to approximately 5 cm/2 in.
  • Page 12: About Connectivity

    Luba with your phone, while Wi-Fi and 4G cellular data are used to access the internet. 2.1.5 About lawn printing art By utilizing AI algorithms to tailor the cutting path, cutting height, and angle, Luba can create special patterns via the Mammotion app. See To add a pattern for more information.
  • Page 13: About Voice Control

    Luba has an anti-theft system to prevent unauthorized removal. The alarm is triggered when Luba is lifted. ⚫ Users can track Luba's location by GPS and 4G positioning through the Mammotion app, as long as it ⚫ is online. Additionally, Luba's structure allows for an AirTag to be attached to track its location.
  • Page 14: In The Box

    In the Box Ensure the parts can be found in the package according to your option. If any parts are missing or damaged, contact your local dealer or our after-sales support. 2.2.1 Luba installation kit Luba x1 Luba Bumper x1 Screw x4 (2 pcs for spare use) Key x2 Vision Module x1...
  • Page 15 2.2.3 RTK installation kit RTK Reference Station x1 Radio Antenna x1 Trident Ground Stake x1 Mounting Pole x2 RTK Reference Station RTK Reference Station Extension Cable (10M) x1 Power Supply x1 2.2.4 Tool kit Allen Key 8mm x1 Allen Key x1 Cord Tie x4 Cable Peg x4 SIM-eject Tool x1...
  • Page 16 2.2.5 Other accessories (optional) The following accessories are sold separately. RTK reference station wall mount kit RTK Wall Mount x1 M8x50 Expansion Bolt x4 Drilling Template x1 Luba garage Luba Garage x1 RTK solar panel kit Solar Panel x1 Mounting Bracket x1 Stake x4 Expansion Bolt x6 Screw x6...
  • Page 17: Symbols On The Product

    Symbols on the Product These symbols can be found on the product. Study them carefully. Symbol Description Warning. Read the user manual before operating the product. This product complies with the applicable EU Directives. This product is manufactured in China. It is not permitted to dispose of this product as normal household waste.
  • Page 18 Symbol Description Do not ride on the product. Keep a safe distance from your product when operating. WARNING: Do not touch rotating blade. WARNING: Read the user instructions before operating the product. WARNING: Danger of projections of objects against the body. Keep an adequate safe distance from the machine while it is running.
  • Page 19: Product Overview

    Product Overview 2.4.1 Luba Figure 2-1 Front View of Luba Start Button 2. Emergency Stop Button 3. Auto-return Button — press to call back Luba 4. Grass Button — press to continue the task 5. Power Button — long press to turn on/off Luba 6.
  • Page 20 Figure 2-2 Rear View of Luba 15. Key Slot 16. SIM Card Tray 17. USB Port — for troubleshooting and debugging 18. Charging Pad 19. Infrared Receiver Figure 2-3 Bottom View of Luba 20. Cutting Blade 21. Cutting Disk - 15 -...
  • Page 21 2.4.2 RTK solar panel 2. Power 3. Vent Figure 2-4 Rear View of Solar Panel The solar panel unit will activate automatically when placed outdoors. ⚫ The power button can only be available indoors or in the absence of sunlight. To turn on/off the unit, ⚫...
  • Page 22: Installation

    Installation Preparation Read and understand the safety instructions prior to installation. ⚫ Use original parts and installation materials. ⚫ Sketch your lawn and mark up obstacles. This will make it easier to examine where to place the ⚫ charging station and RTK reference station, and to set the virtual boundaries. Choosing a Location for RTK Reference Station To optimize the performance of the RTK system, the RTK reference station must be in an open area to receive satellite signals.
  • Page 23 The location requirements are as follows: The RTK reference station should be oriented vertically, as shown below: ⚫ Place the RTK reference station on a flat, open ground or on an unobstructed wall or roof. Make sure ⚫ there are no eaves or trees that may obstruct the satellite signals. DO NOT install the RTK reference station at the corner of an L-shaped building or on a narrow path ⚫...
  • Page 24 If you need to install an RTK solar panel kit, for optimal exposure to sunlight, Mammotion recommends the following locating guidelines: If your home is located north of the equator, place the solar panel unit facing south; ⚫ If your home is located south of the equator, place the solar panel unit facing north;...
  • Page 25: Choosing A Location For Charging Station

    Choosing a Location for Charging Station Place the charging station on a flat ground. ⚫ DO NOT install the charging station at the corner of an L-shaped building or on a narrow path between ⚫ two structures. The charging area (1x1.5 m/3x5 ft. in front of the charging station) should be free of obstacles or other ⚫...
  • Page 26: Installing

    Installing 3.4.1 RTK reference station installed on a wall/roof (recommended) Choose a suitable installation area at a high place of your house. 2. Stick the drilling template on the wall and drill four holes (10 x 40mm/0.4 x 1.6 in) at the appropriate position.
  • Page 27 8. Connect the RTK reference station cable (10 m/33 ft.) to the RTK reference station power supply. 9. Plug the power supply into a wall socket. 10. Select an open spot to install the charging station. 11. Use the six stakes to properly fasten the charging station in the position as shown.
  • Page 28 3.4.2 RTK reference station installed on the ground Fix the radio antenna to the RTK reference station. 2. Assemble the two mounting poles and the trident ground stake as shown. 3. Route the RTK reference station cable into the mounting pole as shown. 4.
  • Page 29 3.4.3 Luba Assembly Installing the vision module Loosen the four screws using a screwdriver with a 2.5mm hex bit to remove the cover. 2. Connect the vision module wires (black to black and white to white). 3. Attach the vision module to the Luba using the four screws and tighten them with a 2.5mm hex screwdriver.
  • Page 30 Installing the Luba bumper Gently pull the plug inside the Luba out and connect it to the bumper. 2. Place the bumper into position with the front indicator facing upwards by pressing and holding the buttons. 3. Install and tighten the two screws using a 2.5mm hex screwdriver.
  • Page 31 Installing the 4G sim card (optional) IMPORTANT Activate the SIM card on your phone before installation. Use the Allen key to detach the rear cover. 2. Eject the SIM card tray using the SIM-eject tool, install the SIM card, and push the card tray into place.
  • Page 32 3.4.4 Installing the RTK solar panel kit (optional) NOTE There are three options to install the RTK solar panel kit. Please decide the optimal one to continue. Before installing, expand the bracket outward to properly accommodate the solar panel. Option 1: Install the RTK solar panel kit on a wall Place the mounting bracket on the wall and mark four holes with a pencil, ensuring the distance is within the cable's reach.
  • Page 33 3. Tap the expansion bolts into the holes and remove the nuts, spring and flat washers when the expansion bolts are stuck. 4. Attach the bracket to the wall without reversing it. Reinsert washers, spring washers, nuts, and tighten with a 13mm/0.5 in. socket wrench. 5.
  • Page 34 Option 2: Install the RTK solar panel kit on a flat ground/roof Reverse and place the mounting bracket on the surface, secure with stakes or expansion bolts, ensuring the distance is within the cable's reach. 2. Secure the solar panel to the bracket with four screws and tighten using a 4mm/1.5 in.
  • Page 35 Option 3: Install the RTK solar panel kit on an RTK wall mount (sold separately) Mount the bracket onto the RTK wall mount with two screws (M5x40). Tighten the screws using a 4mm/1.5 in. Allen key. Avoid reversing the mounting bracket during installation. 2.
  • Page 36 3.4.5 Installing the Luba garage (optional) Attach the garage to the top of the charging station from front to back and tighten the two screws on the back of the garage to complete the installation. If it snows a lot in your area during the winter, it is recommended to store Luba indoors. If Luba is stored under the garage, clear the snow before starting work.
  • Page 37 3.4.6 Activating Luba Luba comes factory-set in 'transportation mode'. After the charging station and RTK reference station have been properly installed, please charge Luba before use. Connect the charger of charging station to the power supply; the LED should display a constant green light.
  • Page 38: Operation

    Luba is designed to work with the Mammotion app, please download the free Mammotion app first. You can scan the QR code below to get it from the Android or Apple app stores, or search for Mammotion in these stores.
  • Page 39: Mammotion Account Sign-Up And Login

    NOTE If you already have a Mammotion account, input your account and password to log it in. After successfully install the Mammotion app in your phone, you are ready to create your account. Follow the below instructions to register one.
  • Page 40 4.3.2 To log in Log in with a Mammotion account NOTE If you forget your password, click Reset password and follow the screen instructions to reset your password. Input your email address and password, check the Privacy Agreement User Agreement, and then tap Login.
  • Page 41 2. Select Associated account to link your Mammotion account if you already have a Mammotion account. Or, 3. Tap Set Password/Login to set your password for the Mammotion account you are logging in. 4. Tap Confirm and login to log in.
  • Page 42: Add Your Robot

    Add Your Robot NOTE Make sure the distance between your phone and the robot is less than 3 m/10 ft. ⚫ You can skip the Wi-Fi setup if you are using 4G cellular data. It is advisable to also establish a ⚫...
  • Page 43 4.4.2 Add RTK reference station The RTK reference station can also be added to check its data such as the number of satellites received, signals, etc. Click Add RTK to continue if needed. Supply power to the RTK reference station and it will turn on automatically. 2.
  • Page 44 Main Page Introduction Status bar 2. Settings 3. Customer service 4. Switch device 5. Create 6. Notification 7. Drop-down button 8. Device serial number 9. Device status NOTE 1. See Status bar for further information. 2. See Settings for further information. 3.
  • Page 45 After a task area is created, you can start working or set a task schedule. ➢ Tap to quickly start mowing. ➢ Tap to set a task schedule. - 40 -...
  • Page 46 Map Page Introduction 4.6.1 Create a map Before mapping Before mapping, it is important to be aware of key considerations. Remove debris, piles of leaves, toys, wires, stones, and other obstacles from the lawn. Make sure no ⚫ children or animals are on the lawn. Luba's status shows Ready and the positioning status is good.
  • Page 47 To map your lawn Tap the Luba image to access the Map page in portrait mode. 2. Tap Map to access the Map page in landscape mode. 3. Tap Create > Area on the Map page. 4. Tap to start drawing. Manually control Luba to draw the perimeter of your lawn.
  • Page 48 6. Control Luba to the start point and tap save the setting. ⚫ To modify the set perimeter, tap and guide Luba back along the path to the intended location. ⚫ Tap to delete all existing perimeters and remap if necessary. NOTE When mapping, the system will estimate the area.
  • Page 49 To add a no-go zone No-go zones are created for pools, flowerbeds, trees, roots, ditches, and any other obstructions present in the lawn. Luba will avoid mowing inside these designated areas. Tap Create > No-go zone on the Map page. 2.
  • Page 50 To add a channel The channel is intended to connect various task areas or link the task area with the charging station. Tap Create > Channel on the Map page. 2. Control Luba inside a task area and tap start drawing. 3.
  • Page 51 To add a pattern The pattern is designed to personalize your lawn cutting experience, and after it's added, the grass on the patterned area will be preserved while cutting to maintain its design. Luba supports the following patterns now: 26 English letters and digits Soccer shape Heart shape ⚫...
  • Page 52 After mapping Automatic mowing 2. Manual mowing 3. Task schedule 4. Map management 5. Recharge 6. No-go zone 7. Pattern 8. Channel 9. Task area Map management Tap to create task area/no-go zone/channel/pattern 2. Tap to edit task area/no-go zone/channel/pattern 3.
  • Page 53 To edit or delete the current task area ➢ To edit the current task area, tap Edit to enter the Map editing page. Tap Modify to re-draw the perimeter. ⚫ Tap Rename to edit the name of the task ⚫ area.
  • Page 54 To edit or delete the pattern ➢ To edit the pattern, tap Edit to enter the Map editing page. Enable — toggle the button on/off to ⚫ enable/disable the pattern. After enabling the pattern, the grass on the patterned area will be preserved while mowing to maintain its design.
  • Page 55 RTK reference station cannot be moved once your lawn mapping is finished Do not move the RTK reference station after the map is created or the resulting working area will diverge from the designated task area. In the event of a RTK reference station relocation, please go to Settings >...
  • Page 56 To start mowing on the Main page to start mowing settings. 2. Follow the onscreen information to finish the settings and start mowing. Cutting path mode Perimeter laps only Luba will mow the perimeter grass only. Zigzag path Luba will mow in straight rows. Luba will mow in straight rows both horizontally and Chess board path vertically.
  • Page 57 Advanced settings Cutting height The height of cutting disks. Task speed The speed of Luba when mowing. Path spacing The spacing between 2 cutting paths. (cm) Bypass the obstacles after a Direct touch front bumper collision. Luba will slow down after detecting obstacles and bypass Slow touch them after a front bumper...
  • Page 58 No-go zone The grass-cutting circles surrounding the mowing laps perimeter of the restricted area. Luba starts mowing from the perimeter. Perimeter first *Not available for perimeter laps only mode. Relative angle: Take the most efficient path recommended by algorithm as the 0-degree direction.
  • Page 59 4.6.3 Task schedule With the Schedule function, you can set a regular task and Luba will automatically do its work according to your setting. Once only — Luba will commence work ⚫ promptly upon configuration. Weekly — Luba will repeat the task every week ⚫...
  • Page 60 To set a schedule NOTE The task schedule adding is temporarily disabled when Luba is working. ⚫ A schedule can be set after a task area has been created. ⚫ Tap + on the main page. 2. Follow the onscreen information to set time, frequency, work area, and advanced settings. Tap Start/Save to complete the setup.
  • Page 61 To change/delete a schedule on the schedule you set to open the drop-down menu. Enable — toggle the button to off to inactivate the schedule if needed. ⚫ Rename — tap to change the name of the schedule. ⚫ Edit — tap to change the schedule. ⚫...
  • Page 62: Manual Operation

    4.6.4 Manual operation To ensure your safety, please use the Manual mowing function with care and observe the following: Minors are not permitted to use this function; ⚫ Please always supervise your children, pets and important belongings to prevent accidents; ⚫...
  • Page 63 To activate manual mowing Tap the Luba image to enter the Map page. 2. On the Map page, select Manual. 3. Tap Manual mowing, then drag the button to the right to start the cutting disk. 4. Maneuver forwards/backwards or turn left/right to start working. NOTE The cutting disk will automatically stop after 5 seconds of inactivity.
  • Page 64: Status Bar

    4.6.5 Status bar From left to the right: Bluetooth ⚫ Luba's Wi-Fi ⚫ Cellular strength ⚫ Positioning status ⚫ Luba battery status ⚫ Tap the status bar to show the following details. Positioning status — shows the strength of satellite positioning. ⚫...
  • Page 65  R stands for the number of satellites received by Luba.  B stands for the number of satellites received by RTK reference station.  C stands for the number of co-viewing satellites received by both Luba and RTK reference station. ...
  • Page 66 To switch RTK link mode RTK link mode refers to the method of connection between an RTK reference station and a Luba. There are two primary modes: LoRa and Internet RTK. LoRa involves data communication between the RTK reference station and the Luba using radio antennas. On the other hand, Internet RTK utilizes the internet for data communication between the RTK reference station and the Luba.
  • Page 67 3. Wait for a green check mark to appear, then return to the status information page. Verify that the RTK positioning status displays 'Fix' and the RTK connection shows 'Connected'. Your setup is now complete. Switch Internet RTK to LoRa Tap the Status bar to access the status information page.
  • Page 68 3. Return to the status information page and verify that the RTK link mode displays 'LoRa', the RTK positioning status shows 'Fix', and the RTK connection status shows 'Connected'. Your setup is now complete. - 63 -...
  • Page 69 ✓ Confirm that the radio antenna has been installed. ✓ Re-pair the RTK reference station and Luba to see if it can be fixed. ✓ If you replace the RTK reference station, pair the new station with Luba on the Mammotion app. For more details, visit https://mammotion3006.zendesk.com/hc/en-us/articles/16503733641367...
  • Page 70 ◼ Signal quality (R): Bad or Weak ◼ Positioning status: Float Measures: ✓ Check if Luba's current location is fully or partially covered. ✓ If the Luba is positioned on the charging station, relocate it to a less obstructed area. ✓...
  • Page 71: Customer Service

    4.6.6 Customer service The Customer Service provides an internet-based chat service for any inquiries you may have and receive prompt responses from our technical support team. Simply click on Chat to Agent to start a conversation with one of our representatives. 4.6.7 Notification Information regarding the status, any errors, etc.
  • Page 72  Network settings — set Luba network.  Upload Logs — tap to send your issues and logs to Mammotion to target. You can attach a maximum of 5 images and 1 video.  Factory reset — tap to perform factory reset.
  • Page 73 ⚫ Task record — shows the historical tasks which were completed and uncompleted. ⚫ Upload Logs — tap to send your issues and logs to Mammotion to target. You can attach a maximum ⚫ of 5 images and 1 video.
  • Page 74 Robot settings  Manual operation — tap to enter manual mowing mode. See Manual operation for details.  No mowing on rainy days — when you enable this function, the Luba will not mow if it rains.  Turnaround mode — Zero turn and Multi-point turn. Zero turn Multi-point turn ...
  • Page 75 When performing recharge function, Luba must be in the task area. To perform recharge ➢ Tap on the map page in Mammotion app, or ➢ Press the button on the Luba, then press to guide Luba to the charging station.
  • Page 76: Service

    4.7.1 Find my device In the case that your Luba or RTK reference station that has been bound with the Mammotion app is missing, go to Service > Find my Device page to track your device. Tap the device to enter the next page where you can enable/disable Location Notifications and Location Recorder.
  • Page 77 Forum — tap to go to forums. ⚫ After-sales Support — tap to submit your ⚫ request. Store — tap to go to Mammotion mall. ⚫ Alexa — tap to link your Alexa account. ⚫ Google Home — tap to link your Google Home ⚫...
  • Page 78 Share via account ⚫ a. Tap Share via account. b. Enter the account number that you want to share, then tap Share. c. In the recipient’s Mammotion app, tap Agree in the popup. - 73 -...
  • Page 79 Share via QR code ⚫ a. Tap Share via QR code and a code will appear. b. Use the recipient’s Mammotion app to scan the QR code and tap Agree in the popup. 4.8.2 To stop sharing your device For owner 1.
  • Page 80 4. Select the corresponding sharing history and tap Delete. 5. Tap Confirm to revoke the recipient’s access to the device. For recipient 1. Go to the Me page and tap Device management and sharing. 2. Select the device that has been shared with you. 3.
  • Page 81 Prior to starting a job using voice control, it is necessary to have created at least one task ⚫ beforehand. In cases where more than 2 sets of Luba are linked to the same Mammotion account, the voice ⚫ command will be directed to the most recently bound Luba by default.
  • Page 82 -Alexa, ask Mammotion robot to hold on Continue working -Alexa, ask Mammotion robot to continue Stop working -Alexa, ask Mammotion robot to stop working Return to the charging station -Alexa, ask Mammotion robot to recharge -Alexa, ask Mammotion robot go home...
  • Page 83 4.8.4 To link your Google Home account NOTE Prior to starting a job using voice control, it is necessary to have created at least one task beforehand. 1. Go to the Me page and tap on Google Home. 2. Tap Link Google Home to go to the authorization page.
  • Page 84 -Hey Google, let the Luba continue -Hey Google, make the Luba continue Stop working -Hey Google, stop mowing -Hey Google, stop the Luba -Hey Google, let the Luba stop -Hey Google, make the Luba stop Recharge Luba -Hey Google, dock the Luba -Hey Google, let the Luba go home -Hey Google, make the Luba go home Check status...
  • Page 85: Maintenance

    Maintenance To maintain optimal mowing performance and extend the lifespan of your robot, Mammotion advises performing regular inspections and maintenance weekly. For safety and effectiveness, always wear protective clothing such as trousers and work shoes; avoid wearing open sandals or going barefoot during maintenance.
  • Page 86 Front wheels (Omni wheels) Clean the front wheels using a brush or water hose. Remove the mud if any. Rear wheels Regularly clean the rear wheels with a brush or water hose if they become too dirty. Vision camera Wipe the vision camera lens with a cloth to remove any stains. A clean lens is crucial for the performance of the vision module.
  • Page 87: Maintenance For Cutting Blades

    2. DO NOT use an electrical screwdriver to tighten or loosen the cutting disk. Always use the correct screws and original blades approved by Mammotion. 3. Replace all cutting blades and their screws simultaneously to ensure a safe and effective cutting system.
  • Page 88: Battery Maintenance

    Battery Maintenance Maintain the battery fully charged before long-term storage to prevent over-discharge. ⚫ Charge fully every 90 days, even if it is not in use. ⚫ Ensure the charging ports on the robot are clean and dry before storing or charging. ⚫...
  • Page 89 ⚫ Remove the mounting pole. ⚫ In the next season, reinstall the RTK reference station and remap in the Mammotion app. If the RTK reference station is installed on the wall/roof, follow the steps below: Unplug the RTK reference station.
  • Page 90 Remove the RTK reference station from the wall mounting pole. ⚫ Remove the antenna. ⚫ Use a cloth to clean the RTK reference station. ⚫ In the next mowing season, reinstall the RTK reference station in its original position. There is no need to delete the map and remap as the location of the RTK reference station remains unchanged.
  • Page 91: Product Specifications

    Product Specifications Technical Specifications Table 6-1 Standard Version Specifications Standard Version (Cutting Height: 25-70 mm/1-2.7 inches) LUBA 2 AWD Specifications 10000 5000 3000 1000 10,000 m 5,000 m 3,000 m 1,000 m Max. Mowing Size 2.5 acres 1.25 acres 0.75 acres 0.25 acres In-App Area 12,000 m...
  • Page 92 Standard Version (Cutting Height: 25-70 mm/1-2.7 inches) Voice Control Alexa & Google Home Vision Monitoring Connectivity 4G & Bluetooth & Wi-Fi Noise Level 60 dB A weighted sound power =64dB, K =3dB A weighted sound pressure =56dB, K =3dB LUBA Machine: IPX6 Waterproof Charging Station: IPX6 RTK Station: IPX7...
  • Page 93 H Version (Cutting Height: 55-100 mm/2.2-4 inches) Mowing Time per Charge 180 min 120 min Auto-recharge Positioning & Navigation 3D Vision & RTK Obstacle Avoidance 3D Vision & Ultrasonic Radar & Physical Bumper Voice Control Alexa & Google Home Vision Monitoring Connectivity 4G &...
  • Page 94: Led Indicator Codes

    LED Indicator Codes Table 6-4 Luba's Indicator Description Indicator Status Description System initialization ⚫ Manual control mode ⚫ Constant red Automatic work mode ⚫ Charging finished (Luba still on the charging station) ⚫ Breathing red OTA upgrade in progress Emergency stop activated ⚫...
  • Page 95 Table 6-5 Charging Station's Indicator Description Indicator Status Description Flash green Luba is being charging. Charging Station Green Luba is fully charged or uncharged. Indicator An error has occurred. Table 6-6 RTK Reference Station’s Indicator Description Indicator Status Description Flash blue The reference station is powering on.
  • Page 96: Fault Codes

    Fault Codes The app notification displays common fault codes along with their causes and troubleshooting steps. Here lists the most common issues. Fault Codes Causes Solutions The machine will return to normal once the The left cutting disk motor is motor has cooled down.
  • Page 97 Fault Codes Causes Solutions Charging has been stopped due to Restart Luba. If the issue persists after a few 2713 low battery voltage. times of restart, contact the after-sale team. Stop charging immediately. If overcharging 2726 The battery is overcharged. occurs frequently, contact the after-sale team.
  • Page 98: Warranty

    If the product does not function as warranted during the warranty period, please contact Mammotion customer service for instructions. For products purchased from a local dealer, kindly reach out to the dealer first. ⚫ Users must present a valid proof of purchase, receipt, or order number (for Mammotion Direct Sales). ⚫ - 93 -...
  • Page 99 ⚫ In some cases, Mammotion may advise you to download or install specific software updates. ⚫ If issues persist, you may need to send the product to Mammotion for further assessment or to a local ⚫ Mammotion-appointed service center. The warranty period for the product commences from the original date of purchase indicated on the ⚫...
  • Page 100: Compliance

    Compliance FCC Compliance Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 101 ISED Compliance Statements This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 102 autre émetteur. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. This radio transmitter [IC: 29682-RTK0002] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated.
  • Page 103 EC/EU DECLARATION OF CONFIRMITY Manufacturer: Mammotion Technology Co., Limited Address: UNIT 89 3/F YAU LEE CENTRE NO.45 HOI YUEN ROAD, KWUN TONG KL Authorised Representative: WSJ Product Ltd. Address: Eschborner Landstraße 42-50, 60489 Frankfurt am Main, Germany The name and address of person authorized to compile the technical file: WSJ Product Ltd, Eschborner Landstraße 42-50, 60489 Frankfurt am Main, Germany.
  • Page 104 IEC 62321-5:2013 IEC 62321-4:2013+A1:2017 IEC 62321-7-1:2015 IEC 62321-7-2:2017 IEC 62321-6:2015 IEC 62321-8:2017 ISO 18219:2015 Signed for and on behalf of: Mammotion Technology Co., Limited Signed: __________________ Name: Roland Huang Date: 29/11/2023 Position: Product manager Place: Shenzhen, China - 99 -...
  • Page 105 MAMMOTION Technology CO., LTD www.mammotion.com Copyright © 2024, MAMMOTION All Rights Reserved.
