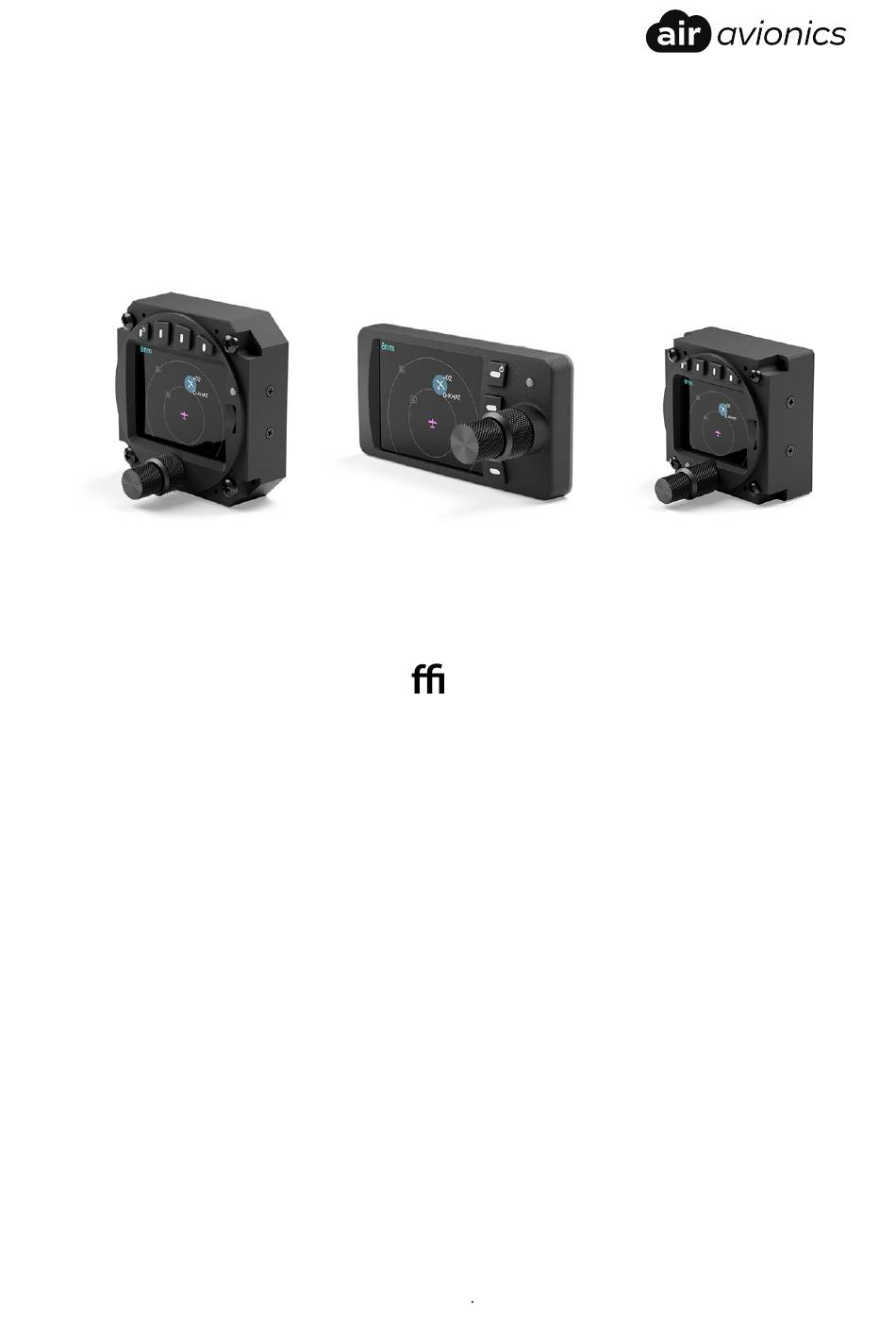

  • Page 1 AIR Tra c Display Pilot’s Manual Document: MAN0020A0001 Version: Date: 2024/03/11 Phone: +49 (0) 6224 98 96 99 9 Internet: https://www.air-avionics.com Mail: support@air-avionics.com...

  • Page 3: Revision History

    Important Please read this manual carefully before using the device. Observe limitations and safety instructions. This manual is an essential portion of the device and must be kept in a safe place. Articles Covered This manual covers the following articles: ATD-11 ‘‘AIR Tra c Display 11’’...

  • Page 4: Product Support

    Product Support If you have questions, our product support team will be happy to help you. Contact us via support@air-avionics.com or by phone. Please nd details about our hotlines and availability online at http://www.air-avionics.com ATD Pilot’s Manual rev. 5.1 2024/03/11...

  • Page 5: Table Of Contents

    Contents Getting Started Introduction Pilot Controls microSD Card Slot Basic Operation Limitations and Safety Instructions Tra c Display Main Radar View Target Symbology Target Selection Overview Nav Boxes Target Out-Of-Range Target Menu Quick Selection Target Identi cation Tra c Warning Functions Tra c Warnings Head-On Tra c Warnings Bearingless tra c warnings...
  • Page 6 Contents Software and Database Updates Version Identi cation Software and Database Loading Abnormal Operation Insu cient Data Failures Troubleshooting Con guration Menu Diagram FLARM EULA ATD Pilot’s Manual rev. 5.1 2024/03/11...

  • Page 7: Getting Started

    Getting Started 1.1 Introduction AIR Tra c Displays, (in short simply called ‘‘ATD’’) are Cockpit Displays of Tra c Information (CDTI). They display tra c data from connected collision avoidance systems or tra c receivers. Three di erent hardware version of ATD are available to allow for best-possible integration into various types of aircraft.
  • Page 8 1. Getting Started pushbuttons light sensor rotary knobs microSD card slot display screen Figure 1.2.: ATD-11 front panel overview pushbuttons display screen light sensor microSD card slot rotary knobs Figure 1.3.: ATD-57 front panel overview ATD Pilot’s Manual rev. 5.1 2024/03/11...

  • Page 9: Pilot Controls

    1. Getting Started Figure 1.4.: ATD-80 front panel overview 1.2 Pilot Controls Inner and outer knobs have 16 detents per revolution and can be rotated clockwise and counter-clockwise. The inner knob has a pushbutton. Four softkey-pushbuttons are located on the bezel along the top of the TFT-display. 1.2.1 Inner Knob Functions On the main radar page, the inner knob selects and highlights a tra c target.
  • Page 10 1. Getting Started 1.2.3 Outer Knob Functions On the main radar page, the outer knob changes the display range (zoom). In the menu, the outer knob controls the position of the menu focus. On text input pages the outer knob controls the input position. NORTH UP Figure 1.5.: Main radar page.

  • Page 11: Microsd Card Slot

    1. Getting Started softkey 2,3,4 (currently softkey 1 (function "CNCL") no function assigned) CNCL softkey 4 ENTER NAME D8848 CURSOR CHARAC. Figure 1.7.: Text-input page. The leftmost softkey has a function (CNCL means Cancel) As an addition to its normal softkey functions, softkey 1 is used for switching ATD ON or OFF with a long push.
  • Page 12 1. Getting Started microSD card slot microSD card slot microSD card slot Figure 1.8.: microSD card slot Please insert the microSD card while the unit is switched OFF. The microSD card will not be recognized if inserted during operation. If the microSD card is removed from the device, not all functions will be available.

  • Page 13: Basic Operation

    1. Getting Started Figure 1.10.: microSD card in correct orientation for ATD-11 To remove an inserted microSD Card, use your ngernail to gently push on the card until a click is audible. The card will be released following the click. Use your ngernail to remove the card.

  • Page 14: Limitations And Safety Instructions

    1.5.1 Liability IN NO EVENT WILL AIR AVIONICS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE PRODUCT.

  • Page 15: Tra C Display

    Tra c Display 2.1 Main Radar View ATD displays tra c data from connected tra c systems on a radar-like view. Tra c-targets are shown as aircraft symbols. The own ship-position is shown as a magenta aircraft symbol. A circle depicts the current display range (also shown numerically in the lower left hand corner of the screen).
  • Page 16 2. Tra c Display Figure 2.3.: Symbol for circling aircraft (e.g. glider). 2.2.2 Target Relative Altitude A small indicator on the right side of target symbols shows the target’s relative altitude. A ‘‘+’’ shows that the target is above the own ship, a ‘‘–’’ indicates that the target is below. Figure 2.4.: Aircraft below (little minus-sign) and above (little plus-sign) the own ships current altitude.
  • Page 17 2. Tra c Display 2.2.3 Target Heading Target symbols always resemble the targets current heading. The nose of the target symbol always shows into the direction the target is ying towards. In some cases, no target heading is available, for example if the target is not received continuously, if the target does not transmit the heading, or if the target uses a stealth or cloak mode If no target heading is available, a diamond-shaped symbol is shown.

  • Page 18: Target Selection

    Target Selection 3.1 Overview Targets can be selected using the inner knob . The selected target is highlighted in cyan color. To change the selection, rotate the inner knob . The target selection is reverted to the nearest target after 30 seconds. If no target is received, the last received target remains selected until the inner knob is turned.

  • Page 19: Target Out-Of-Range

    3. Target Selection Target horizontal distance to own ship (units con gurable to Kilometers, Nautical Miles or Statute Miles) Target vertical distance to own ship (units con gurable to Meters or Feet) Target identi cation (Aircraft Address, Tailnumber, or ID) Target vertical rate (units con gurable to Meters per Second, Knots or Feet per Minute) 3.3 Target Out-Of-Range Whenever the signal of a target is lost, for example because it is out of the receiving range...

  • Page 20: Target Menu

    3. Target Selection 3.4 Target Menu To open the target menu for the selected target, push once on the inner knob pushbutton . You can close the target menu by pushing the ESC softkey . Name AEC Walldorf Freq 118.265 Regis..

  • Page 21: Quick Selection

    3. Target Selection ID (Target Tra c Address) NAME (Target Owner Name) CALL (Target Call- sign) REG (Target Tail Number) Target Menu (For TYPE (Target Air- selected target, Main Radar View craft Type) short push to en- ter) HOME (Target Home Airport) FREQ (Target COM Frequency)
  • Page 22 3. Target Selection Figure 3.7.: Quick selection process: Radar Screen, busy tra c situation push any softkey to open quick selection menu push softkey for quick selection of target target is selected 3.5.1 Editing Target Names on the Quick Select List The targets on the quick select list can be given an individual name/ID.

  • Page 23: Target Identi Cation

    3. Target Selection Deletion To delete a target from the quick select list, perform the following steps. Select the desired target on the radar view or via quick selection. Push any softkey to open the quick-selection. A ‘‘–’’-Sign indicates the selected target’s current quick-select-position. Push the corresponding softkey to delete the target from the position.
  • Page 24 3. Target Selection 3.6.1 Display on the Radar Screen If a registration number, callsign, or name is known, the radar screen automatically displays the identi cation of the currently most relevant target. The pure ID is not shown. D-KHAT Figure 3.10.: Display on the radar screen. Here, the registration (D-KHAT) is shown. If the NavBoxes are activated, the display on the radar screen is omitted to maintain legibility.

  • Page 25: Tra C Warning Functions

    Tra c Warning Functions While the ATD is capable of displaying tra c warning messages, it does not computate threat- or warning-levels. Warning messages are always triggered by connected systems. Familiarization with limitations of connected systems is essential and recommended before using ATD. Tra c warnings are shown on di erent warning screens depending on the position of the con icting tra c.

  • Page 26: Head-On Tra C Warnings

    1232 Transponder Ring (next XPDR equipped aircraft) Selected Target 2532 Target rget 4. Tra c Warning Functions The display range is automatically adjusted to re ect the target’s current distance >14° above Distance 7° above 7° below >14° below Figure 4.2.: Distance indication (based on horizontal separation) The arti cial horizon style indicator does not provide an attiude reference for the own ship.

  • Page 27: Obstacle Warnings

    4. Tra c Warning Functions Figure 4.4.: Warning from bearingless target (ring indicator in amber, same altitude) 4.4 Obstacle Warnings ATD is capable of displaying obstacle warnings, for example from a FLARM-Compatible device with obstacle database. Obstacles are not shown on the radar screen. Please consult the documentation of the connected system for details about obstacle warnings.
  • Page 28 4. Tra c Warning Functions Alert zones are displayed in a low-contrast grey color to minimize interference with other display content on the radar view. Figure 4.6.: Cylindrical alert zone with reference point and border (dropzone). In some cases, an alert zone may not be visible on the radar view, for example because the display range is too low (zoom level too high), and the alert zone is too large.

  • Page 29: Suppressing Warnings

    4. Tra c Warning Functions Figure 4.8.: Alert zone warning screen with zone visible on the radar view, own ship outside the alert zone. Beam points into the direction of the alert zone reference point. 4.6 Suppressing Warnings Warning messages (aural annunciation and warning display) can be suppressed for a time of two minutes by pushing twice (doubleclicking) on the inner knob pushbutton while a warning is active.

  • Page 30: System Con Guration

    System Con guration 5.1 Con guration Operations 5.1.1 Con guration Menu The ATD-57 is con gured in the con guration menu. To enter the con guration menu, push the inner knob pushbutton for at least 2 seconds (long push). The menu contains several con guration options and informations about ATD-57 and connected systems.
  • Page 31 5. System Con guration 3. Use the inner knob to select a desired volume. 4. Push the inner knob pushbutton to execute your selection. 5. Push the ESC softkey to leave the menu. 5.2.2 Info The INFO menu contains information about the devices software and hardware versions as well as installed databases.
  • Page 32 5. System Con guration 2. Use the inner knob to navigate to DEVICE INSTALLATION ILLUMINATION MODE. 3. Use the inner knob to select MANUAL. 4. Push the inner knob pushbutton to execute your selection. 5. Push the ESC softkey to leave the menu. Now the brightness level as con gured in MANUAL INTENSITY is used.
  • Page 33 5. System Con guration 2. Use the inner knob to navigate to DEVICE INSTALLATION ILLUMINATION LIGHTING BUS LIGHT. BUS SRC. 3. Use the inner knob to select select the pin, the aircraft lighting bus is connected to (USENS1 or USENS2). 4.

  • Page 34: Tra C View Con Guration

    5. System Con guration 2. Use the inner knob to navigate to DEVICE INSTALLATION DATA PORTS PORT 1 or DEVICE INSTALLATION DATA PORTS PORT 2. 3. Use the inner knob to select a source: AT-1, FLARM, PowerFLARM, GARMIN TIS, GDL90 or NOT CONNECTED.
  • Page 35 5. System Con guration Units Units for distance, altitude and vertical speed are con gurable: Distance: kilometers, nautical miles, or statute miles. Altitude: meters or feet. Vertical rate: meters per second, feet per minute, or knots. To change the units con guration, please carry out the following steps: 1.
  • Page 36 5. System Con guration DIST nm dALT ft +222 VAR fpm -200 Figure 5.2.: Navboxes active (on the right side of the screen) To change ‘‘Nav Box’’ settings, please carry out the following steps: 1. Open the menu with a long push on the inner knob pushbutton . 2.

  • Page 37: Tra C System Con Guration

    5. System Con guration 1. Open the menu with a long push on the inner knob pushbutton . 2. Use the inner knob to navigate to VIEW INSTALLATION HEAD-ON ALARM. 3. Push the inner knob pushbutton to toggle between ON and OFF. 4.

  • Page 38: Software And Database Updates

    Software and Database Updates 6.1 Version Identi cation Software version can be reviewed in CONFIGURATION MENU DEVICE INFO. For details on databases currently available, navigate to CONFIGURATION MENU DEVICE INFO DATABASES. 6.2 Software and Database Loading Software upgrades and databases are loaded using the integrated microSD card slot and a microSD memory card.
  • Page 39 6. Software and Database Updates facing upwards for ATD-57 and ATD-80 or downwards for ATD-11 wiht controls on the right. Gently push the card until it clicks in. Inserting the microSD card in the wrong orientation may damage the slot. Figure 6.2.: microSD card in correct orientation for ATD-57 and ATD-80 Figure 6.3.: microSD card in correct orientation for ATD-11 To remove an inserted microSD card, use your ngernail to gently push on the card until a...
  • Page 40 6. Software and Database Updates 2. Insert the microSD card into the unit. 3. Power the unit on. An update message will appear. 4. Once the update process has been completed, verify the correct software version and function by repeating all con guration, checkout, and documentation steps. 5.
  • Page 41 6. Software and Database Updates 5. Turn the inner knob to start the update process. 6. Once the update process has been completed, perform software update to version 1.8 or later normally (as described above). Please make sure that alwas only one update le is present on the microSD card at a time.

  • Page 42: Abnormal Operation

    Abnormal Operation 7.1 Insu cient Data ATD requires a set of data from a connected tra c systems to work properly. ATD continuously seeks to nd data on its data interfaces. It automatically switches data-transfer-rates and con guration until it receives data. Position Data (e.g.
  • Page 43 7. Abnormal Operation Figure 7.2.: ATD does not know the position. ‘‘NO GPS’’ message instead of own ship symbol is shown. Nondirectional ring-indicator is shown. 7.1.3 No Heading Data ATD computes the current heading of the own ship from position data. In order to compute a heading, the own ship has to move.

  • Page 44: Failures

    7. Abnormal Operation 7.2 Failures ATD features a range of built-in self test features that continuously monitor its system state and the state of connected tra c systems to detect failures. The detection of a failure is always annunciated to ightcrew on the display. Depending on detected failure and failure severity, the system may seize to function or functionality may be limited.

  • Page 45: Troubleshooting

    Troubleshooting 8.0.1 My unit always shows a message ‘‘waiting for tra c.. ’ ’ In this case, no data from a tra c system is received by ATD. 1. Check if wiring is correct and as intended 2. Check if con guration of connected tra c system is correct and compatible to ATD 3.
  • Page 46 8. Troubleshooting 1. Please update the device software to the latest version. Any version newer than 1.0 will resolve the issue. 2. If an update is not possible for the moment, please go to menu > installation > illumination and set illumination mode to ‘‘AUTO’’ . After this, the unit will work normally with microSD card inserted.

  • Page 47: Con Guration Menu Diagram

    Con guration Menu Diagram For better readability, the menu diagram is split into multiple separate parts on di erent pages of this manual. Alert sounder vol- ume con guration SOUNDER VOL- page: Values from 0 (quiet) to 5 (full loud). Default: 3 PID: Product iden- ti cation VID: Vendor iden-...
  • Page 48 A. Con guration Menu Diagram MODE. Parameters MANUAL, AUTO, or LIGHTINGBUS. Default: MANUAL Illumination inten- sity con guration page for man- MANUAL INTEN- ual mode: Values SITY from 0 (dark) to 100 (full bright). Default: 80 Global minimum allowed illumina- tion intensity: Val- MINIMUM ues from 0 (dark)
  • Page 49 A. Con guration Menu Diagram POSITION IDENTI- FIER 1 POSITION IDENTI- FIER 2 QUICK SELECT POSITION IDENTI- FIER 3 POSITION IDENTI- FIER 4 KM: Kilometers (default) NM: Nautical Miles DISTANCE SM: Statute Miles M: Meters ft: Feet M: Meters (de- UNITS fault) ALTITUDE...

  • Page 50: Flarm Eula

    FLARM EULA This appendix contains the End User License Agreement issued by FLARM Technology Ltd., the licensor of FLARM devices. By purchasing or using a FLARM device or by downloading, installing, copying, accessing, or using any FLARM Technology Ltd. (hereafter ‘‘FLARM Technology’’) software, rmware, license key, or data, you agree to the following terms and conditions.
  • Page 51 B. FLARM EULA 2.2. FLARM must be installed according to the Installation Instructions and the EASA Minor Change Approval, or the national equivalent. 2.3. FLARM cannot warn in all situations. In particular warnings may be incorrect, late, missing, not being issued at all, show other threats than the most dangerous or distract the pilot’s attention.
  • Page 52 B. FLARM EULA 3. Intellectual Property No part of the software, rmware, license keys, data (including obstacle databases), the FLARM radio protocol and messages, and the FLARM hardware and design may be copied, altered, reverse engineered, decompiled or disassembled without an explicit and written approval by FLARM Technology.
  • Page 53 B. FLARM EULA 6.2. Limitation of Liability. In no event shall FLARM Technology be liable to you or any party related to you for any indirect, incidental, consequential, special, exemplary, or punitive damages (including, without limitation, damages for loss of business pro ts, business interruption, loss of business information, loss of data or other such pecuniary loss), whether under a theory of contract, warranty, tort (including negligence), products liability, or otherwise, even if FLARM Technology has been advised of the possibility of such damages.
  • Page 54 B. FLARM EULA waiver by that party as to subsequent enforcement of rights or subsequent actions in the event of future breaches. 7.5. Amendments. FLARM Technology reserves the right, in its sole discretion, to amend this Agreement from time to time by posting an updated version of the Agreement on www.
