- Page 1 User Manuals Simplified. SALUS 091FLv2 Digital Programmable Thermostat User Guide SALUS 091FLv2 Digital Programmable Thermostat User Guide 06/2020 software v2.6 Quick Guide IMPORTER: SALUS Controls Plc Units 8-10 Northfield Business Park Forge Way, Parkgate, Rotherham S60 1SD, United Kingdom...
-
Page 2: Table Of Contents

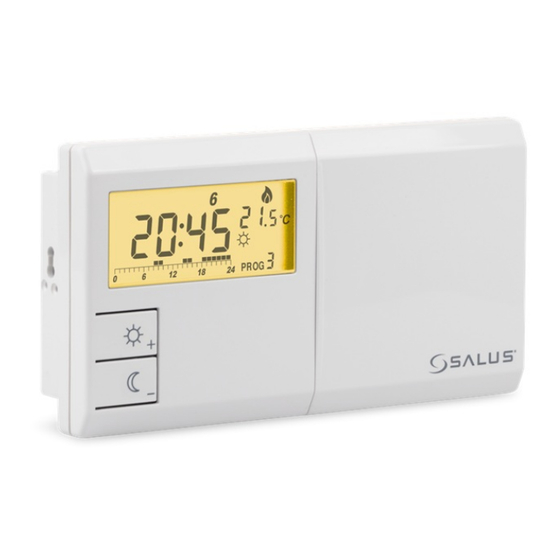

14 Related Posts Introduction 091FLv2/091FLRFv2 is a programmable, weekly thermostat used to control room temperature in heating or cooling systems. Before use please read this manual carefully. Use only AA 1.5V alkaline batteries in the thermostat. Place the batteries into the battery slot located under the cover. Do not use rechargeable batteries. -
Page 3: Proper Thermostat Placement
Thermostat supply 2 x AA batteries Receiver supply 230 V AC 50 Hz Receiver rating max 16 (5) A Receiver outputs Voltage-free NO/COM relay Temperature range 5 – 30°C Proper thermostat placement... -
Page 4: Lcd Icon Description
Button Function Comfort temperature or changing parameters up Economic temperature or changing parameters down Set the day of the week Set the hour Set the minutes Temperature setpoint Weekly programming Program selection Confirm function Factory Reset LCD Icon description 1. Day of the week indicator 2. -
Page 5: 091Flv2 Wiring Diagram
14. Low battery indicator 15. AM/PM 091FLv2 Wiring diagram 091FLRFv2 Wiring diagram NOTE! If you are using a 091FLRFv2 pack, the pairing between the thermostat and the receiver is already done. Press the button to highlight the display Press to set the day. -
Page 6: Setting The Economic Temperature
Press the button to highlight the display. Press and then press The display will show the current comfort temperature. To change this temperature, press the button. Setting the economic temperature Press the button to highlight the display. Press and then press. The display will show the current economic temperature. -
Page 7: Service Menu
Press to highlight the display. Select the day of the week by pressing PROG button. Press to set the program number (0-5) for the selected day. Program 0 is a special program. It will set the thermostat to antifrost Reset To confirm press the button. - Page 8 by holding the button for 5 seconds. – Heating mode – the relay closes the contacts when there is a need for heating (default setting). – Cooling mode – the relay closes the contacts when there is a need for cooling (with 5 minutes delay).
- Page 9 SALUS 091FLv2 Digital Programmable Thermostat [pdf] User Guide 091FLv2, 091FLRFv2, 091FLv2 Digital Programmable Thermostat, Digital Programmable Ther mostat SALUS 091FLv2 Digital Programmable Thermostat [pdf] User Guide 091FLv2, 091FLRFv2, 091FLv2 Digital Programmable Thermostat, Digital Programmable Ther mostat, Programmable Thermostat, Thermostat SALUS 091FLv2 Digital Programmable Thermostat...
