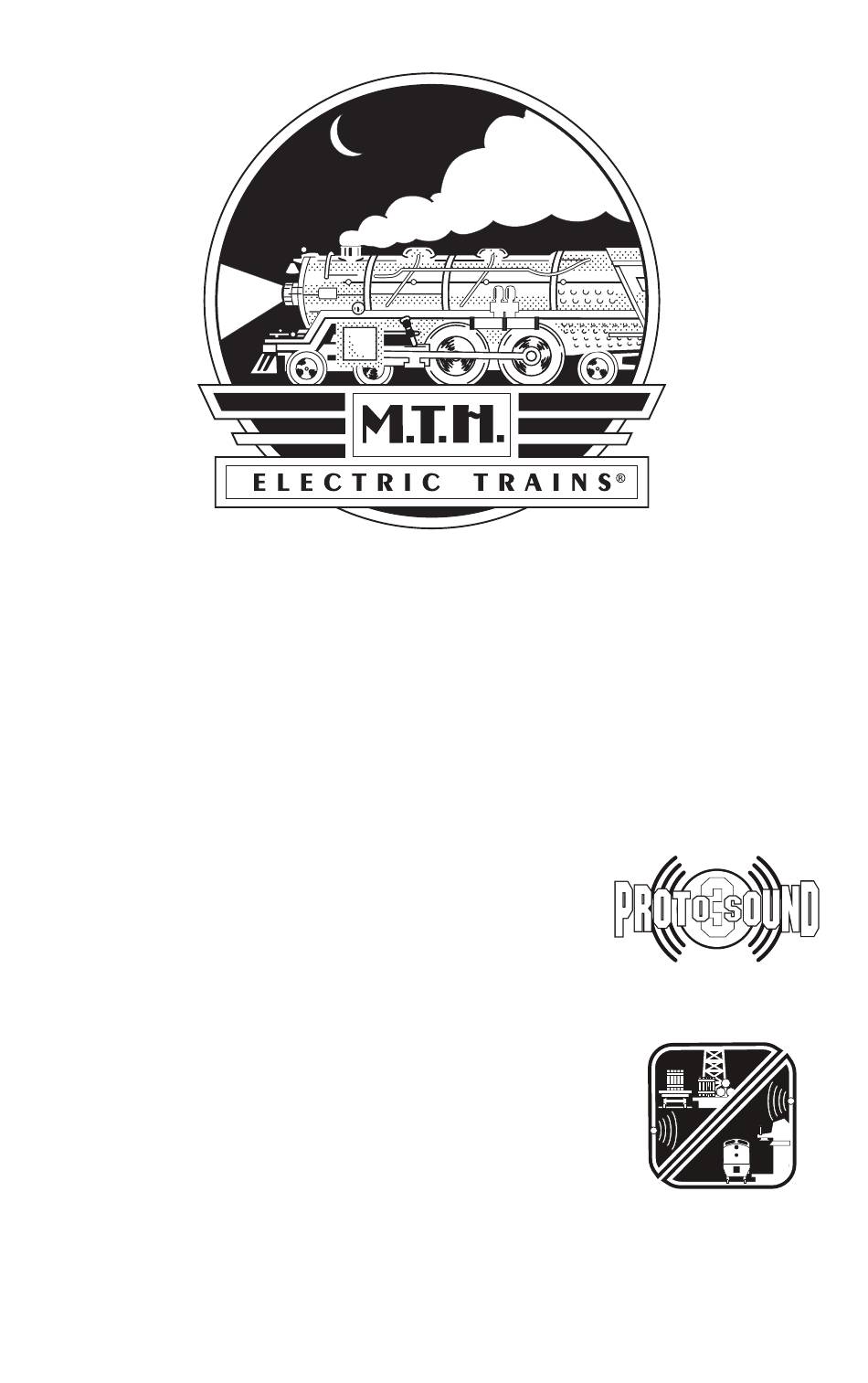

Premier 2500HP Transfer
Diesel Engine
OPERATOR'S MANUAL
3
Compatibility
This engine will operate on any
traditional O-31 Gauge track system,
including M.T.H.'s RealTrax® or
ScaleTrax™ or traditional tubular
track. It is also compatible with most
standard AC transformers. (See pages
47 and 48 for a complete list of
compatible transformers, power packs
PFA
and wiring instructions.)
Passenger/Freight
Announcements
PLEASE READ BEFORE USE AND SAVE
www.mthtrains.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier 2500HP Transfer Diesel Engine and is the answer not in the manual?

Questions and answers
