PLEASE READ BEFORE USE AND SAVE

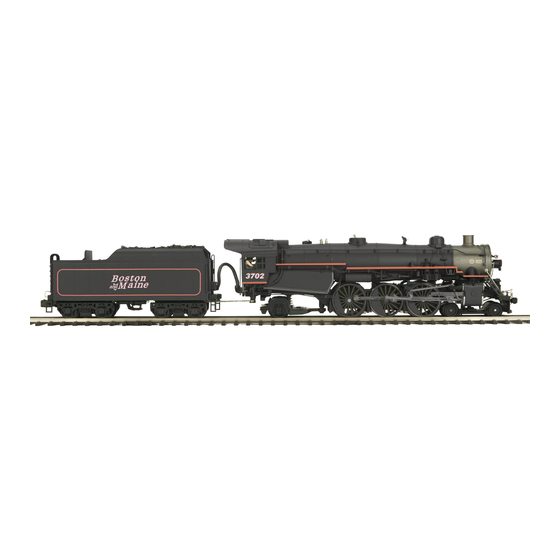

Premier Baldwin P-47
Steam Locomotive
OPERATOR'S MANUAL
Advertisement
Table of Contents
Related Manuals for MTHTrains 20-3256-1
Summary of Contents for MTHTrains 20-3256-1
- Page 1 Premier Baldwin P-47 Steam Locomotive OPERATOR’S MANUAL Compatibility This engine is available in 2-rail and 3-rail versions an will operate on any traditional O-42 Gauge track system(3-rail) or any 42” radius 2-rail track system. It is also compatible with most standard AC and DC transformers.
-
Page 2: Table Of Contents
Table of Contents Configuring Locomotive for 2-Rail or 3-Rail Operation......Installing/Removing Pickup Rollers..........Configuring for 2-rail or 3-rail power input........Ensuring Proper Power to Track Polarity.......... Changing Track Polarity Inside Locomotive........Locomotive Coupler Options............Set Up Checklist..................... Lubrication..................Priming The Smoke Unit..............Placing the Engine on the Track ............ -
Page 3: Configuring Locomotive For 2-Rail Or 3-Rail Operation
Configuring Locomotive for 2-Rail or 3-Rail Operation Installing/Removing 3-Rail Pickup Rollers Both 2-Rail and 3-Rail versions of this locomotive can be configured to opperate on either 2-rail or 3-rail track by removing or adding the center rail pickups. 3-rail track operation requires the pickups, 2- rail track operation does not. -
Page 4: Ensuring Proper Power To Track Polarity
Ensuring Proper Power to Track Polariy For 2-rail DCS operation, it is important that the polarity from the transformer to the engine is properly configured. Correct polarity can be accomplished by ensuring that the wiring from the TIU to the track and orientation of the locomotive when sitting on the track follows the illustration in Figure 3. -
Page 5: Locomotive Coupler Options
Changing Track Polarity Inside the Locomotive All 2-rail locomotive models do not come with a rear coupler since many 2-rail enthusiasts may utilize different coupler types on their 2- rail locomotives and cars. Each tender has pre-drilled holes for use when installing a Kadee®... -
Page 6: Set Up Checklist
Set Up Checklist •Lubricate the locomotive •Prime the smoke unit •Check to see whether the battery needs to be charged for full sound effects •Apply power to run as described in the Basic Operating Section of this manual Lubrication You should lubricate the engine to prevent it from squeaking. Use light household oil and follow the lubrication points marked “L”... -
Page 7: Placing The Engine On The Track
Placing The Engine On The Track Place the engine on the track, then insert the reverse unit plug that extends out of the tender into the receptacle at the back of the boiler cab (Figure 9. WARNING: DO NOT CONNECT THIS ENGINE TO A TENDER FROM ANOTHER ENGINE;... -
Page 8: Basic Operation
Basic Operation The Throttle knob controls how fast your train will travel. Turn the throttle knob up ½-way, until the engine and caboose lights shine bright. Put the engine into motion by pressing the Direction button on your transformer once. (hold it for approximately 1 second) If the engine does not begin to move as soon as you firmly press the Direction button, you may not have sent enough voltage to the track to make the train move. -
Page 9: Proto-Sound 2.0 Operating Instructions
Proto-Sound 2.0 Operating Instructions This manual contains the operating instructions for Proto-Sound 2.0 in conventional mode only. Instructions for accessing DCS command mode features accompany the DCS Remote Control System equipment. Activating Proto-Sound 2.0 Conventional Mode Features Proto-Sound 2.0 features are activated by sequences of Bell and Horn button pushes described below. -
Page 10: Passenger Station Announcements (Psa)
Passenger Station Announcements (PSA) Your engine is equipped with a sound package of passenger station announcements that you can play when you pull into a station. Each sequence described below will play as long as it is left on, randomly generating sounds, but be sure to allow approximately 30 seconds between the button pushes described below to allow the PSA sufficient time to run through each sequence. -
Page 11: Proto-Coupler® Operation
Tips on Using PSA •You can terminate PSA at any time by turning off power to the track for 15 seconds. •You do not have to be in Forward to use PSA. At the conclusion of the full sequence, the train will pull away from the station in whatever direction you were going when you activated the feature. -
Page 12: Speed Control
Speed Control M.T.H. engines equipped with Proto-Sound 2.0 have speed control capabilities that allow the engine to maintain a constant speed up and down grades and around curves, much like an automobile cruise control. You can add or drop cars on the run, and the engine will maintain the speed you set. While the engine is programmed to start with the speed control feature activated, you can opt to turn it off. -
Page 13: Reset To Factory Default
Reset to Factory Default To override the settings you currently have assigned to the engine and reset it to its factory defaults, while in Neutral tap the Horn button quickly once, followed by five quick taps of the Bell button, allowing approximately ½ second to lapse between each quick button press. -
Page 14: Maintenance
Maintenance Lubricating and Greasing Instructions The engine should be well oiled and greased in order to run properly.You should regularly lubricate all side rods, linkage components and pickup rollers to prevent them from squeaking. Use light household oil and follow the lubrication points marked “L”... -
Page 15: Cleaning The Wheels, Tires And Track
Grease Pivot Point (G) Body Mounting Screw (Under Leading Truck) Body Mounting Screws Grease Screw (G) Grease Pivot Point (G) Figure 12: Lubricating The Grease Points Cleaning the Wheels, Tires and Track Periodically check the locomotive wheels and pickups for dirt and buildup, which can cause poor electrical contact and traction as well as prematurely wear out the neoprene traction tires. - Page 16 5. Make sure the tire is fully seated inside the groove. Use a razor blade to trim away any excess tire that doesn’t seat itself inside the groove properly. 6. Reinstall the side rods in the same positions as noted. Failure to align rods may cause binding or damage to the drive system.
-
Page 17: Headlight Replacement Instructions
Headlight Replacement Instructions The locomotive’s lights are controlled by a constant voltage circuit in the engine. They are easy to remove and replace when they burn out. See the diagrams and directions below for instructions on accessing and replacing the light bulbs in this locomotive. -
Page 18: Self Charging Battery Backup
Self Charging Battery Backup The special NiCad 2.4v self-charging battery recharges continuously during train operation and should last for up to five years. The battery is a dry battery that should not leak or cause any damage to your engine. Depending upon when your engine was built, it may need to be charged right out of the box. -
Page 19: Protosmoke® Unit Operation
ProtoSmoke® Unit Operation This Premier steam locomotive contains a self-powered smoke unit that outputs smoke through the smokestack on the roof of the engine. The smoke unit is essentially a small heating element and wick that soaks up and then heats a mineral oil-based fluid that emits a harmless smoke. - Page 20 If you experience poor or no smoke output when the smoke unit is on and has fluid, check the wick to see if it has become hard, blackened, and unabsorbent around the heating element. To remove the smoke unit you will first have to remove the boiler shell (by removing the body mounting screws shown in Fig.
-
Page 21: Troubleshooting Proto-Sound® 2.0 Problems
Troubleshooting Proto-Sound® 2.0 Problems Although Proto-Sound 2.0 has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580; fax: 410-423- 0009;... - Page 22 Lock-out Remedy I can't get the engine to run after I power up The engine maybe locked into the neutral the transformer. It sits still with the diesel position. Follow the procedure in the "Lock into a and compressor sounds running. Direction"...
-
Page 23: Transformer Compatibility And Wiring Chart
Transformer Compatibility and Wiring Chart Proto-Sound 2.0 is designed to work with most standard AC transformers. The chart below lists the many compatible transformers. Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. -
Page 24: Dc Power Pack
DC Power Pack Transformer Min/Max. Power Transformer Model Voltage Rating Type Controlmaster 20 0-20v 100 Watt Electronic PH Hobbies 0-20v 100 Watt Electronic PH Hobbies PS10G 0-20v 180 Watt Electronic BridgeWorks Magnum 15 0-24v * 300 Watt Electronic BridgeWorks 0-24v * Magnum 200 300 Watt Electronic... -
Page 25: Additional Features Accessible Of Dcs Remote Control System
Additional Features Accessible With The DCS Remote Control System (Additional equipment required) While conventional mode operation of a Proto-Sound 2.0 engine yields wonderfully realistic sound and several train control features, command mode operation allows the user to access a world of command functions never before accessible to O Gauge railroaders. -
Page 26: Service & Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble-shooting techniques that may correct the problem. Additional information may be found on the M.T.H.
