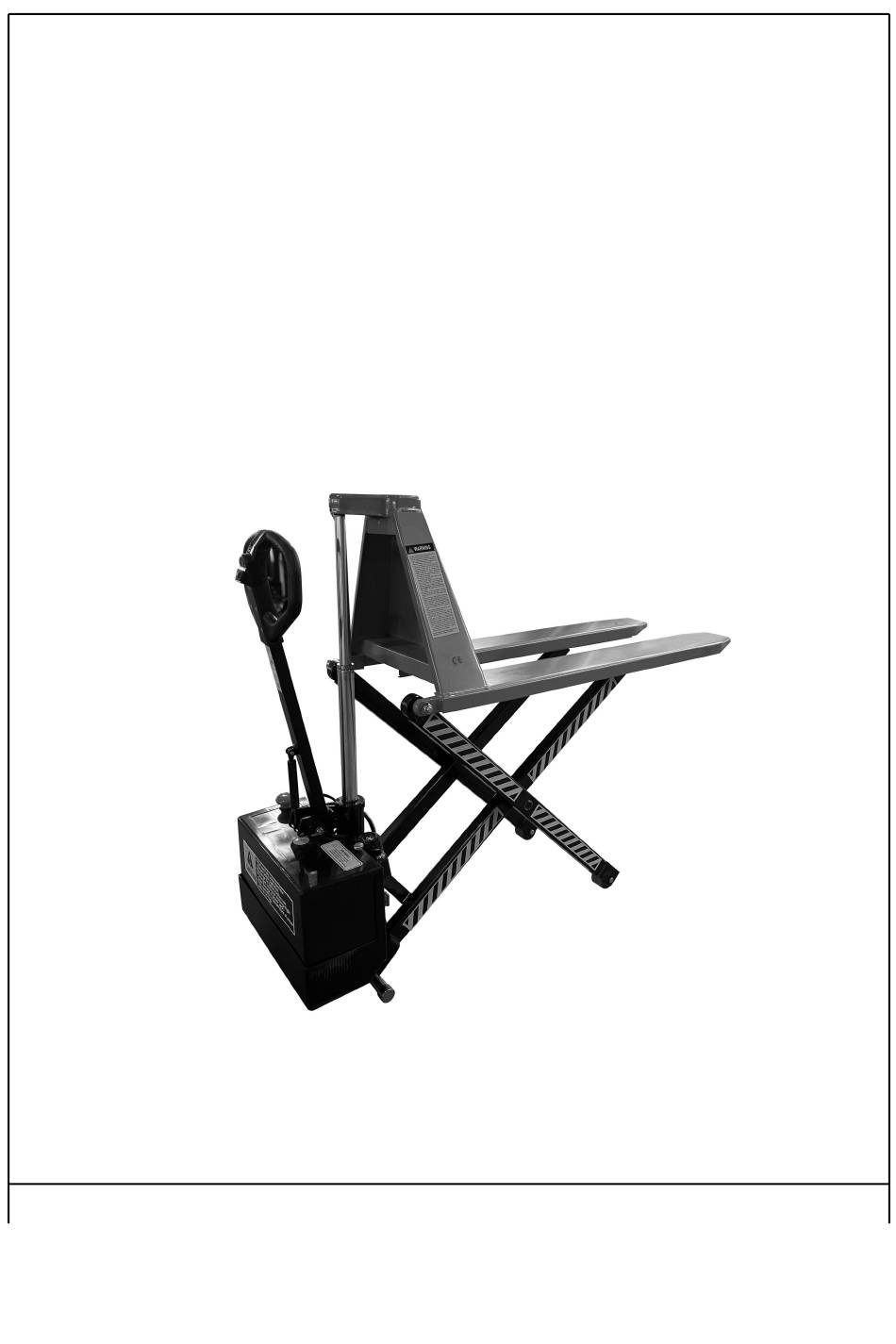

- Page 1 Instruction Manual ELECTRIC HIGH LIFT TRUCK Note: Owner/Operator must read and understand this instruction manual before using the electric high lift truck.
-
Page 2: Brief Introduction
WARNING DECAL IS MISSING, PLEASE CONTACT WITH OUR DEALER. Brief Introduction DGB series electric high lift trucks (short for DGB series hereafter) are designed on the basis of hand-operated high lift pallet truck (short for HLT hereafter). It has equipped with battery powered Pump Station, high-pressure hose and electrical control device. -
Page 3: Specifications
Specifications Model DGB1-520 DGB1-680 DGB11/2-520 DGB11/2-680 Rated Capacity (kgs) 1000 1500 Max. Lifting Height (mm) Min. Fork Height (mm) Fork Length (mm) 1140 1100 Fork Overall Width (mm) Dia. of Front Wheel (mm) Φ75×50 Dia. of Rear Wheel (mm) Φ150×40 Motor Working Voltage Battery 66Ah/12V... -
Page 4: Operation
5. Push Down-button, the fork goes down. Stop pushing, the fork can stop at any position and won’t slide down. 6. As a safety valve is set in the pump station, when DGB series lifts a load of 1000kgs (its full capacity), only mid-cylinder (413) can extend out fully, while the piston rod (406) cannot extract out to prevent overload. - Page 5 2. Lifting the fork to its full range 1 to 2 times before use to release the air in the hydraulic system. 3. DGB series are prohibited to lift or pull person. The DGB series are not allowed to work on the slope.
-
Page 6: Problems And Maintenance
Problems and Maintenance Symptom Cause Remedy 1.Switch is out of order 1. Check switch (197X) 2.Fuse is broken 2. Replace fuse (277) Fork does not lift up when pushing 3.Magnetic switch is out 3. Check magnetic up-button of order switch (224) 4.Oil not enough 4. - Page 7 HYDRAULIC CIRCUIT / ELECTRIC WIRING DIAGRAM voltmeer...
- Page 8 EXPOLDED FIGURE & PARTS LIST Item No. Description Q’ty Fork Screw Power Unit Hold Yoke Wheel Yoke...
- Page 9 Centrifugal Axle Spacer Steering Wheel Snap Ring Snap Ring Bush Bush Washer washer Ball bearing Front wheel Wheel axle Roller Bush Washer Spring washer Lock Nut Screw Steering wheel assembly (incls.6,9,10,21) Screw Ball Snap ring Bush Needle Bearing...
- Page 10 EXPOLDED FIGURE & PARTS LIST OF ELECTRIC CONTROL ASSEMBLY Item No. Description Q’ty 202A Terminal ф6 Terminalф8...
- Page 11 Washer Screw Electric Control Case Relay Control Valve Oil Tank Pump Station Assembly Switch Socket Fuse Box Magnet Recharger Socket Washer 254A Battery ,12V/60Ah Cover Screw Recharger, 12V/10A Screw Fuse,5A Fixing Screw for Battery High Pressure Oil Pipe Voltage Meter Washer Washer Screw...
- Page 12 EXPOLDED FIGURE & PARTS LIST OF PUMP ASSEMBLY...
- Page 13 Item No. Description Remark Spacer Washer Tension spring Adjusting screw Snap ring Sleeve Scraper ring O-ring Y-ring O-ring Pump housing Thrust bearing Ball Snap ring Washer Copper piston Snap ring Snap ring Washer O-ring Bushing Cylinder Back-Up ring Bronze Bushing Bushing Snap Ring Bushing...
- Page 14 Piston Rod Cylinder Head Cylinder Snap Ring insulated washer Snap ring Bushing O-Ring Piston Back-Up Ring Y-Ring 50(X) Handle assembly Pump Unit Seal Kits: 136#、137#、138#、201#、153#、 198#、401#、402#、420#、421#、 423#、424#...
-
Page 15: Handle Assembly
HANDLE ASSEMBLY -50 Item No. Description Remark Handle Snap ring Switch wire & plug Switch housing Up-down switch Switch housing Screw switch... - Page 16 HANDLE ASSEMBLY -50X Item No. Description Remark 102X Handle Snap ring Switch wire & plug 196X Switch housing 197X Up-down switch Switch housing Screw switch insulated washer VERSION NINE 10/2017...
