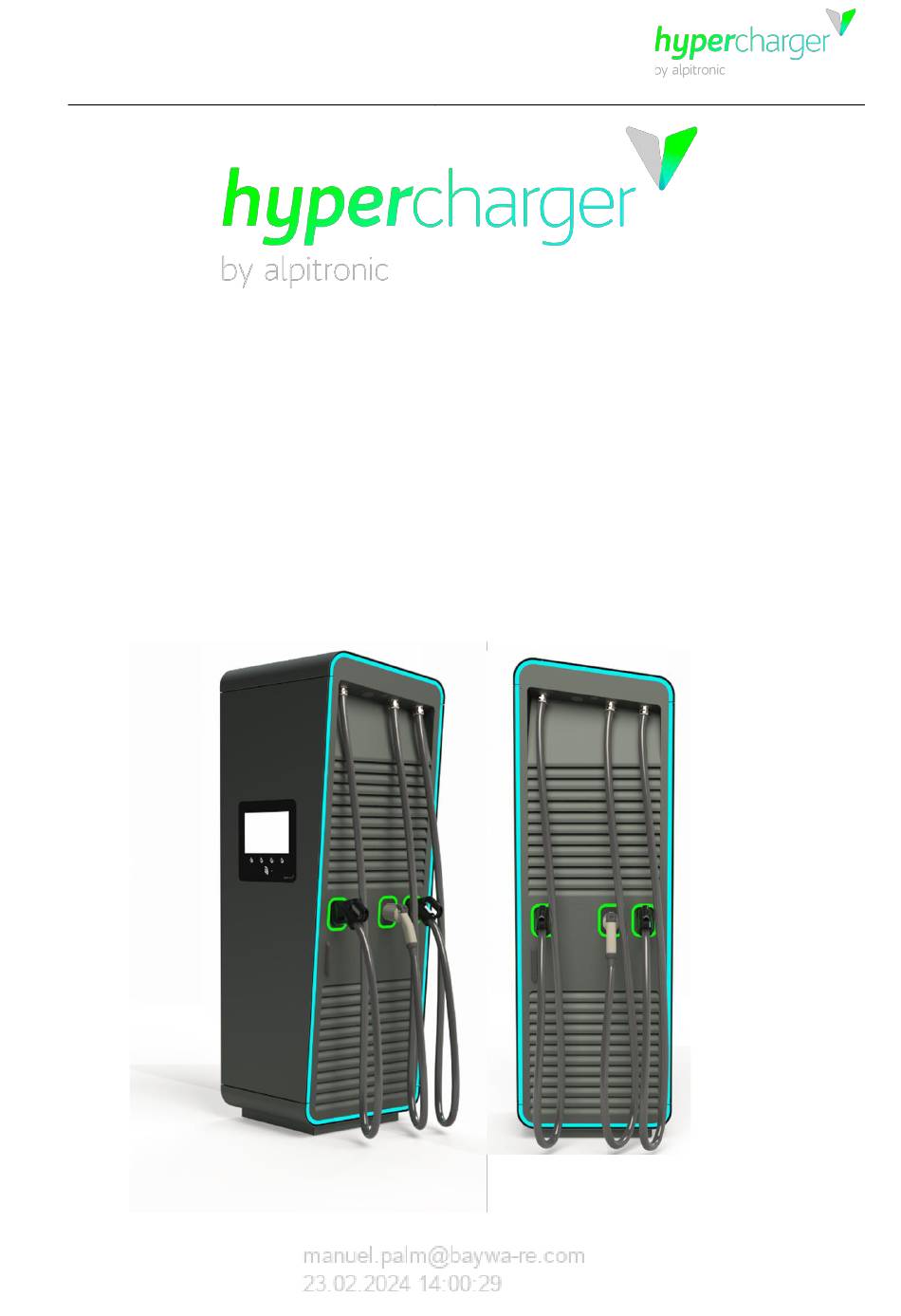

HYC400 – Installation and Maintenance Manual
Version 2-6
Contents
Installation and Maintenance Manual
hypercharger HYC400
(100 kW – 400 kW)
Ultra-fast charging system for electric vehicles
for HW version 4
All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
