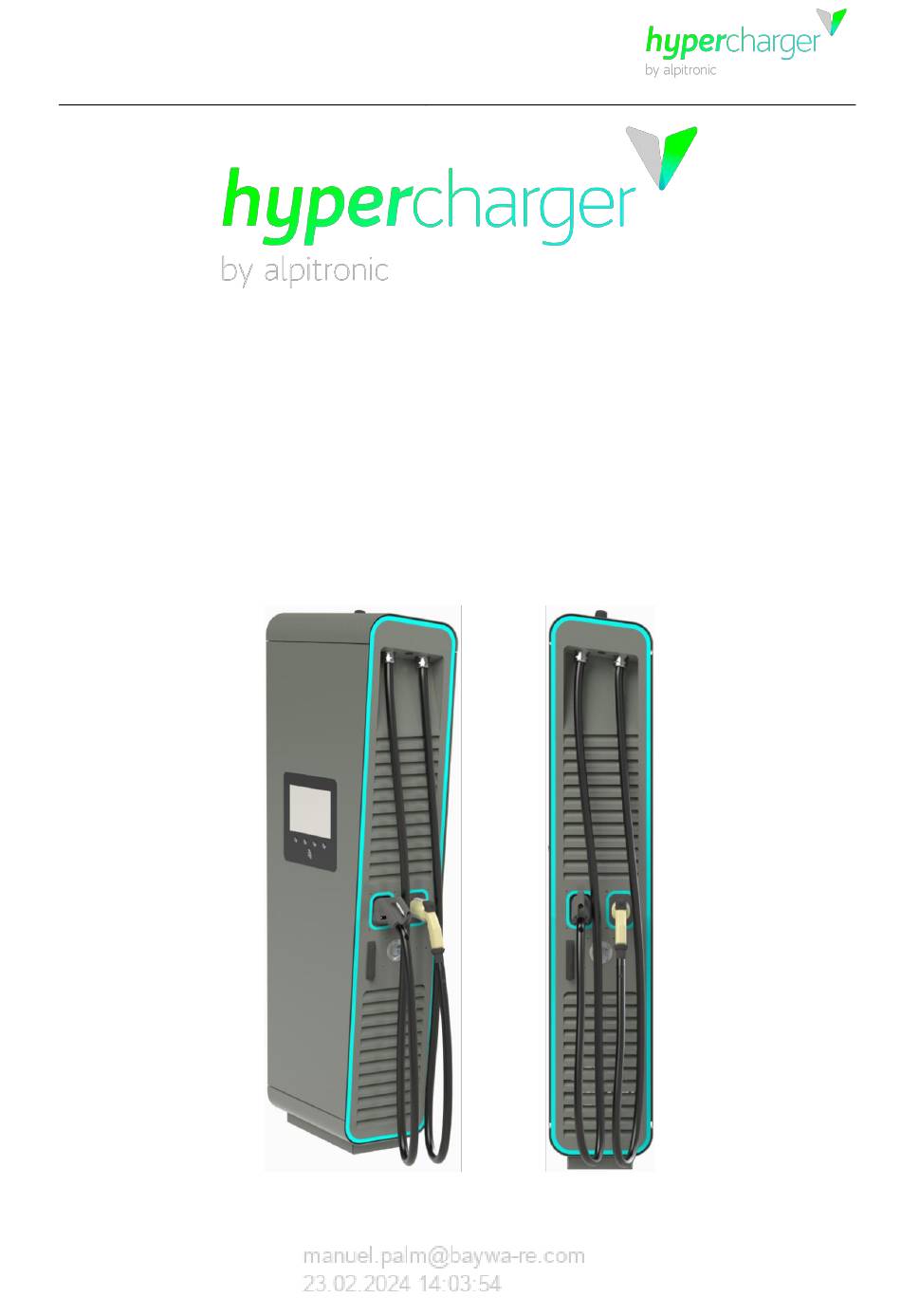

hypercharger - Configuration manual
Version 1-1
Content
Configuration manual
hypercharger HYC200 / HYC400
(100kW – 400kW)
ultra-fast charging system for electric vehicles
for SW-Versions 2.0
All rights reserved. The reproduction of this document, also partially, is allowed only with authorization by alpitronic Srl
