33ft Polarized Reflective
Photoelectric Beam Sensor
E-931-S33PRGQ
Installation Manual

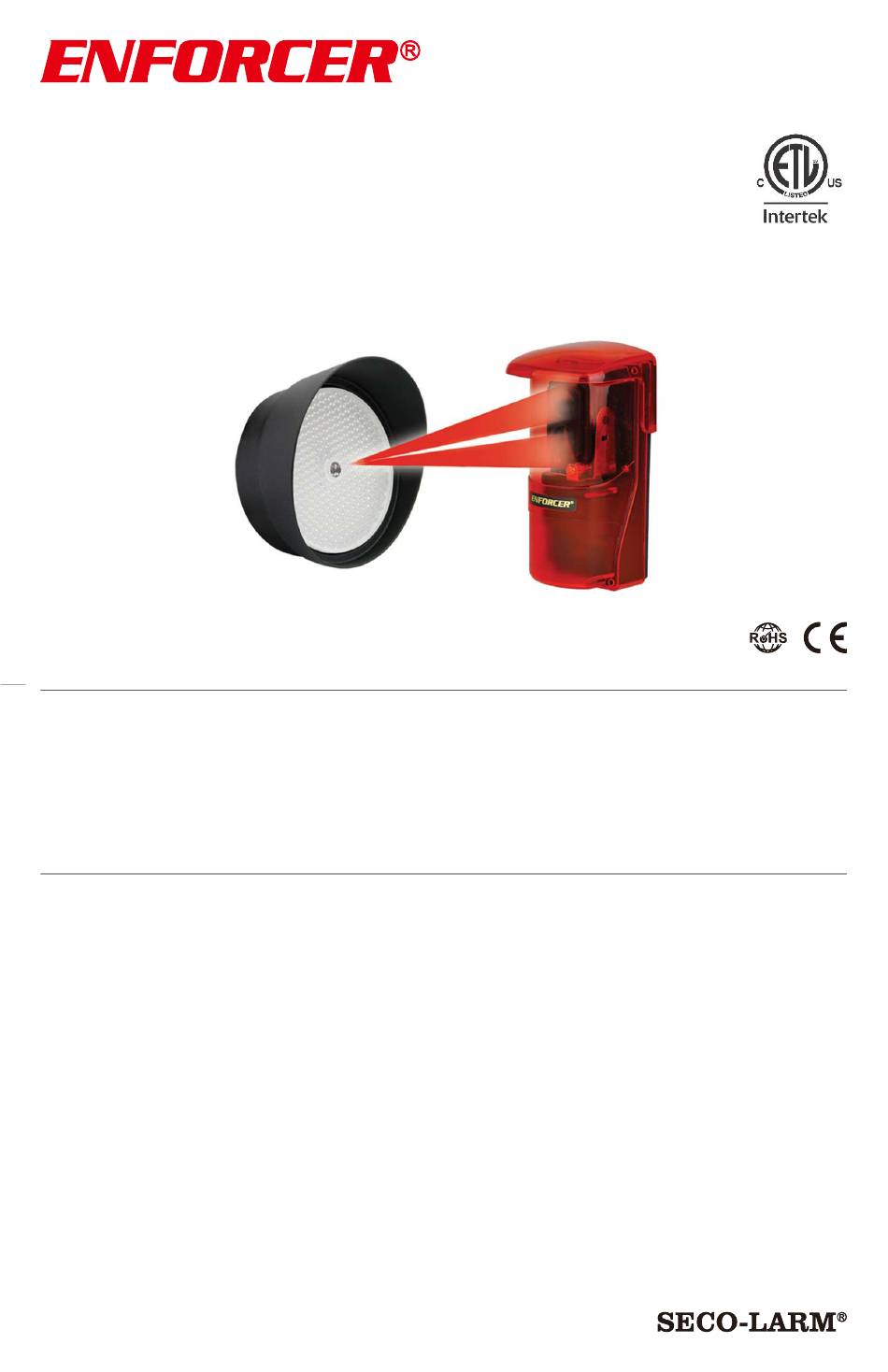

The ENFORCER E-931-S33PRGQ 33ft Polarized Reflective Photoelectric Beam Sensor provides
reliable sensing of shiny objects that enter the space between the sensor and reflector, thus
breaking the infrared beam. It is suitable for various types of detection such as sensing
approaching vehicles to open a garage door or outdoor gate, as an entry notification for stores, to
assist in measuring parking distances, or an alarm notification, as well as many other uses.
 Polarized sensor is immune to shiny objects:
Triggers only when correctly reflected light is
detected
 Weatherproof (IP55) construction
 Anti-condensation housing
 12-30V DC/AC 60Hz, 100mA
IMPORTANT:
The E-931-S33PRGQ conforms to UL Std. 325 for gate operators that use the N.C. or
10kΩ resistor for monitoring.
CAUTION
 This sensor was not designed to prevent bodily injury or loss of life.
 This sensor was not designed for use in environments where explosive gases may be present.
 Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM
is not responsible for compliance with such laws or codes.
 Up to 33ft (10m) sensing range
 Round, ø3
/
" (82mm) reflector
1
4
 Form C relay: 0.5A@30VAC/VDC
 Beam status LED
 N.C. Tamper switch, 500mA@30VAC/VDC
Conforms to
UL Std. 325

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENFORCER E-931-S33PRGQ and is the answer not in the manual?

Questions and answers

Summary of Contents for SECO-LARM ENFORCER E-931-S33PRGQ

  • Page 1  This sensor was not designed for use in environments where explosive gases may be present.  Use of this sensor in certain security applications may be regulated by local laws or codes. SECO-LARM is not responsible for compliance with such laws or codes.
  • Page 2 12-30V DC/AC Relay Tamper  Polarity is not important for the power 60Hz, 100mA (Non-Polarity) N.C. N.O. COM N.C. input.  Connect the N.C. tamper terminal to Built-in the tamper circuit of an alarm control 10kΩ resistor panel. SECO-LARM U.S.A., Inc.
  • Page 3 3. Run the wires through the end cap and cable connector. 4. Screw the end cap into the external side of the cable End cap connector to prevent water from entering the unit. SECO-LARM U.S.A., Inc.
  • Page 4 SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
