SECO-LARM ENFORCER SD-9773-KNEVQ Installation Manual

Surface mount wave-to-open sensor with manual override

Download this manual

SurfaceMount

WavetoOpen Sensor

with Manual Override

SD-9773-KNEVQ

Installation Manual

5024193

Conforms to

UL Std. 294

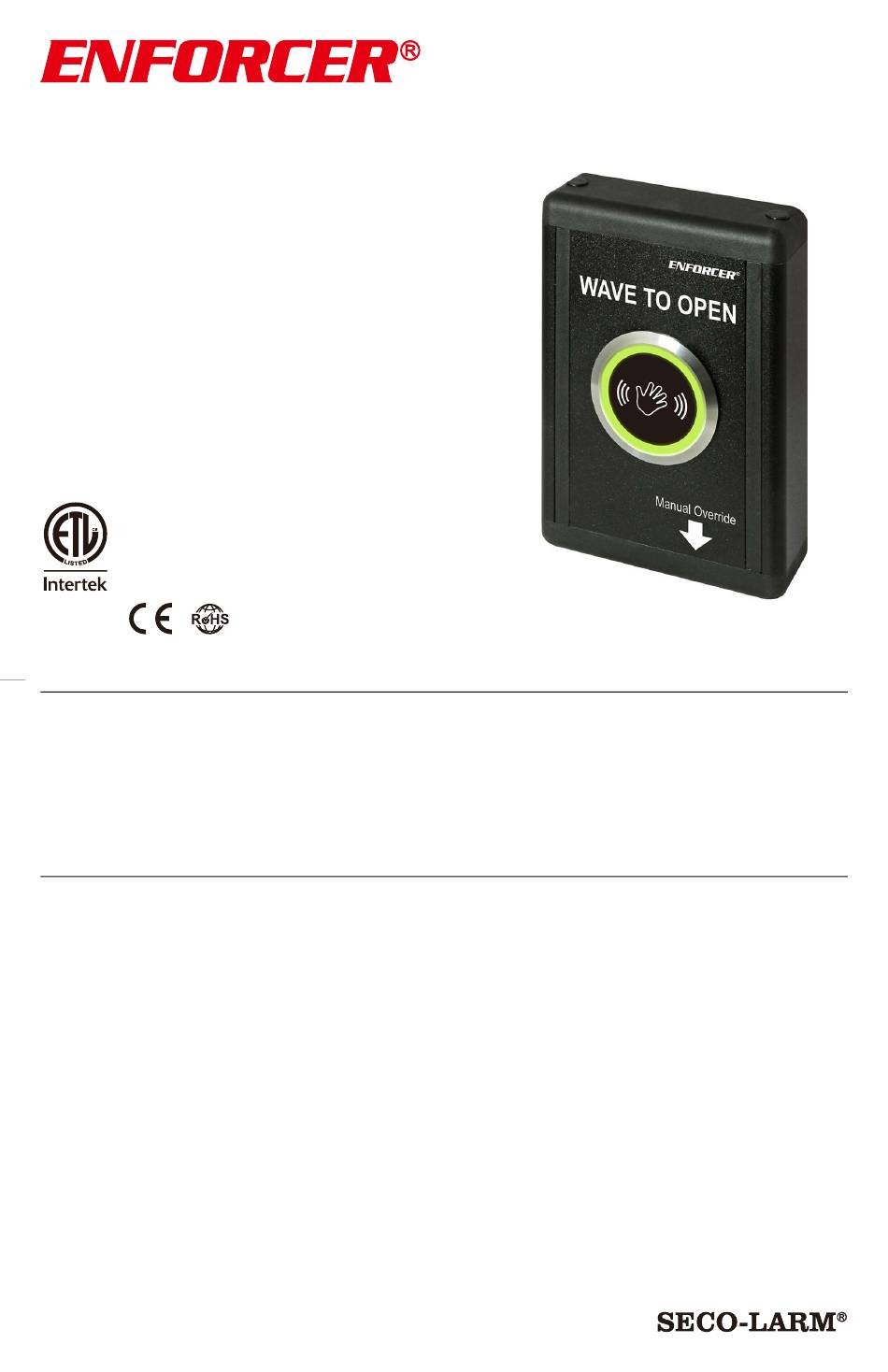

The ENFORCER Surface-Mount Wave-to-Open Sensor with Manual Override Button is a full-

featured exit plate which uses IR technology to allow egress from a protected area or activate a

device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in

hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or

offices. A manual override allows for operation if the sensor is disabled.

 Adjustable sensor range up to 6" (15cm)

 1A relay, adjustable trigger duration 0.5~30 seconds or toggle

 LED illuminated sensor area for easy identification

 Selectable LED colors (turns from red to green or green to red) when sensor is activated

 Aluminum alloy and polypropylene plastic housing

 IP54 Weather-resistant for outdoor use

 Power must be provided by low-voltage power-limited/Class 2 power supply

 Use only low-voltage field wiring and do not exceed 98.5ft (30m)

Need help?

Do you have a question about the ENFORCER SD-9773-KNEVQ and is the answer not in the manual?

Page 1 SurfaceMount WavetoOpen Sensor with Manual Override SD-9773-KNEVQ Installation Manual 5024193 Conforms to UL Std. 294 The ENFORCER Surface-Mount Wave-to-Open Sensor with Manual Override Button is a full- featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand.
Page 2  Due to the nature of IR technology, an IR sensor can be triggered by a direct light source such as sunlight, reflected light from a shiny object, or other direct light. Therefore, in some locations it may be necessary to install a hood or other barrier to shield the sensor from direct light sources SECO-LARM U.S.A., Inc.
Page 3 Do not force the trimpots. Only minimal force is needed. Sensor range 0.5s Output duration: 0.5~30 seconds, toggle* adjustment Default: 0.5 seconds *Toggle: turn clockwise to maximum position Trigger time adjustment Sensor range: 2"~7" (5~18 cm) Default: 7" (18cm) 18cm SECO-LARM U.S.A., Inc.
Page 4 SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
