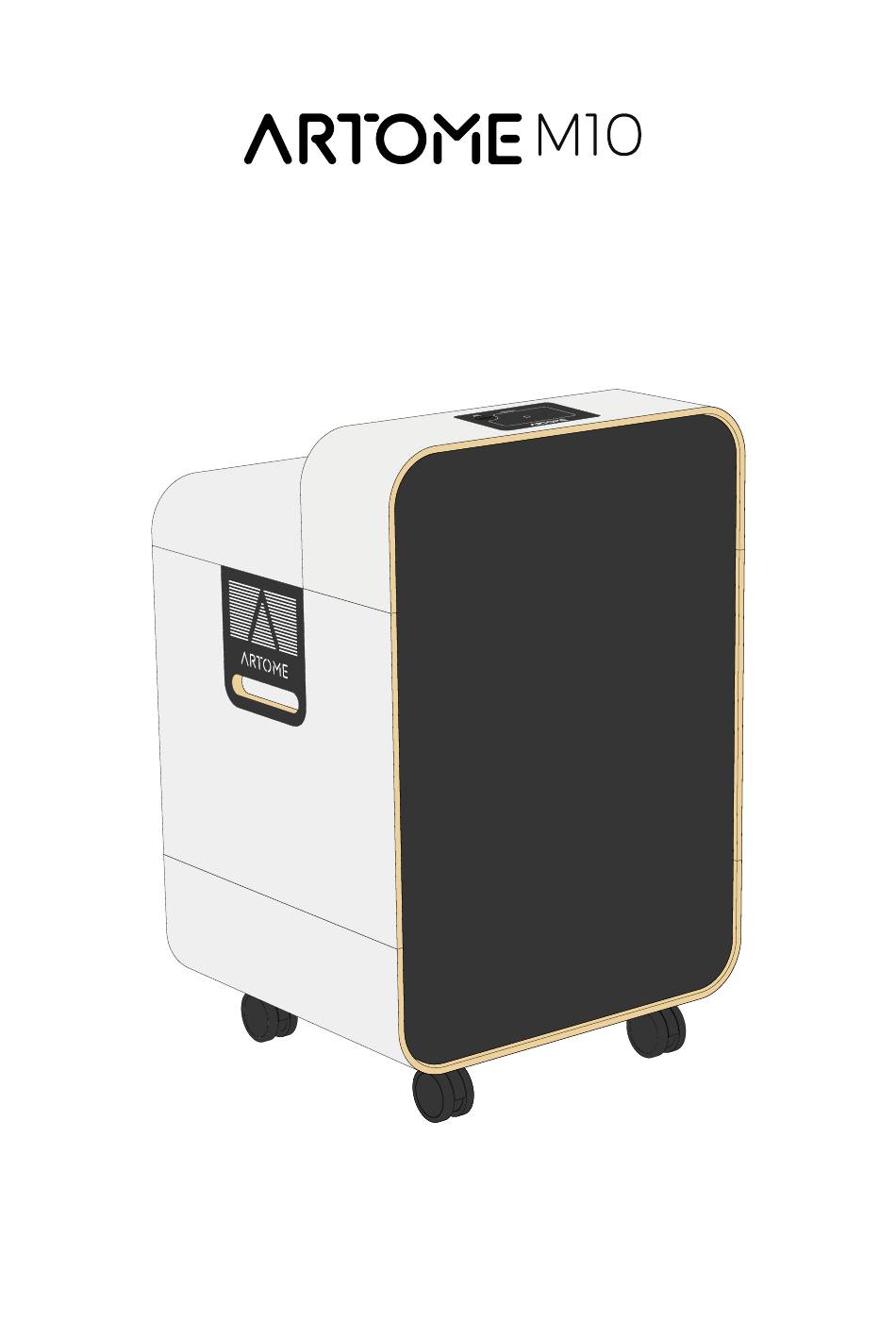

- Page 1 User manual...
-
Page 2: Table Of Contents
Connecting additional devices to Artome ........ -
Page 3: Important Safety
Electrical voltages inside the Artome unit can cause a fire, electrical shock, or severe injury. Caution Do not open the Artome User Panel, Connection panel or Power panel. Never attempt to disassemble or modify the Artome unit (including installed projector). For service, refer to qualified service personnel. -
Page 4: Cautions And Warnings
If you use the Artome unit in the country where it was purchased, only use the power cord that came with the product. If you use the Artome unit in a country other than where it was purchased, use the correct power cord for that country. Using an inappropriate power cord could result in fire or electric shock. - Page 5 Do not use sprays containing a flammable gas to remove dirt or dust which is adhering to parts such as the projector lens or fans of the Artome unit. The projector which is installed inside Artome unit becomes hot during use. The gases may ignite and result in a fire.
-
Page 6: Terms And Acronyms
An USB audio interface which converts analog audio sources, such as microphones to digital USB micro- HybriDock™ phones and transmits USB audio from a laptop to the Artome sound system. Keystone effect The apparent distortion of an image caused by projecting it onto an angled surface. -
Page 7: Product Description
Intended use The Artome M10 is designed for use as a local presentation device or as a mobile all-in-one solution in various videoconferencing environments. This product features a pre-installed Epson projector for displaying scalable image and a built-in sound system comprising an embedded mixer and an active speaker system, as well as connections for videoconferencing devices. -
Page 8: Product Overview
Product overview Top panel for integration of USB camera or microphone Speakers Control panel for controlling the Artome and the Epson projector Epson projector (external device that is sold separately) Push-to-open front door Fan for projector air ventilation Handles for moving the product 19”... -
Page 9: Video Projector
Epson’s user interface. However, essential functions such as Projector On/Off, Freeze, AV Mute, and Zoom in/out can be controlled via the Artome M10 user interface. For example, if the projector is activated using the Epson user interface or by a third-party system, the Artome M10 unit detects the action and powers on accordingly. -
Page 10: User Interface And Connections
Audio-only -mode is active. POWER led is also on. SOURCE Blinking Transitioning to Audio-only -mode. Long press: Activate Audio-only -mode Short press: Power on / off Power on POWER Blinking Warming up / cooling down Long press: Image settings reset Power off support@artome.fi... -
Page 11: Connection Panel
Connection Description HDMI Audio and video input ARTOME + Connection between computer and videocoferencing devices Connection for additional devices (e.g. a wireless speakerphone receiver) MIC 1 & 2 Connection for a wired microphone or a wireless microphone receiver... -
Page 12: Operating Instructions
Uses camera connected to Artome as the image source Audio-only mode Turn on Artome. Press the SOURCE button to select the desired source. Now, long-press the SOURCE button to activate Au- dio-only mode. The projector will shut down, but the speaker system stays on. -
Page 13: Connecting Additional Devices To Artome
Connecting additional devices to Artome The Artome M10 serves as a versatile mobile presentation solution and doubles as a rack for additional devices. With its all-in-one design, cabling is streamlined with short dimensions, making cable management effortless. DISCLAIMER While this manual showcases sample configurations featuring additional devices, it does not provide instructions on how to utilize those supplimentary peripherals. -
Page 14: Camera
Artome recommends using speakerphones with Bluetooth USB dongles or long USB cables. Connect a wireless Bluetooth USB dongle or a USB cable to either USB port on the Artome M10. Be sure to charge the speakerphone and turn it off after use. -
Page 15: Controlling The Device Remotely
The Artome S1 can be controlled remotely using the Artome Connect mobile application or with the Artome Remote Control. Artome Connect mobile application The Artome M10 can be controlled via Bluetooth using the Artome Connect mobile application. The app includes remote controls, additional settings, and device information. Check your mobile application store for compatibility with your device. -
Page 16: Image Adjustment
To project the image fully, avoid placing the Artome M10 next to objects taller than 78 cm / 31 inches. For proper air ventilation, ensure there is at least 15 cm / 6 inches of free space on both sides of the Artome M10 during use. -
Page 17: Image Focus
To lift the image, press “Volume -”. This action reduces the image size and raises it. Move Artome M10 away from the projection surface. As a result, the image size increases and rises higher. For image projection, Artome M10 utilizes an Epson ultra-short throw projector with fixed lens optics. However, by zooming out the image and then utilizing the image shift function, it’s possible to adjust the image position. -
Page 18: Maintenance
• Dry clean the fabric of the front door using a vacuum cleaner with an upholstery tool. If the front door fabric gets damaged or stained uncleanable, please contact Artome for a spare part. Vacuuming the projector space and fans •... -
Page 19: Cleaning The Lens
Contact Artome Support or your local Artome reseller for assistance, if an air filter needs to be replaced. Fuse change Artome Mains power connector uses a 10A 5x20mm fuse. Contact Artome Support or your local Artome reseller for assistance, if a fuse needs to be replaced. -
Page 20: Technical Data
Weight 9,4 kg / 20.7 lb *Artome does not assume responsibility for the performance, compatibility, or functionality of third-party products or their respective features. Users should refer to the documentation provided by the respective vendors for detailed information on their products. -
Page 21: Troubleshooting
Product is powered correctly, but still Power fuse of Artome is blown, or other Check if connection panel power sockets does not start. power related issue. -
Page 22: Audio
1.8 m/6ft to power the separate power supply. camera. SUPPORT For support see www.artome.fi/en/support or contact support@artome.fi WARRANTY For up to date warranty information, see www.artome.fi/en/warranty For warranty claims contact your Artome dealer or Artome Support. support@artome.fi... -
Page 23: Disposal
The packaging is made of environmentally friendly materials, which may be disposed through your local recycling facilities. By disposing of the packaging and packaging waste in the proper manner, you help to avoid possible hazards for the environment and public health. support@artome.fi... - Page 24 • • • • • • • harmonic current emissions (equipment input current ≤ 16 A per phase) •...
- Page 25 680 S Cache Street | Jackson, WY 83001...
