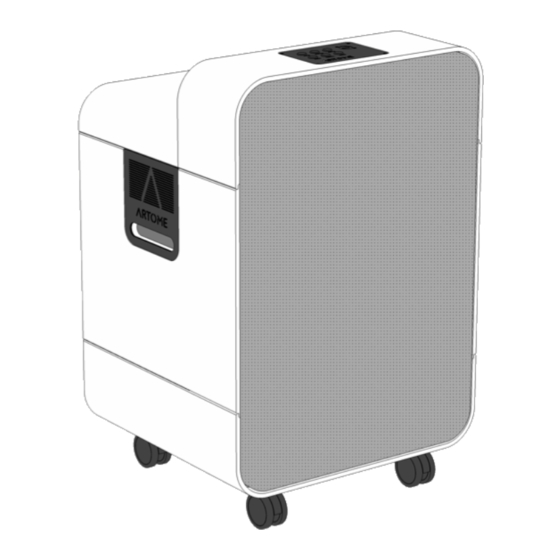

ARTOME M10 User Manual

Hide thumbs Also See for M10:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M10 and is the answer not in the manual?

Questions and answers

Related Manuals for ARTOME M10

Summary of Contents for ARTOME M10

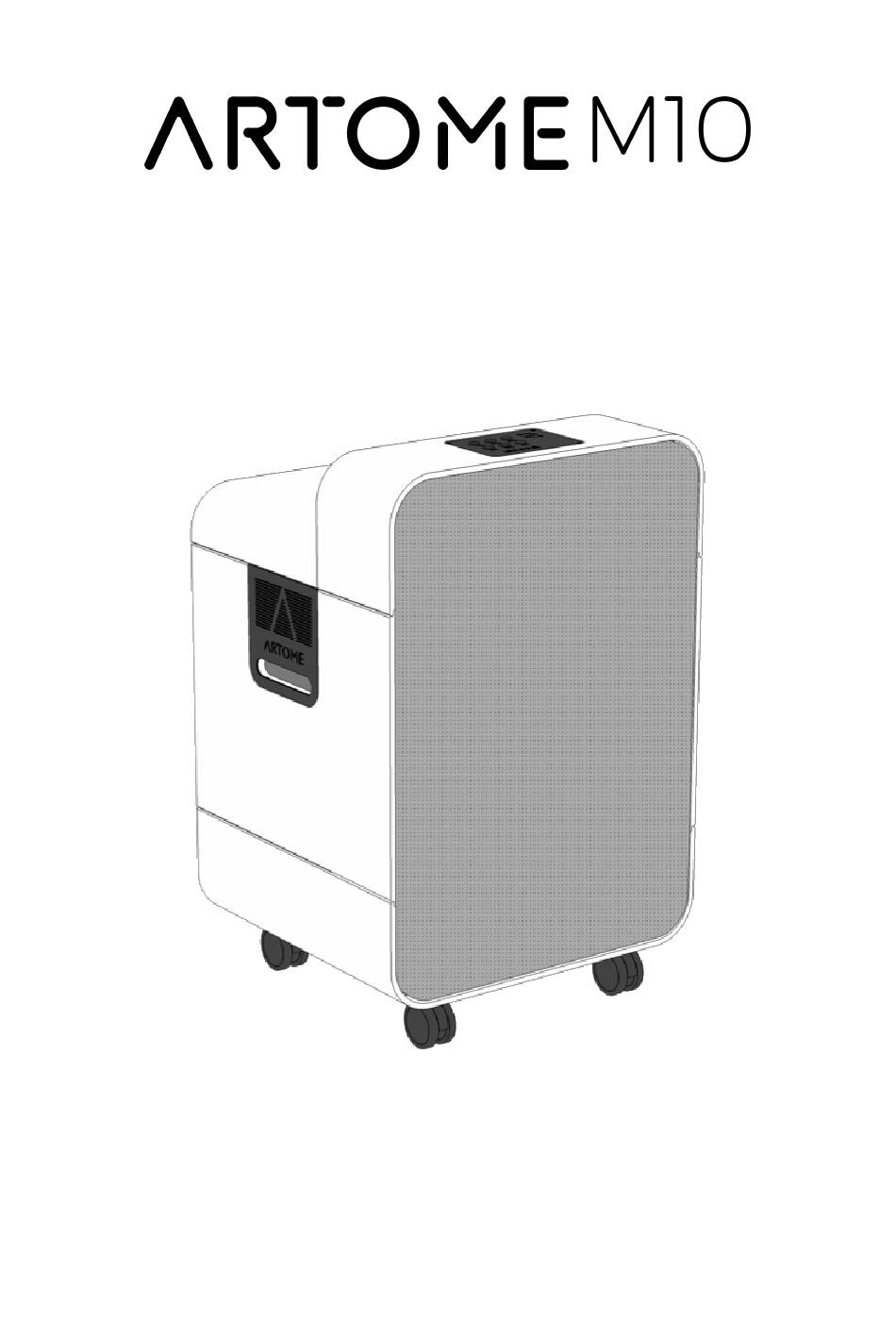

  • Page 1 USER MANUAL...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 IMPORTANT SAFETY INFORMATION ......1.1 Safety symbols ........1.2 Warnings and cautions .
  • Page 4 5.1 Control Panel ........5.2 Light indicators .
  • Page 5 13 TECHNICAL DATA ......... . 13.1 General specifications .

  • Page 6: Important Safety Information

    Follow all the instructions to avoid electric shocks or other hazards that may result in property damage and/or severe or fatal injuries. To use this product, you must fully read and understand the contents of this user manual or Artome M10 - Quick User Guide.

  • Page 7: Warnings And Cautions

    Do not use sprays containing a flammable gas to remove dirt or dust which is adhering to parts such as the projector lens or fans of the Artome unit. The projector which is  installed inside Artome unit becomes hot during use. The gases may ignite and result in a fire.

  • Page 8: Other Warnings

    Liquid or foreign objects get inside the Artome unit or the projector inside Artome. Artome has been damaged. If you continue using Artome as it is, it could cause an electric shock, fire, or even damage to eyesight caused by the projector inside Artome. Do not try to repair the Artome unit yourself.

  • Page 9: Unsuitable Environment

    Using an inappropriate power cord could result in fire or electric shock. If you use the Artome unit in the country where it was purchased, only use the power cord that came with the product. If you use the Artome unit in a country other than where it was purchased, use the correct power cord for that country.

  • Page 10: Prohibitions

    Contact your dealer to carry out the installation work. Do not use or store the Artome unit in locations where it will be subject to dust or dirt. The quality of the projected image may decline, or the air filter of the projector may become clogged, resulting in a malfunction or fire.

  • Page 11: Ce Marking

    The symbol on the product, the accessories, or packaging indicates that this device must not be treated as unsorted municipal waste but must be collected separately. 1.6.4 Read the Manual Read and understand the manual and its safety instructions before using this product. 11 (37) Artome Support contact@artome.fi +358 40 455 4455...

  • Page 12: Terms And Acronyms

    HybriDock™ An USB audio interface which converts analog audio sources, such as microphones to digital USB microphones and transmits USB audio from a laptop to the Artome M10 sound system. Keystone The apparent distortion of an image caused by projecting it onto an angled surface...

  • Page 13: Product Description

    A laminated Artome M10 - Quick User Guide inside Artome is intended for the users who want to get more out of connectivity and get more operational or other info. ...
  • Page 14 Figure. 3.2 - 1. Parts of M10 Number Description User panel for controlling Artome M10 and the Epson projector Speakers Attaching points for Epson projector Push-to-open door Fans for projector air ventilation Handles for moving the product 19” rack space for auxiliary devices...

  • Page 15: Product Features

    Artome M10 unit identifies the function and powers on. Artome M10 takes care of the ventilation of the projector by letting the cool air in and warm air out through its built-in ventilation system. The projector also has a temperature sensor as a safety mechanism.

  • Page 16: Hybrid Events And Learning

    3.4 Using Radio Equipment Artome M10 is not manufactured or intended to be used with a radio equipment.   You can connect an external radio equipment to Artome M10 and use it as a mobile audiovisual solution. Artome takes no responsibility if a radio equipment is used but can recommend devices manufactured by other vendors.

  • Page 17: Unpacking

    4 UNPACKING Packaging includes: Artome M10 with pre-installed Epson ultra-short throw projector. Artome  with pre-installed Epson projector. Epson remote control. 4 m HDMI-USB cable. Magnet stand for USB camera with 15 cm flat USB 3.0 cable. Artome M10 - Quick User Guide.

  • Page 18: User Interface And Connections

    Freeze the image, but not the sound. VOLUME + or VOLUME - Adjust the volume. SOURCE Select the audio and video source. POWER Turn the unit on or off. CAMERA Connection for a USB camera. Artome Support contact@artome.fi 18 (37) +358 40 455 4455...

  • Page 19: Light Indicators

    Image frozen. To shift the image height, press the volume+ and volume– buttons Image freeze-up off Power Power on Blinking Warming up Power off 5.3 Connections  You can find the connection panel behind the front door. 19 (37) Artome Support contact@artome.fi +358 40 455 4455...
  • Page 20 Figure. 5.3 - 4. Power and data connection Connection Description POWER Connection to main power. MIC 1 & MIC 2 Gain control for mic input volume. DATA Connection for data transfer with HDBaseT / LAN. Artome Support contact@artome.fi 20 (37) +358 40 455 4455...

  • Page 21: Preparations

    6 PREPARATIONS 6.1 Connecting additional devices Artome M10 is a mobile solution which operates also as a mobile rack for additional devices. In an all-in-one solution, dimensions of cabling are short and cable management is easy.  Figure. 6.1 - 5. Rack space Figure.

  • Page 22: Microphones

    The audio out signal is not processed, but signals are mixed with the embedded DSP mixer.  Gain in Audio Out is 0 dB. Artome M10 sound system cannot be muted when using Audio Out. Adjust the gain from the additional sound system to turn up or down the sound.

  • Page 23: Installing Speaker Phone

    If you are using a USB 3.0 camera, please note that the cable length can only be 1,8 m long to ensure the operation of the camera. For longer distances than 1,8 m, Artome recommends USB 2.0 cameras or a camera with an additional power supply 6.1.4 Installing speaker phone...

  • Page 24: Image Adjustment And Unit Placement

    6.2.1 Optimizing image To fully project the image, do not use Artome M10 next to an object taller than 78 cm / 30.7 inches (see fig. 7). To ensure proper air ventilation, leave at least 15 cm / 6 inches of free space on both sides of the Artome M10 during use.

  • Page 25: Adjusting Focus

    To correct an image that is slanted on the sides, use the projector's keystone correction buttons (see figure below). To open the front door, press the door in the upper left corner. 25 (37) Artome Support contact@artome.fi +358 40 455 4455...

  • Page 26: Lifting The Image

    4. To save the adjustment, press Freeze again. Artome M10 uses the Epson ultra-short throw projector for image projection and the image is always fixed. However, the image can be lifted by zooming out the image and then using the image shift function. This may cause a reduction in image quality.

  • Page 27: First Time Use

    1. Open the back door by pressing on the upper right corner. 2. Feed the power cable through the cable grommet and connect the cable to the POWER connector. 3. Feed the HDMI-USB cable through cable grommet and connect the cable to the HDMI and ARTOME+ connectors. 27 (37) Artome Support contact@artome.fi...
  • Page 28 4. Connect HDMI-USB cable to your computers HDMI and USB A-ports. Use a suitable adapter if necessary. 5. Power on the unit by pressing the POWER button. 6. Adjust the output volume with your laptop or with Artome X20 VOLUME +/- buttons Artome Support contact@artome.fi...

  • Page 29: Daily Use

    To save energy, Artome recommends shutting down the device 8.2 Connecting with a wire 1. Connect the HDMI cable to your laptop. Artome M10 powers on automatically when connected to the HDMI1 input. 2. If there are multiple sources connected simultaneously, to select the source, press the Source button.

  • Page 30: Audio Use

    8.6 Audio use 1. Connect the USB cable to the USB connection of the laptop and the ARTOME+ connection of   the Artome  M10. 2. To power on Artome M10, press the POWER button 3. Select Artome HybriDock as the as the audio output device on your laptop.

  • Page 31: Maintenance

    Door upholstery Dry clean the fabric of the door using a vacuum cleaner with an upholstery tool. If the front door fabric gets damaged or stained uncleanable, please contact Artome for a spare part. 9.3 Vacuuming the projector space and fans Clean the projector casing with a vacuum cleaner equipped with a crevice nozzle. Clean under the projector and...

  • Page 32: Product Service Program

    Task Frequency Projector air filter cleaning or replacement Every 12 months Testing operation including all connections Every 6 months Cleaning the furniture Every month Vacuuming the projector space and fans Every month Artome Support contact@artome.fi 32 (37) +358 40 455 4455...

  • Page 33: Troubleshooting

    Artome volume. HDMI output. USB camera and Laptop and USB device is not Check that USB cable is connected correctly between Artome M10 connected. and laptop. speakerphone is not working. USB camera is If the camera requires USB3.0, Use USB2.0 camera or USB camera with separate power supply.

  • Page 34: Support And Service

    Artome M10 - Quick User Guide Declaration of Conformity Ordering Documentation For more information or additional documentation, please contact Artome by email: contact@artome.fi. The documentation for this product is available in multiple languages, please contact us by email if you require another language.

  • Page 35: Disposal

    By disposing of the packaging and packaging waste in the proper manner, you help to avoid possible hazards for the environment and public health. The symbol on the packaging indicates that the packaging is made of PAP. 35 (37) Artome Support contact@artome.fi +358 40 455 4455...
  • Page 36 13 TECHNICAL DATA 13.1 General specifications Name Artome M10 Product description All-in-one audiovisual cart. Materials Birch plywood, MDF, steel, aluminum, fabric (PES) Dimensions (width*depth*height) (W x H x D) 52 x 80 x 47,5 cm / 20.4” x 31.4” x 18.7” ...
  • Page 37 Epson EB-800F/805F Brightness 5,000 lm Power consumption 366 W Resolution 1080p Aspect ratio 16:9 Recommended image size 60-150" Weight (incl. lens) 9,4 kg / 20.7 lb Warranty 60 months or 12,000 h 37 (37) Artome Support contact@artome.fi +358 40 455 4455...
