Summary of Contents for THORLABS PDFA100

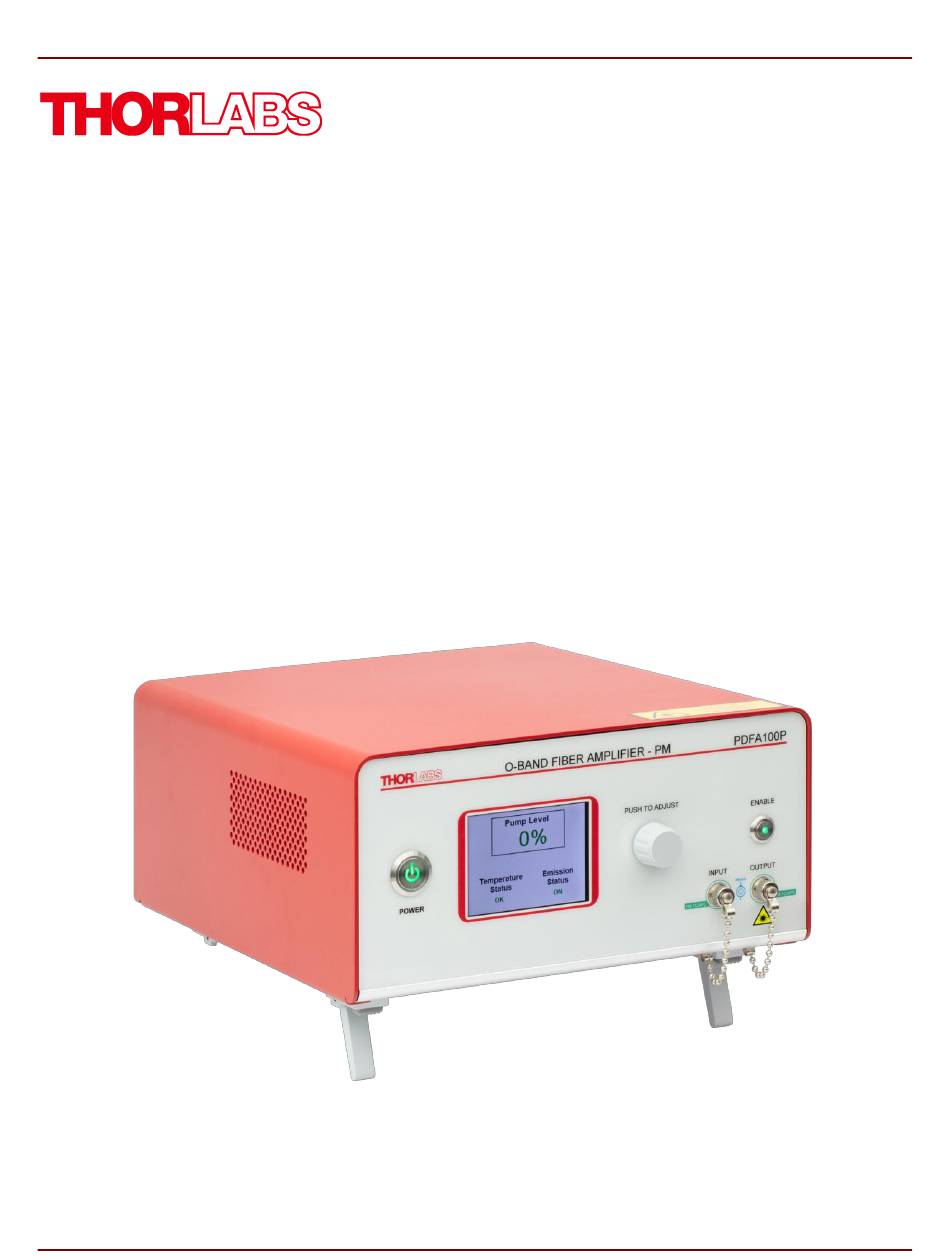

- Page 1 PDFA100 and PDFA100P O-Band Praseodymium Doped Fiber Amplifiers User Guide...
-
Page 2: Table Of Contents
Remote Operation from Command-Line Interface ..............12 Making the Safety Interlock Connections ................13 Chapter 5 General Maintenance ....................13 Cleaning ..........................14 Connector Cleaning ....................... 14 Chapter 6 Troubleshooting ......................14 Chapter 7 Disposal ........................15 Chapter 8 Thorlabs Worldwide Contacts ..................16... -
Page 3: Chapter 1 Introduction
Introduction Intended Use The PDFA100 and PDFA100P can be used by general production personnel for O-band amplification or as ASE broadband light sources. The units are intended to be operated in controlled environmental conditions. The product may only be used in accordance with the instructions described in this manual. Any other use will invalidate the warranty. -
Page 4: Technical Data
980 nm Laser Class a. SMF-28 Ultra fiber patch cables with FC/APC connectors are used on the input and output of PDFA100. Fujikura SM13-PS-U25A cables are used with FC/APC connectors on the input and output of PDFA100P. b. The wavelength range over which the small signal gain (at -30 dBm input power) does not fall below 10 dB. -
Page 5: Fiber Specifications
PDFA100 and PDFA100P O-Band Fiber Amplifiers Chapter 1: Introduction 1.4.2 Fiber Specifications Item # PDFA100 PDFA100P Fiber Specifications Output Polarization Random Linear, Aligned to Slow Axis Polarization Extinction Ratio >20 dB Polarization-Dependent Gain <0.5 dB Return Loss at Input Port >50 dB... -
Page 6: Mechanical Drawings
PDFA100 and PDFA100P O-Band Fiber Amplifiers Chapter 1: Introduction 1.4.5 Mechanical Drawings Figure 1 PDFA100 Mechanical Drawing Page 4 TTN190684-D02... - Page 7 PDFA100 and PDFA100P O-Band Fiber Amplifiers Chapter 1: Introduction Figure 2 PDFA100P Mechanical Drawing Rev. E, July 1, 2024 Page 5...
-
Page 8: Components
Pump Current Adjustment Knob (Push to Adjust) Amplifier Enable Switch and Emission Indicator Amplifier Optical Output Port (FC/APC Bulkhead) Amplifier Optical Input Port (FC/APC Bulkhead) The optical Output/Input is single mode for Item # PDFA100 and polarization- maintaining for Item # PDFA100P. Page 6 TTN190684-D02... - Page 9 PDFA100 and PDFA100P O-Band Fiber Amplifiers Chapter 1: Introduction Figure 4 Back Panel Callout Description Cooling Fan – Do Not Block (Fan moves air from vent holes on the bottom and sides. Periodically remove dust buildup from vents for best operation.)
-
Page 10: Simplified Declaration Of Conformity
PDFA100 and PDFA100P O-Band Fiber Amplifiers Chapter 2: Safety Simplified Declaration of Conformity The full text of the EU declaration of conformity is available at the following internet address: https://www.thorlabs.com/newgrouppage9.cfm?objectgroup_id=12403 FCC Designation Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 11: Chapter 3 Installation
PDFA100 and PDFA100P O-Band Fiber Amplifiers Chapter 3: Installation Components not Water Resistant This instrument should be kept clear of environments where liquid spills or condensing moisture are likely. It is not water resistant. To avoid damage to the instrument, do not expose it to spray, liquids, or solvents. -
Page 12: Installation Instructions
FC bulkhead connector and the patch cable connector beforehand. Please note that a standard single mode (SM) cable should be used for the PDFA100, a standard polarization maintaining (PM) cable should be used for PDFA100P, and that the input power entering the amplifier should not exceed 10 dBm (10 mW). -
Page 13: Chapter 4 Operating Instructions
PDFA100 and PDFA100P O-Band Fiber Amplifiers Chapter 4: Operating Instructions end to a power meter or another measurement instrument. The output power from the amplifier – when observing the 10 dBm (10 mW) input power limit – is guaranteed not to exceed 150 mW. Care should be taken to avoid damage to the measurement instrument connected to the output port. -
Page 14: Turning The Fiber Amplifier Off
PDFA100 and PDFA100P O-Band Fiber Amplifiers Chapter 4: Operating Instructions levels (0 dBm and -30 dBm) as a function of the pump current set-point. The data can be used as a reference to adjust the pump current set-point for a desired gain level. In addition to the ACC mode of operation, it is possible to operate the PDFA in automatic power control (APC) and automatic gain control (AGC) modes. -
Page 15: Making The Safety Interlock Connections
Making the Safety Interlock Connections The PDFA100 and PDFA100P are equipped with a remote interlock connector located on the rear panel. In order to enable the fiber amplifier, a short circuit must be applied across the terminals of the Remote Interlock connector. -
Page 16: Cleaning
Always clean the ferrule end of your fiber patch cables as well as the input and output FC bulkheads prior to inserting the fiber patch cables into the FC bulkheads. Thorlabs offers the FCC-7020 Fiber Cleaning Cloth Spool, which can be used for cleaning the ferrule ends of the patch cables. -
Page 17: Chapter 7 Disposal
Contact Thorlabs for more information. Waste treatment is your own responsibility. "End of life" units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. It is the user's responsibility to delete all private data stored on the device prior to disposal. -
Page 18: Chapter 8 Thorlabs Worldwide Contacts
PDFA100 and PDFA100P O-Band Fiber Amplifiers Chapter 8: Thorlabs Worldwide Contacts Chapter 8 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at for our most up-to-date www.thorlabs.com/contact contact information. Corporate Headquarters Product Manufacturer Thorlabs, Inc. Thorlabs, Inc. - Page 19 www.thorlabs.com...
