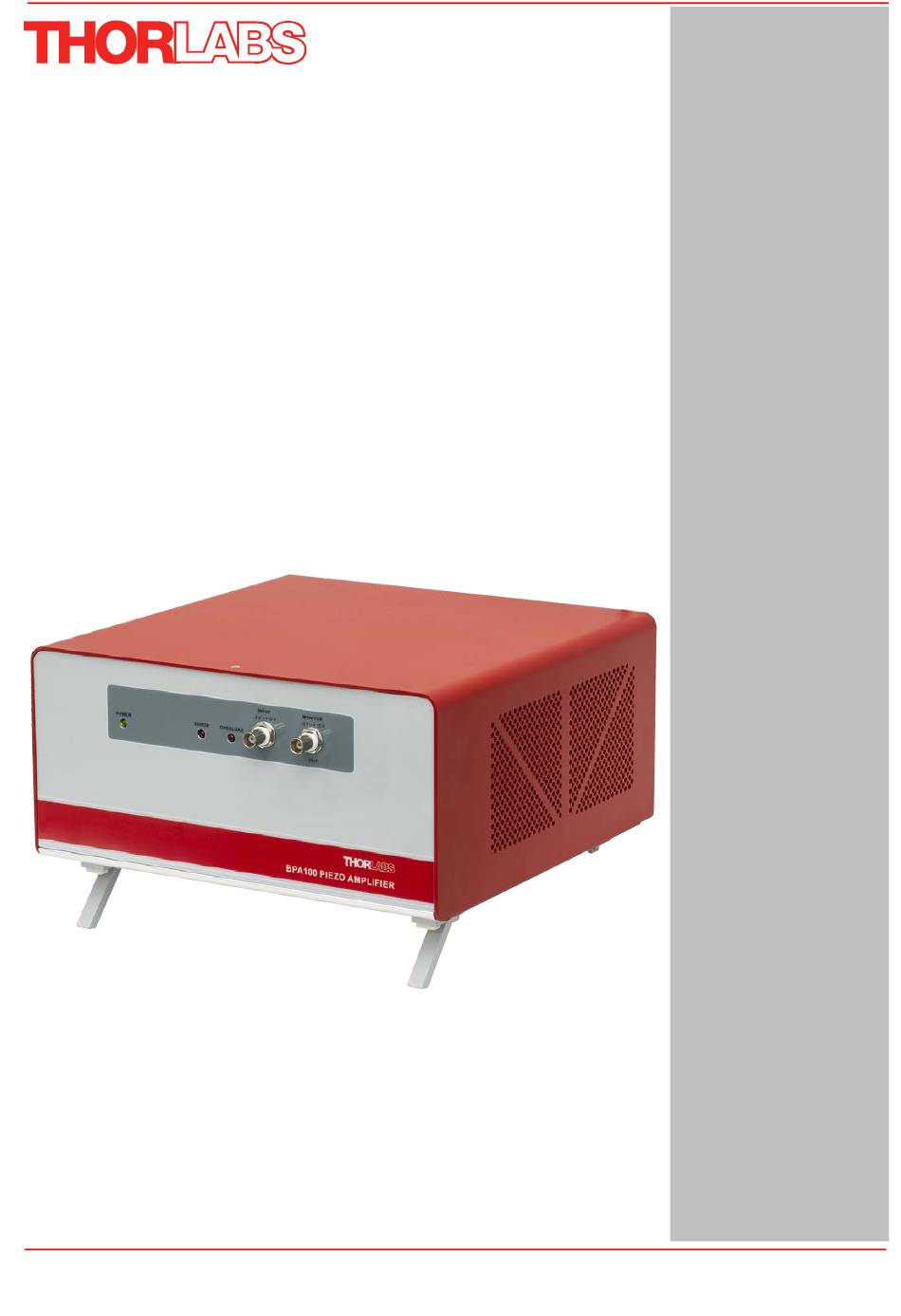

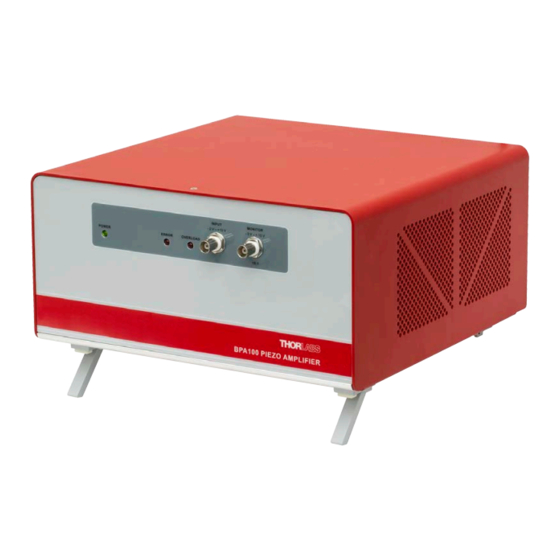

- Page 1 BPA100 Benchtop Piezo Amplifier User Guide Original Instructions HA0403T...
-
Page 2: Table Of Contents
4.2 Typical Output Waveforms under Capacitive Load Conditions ........6 4.3 Fans............................. 8 4.4 Powering Down The Unit ....................8 4.5 Load Response ........................9 Appendices Appendix A Specifications ........................10 Appendix B Preventive Maintenance ....................11 Appendix C Regulatory ........................12 Appendix D Thorlabs Worldwide Contacts ..................13 Page 0 ETN051701-D02... -
Page 3: Chaper 1 Overview
With a maximum output voltage of 150 V, the BPA100 amplifier is suitable for use with many of our Thorlabs piezo actuators, chips, and stacks. It was designed for use in liquid dispensing applications, which require the piezo stacks to work at frequencies above 100Hz with a sinusoidal or square wave signal. -
Page 4: Chaper 2 Safety
2.2 General Warnings Warning The BPA100 amplifier is specifically designed to drive the type of capacitive loads that characterize piezo actuators and provide high peak currents for the rapid charge and discharge of the piezo capacitance. It must not be used for applications other than stated in this manual, especially not for driving ohmic (resistive) or inductive loads. -
Page 5: Chaper 3 Getting Started
High electrical currents require suitable connectors and cabling. The unit is fitted with SHV connectors which offer a high degree of safety and protection. A suitable cable (CA3262) is available separately from www.thorlabs.com. A suitable mating connector (T4004, T4005 or T4006) is available separately for use in connecting the piezo device being driven. -
Page 6: Fuses
OUTPUT - Female SHV connector. Provides connection to the actuator. A suitable cable (CA3262) for connecting the piezo actuator to the unit is available separately from www.thorlabs.com. Use only this cable when connecting the actuator. Replacement cables are available from www.thorlabs.com Power - Standard IEC type connector. -
Page 7: Front Panel Description
ERROR OVERLOAD 10:1 BPA100 PIEZO AMPLIFIER Fig. 3.2 Front panel INPUT – BNC Connector. Provides connection to the controlling input source. This input allows a -2 V to +10 V signal to drive the output to its full scale -30 V to +150 V. This gives a gain of 15. -
Page 8: Chaper 4 Operation
BPA100 Benchtop Piezo Amplifier Chapter 4 Operation Warning: Risk of Electrical Shock Piezo actuators are driven by high voltages. Voltages up to 150 V may be present at the SHV connector. This is hazardous and can cause serious injury. Appropriate care should be taken when using this device. - Page 9 Chapter 4 Operation 2) 150 V peak-to-peak, 703 Hz sine wave into 10.4 µF capacitive load. 150 V peak to peak sine wave = 53 Volt RMS At 703 Hz, the impedance of the 10.4 µF capacitor is -21.8 (theoretical) Calculated RMS current: 2.43 A 3) 150 V peak to peak, 4 kHz square wave into 1.1 µF capacitive load.
-
Page 10: Fans
BPA100 Benchtop Piezo Amplifier 4) 150 V peak to peak, 7 kHz sine wave into 1.1 µF capacitive load 4.3 Fans The fan speed is regulated by the controller depending on the load and temperature conditions. Under idle or very light load conditions the fan speed is normally reduced to make operation quieter and reduce any potential accumulation of dust. -
Page 11: Load Response
Chapter 4 Operation 4.5 Load Response The load response of the BPA100 amplifier to a sinusoidal waveform at varying loads and frequencies is shown below. BPA100 Typical Load Response 10.4 µF 4.7 µF 2.2 µF 1 µF 0.47 µF 0.22 µF 0.1 µF... -
Page 12: Appendix A Specifications
BPA100 Benchtop Piezo Amplifier Appendix A Specifications A.1 Specifications Parameter Value Piezoelectric Output Voltage Output Range -30 V to 150 V DC Voltage Gain Output Current 2.5 A Continuous (AC RMS), 10 A Peak Voltage Stability 100 ppm over 24 hours (After 30 Minutes Warm-Up Time) Noise <0.5 mV RMS (Bandwidth 20 Hz to 100 kHz) -
Page 13: Appendix B Preventive Maintenance
Warning The equipment contains no user servicable parts. Only personnel authorized by Thorlabs Ltd and trained in the maintenance of this equipment should remove its covers or attempt any repairs or adjustments. Maintenance is limited to safety testing and cleaning as described in the following sections. -
Page 14: Appendix C Regulatory
BPA100 Benchtop Piezo Amplifier Appendix C Regulatory C.1 Declarations Of Conformity C.1.1 For Customers in Europe C.1.2 For Customers In The USA This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. -
Page 15: Appendix D Thorlabs Worldwide Contacts
Contact Thorlabs for more information. Waste treatment is your own responsibility. "End of life" units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. - Page 16 www.thorlabs.com...
