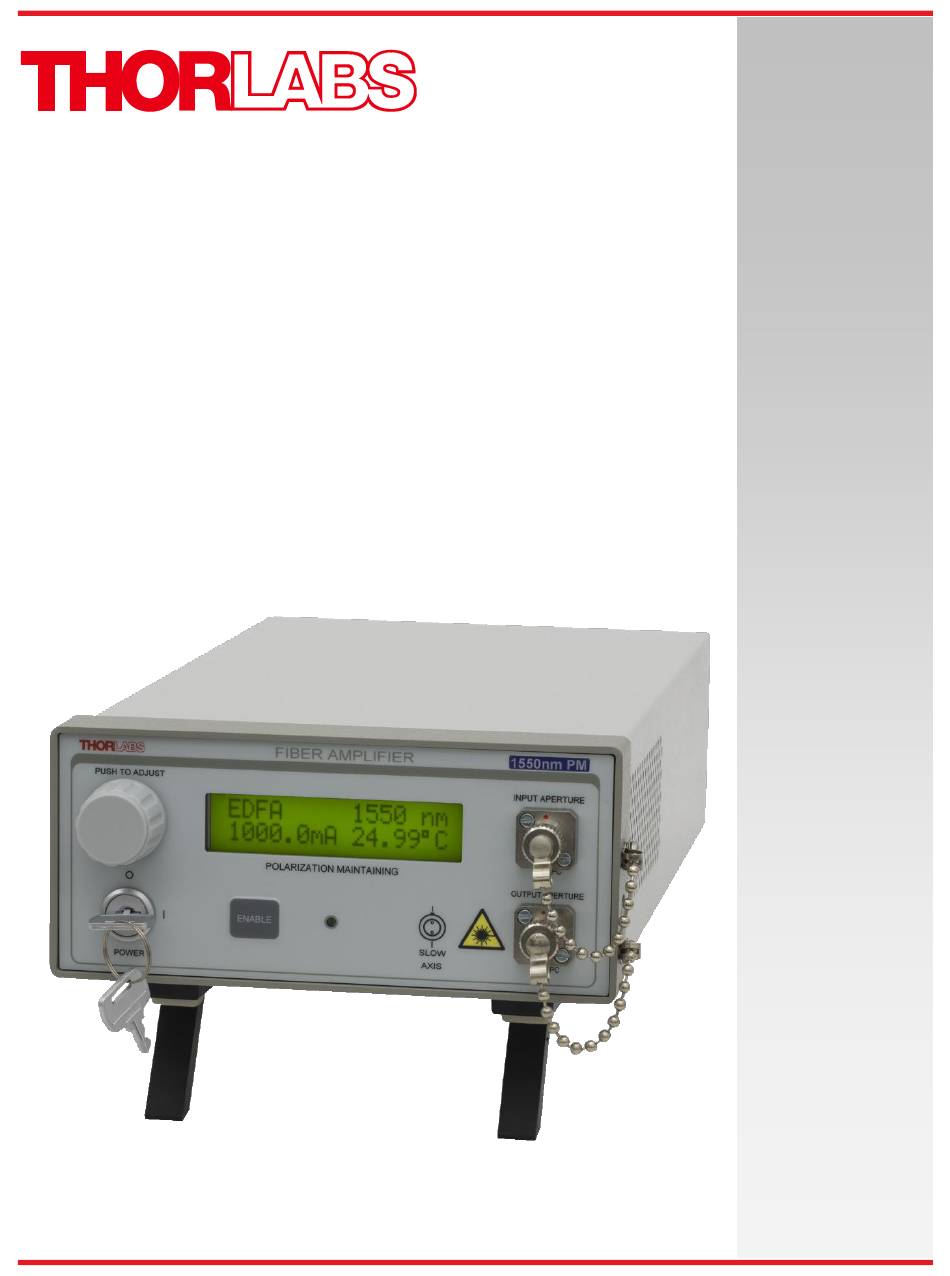

- Page 1 EDFA100S and EDFA100P Erbium Doped Fiber Amplifiers Operating Manual...
-
Page 2: Table Of Contents
9.1. Cleaning ........................14 9.2. Connector Cleaning ....................14 Specifications ........................16 Mechanical Drawings ...................... 18 Regulatory ........................19 12.1. Waste Treatment is Your Own Responsibility ............19 12.2. Ecological Background ....................19 Declaration of Conformity ....................20 Thorlabs Worldwide Contacts ..................21... -
Page 3: Warning Symbol Definitions
Fiber Amplifier Chapter 1: Warning Symbol Definitions Warning Symbol Definitions Note: Throughout this manual, references to temperature are with respect to °C. Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current... -
Page 4: Safety
Fiber Amplifier Chapter 2: Safety Safety All statements regarding safety of operation and technical data in this instruction manual will only apply when the unit is operated correctly. SHOCK WARNING High voltage inside. To avoid electrical shock, before powering the unit on, make sure that the protective conductor of the 3-conductor power cord is correctly connected to the protective earth contact of the socket outlet. -
Page 5: Description
Chapter 3: Description Description Thorlabs’ EDFA100S and EDFA100P are core-pumped Erbium-doped fiber amplifiers that offer high gain, low noise, and high output power (>100 mW over most of the wavelength range). The amplifiers are offered in a compact, turnkey benchtop package with FC/APC input and output connectors. The current of the amplifier’s pump laser is adjustable through the instrument front panel, which allows the user to vary the output power and gain of the amplifier. -
Page 6: Setup
FC bulkhead connector and the patch cable connector beforehand. Please note that a standard single mode (SM) 1550 nm cable should be used for the EDFA100S, while a standard polarization-maintaining (PM) 1550 nm cable should be used for the EDFA100P. Please also note that the input power entering the amplifier should not exceed 10 dBm (10 mW). -
Page 7: Operation
Fuse Tray Remote Interlock Input (see Chapter 7). See Section 4.2 for replacement details. See page 10 for connection logic. Figure 1 Front and Rear Panels of the Fiber Amplifier (EDFA100S Shown) TTN118382-D02, Rev A, November 18, 2016 Page 7... -
Page 8: Turning On The Amplifier
5.3. Viewing Information The EDFA100S and EDFA100P use a single four-quadrant LCD to display and access information. At any time, display variables can be adjusted by simply rotating the control knob located to the left of the display. The following information will be available: ... -
Page 9: Turning The Fiber Amplifier Off
20 °C to 30 °C range. Temperature adjustment is typically not needed for the operation of the EDFA100S and EDFA100P; generally speaking, optimal performance will result when the pump temperature is kept at the factory default of 25 °C. -
Page 10: Making Safety Interlock Connections
Making Safety Interlock Connections The EDFA100S and EDFA100P are equipped with a remote interlock connector located on the rear panel, as shown in Figure 1 on page 7. In order to enable the fiber amplifier, a short circuit must be applied across the terminals of the Remote Interlock connector. -
Page 11: Remote Communications
Installing the USB Drivers Prior to running the command line interface, the USB drivers must be installed. The EDFA100S or EDFA100P must not be connected to the PC while installing the drivers. To install the driver, locate the USB flash drive include in the shipment of the fiber amplifier. -
Page 12: Keywords (Commands And Queries)
Fiber Amplifier Chapter 7: Remote Communications 7.3. Keywords (Commands and Queries) The following list shows all of the available commands and queries, and summarizes their functions: Command Syntax* Description Get ID Returns the model number and firmware version. Get Commands List the available commands Set Target target=n... -
Page 13: Troubleshooting
Do not look directly into the fiber receptacle. Use a viewing card to help determine whether the fiber amplifier is generating an output. The following table describes some typical problems that may be encountered while using the EDFA100S or EDFA100P and possible solutions to these problems. -
Page 14: General Maintenance
Aside from the AC input fuse, there are no user serviceable parts in this product. If you suspect something has failed in the unit, please contact Thorlabs for advice on returning the unit for evaluation. Always clean fiber optic connectors that will be inserted into the system and install the dust cap whenever the source is not being used. - Page 15 To use the card, peel back and tear away one small blue strip. Holding the connector firmly, swipe the connector tip across the exposed cleaning strip. The connector tip should be flush against the card surface (i.e., held at a slight angle) for FC/APC connectors. If you need additional connector cleaners, Thorlabs offers the FCC-7020 Fiber Cleaning Cloth Spool.
-
Page 16: Specifications
Specified at 1550 nm. Please refer to published data on Thorlabs website’ for typical curves showing the variation of each parameter. c. Please refer to published data on Thorlabs website’ on the scaling of the output power vs. the input power. - Page 17 Fiber Amplifier Chapter 10: Specifications General Specifications Input Voltage 100 - 240 VAC, 50 - 60 Hz Input Power 20 VA (Max) Fuse Rating 500 mA IEC60127-2/III (250 VA, Slow Blow Type ‘T’) Fuse Type Fuse Size 5 mm x 20 mm 5.76"...
-
Page 18: Mechanical Drawings
Fiber Amplifier Chapter 11: Mechanical Drawings Mechanical Drawings Figure 5 EDFA100S Mechanical Drawing Figure 6 EDFA100P Mechanical Drawing TTN118382-D02, Rev A, November 18, 2016 Page 18... -
Page 19: Regulatory
12.1. Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 20: Declaration Of Conformity
Fiber Amplifier Chapter 13: Declaration of Conformity Declaration of Conformity TTN118382-D02, Rev A, November 18, 2016 Page 20... -
Page 21: Thorlabs Worldwide Contacts
Fiber Amplifier Chapter 14: Thorlabs Worldwide Contacts Thorlabs Worldwide Contacts USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. 56 Sparta Avenue 1 Saint Thomas Place, Ely Newton, NJ 07860 Cambridgeshire CB7 4EX Great Britain Tel: 973-300-3000... - Page 22 www.thorlabs.com...
