Fluke 8020A Operator's Manual

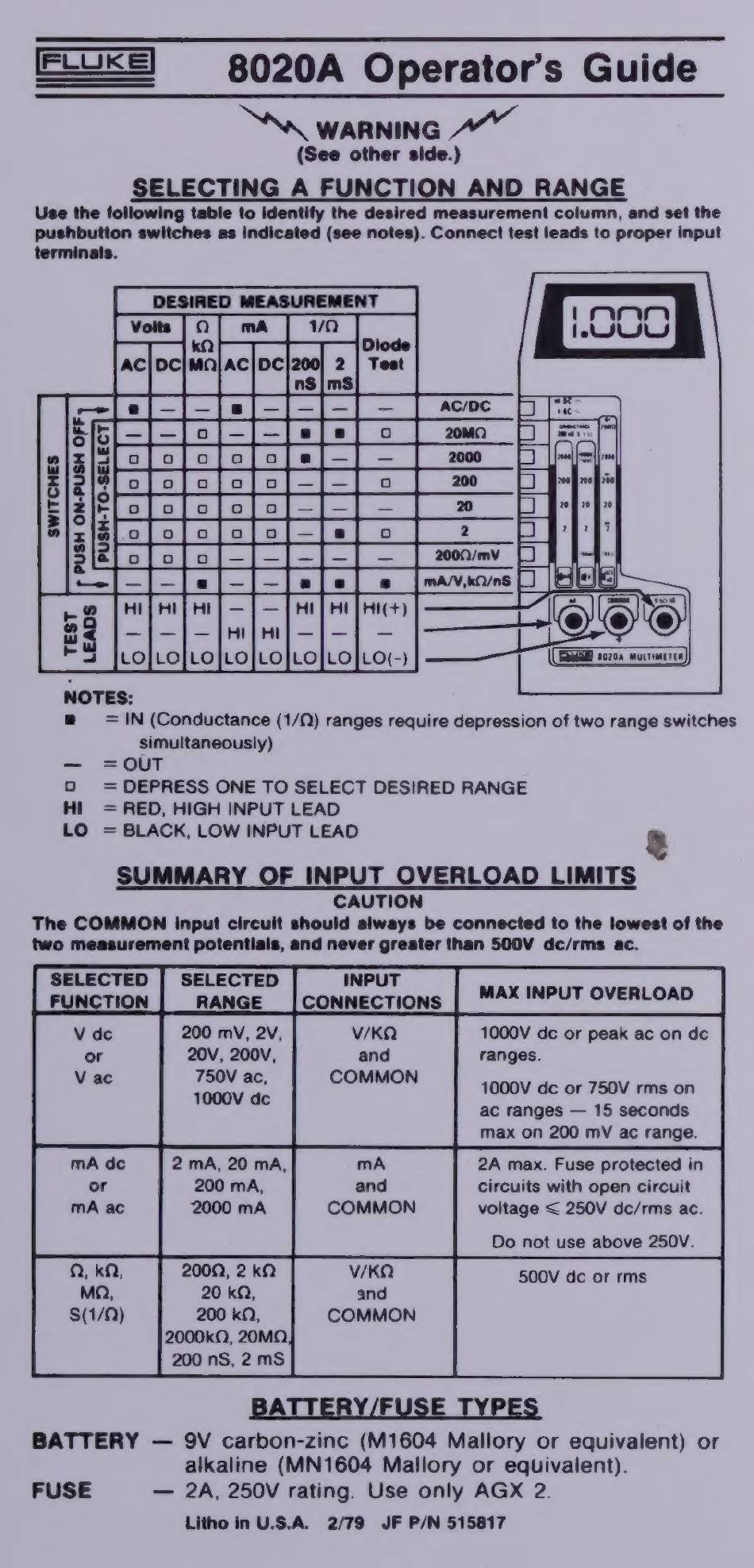

8020A Operator's Guide
AA WARNING Y
(See other side.)
SELECTING A FUNCTION AND RANGE
Use the following table to identify the desired measurement column, and set the
pushbutton switches as indicated (see notes). Connect test leads to proper input
terminals.
D ESIRED MEASUREMENT
vn
[vom jaj ma | RER
Sauna Ola
00000855
S[o[-]-[o|-|-[fefel o |
zlalelelololole/-] — |
¿|? ofofofofo[-[-[o |
¿lelofofofofo[-[-[—]
ziölolelololel-[e| o |
a@lololo/-]-[-[-] — |
—I-I-/s/-|-/[ele|e |
HI HI] HE} — | — [HI [HI fH
-|-1- [HH] -|-| —
Lo|Lo|Lo|Lo|LO|LO|LO|LO(-)
N OTES:
æ = IN (Conductance (1/N) ranges require depression of two range switches
simultaneously)
— =OUT
O = DEPRESS ONE TO SELECT DESIRED RANGE
HI = RED, HIGH INPUT LEAD
LO = BLACK, LOW INPUT LEAD &
SUMMARY OF INPUT OVERLOAD LIMITS
CAUTION
The COMMON input circuit should always be connected to the lowest of the
two measurement potentials, and never greater than 500V dc/rms ac.
SELECTED | SELECTED INPUT
FUNCTION | RANGE [connections | MAX INPUT OVERLOAD
V de 200 mV, 2V, V/KQ 1000V de or peak ac on de
or 20V, 200V, and ranges.
ee TORY oe common 1000V de or 750V rms on
1000V de
ac ranges — 15 seconds
max on 200 mV ac range.
mA dc 2 mA, 20 mA, mA 2A max. Fuse protected in
or 200 mA, and circuits with open circuit
mA ac 2000 mA COMMON voltage < 250V dc/rms ac.
Do not use above 250V.
N, kQ, 2009, 2 kQ vKQ 500V de or rms
MN, 20 kQ, and
$(1/Q) 200 kQ, COMMON
2000kQ, 20MQ,
200 nS, 2 mS
BATTERY/FUSE TYPES
BATTERY — 9V carbon-zinc (M1604 Mallory or equivalent) or
alkaline (MN1604 Mallory or equivalent).
FUSE — 2A, 250V rating. Use only AGX 2.
Litho in U.S.A. 2/79 JF P/N 515817
