MFMD CONSOLE
Console Indoor Units |
R E S I D E N T I A L / C O M M E R C I A L
P R O D U C T S P E C I F I C AT I O N S ( E H B )
M OD EL NU MBER ID EN T IF IC AT ION
Series Type
M = Mini-Split
FM = Console Floor Mount Non-Ducted
Major Design Sequence
R-32
| 60 Hz

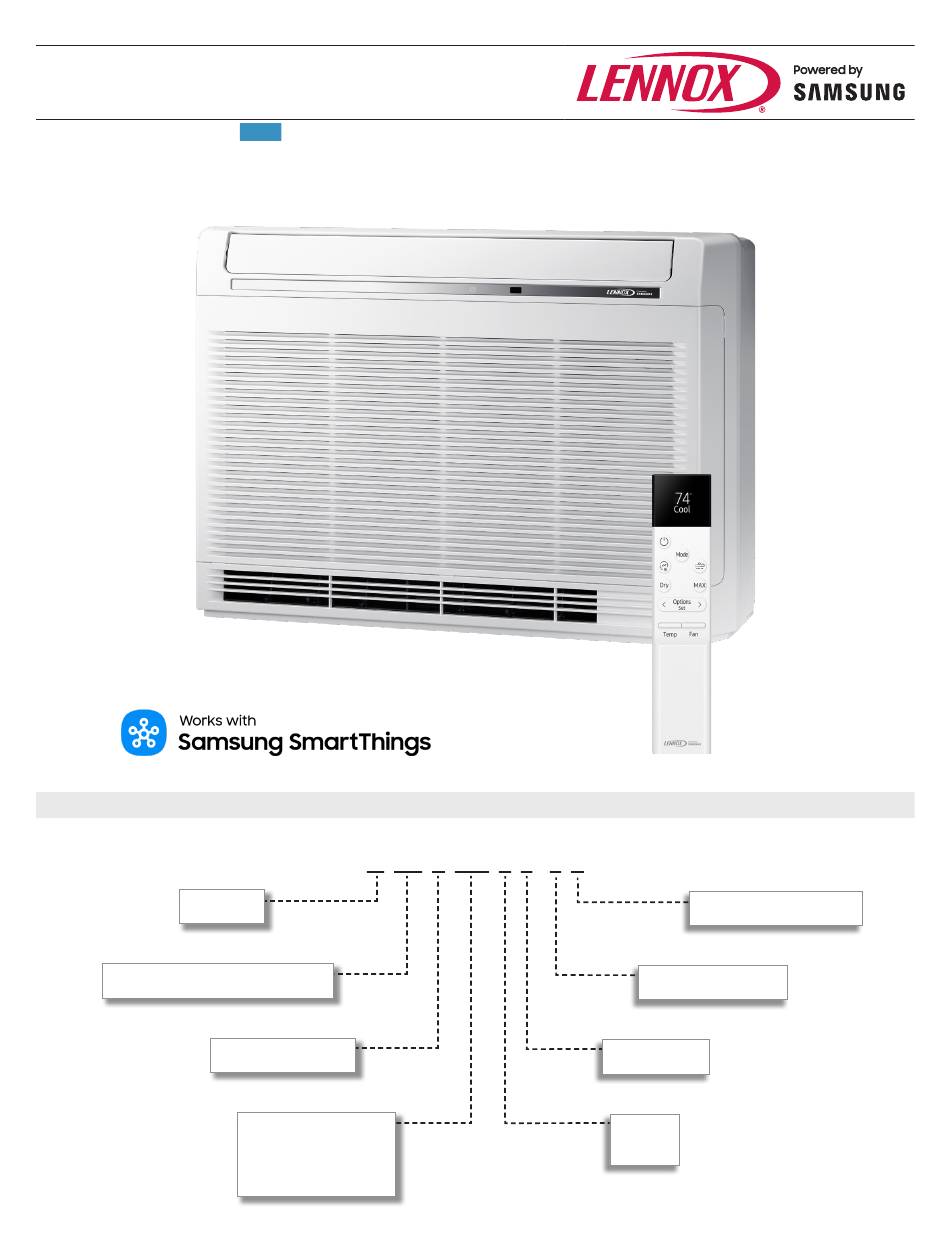

MFMD Console Indoor Unit with Furnished
Wireless Remote Controller
M FM D 012 S 6 - 1 P
Unit Type
D = 4th Generation
Nominal Cooling Capacity
009 = 075 tons
012 = 1 tons
015 = 1.25 tons
018 = 1.5 tons
M I N I - S P L I T S Y S T E M S
0.75 to 1.5 Tons
Voltage
P = 208/230V-1 phase-60Hz
Minor Design Sequence
1 = 1st Revision
Refrigerant Type
6 = R-32
Zone Type
S = Single
M = Multi
Form Number 211086 | March 2025
Supersedes all previous version
