10. Click OK in the Configuration Settings dialog
box when you have finished selecting resources
for the function.
NOTE: After modifying the system configuration, you
must turn off the system to install, remove, or change
jumper settings on the non-Plug and Play ISA expansion
cards to match the settings you selected in the ICU.
A
dding an Unlisted Card
Unlisted cards are non-Plug and Play ISA expansion
cards that do not have configuration files stored in the
ICU database.
NOTE: If you want to add a configuration file that you
received on diskette with a new expansion card, see
"Adding a Listed Card" found earlier in this chapter.
To add an unlisted card with the ICU, perform the follow-
ing steps:
1.
Start the ICU as described in "Starting the ICU"
found earlier in this chapter.
2.
From the ICU window, click Add or select Add
Card from the Configure menu.
3.
Click the name of the category of card that you
want to add. If you clicked Add in step 2, click
OK.
A dialog box appears listing the names of all avail-
able cards of that type.
4.
Select Unlisted Card from the bottom of the list of
cards displayed in the dialog box that appears.
Then click OK.
5.
Click No when the ICU asks if you have a config-
uration file for the card.
The Configure Unlisted Card dialog box appears
with blank fields.
6.
Enter the name of the card that you want to add
in the Card Name field.
7.
For each resource you want to assign to the card,
click the box beneath the name of the resource to
be assigned and then click Add.
For example, if you click the box beneath IRQ, the
button changes to Add Interrupt. When you click this
3-6
Dell OptiPlex GXa Mini Tower Systems Reference and Installation Guide
button, a Specify dialog box (in this case, Specify
Interrupt) appears. Figure 3-7 shows the Configure
Unlisted Card dialog box with the Specify Interrupt
dialog box opened.

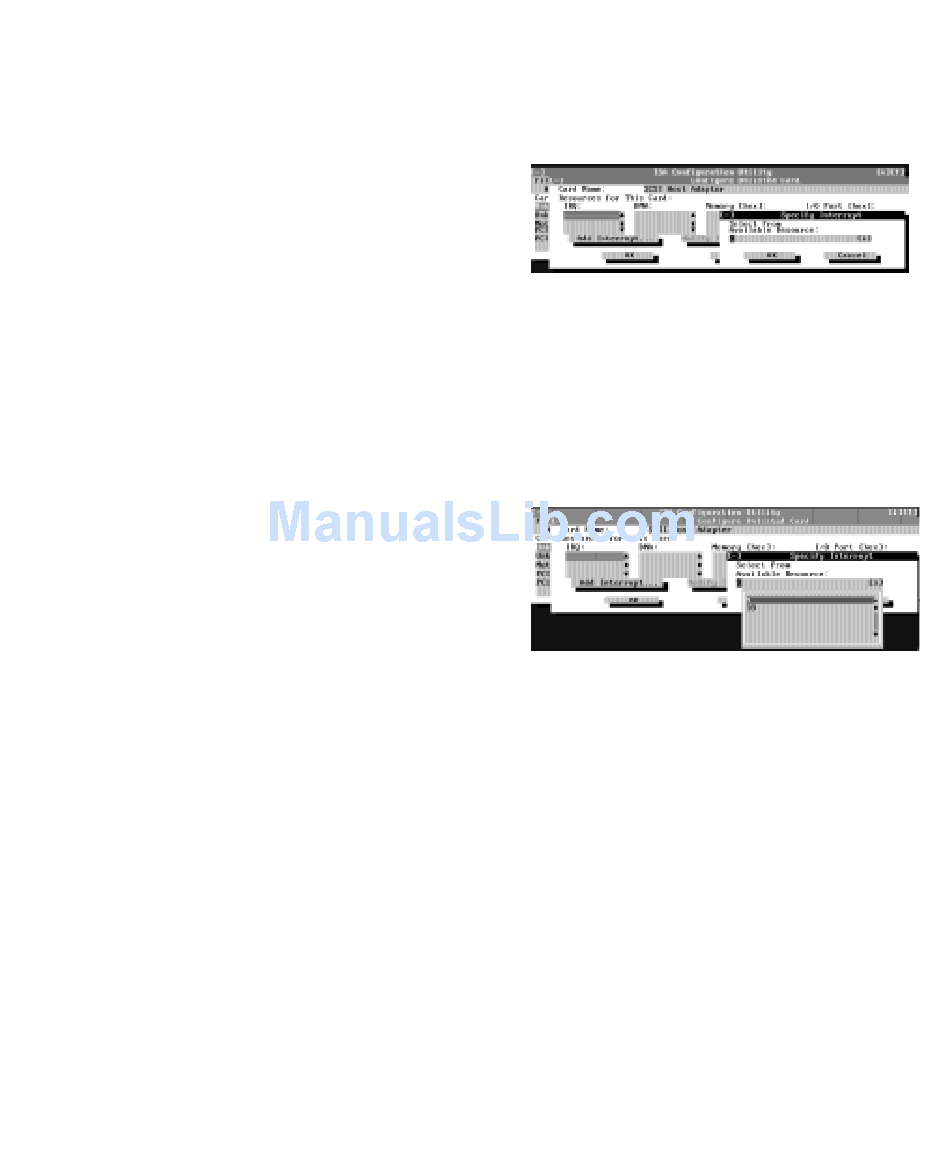

Figure 3-7. Specify Interrupt Dialog Box
If you are providing a value for the interrupt request
(IRQ) or direct memory access (DMA) resource,
click the down arrow beneath Available Resources.
A smaller Specify list box appears (see Figure 3-8).
Click the value you want to assign to the resource.
Then click OK.
Figure 3-8. Specify Interrupt List Box
If none of the values for the DMA or IRQ resources
match the allowable values for your unlisted card (as
indicated in the card's documentation), select one of
the available values offered by the utility and click
OK.
If you are providing values for the input/output (I/O)
port or memory resources, you must enter the start-
ing and ending addresses in hexadecimal format
using the two fields provided by the Specify
Memory or Specify I/O Port dialog box. Click each
box in succession to enter the beginning and ending
addresses, and then click OK to complete the selec-
tion. Figure 3-9 shows the two fields.
