Honeywell NOTIFIER ABS-TD Series Product Installation Document

12 Clintonville Road
Northford, CT 06472-1610 USA
800-289-3473 • FAX 203-484-7118
www.notifier.com
ABS-TD Series cabinets are single-row enclosures for use with the NCD. These cabinets are suitable for both surface mount and
semi-flush mount (requires optional trim ring, TR-ABS2D) applications. Trim ring applications require a minimum distance of
0.875 in. (2.22 cm) between the wall and the front of an enclosure.
Enclosures in the ABS-TD Series include a backbox, a locking door with a LEXAN
the top of the enclosure and two knockouts on the side, bottom, and back provide conduit access.

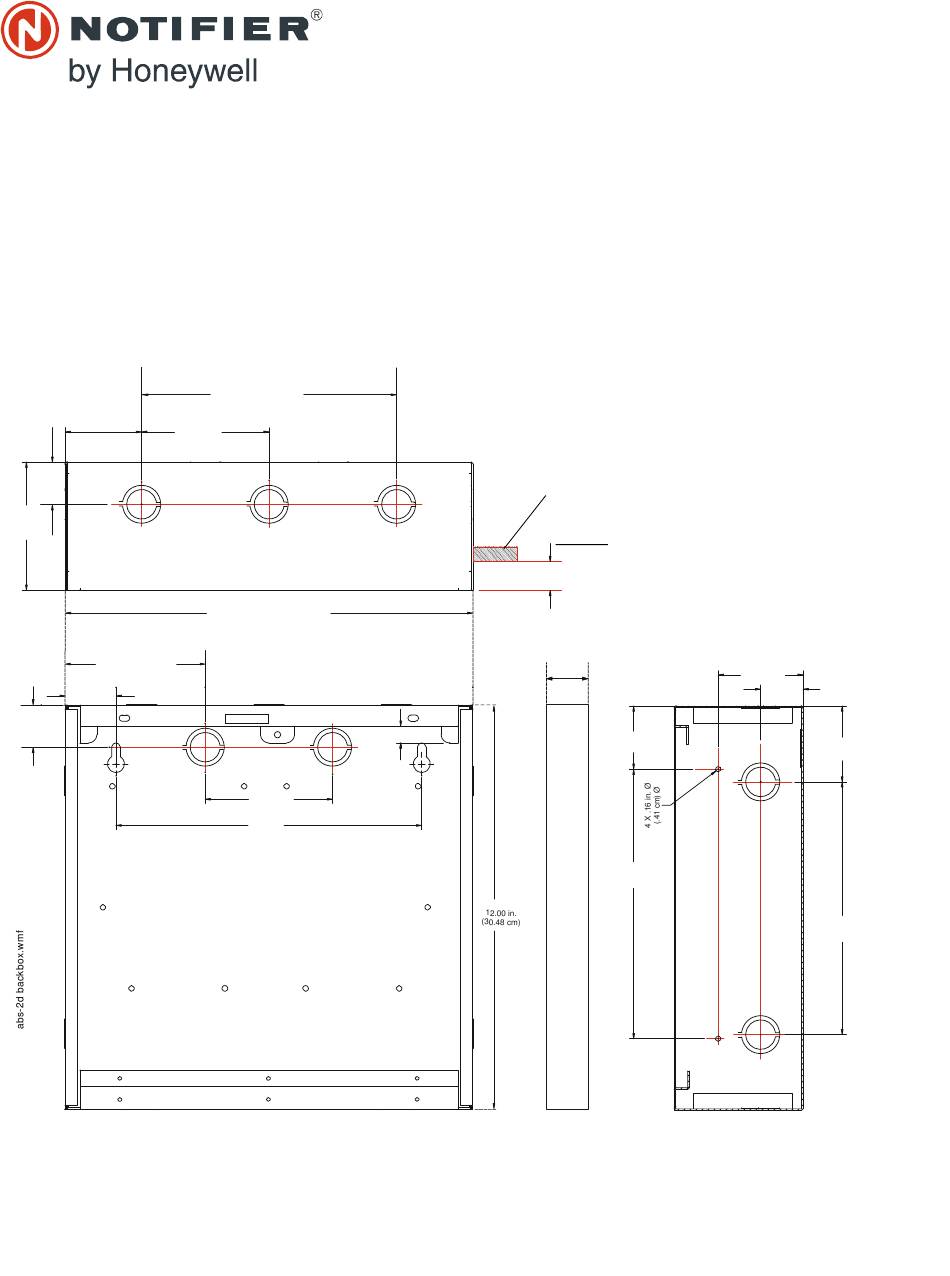

Product information and enclosure dimensions are as follows:
2.25 in.
(5.72 cm)
1.25 in.
(3.18 cm)
3.80 in.
(9.65 cm)
4.13 in. (10.49 cm)
1.50 in.
(3.81 cm)
1.25 in.
(3.18 cm)
7.50 in. (19.05 cm)
2 X 3.75 in.
(9.53 cm)
12.00 in. (30.48 cm)
3.75 in.
(9.53 cm)
9.00 in.
(22.86 cm)
FRONT VIEW
Product Installation Document
TOP VIEW
wall
0.88 in.
(2.22 cm)
1.25 in.
(3.18 cm)
.50 in. (1.27 cm)
DOOR
ABS-TD Series
PN LS10219-000GE-E:A 05/31/18 18-228
®
window, and two keys. Three knockouts on
minimum distance for
trim ring applications
2 X 2.50 in.
(6.35 cm)
2 X 1.88 in.
(4.78 cm)
2 X 8.00 in.
(20.32 cm)
SIDE VIEW
2 X 1.25 in.
(3.18 cm)
2 X 2.25 in.
(5.72 cm)
2 X 7.50 in.
(19.05 cm)
