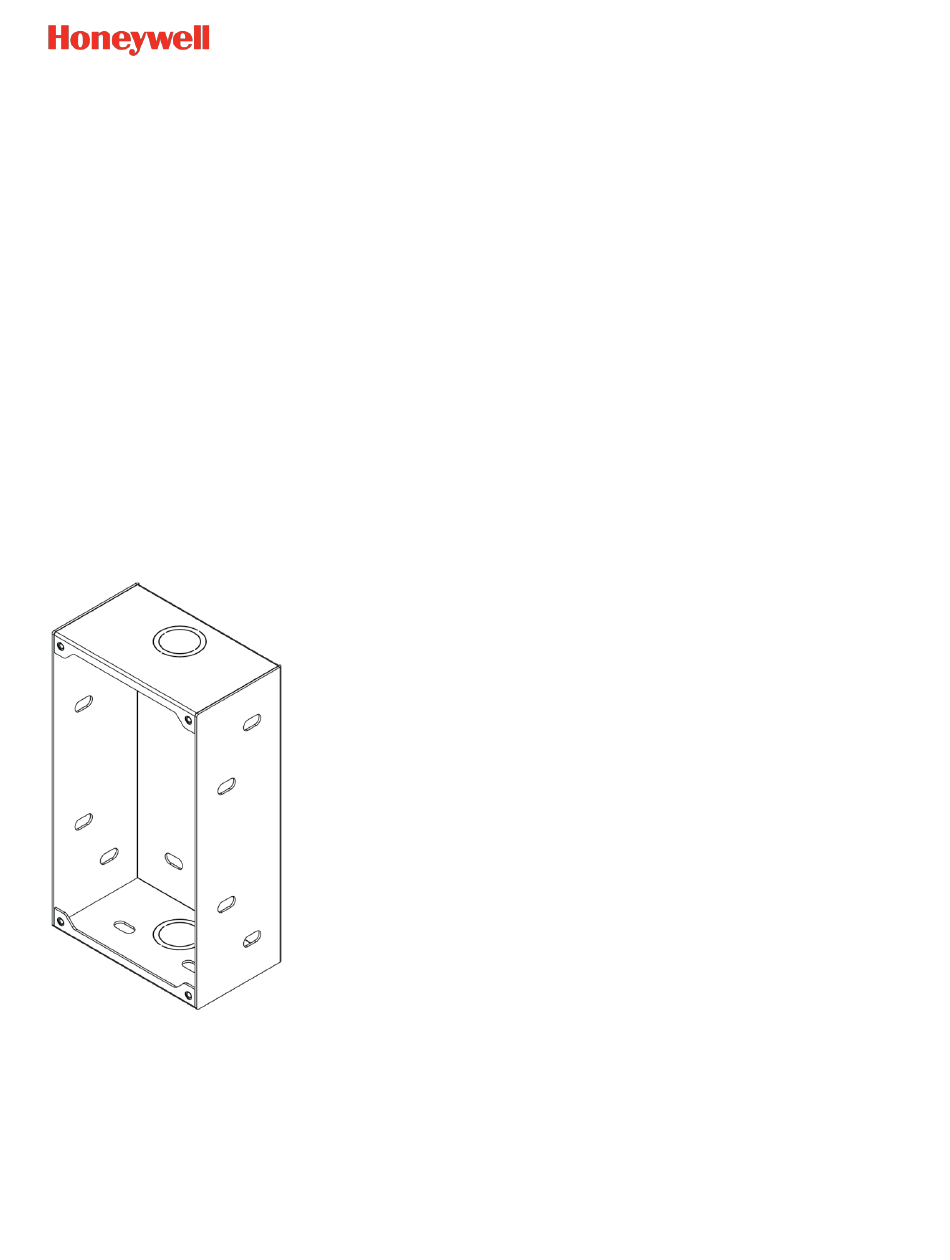

- Page 1 AREA OF REFUGE USER MANUAL AND INSTALLATION GUIDE Read and save these instructions before installation and use _______________________ Model number(s) HON-AOR-CS-FM-1 ______________________________ www.honeywellareaofrefuge.com 771-00003 aorsupport@talkaphone.com Rev 1.0 | 06/03/2024...
- Page 2 Find out more at www.talkaphone.com. The Honeywell trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representation or warranties with respect to these products. These products are manufactured by Talk-A-Phone, LLC, Niles, IL 60714, USA.
-
Page 3: Table Of Contents
Table of contents ........................... 4 BOUT THIS GUIDE ONTENTS ........................6 ECHNICAL EQUIREMENTS NSTALLATION ..........................9 YSTEM AINTENANCE ERVICING ......................11 IMITED ARRANTY NFORMATION DocID ((771-00003)) -
Page 4: About This Guide
ABOUT THIS GUIDE About this guide Scope This installation guide describes how to install Model HON-AOR-CS-FM-1. For instructions on installation of Area of Refuge (AOR) Call Stations, please refer to the manual for the HON-AOR-CS Analog Call Station. It is recommended that this instruction set be read completely prior to the start of any installation. -
Page 5: Contents
CONTENTS Contents Please ensure receipt of each of the included HON-AOR-CS-FM-1 Flush Mount components: Part Number Description HON-AOR-CS-FM-1 Flush mount for HON-AOR-CS Analog Call Stations You should inspect the product when unpacking the box for possible damage in shipment. If it is damaged or any of the components are missing, please contact ATTENTION your distributor immediately. -
Page 6: Technical Requirements
TECHNICAL REQUIREMENTS Technical Requirements Call Station Compatibility The following table outlines HON-AOR-CS Analog Call Station compatibility for the HON-AOR-CS-FM-1 Flush Mount. Model Compatible HON-AOR-CS Analog Call Station Models HON-AOR-CS-FM-1 All HON-AOR-CS Analog Call Station models DocID ((771-00003)) -
Page 7: Installation
This product is intended for indoor use only. Flush Mount Dimensions The overall dimensions of the HON-AOR-CS-FM-1 Flush Mount measure 7.5” x 4.25” x 2.5” (190.5mm x 107.95mm x 63.5mm). Further details are dimensioned below. - Page 8 ATTENTION If there is uncertainty, check with the Authority Having Jurisdiction (AHJ). Install the HON-AOR-CS-FM-1 Flush Mount into the wall cutout. Please make sure the mount is installed such that the “UP” indicator (shown below) is pointing toward the ceiling.
-
Page 9: System Maintenance
SYSTEM MAINTENANCE System Maintenance Annual Testing NFPA 72 requires that area of refuge two-way communication systems be inspected, tested, and maintained on an annual basis. NFPA 72 specifies the method required as “verify location and condition”. As such, the following guidelines are highly recommended: •... -
Page 10: Servicing
SERVICING Servicing For product service and repair, please contact: Talkaphone Area of Refuge (AOR) Support Email: aorsupport@talkaphone.com Phone: 773.539.1100... -
Page 11: Limited Warranty Information
LIMITED WARRANTY INFORMATION Limited Warranty Information For the latest warranty information, please visit: https://www.honeywellareaofrefuge.com/warranty DocID ((771-00003)) - Page 12 Niles, IL 60714 The Honeywell trademark is used under license from Honeywell International Inc. 773.539.1100 Honeywell International Inc. makes no representation or warranties with respect to these products. These products are manufactured by Talk-A-Phone, LLC, Niles, IL 60714, USA. aorsupport@talkaphone.com www.honeywellareaofrefuge.com...
