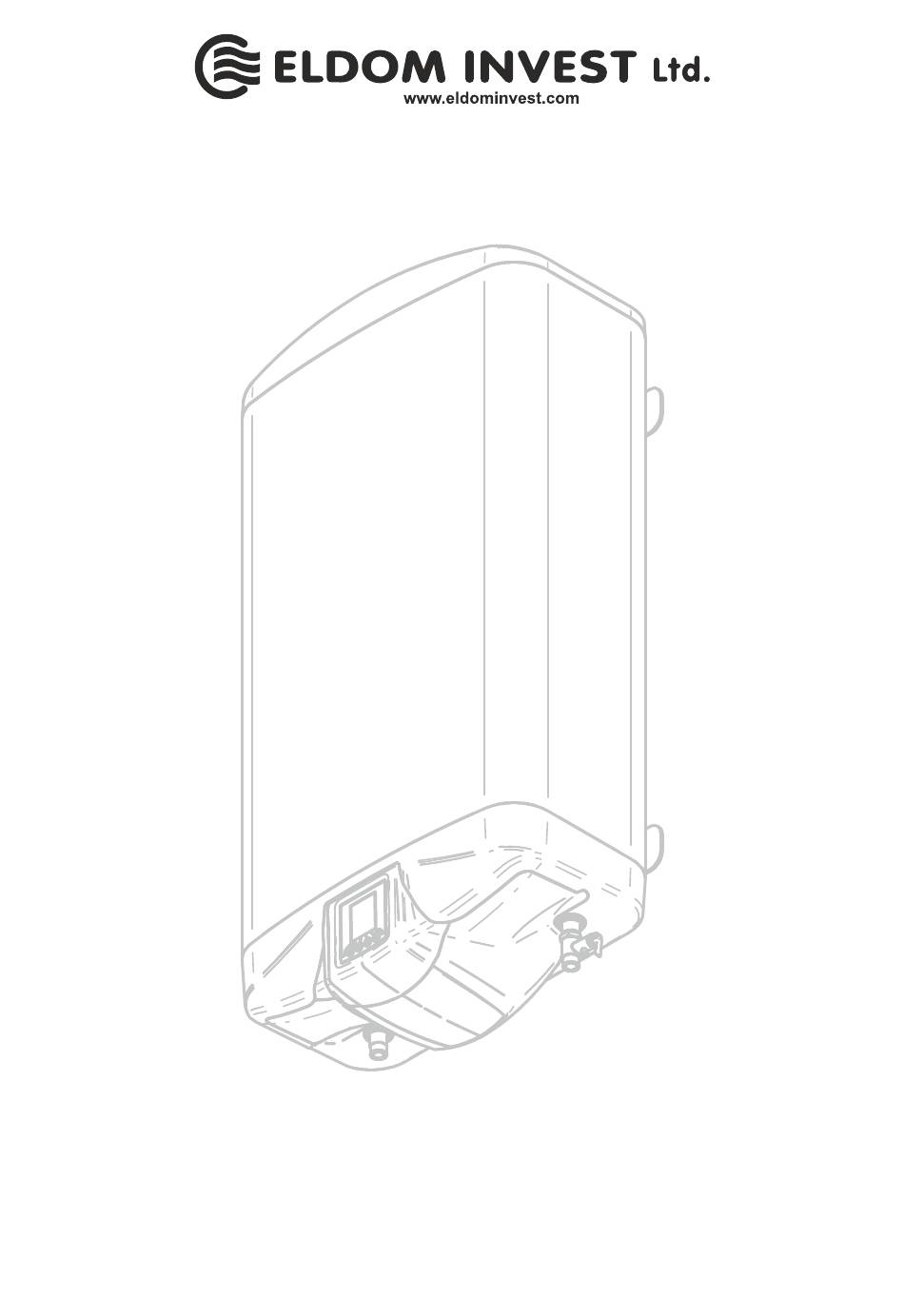

- Page 1 HOUSEHOLD ELECTRIC WATER HEATERS designed for wall installation MANUAL FOR INSTALLATION, OPERATION AND MAINTENANCE v250127-MT...
- Page 2 Model DU060 DU080 DU100 DV060D DV080D DV100D А, mm 1033 1227 B, mm Values are approximate. Inlet, cold water Outlet, hot water Combined valve Electronic control DVxxxD...
- Page 3 EN NOTES: Water heater 1. Pos. 6 is installed for water pressure in Water inlet the mains above 0,5 MPa Water outlet 2. The connection between pos. 10 and Stopcock pos. 11 should be watertight. Combined valve Pressure-reducing valve Cold water Hot water Tee connector Stopcock...
-
Page 4: Main Screen
MAIN SCREEN Operating mode. Current screen Date / Time Mode of operation Internet or Bluetooth indication Indication of enabled function or Temperature indication protection Bar showing the current function of each button Buttons Technical data of the electronic unit Supply voltage 230V~ 50Hz +5/-10% Maximum permissible current flowing through relay contacts 20А... -
Page 5: Environmental Protection
Dear clients, thank you for choosing device from ELDOMINVЕST LTD.- Bulgaria! It will be trustworthy helper in your household for many years because in its production we have combined high quality materials and innovative technologies. To be sure of its hopeful and trouble-free operation, please read the installation and operating instructions carefully. -
Page 6: Technical Description
fixing elements and pipes, degree of protection against ingress of water. The TECHNICAL DESCRIPTION latter is indicated on the serial number plate. The appliance must be Your water heater is intended for domestic use and can provide heated installed in a place where it will be prevented from water sprays and water from the main water supply line to a number of consumers at the same splashing. - Page 7 (reducing valve). If local regulations stipulate the use of additional devices hot water pipe (outlet pipe) of the unit. that are not supplied with the appliance, they need to be purchased and Open the tap (10 in Figure 3) and wait until the water stops flowing from џ...
-
Page 8: How To Use The Appliance
deactivated. HOW TO USE THE APPLIANCE џ "ECO" - In this mode, at any given time, the controller should turn only one The water heater is controlled by an electronic control unit (thermoregulator, of the two heaters on or off. This means that when the mode is switched controller) that controls directly two electric heating elements using two NTC on, if the water in both water tanks is lower than the set temperature, the thermal sensors for measuring the relevant temperatures in each water... -
Page 9: Connecting To The Internet
second water container also to 15C. This cycle is repeated until the information shall be displayed and the electronics shall beep for 1 min. ambient temperature rises or when the "Heat" mode is switched on. The Possible defects and faults may be: activation of this protection shall be in "Off"... -
Page 10: Additional Corrosion Protection
STEP 4. To connect via Bluetooth, the user must turn on the Location and heater is installed, i.e. that it may fall below 0°C, the water from the water Bluetooth services on their phone. If they are not turned on, an indication tank MUST be drained - please refer to section 'CONNECTION TO THE message is displayed. - Page 11 mproper usage џ arameters of water, different from the admissible norms for quality of џ drinking water, and particularly if the composition of chlorides is more than 250 mg/l; the electrical conductivity is less than 100 μS/cm and pH is outside of 6,5-9,5 for water heaters with enameled water tanks; the electrical conductivity is more than 200 μS/cm for water heaters with water tanks made of chrome-nickel steel.
-
Page 12: Eu Declaration Of Conformity
EU DECLARATION OF CONFORMITY Hereby, Eldominvest Ltd. declares that the Electric water heater with electronic control and Wi-Fi module is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://eldominvest.com/en/Declaration-WV-DU.html Online video guides https://youtu.be/OzuKLu4liKU...
