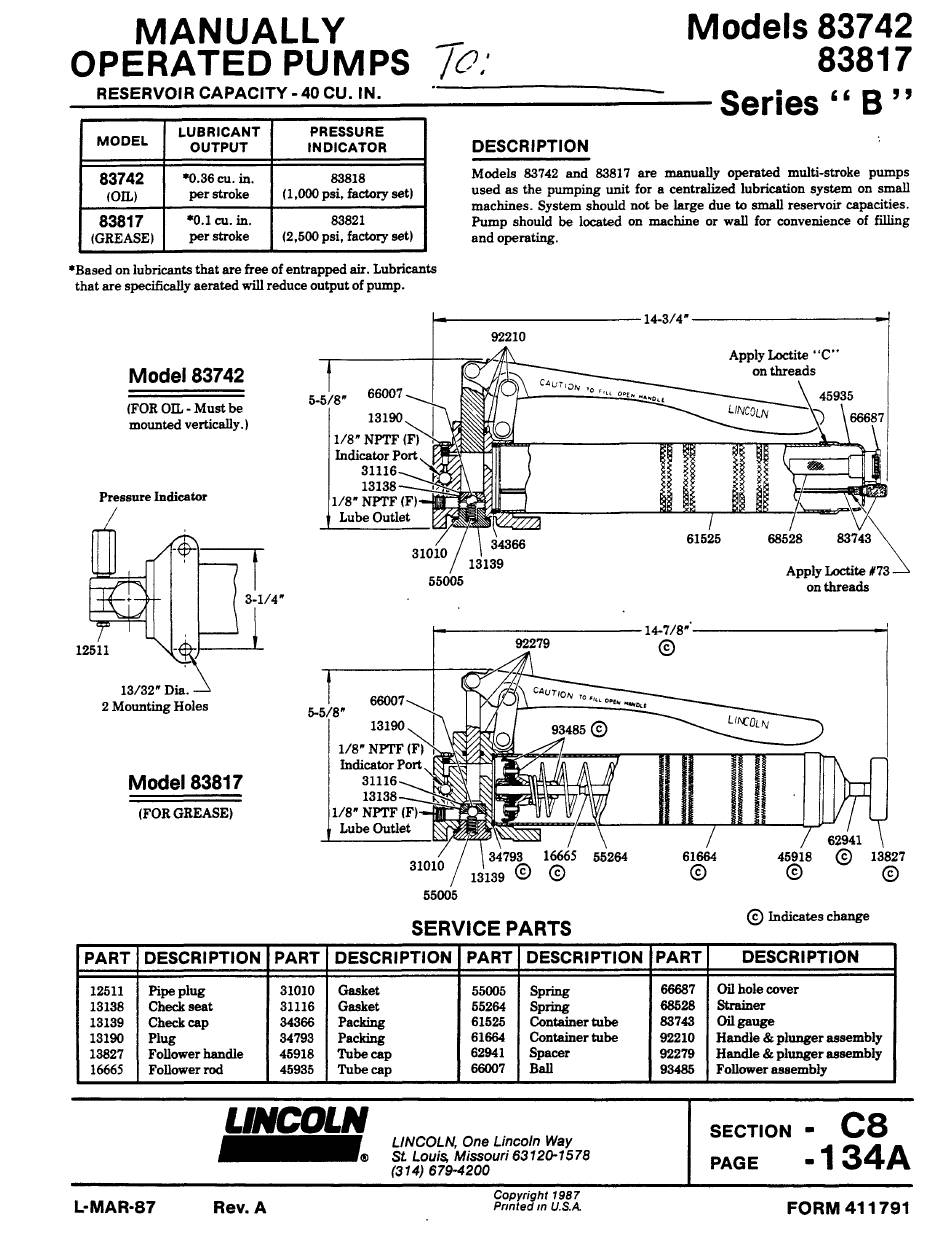

Lincoln 83742 Manual

MANUALLY
Models 83742
OPERATED PUMPS
83817
RESERVOIR CAPACITY -40 CU. IN.
Series " B"
MODEL
LUBRICANT PRESSURE
OUTPUT INDICATOR
DESCRIPTION
83742
*0.36 cu. in. 83818
Models 63742 and 63817 are manually operated multi-stroke pumps
(OIL)
per stroke (1,000 psi, factory set)
used as the pumping unit for a centralized lubrication system on small
machines. System should not be large due to small reservoir capacities.
83817
*0.1cu.in.
83821
Pump should be located on machine or wall for convenience of filling
(GREASE)
per stroke
(2,500 psi, factory set)
and operating.
*
Based on lubricants that are free of entrapped air. Lubricants
that are specifically aerated will reduce output of pump.
Model 83742
(FOR OIL - Must be
mounted vertically.)
Model 83817
(FOR GREASE)
SERVICE PARTS
©
Indicates change
PART DESCRIPTION
PART DESCRIPTION PART DESCRIPTION PART DESCRIPTION
12511 Pipe plug 31010 Gasket
55005
spring
66687 Oil hole cover
13138 Check seat 31116 Gasket
55264 spring
68528 Strainer
13139 Check cap 34366 Packing 61525 Container tube 83743 oil gauge
13190
Plug 34793 Packing
61664
Container tube
92210 Handle &plunger assembly
13827 Follower handle 45918 Tube cap 62941 Spacer
92279 Handle &plunger assembly
16665 Follower rod 45935 Tube cap
66007
Ball
93485 Follower assembly
LINCOLN
LINCOLN, One Lincoln Way
SECTION
-C8
-
®
St. Louis, Missouri 63120-1578
(314) 679-4200
PAGE
-134A
L-MAR-87
Rev. A
Copyright 1987
Printed inU.S.A
FORM 411791
