- Page 1 FLARE - X HIDEAWAY K-FX1 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2019...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
- Page 3 Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products.

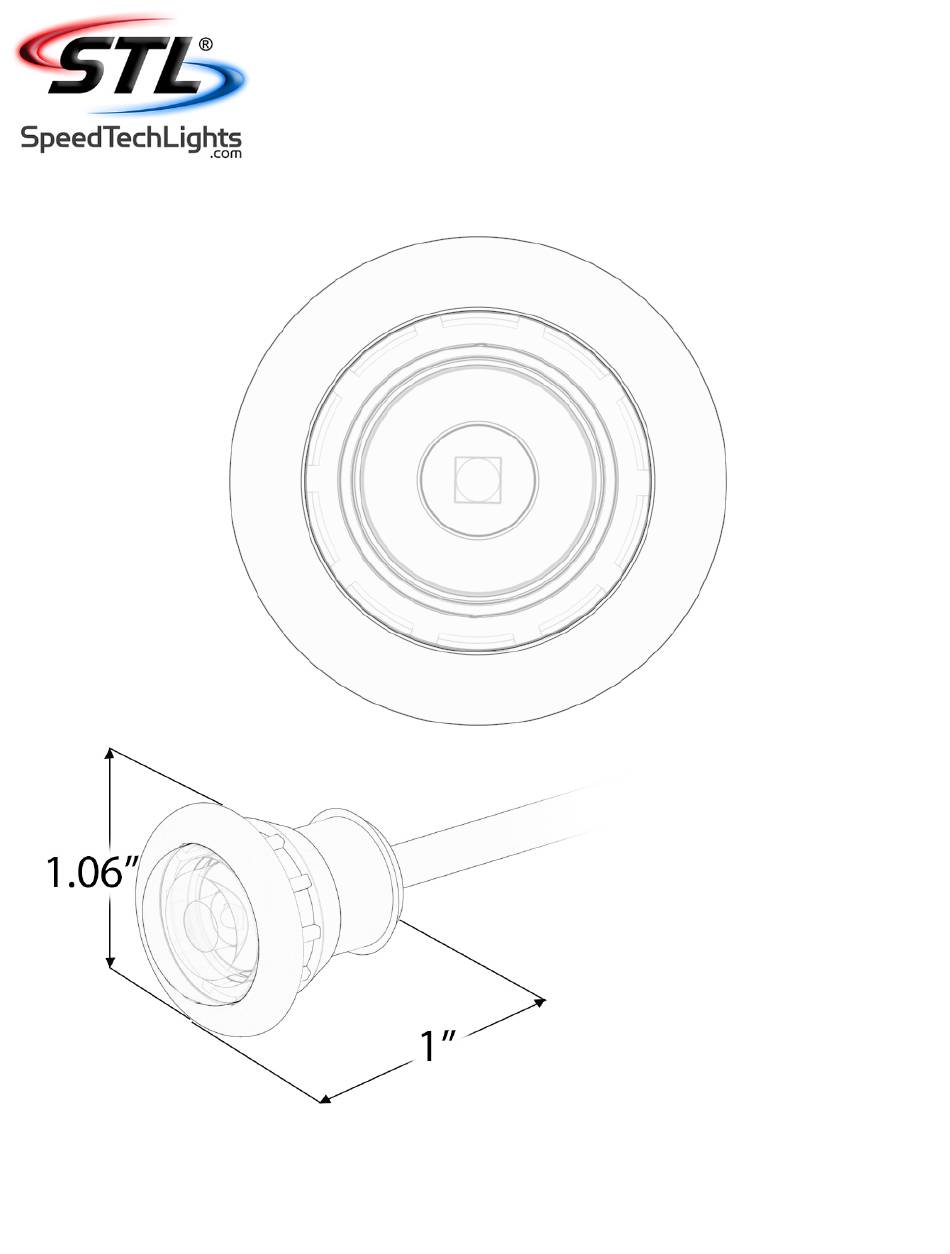

- Page 4 FLARE - X HIDEAWAY Wiring Diagram Wire Color Function Positive Red* Negative Black* * Indicates a main power cable. Specifications Voltage 12 VDC Amps < 0.2 Optic Dome Lens LED Count Cable Length 1.6’ Extension Cable (Sold Separately) • If you are extending the main cables, just add the desired length of cable to the end of the main cables coming out of the unit.
