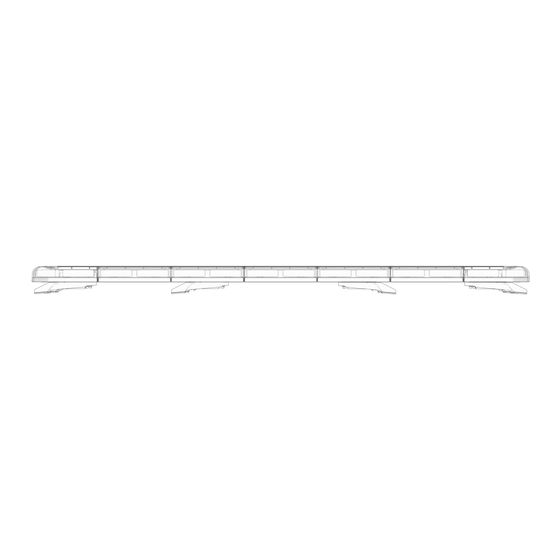

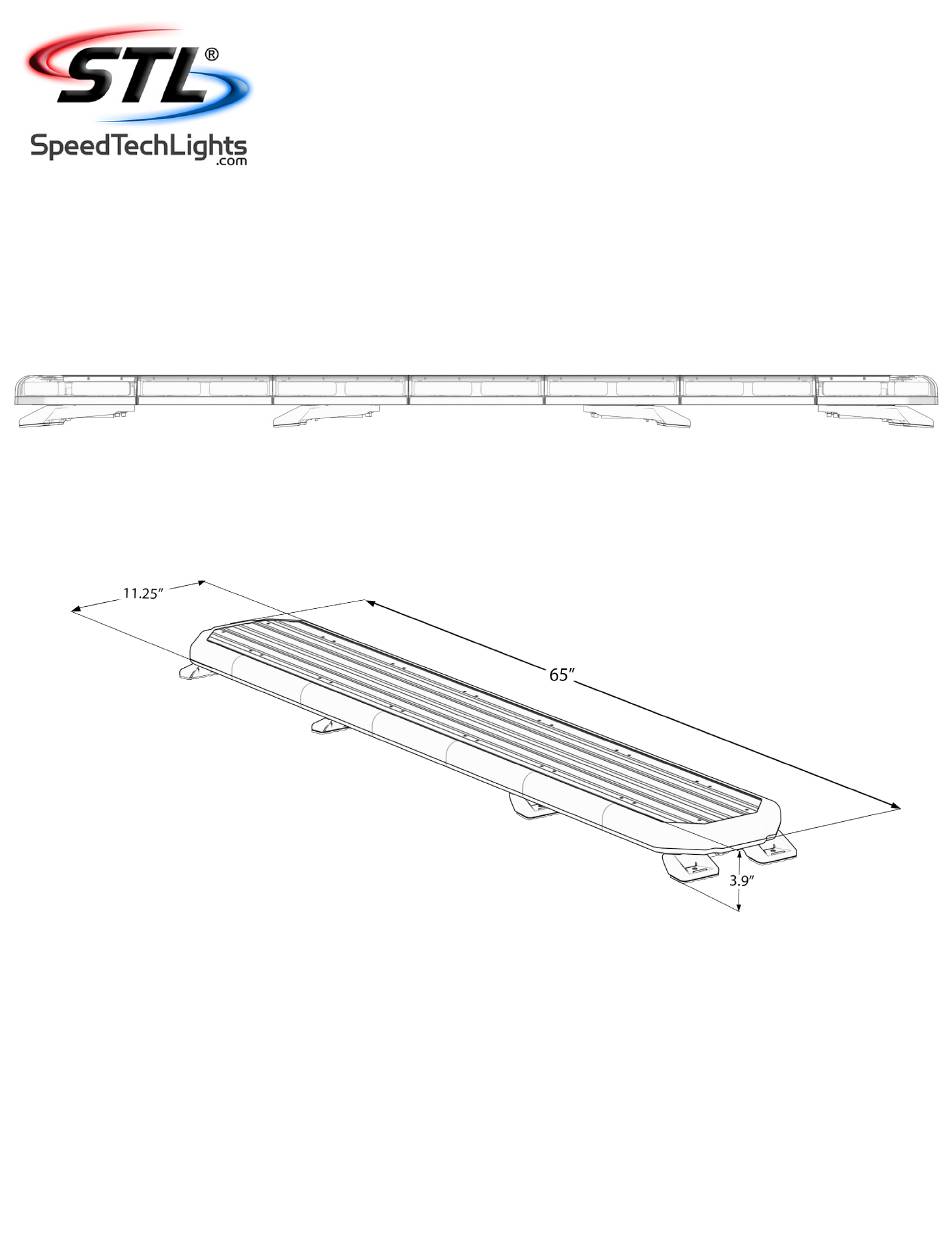

- Page 1 K-FORCE TOW 65 ® FULL LIGHT BAR F-TKFTOW63 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2024...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
- Page 3 Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products.
- Page 4 AUX Positive AUX Negative Blue Control box back light * White * Only functional when using in conjunction with STL Supreme Control Box (Sold separately) Stop / Tail / Turn Wiring Diagram Wire Color Function Stop / Turn Driver Side...
- Page 5 K-FORCE TOW 65 ® FULL LIGHT BAR Supreme Control Switch Box Operation (Sold Separately) Slide Switch: • Off position: Turns off warning functions of the Light Bar. • 1st position: Powers only the back of the Bar and rear facing 45° warning modules. •...
- Page 6 K-FORCE TOW 65 ® FULL LIGHT BAR Foot Brackets (Included) • This unit comes included with adjustable Foot Brackets. • Adjust the Foot Brackets along the length of the aluminum track accordingly to create a flat, even contact with the roof. Universal Mounting Brackets (Included) •...
- Page 7 About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by pushing the Flash Pattern button on the Supreme Control Box to cycle through the various patterns.
