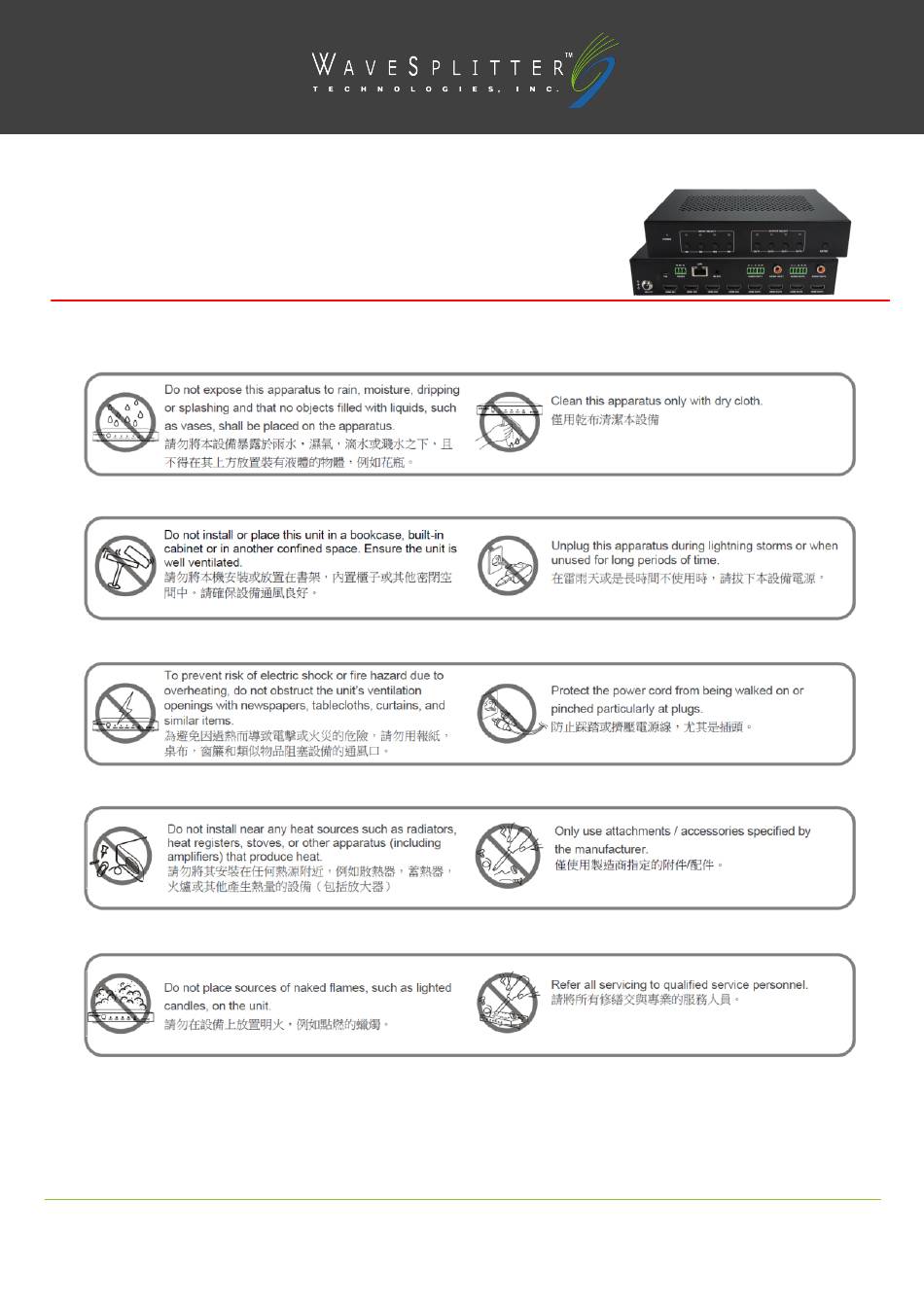

- Page 1 OPERATION MANUAL Model No. WST-PMX003 HDMI 4K60Hz 4x4 Seamless Matrix with Audio Extraction, Pro Safety Instruction Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
-
Page 2: Key Features
12V/3A Multi-Country Power adapter x 1 IR receiver x 1 Remote Control x 1 Phoenix Male Connector (3.5mm, 3-Pin) x 1 Phoenix Male Connector (3.5mm, 5-Pin) x 2 Rackmount Ears Set x 1 Panel Description Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... -
Page 3: Installation
2. Press one button of IN 1-4 to select an input port. The LED will light up one specific input port is selected. 3. Press the ENTER button to implement the selection. The selection takes effect when the LEDs are off. Method B：IR Remote Control Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800... - Page 4 The following window pops up. Input the password (default password: admin) and click Login. Input a new password in the dialog box and click Apply to enter the main page. The password shall be alphanumeric with 4 to 16 characters in length. Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 5 Default setting: Input 1 is routed to Output 1, …, Input (n) is routed to Output (n), n = 1, 2, 3, 4. Video Details：Click to view detailed information of input and output ports including status, resolution, framerate, etc., see following. Ÿ Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
-
Page 6: Video Output Resolution
De-embedded Audio Mute ON： Select to mute de-embedded audio for selected audio output ports. OFF： Select to unmute de-embedded audio for selected audio output ports. Default setting：OFF ▼ Video output resolution Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... - Page 7 This section allows you to change to new input ports’ names. Save：Click to save and apply all changes. Reset：Click to reset all changes. Note： The length of each new name shall not exceed 15 characters Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
-
Page 8: Zone Naming
This section allows you to configure EDID setting for each input port. Available EDID options are provided from the dropdown menu, click to select a desire option. Copy From Output 1 Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... -
Page 9: Cec Control
Write：Click to write EDID information to the selected input port. Export:： Click to export EDID file to your local computer. Import：Click to import EDID file from your local computer. ▼ CEC Control Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... -
Page 10: Change Login Password
ON：Select to enable HDCP encryption for the selected input port. OFF：Select to disable HDCP encryption for the selected input port. Default setting：ON ▼ Change Login Password This section is to change login password. Default setting：admin Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... -
Page 11: Custom Web Ui Logo
Note： The new logo used should be in PNG format and less than 300x60 pixels ▼ System Version This section provides Web UI and MCU version information. ▼ FW Update To update device’s firmware: Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... - Page 12 PC are configured correctly. A professional RS232 serial interface software (e.g., Serial Assist) may be needed as well. Telnet. Connect a control PC to the LAN port of the device. Before you intend to control the device through telnet API, you shall establish Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 13 GET IPADDR<CR><LF> Response： IPADDR 172.16.18.173 MASK 255.255.255.0 GATEWAY 172.16.18. Note： When all is configured properly, you can control the device through commands, which are available in the separate document “API Command Set_MX0404-N301-A00”. Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
-
Page 14: Specifications
4096x2160@60Hz / 3840x2160@60Hz / 2560x1600@60Hz / 1920x1200@60Hz / 1920x1080@60Hz Audio Format HDMI Audio Pass through up to 7.1CH, Audio Format∶LPCM, Dolby TrueHD and DTS-HD Master Audio S/PDIF : PCM2/ Dolby 5.1, DTS 5.1 IR Frequency 38 kHz Power Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... - Page 15 Main Material Iron Size W x D x H 215 x 120.2 x 42 mm Weight 1200g Country of Origin Taiwan Certification Safety & Emission CE / FCC / RoHS / REACH Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
