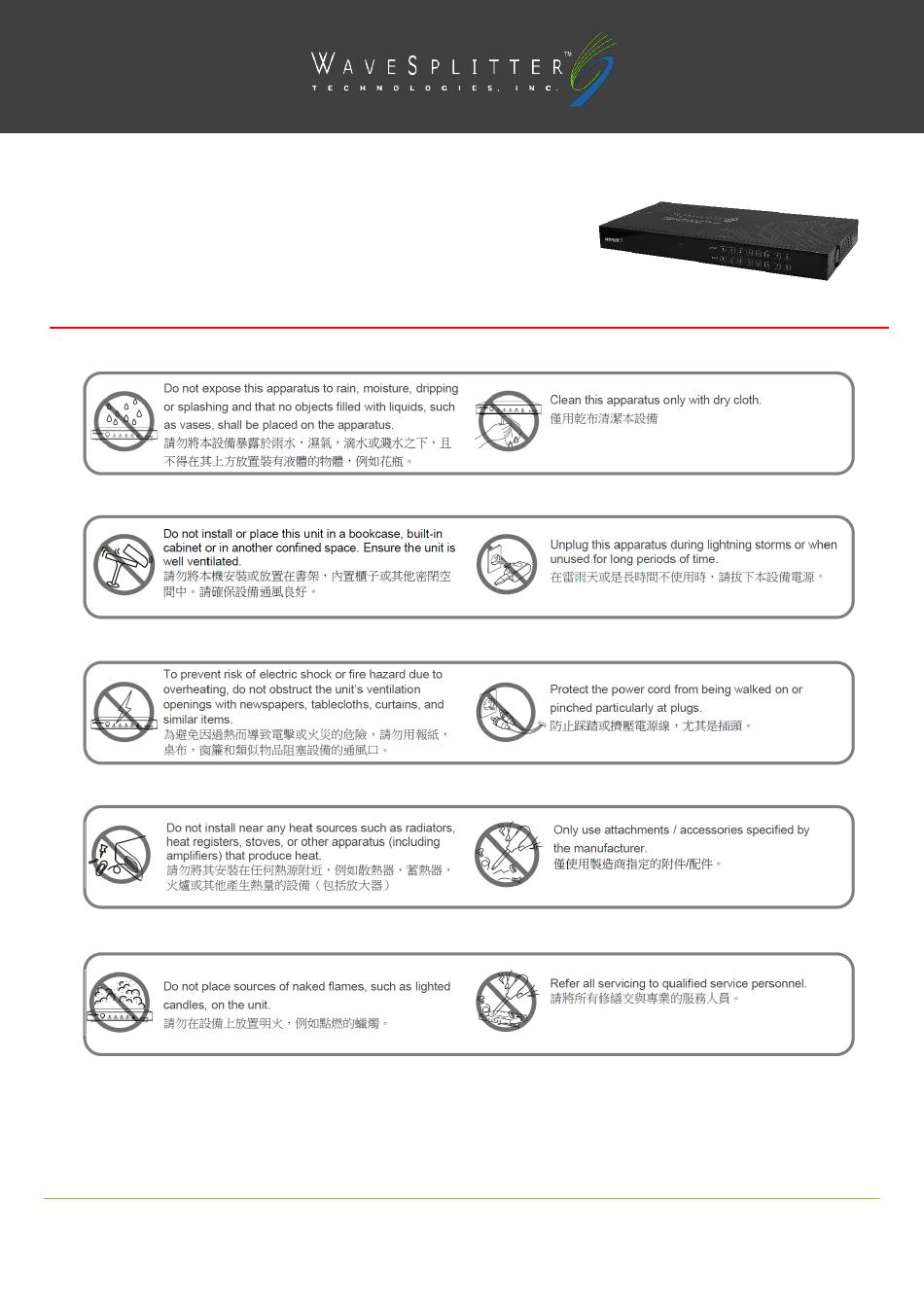

- Page 1 OPERATION MANUAL Model No. WST-PMX002 HDMI 4K@60Hz 8x8 Matrix with Audio Extraction, Pro Safety Instruction Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 2 OPERATION MANUAL Introduction WST-PMX002 is a 1RU size standalone 4K HDR 8x8 HDMI2.0 matrix switcher which can switch eight HDMI video inputs and eight HDMI video outputs flexibly. The unit comes with full support for 18Gbps bandwidth, the resolution up to 4K@60Hz (4:4:4, 8-bits) and back compatible with 1080p@60Hz, it can also support HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a...
- Page 3 Begin default EDID selection CLEAR Clear the previous IR operation procedure STATUS Preset output status PRESET Preset mapping mode LEARN EDID Begin EDID learning from one output TAKE Trigger the previous setting Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 4 Preset + Output Number (1-8 storage site) + Take 1.Press “PRESET” button Recall from Mapping E`x: Preset saved mapping from Recall from Mapping 2.Press output number key “5” to select the storage site 5 Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 5 1. Press number key twice (+8)- Ex. Press number key “3” twice, Front panel: 11 2. Press “Mute”- Front panel:17 Method C: Software Control through RS-232 port or Network Download the Driver“Matrix Manager ”from Wavesplitter Official Website. Install the Driver Note System Requirement 1.
- Page 6 Switch the input for each output ARC: Enable/ Disable ARC Recall Mapping Select the stored Mapping (1-16) Click “Recall” button to recall previous mapping which are saved Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 7 Click “Apply” button to learn from display EDID -File to Input Click “Load File” button to select the EDID file Select designated Input Click “Apply” button to load EDID File Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 8 Select Input or HDMI output Click “View” button to read and analyze the EDID Rename ◼ A. Rename I/O Rename the Inputs Rename the Outputs Rename Mapping Rename the Mappings Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 9 Read the IP address from the device (*The default IP address is 192.168.1.70) Firmware Update -Main Board Click “Main Board” button and another window will pop-up Click “File” button to load firmware Click “Start” button to do firmware update Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 10 Click “Input” button and another window will pop-up Click “FILE” button to load firmware Click “Start” button to do firmware update Please power cycle after firmware update complete Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 11 System -Factory Reset To do factory default reset -Firmware Version To get the F/W version information Method D: Web Interface Control The default IP address: 192.168.1.70 ROUTING ◼ Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 12 Click “Recall” button to recall previous mapping which are saved SETTING ◼ A. Rename I/O Rename the Inputs Rename the Outputs Rename Mapping: Rename the Mappings Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 13 Click “Apply” button to learn from default EDID Learn EDID from Display to Input Select output Select designated Input Click “Apply” button to learn from display EDID Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 14 OPERATION MANUAL Application Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 15 Main Material Iron Size W x D x H 443 x 215 x 50 mm Weight 2720g Country of Origin Taiwan Certification Safety & Emission CE / FCC / RoHS / REACH Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
